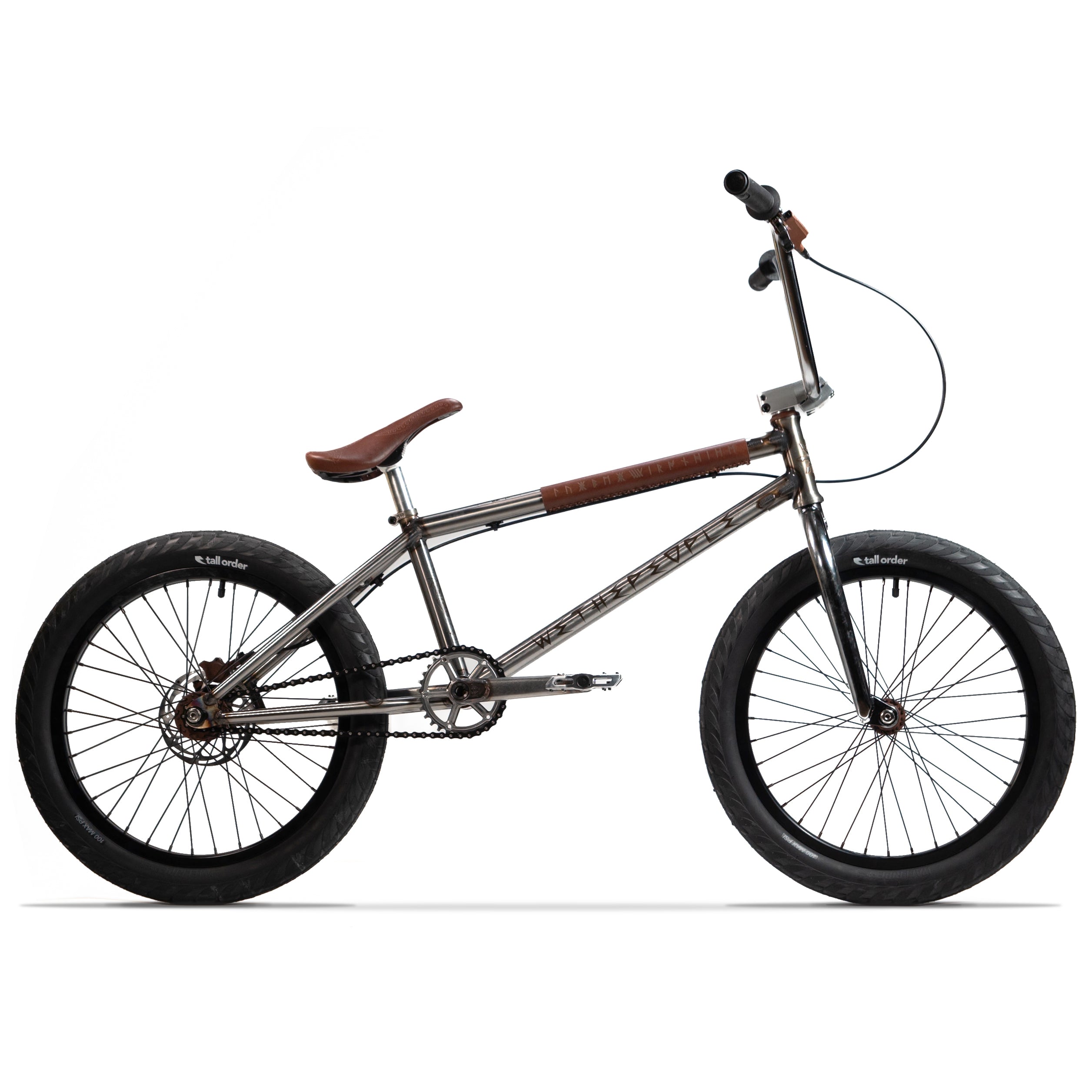

Introducing the Wethepeople X LUX LAB 'Ironhide' Chaos Machine 20 Inch Custom Bike: a silver BMX equipped with a durable frame, responsive pedals, and a robust chain. It features prominent black tires branded with "Salt Tracer," brown grips, a matching brown saddle, and cutting-edge Eclat Controller Bars for superior handling.

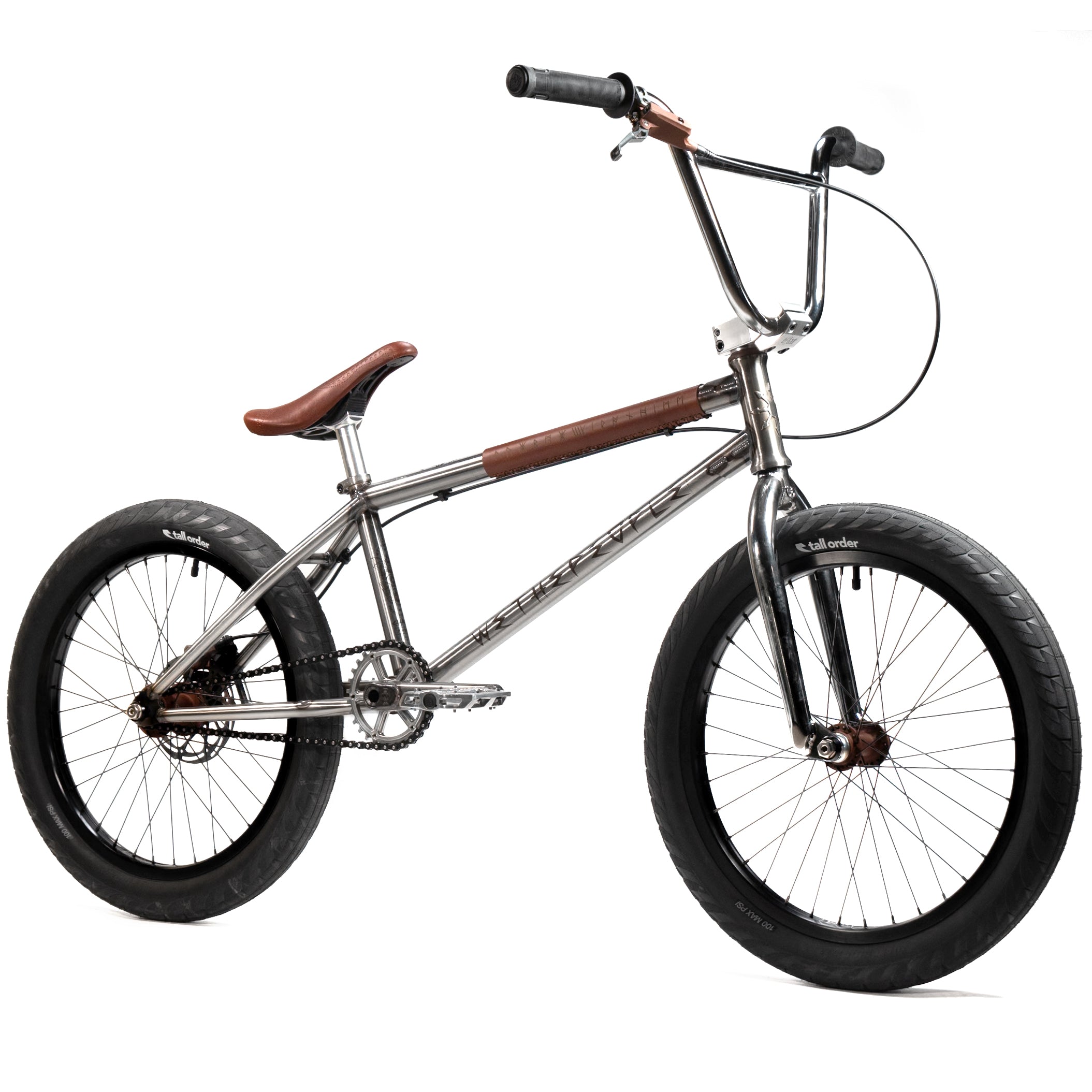

A Wethepeople X LUX LAB 'Ironhide' Chaos Machine 20 Inch Custom Bike, featuring silver frame with brown handlebar grips and seat, black tires, and no visible front or rear brakes, displayed against a white background.

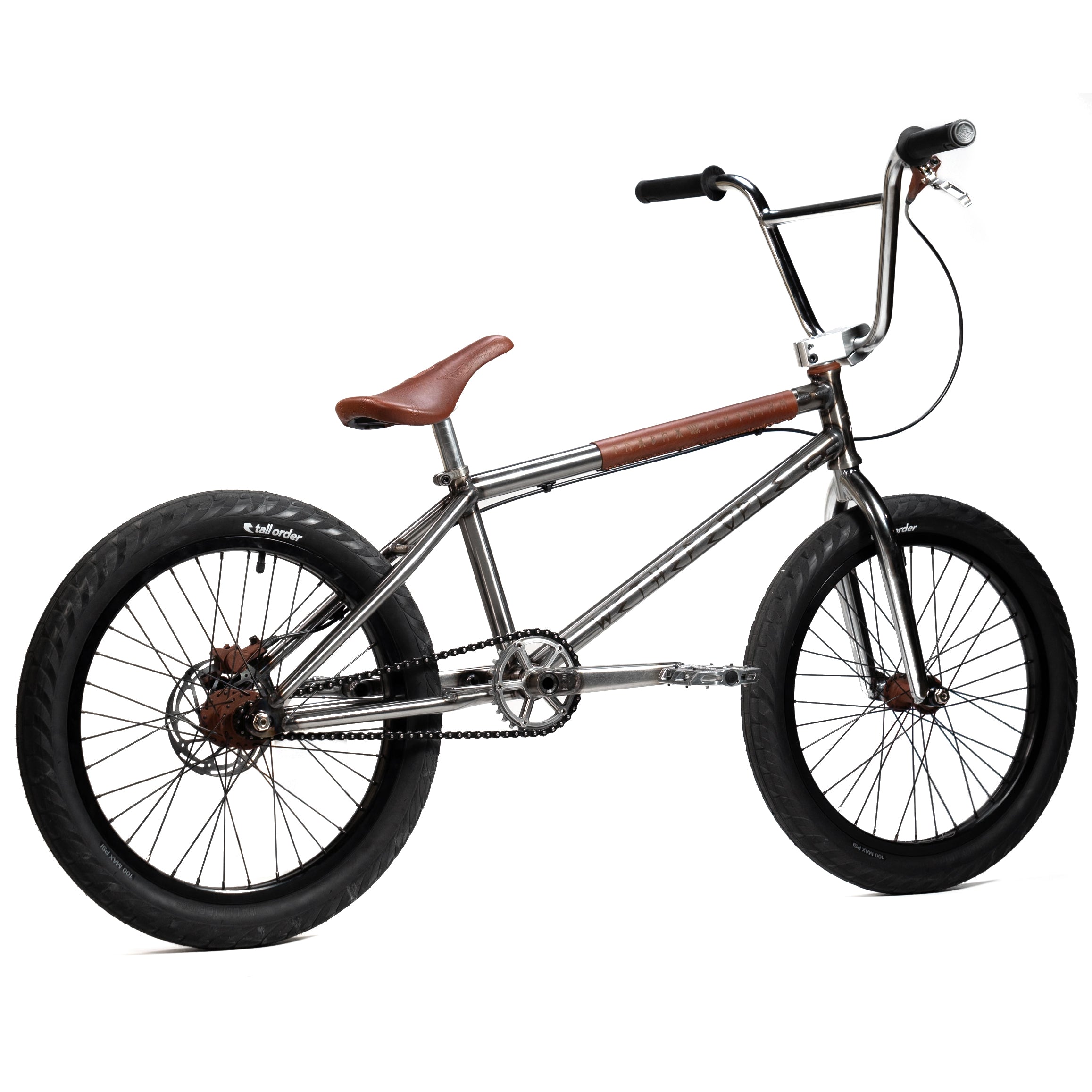

The Wethepeople X LUX LAB 'Ironhide' Chaos Machine 20 Inch Custom Bike boasts a steel frame, thick black tires, and a brown leather saddle. Featuring high-rise Wethepeople Chaos Machine handlebars and a gear system, this ride combines style with performance.

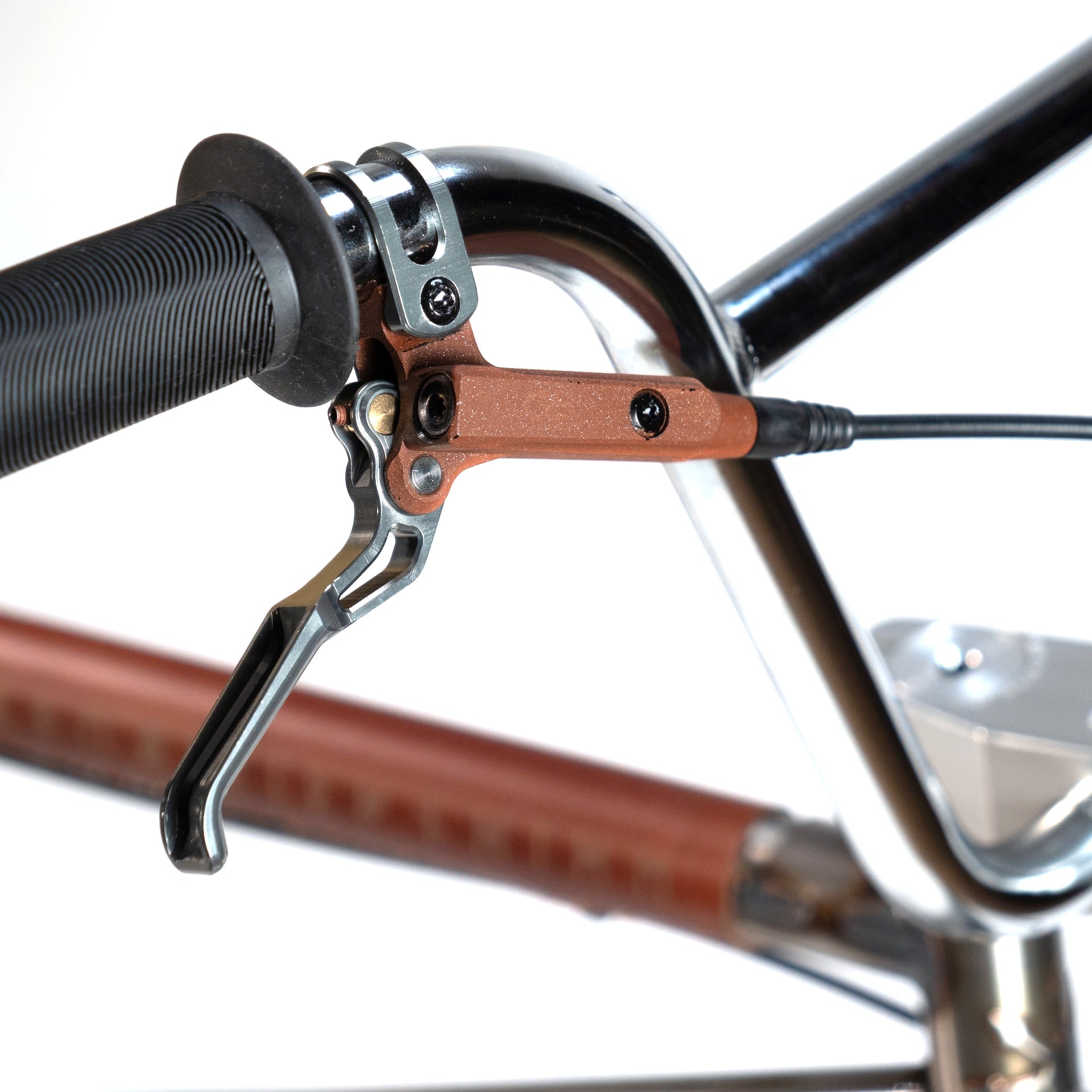

Close-up of a bicycle handlebar featuring an Eclat Controller Bars brake lever and grip. The partly visible frame suggests this might be a Wethepeople X LUX LAB 'Ironhide' Chaos Machine 20 Inch Custom Bike.

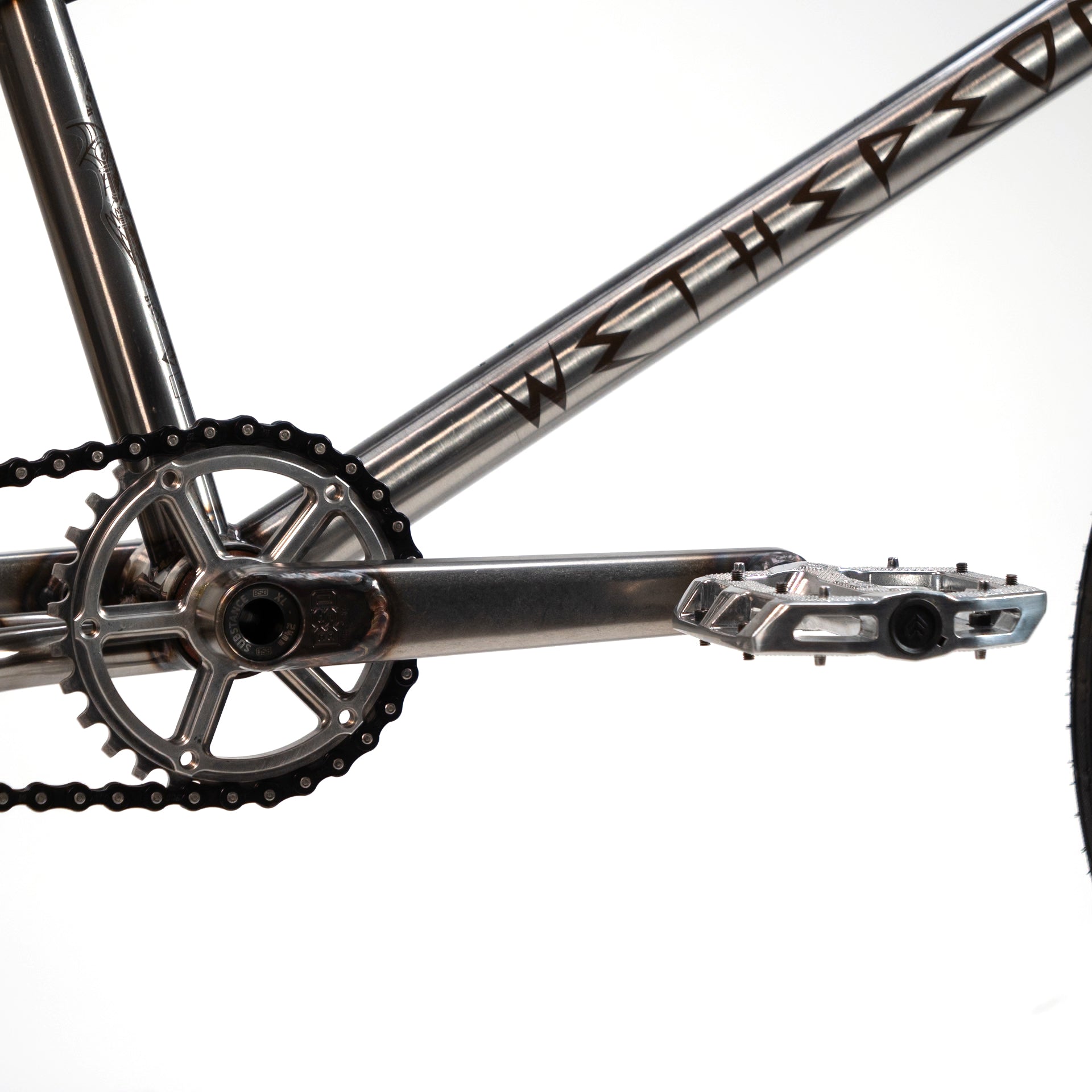

Close-up view of a bicycle crankset and pedal attached to a metallic bike frame with visible chainring and chain, part of the sleek design of the Wethepeople X LUX LAB 'Ironhide' Chaos Machine 20 Inch Custom Bike.

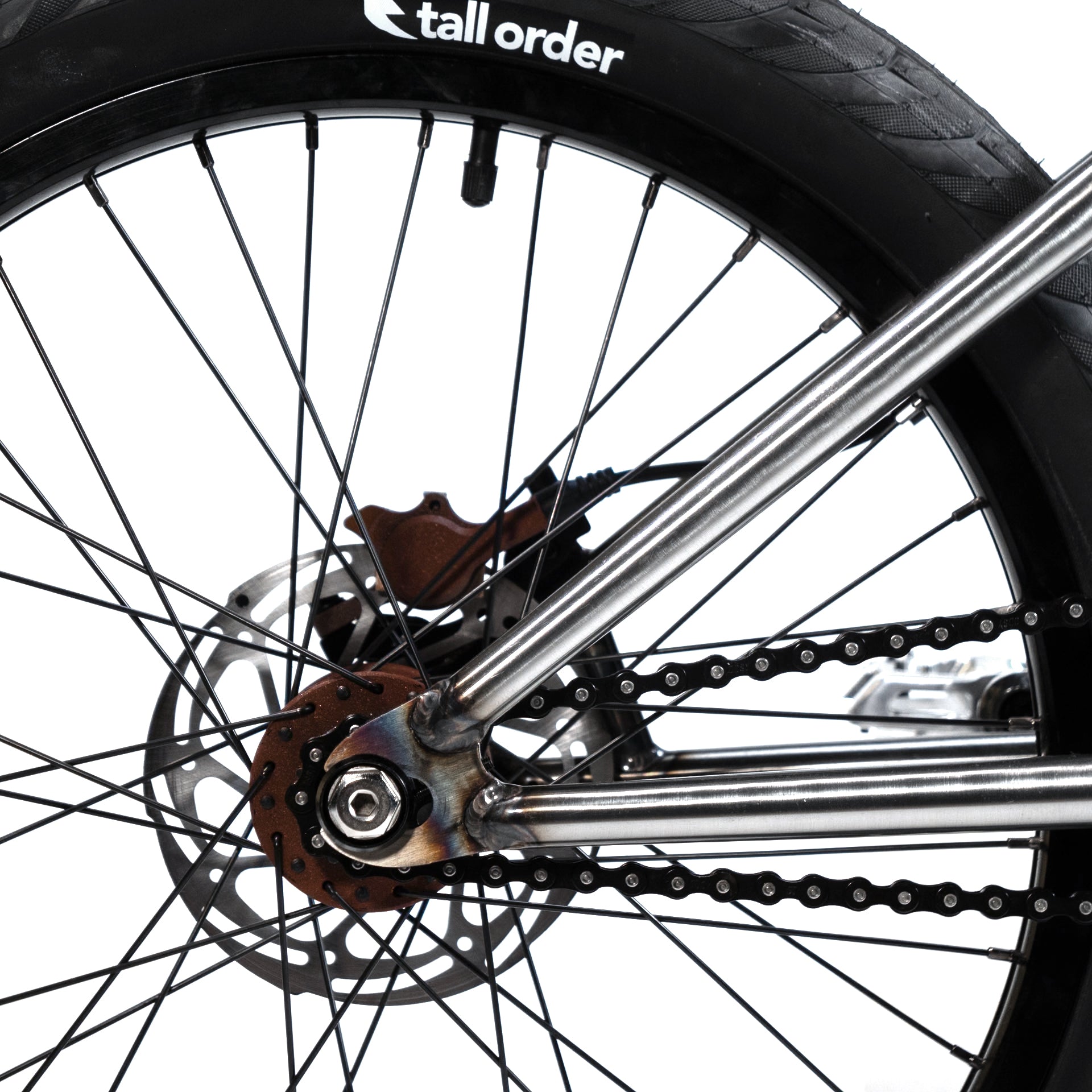

Close-up of a Wethepeople X LUX LAB 'Ironhide' Chaos Machine 20 Inch Custom Bike's rear wheel showing the tire, disc brake, chain, and metal frame against a white background.

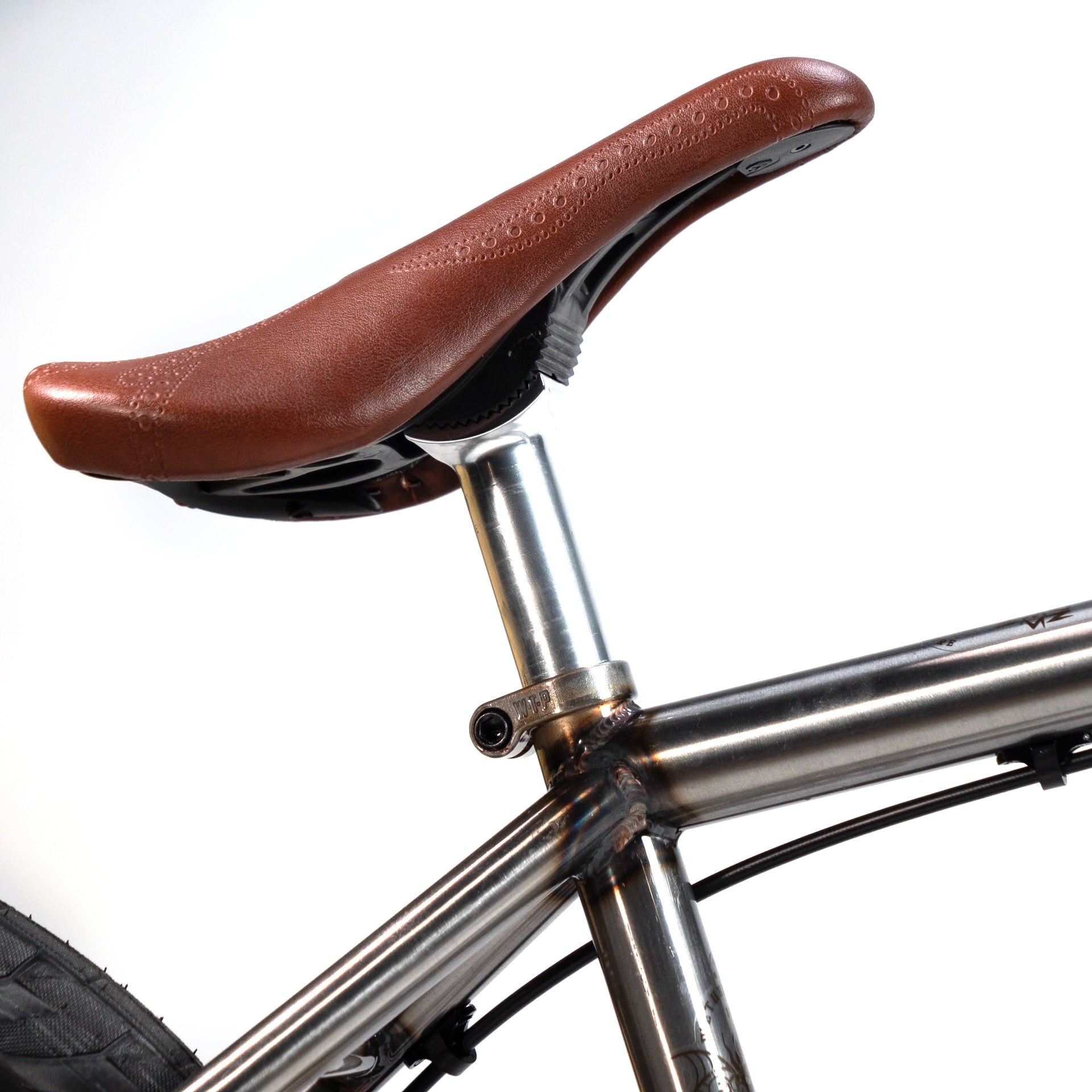

Close-up of the bicycle seat and seat post on a silver frame, featuring a brown leather saddle and a partially visible rear tire—crafted with precision akin to the Wethepeople X LUX LAB 'Ironhide' Chaos Machine 20 Inch Custom Bike.

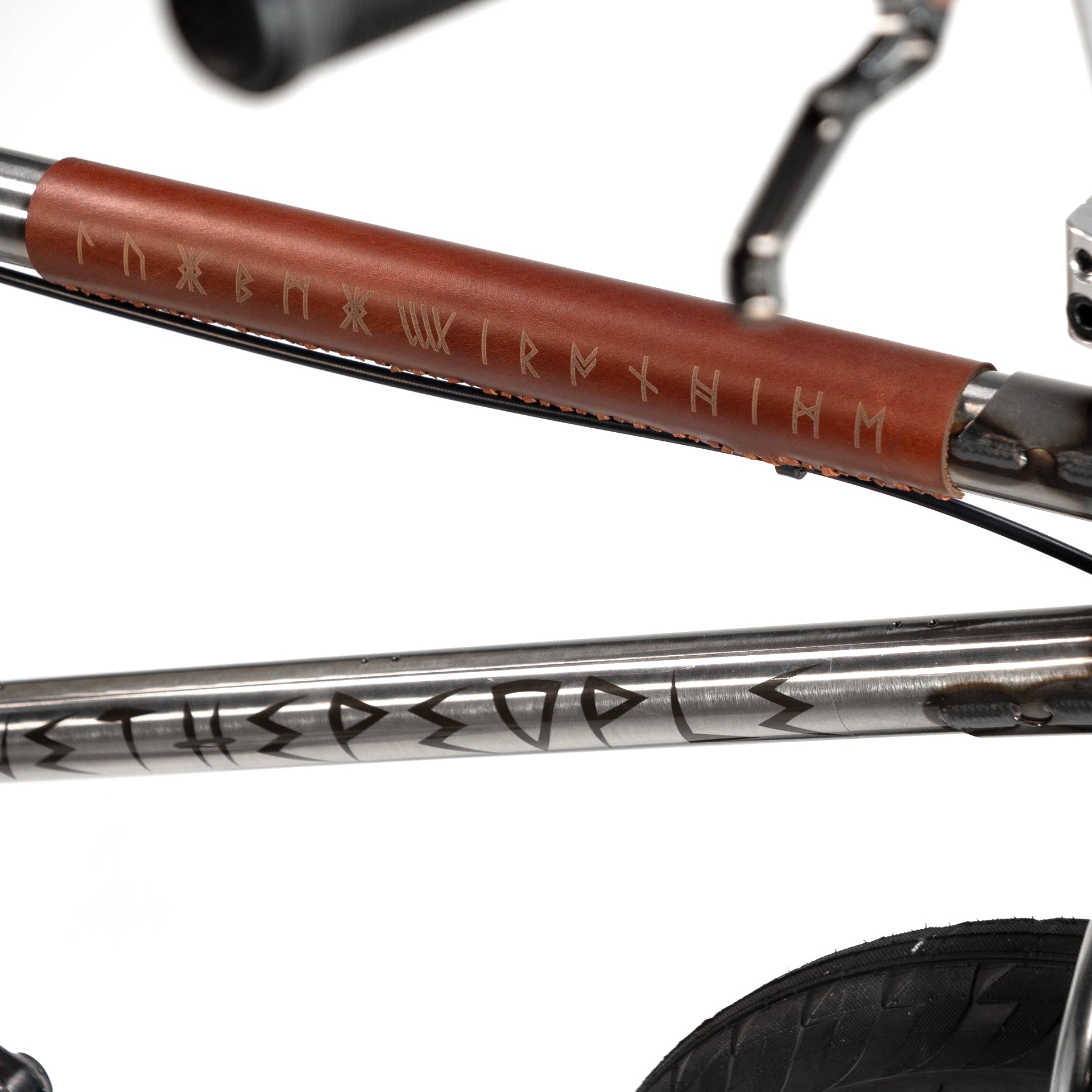

A Wethepeople X LUX LAB 'Ironhide' Chaos Machine 20 Inch Custom Bike featuring runic inscriptions on the metal bar, complemented by a leather attachment adorned with additional runes.

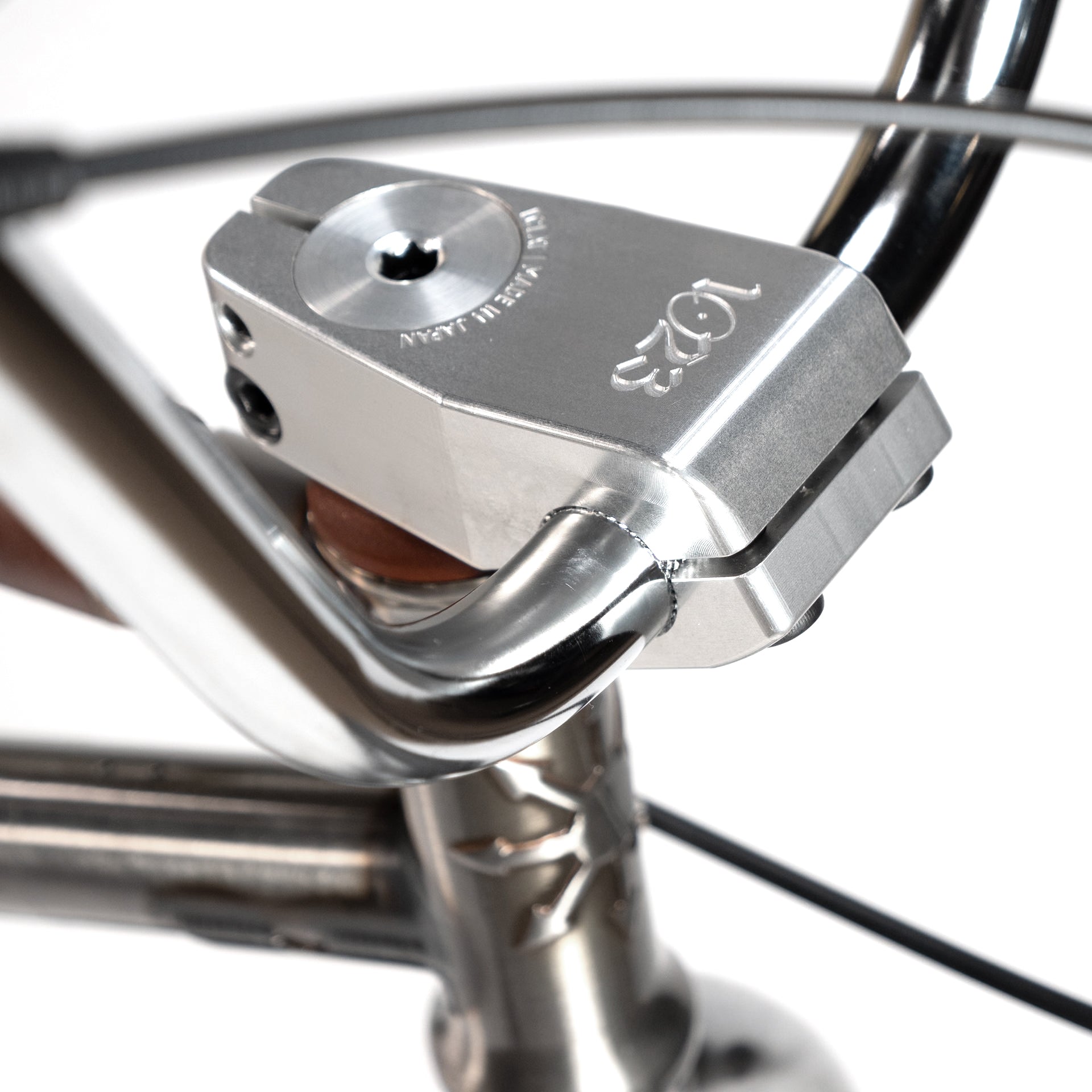

Close-up of a silver bike handlebar lock mechanism attached to the Wethepeople X LUX LAB 'Ironhide' Chaos Machine 20 Inch Custom Bike, with engraved text visible on the lock.

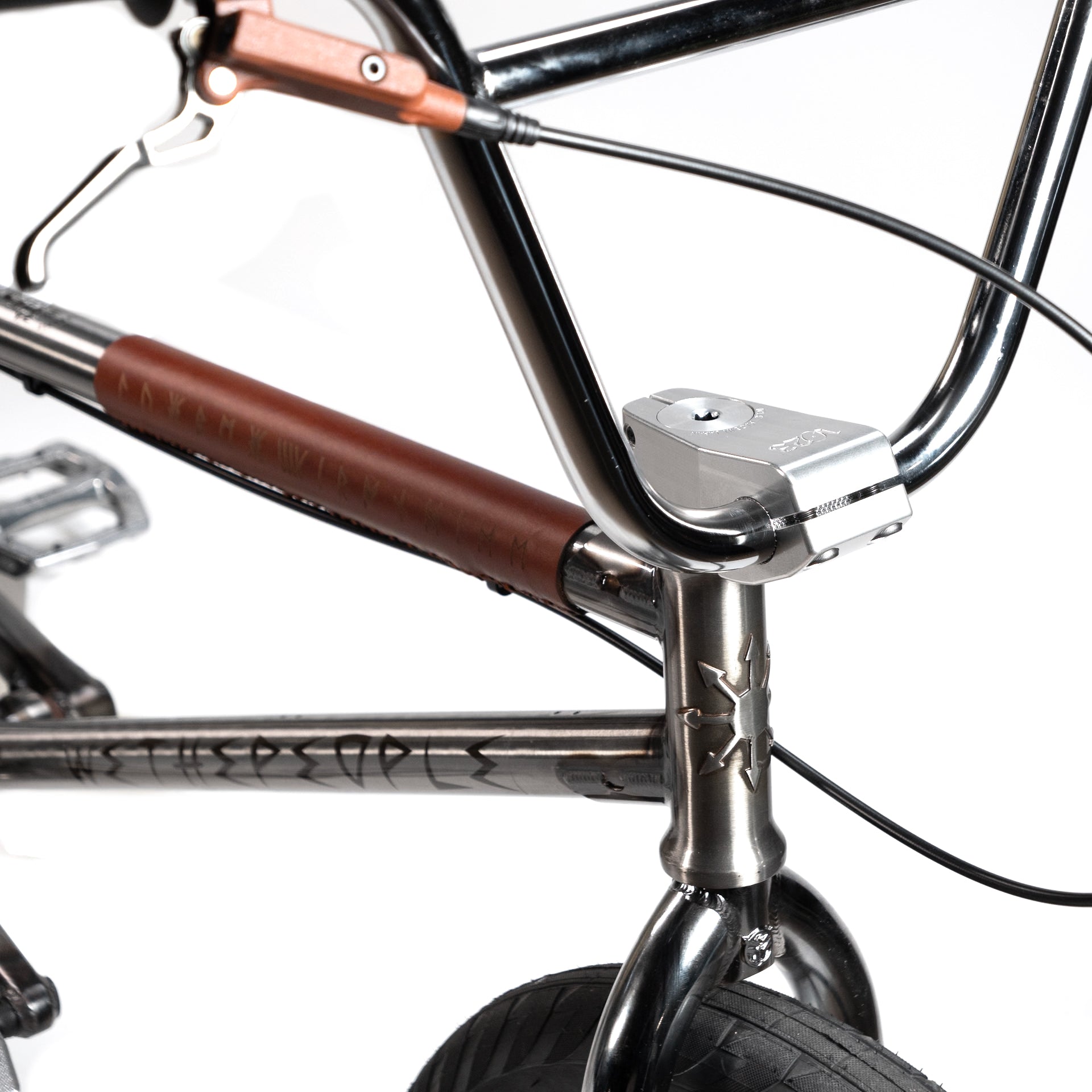

Close-up of the front handlebar area of the Wethepeople X LUX LAB 'Ironhide' Chaos Machine 20 Inch Custom Bike, showcasing Eclat Controller Bars, brake cables, metallic frame, and a partially visible front tire. The frame features a brown leather grip with engraved text.

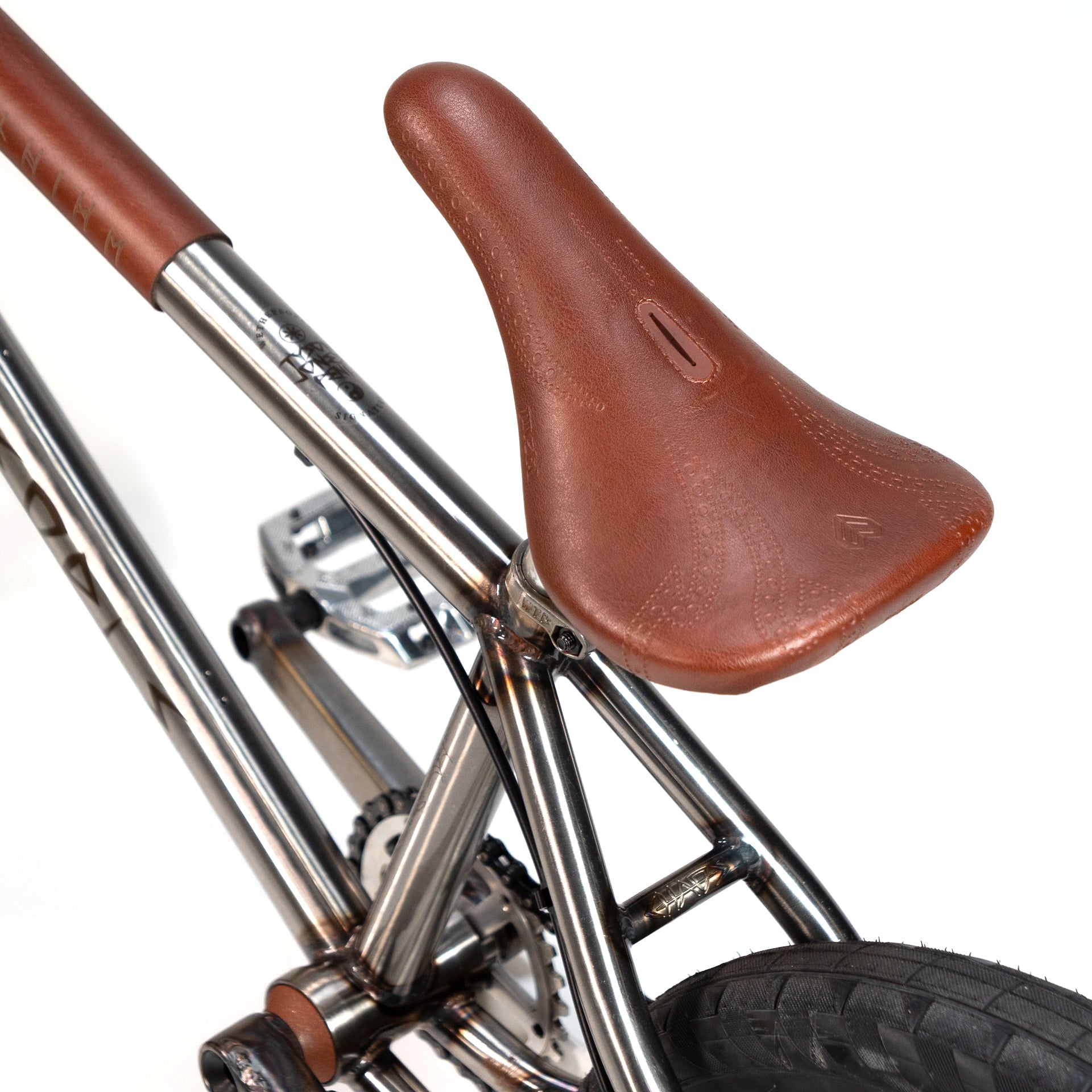

Close-up of a brown leather bike saddle attached to a metal-framed bicycle, featuring the Wethepeople X LUX LAB 'Ironhide' Chaos Machine 20 Inch Custom Bike rear wheel and pedal assembly.

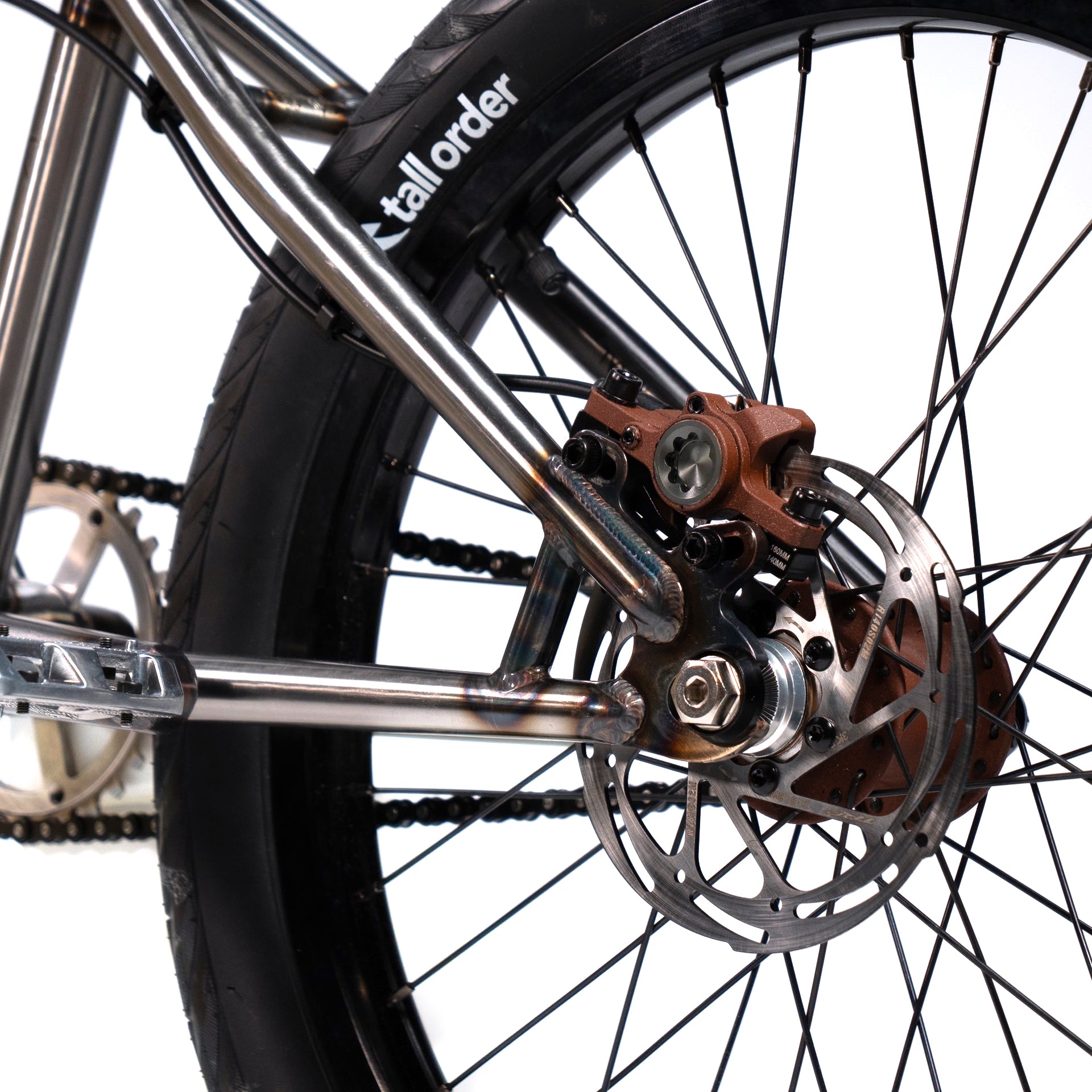

Close-up of a bicycle rear wheel, highlighting the disc brake rotor and caliper. The bike frame, equipped with Wethepeople X LUX LAB 'Ironhide' Chaos Machine 20 Inch Custom Bike elements, and tire are partially visible.

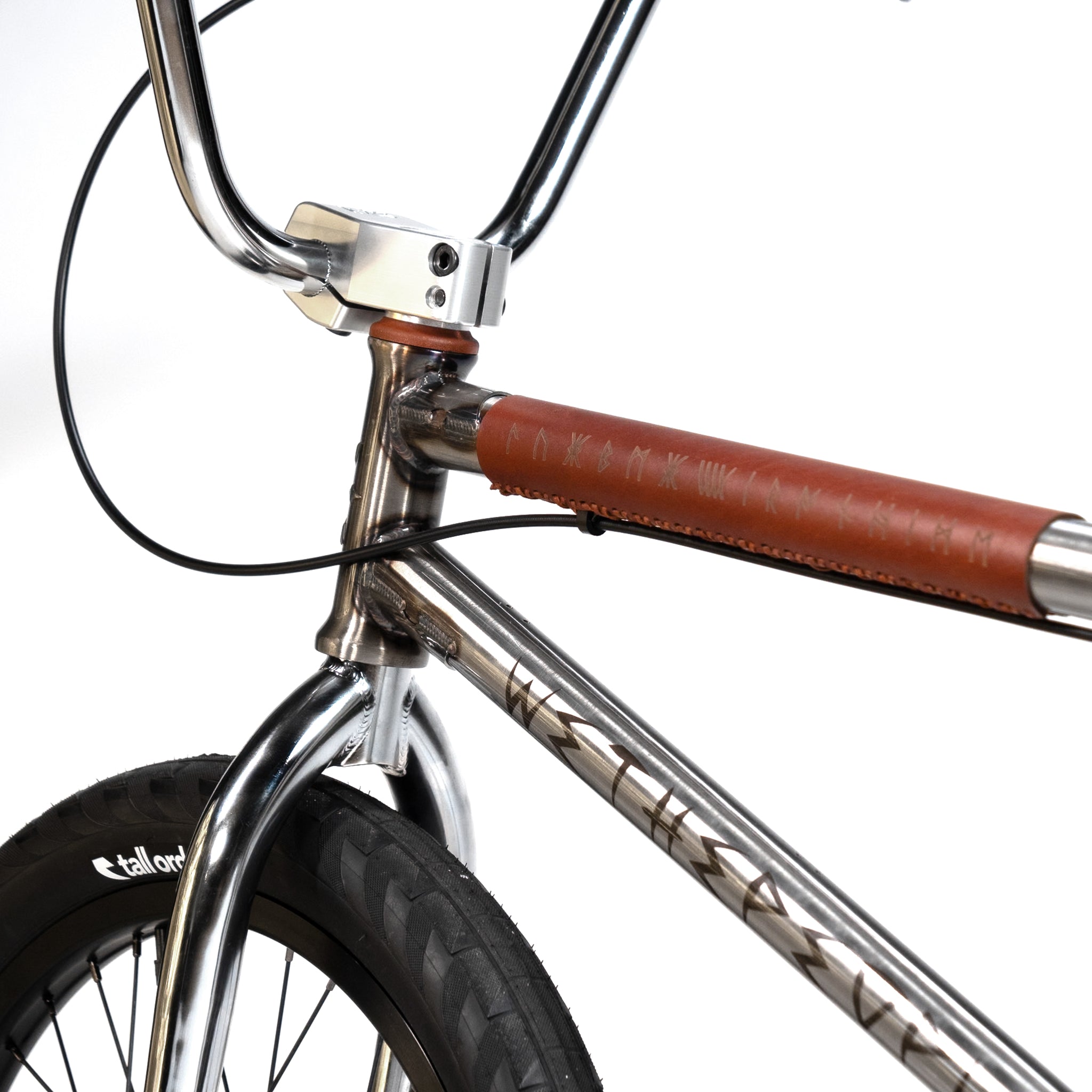

Close-up of the front section of the Wethepeople X LUX LAB 'Ironhide' Chaos Machine 20 Inch Custom Bike, showcasing the Eclat Controller Bars, front tire, and brown leather-wrapped top tube. The metallic frame and handlebar stem exemplify a sleek design.

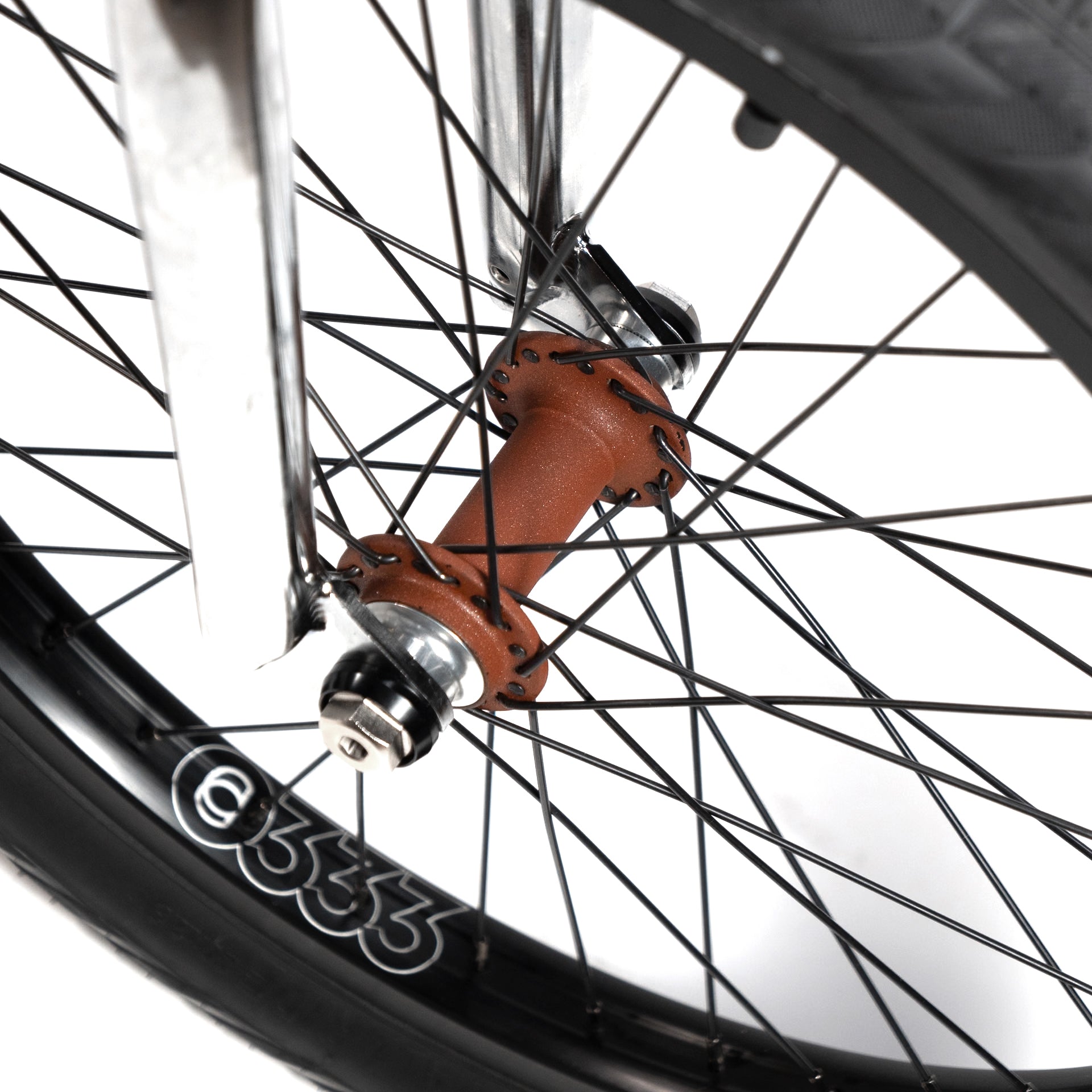

Close-up view of a bicycle wheel's hub and spokes, showcasing a rusty red hub, black spokes, and part of the tire with the number 6333 on the rim. This bike features components from the Wethepeople X LUX LAB 'Ironhide' Chaos Machine 20 Inch Custom Bike for added durability.

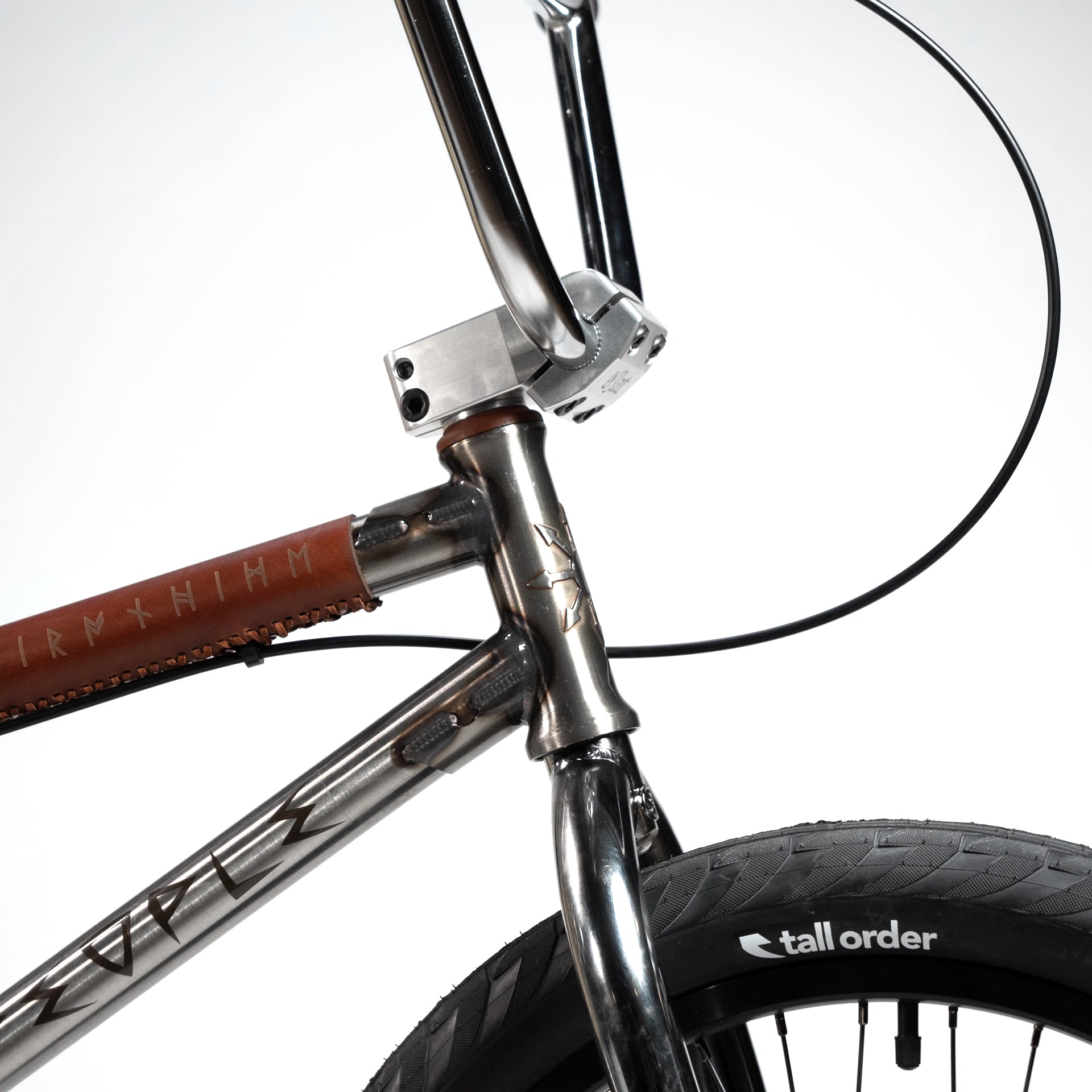

Close-up of the Wethepeople X LUX LAB 'Ironhide' Chaos Machine 20 Inch Custom Bike's front frame and tire. The frame features a distinctive design with Nordic runes and a leather wrap. The Eclat Controller Bars add an extra layer of style, while the tire proudly displays the "tall order" branding.

Description
We're really turning up a notch in the LUX LAB with our latest creation, 'Ironhide'. Built around a raw Wethepeople Chaos Machine frame, Ironhide is decked out with custom rust paint accents for a rugged, weathered finish that oozes character. The bike features a custom leather top tube cover with a laser-cut design, seamlessly blending style and function. Add in a precision-lathed counter-bored Eclat stem (done in house) and an acid-stripped Odyssey sprocket, and you've got a BMX that's truly one of a kind.

This thing is long and stable and ready to rip the trails or pump track.

About the Brand
Wethepeople BMX began making its mark on history almost 15 years ago. Designing the first rough drawings of their frames and forks around the same time as the world started to see BMX in a different light, a time when rails were first grinded and the possibility that riding the streets was in fact the true way forward. To achieve their aims, Wethepeople knows exactly how to deploy their strengths with an efficiency that is unmatched in the BMX industry.

Features
  • One off LUX LAB build. Built around a raw Wethepeople Chaos Machine frame with custom rust paint accents for a rugged, weathered finish.
  • Custom leather top tube cover. A laser cut design that blends style and function, and you will not see it on anyone else's bike.
  • Counter bored Eclat 1023 stem. Precision lathed in house, alongside an acid stripped Odyssey Utility sprocket in a custom colour.
  • Long and stable. The 21.7 inch top tube Tyson Jones-Peni frame is ready to rip the trails or the pump track.
  • LUX LAB C2 disc brake. A TRP 140mm slotted rotor on the LUX LAB 9T disc rear hub, laced to Cinema 333 rims with Spectre stainless spokes.

Specifications
  • Size: 20"
  • Frame: Wethepeople Chaos Machine 20 inch Tyson Jones-Peni, raw with custom rust paint accents
  • Top tube: 21.7"
  • Fork: Federal Session with LUX LAB preload bolt
  • Headset: LUX LAB integrated
  • Stem: Eclat 1023 with LUX LAB counterbore
  • Bars: Eclat Controller, 22.2mm, 9.6"
  • Grips: S&M Reynolds
  • Brakes: LUX LAB C2 disc brake with TRP 140mm slotted rotor
  • Cranks: BSD Substance XL V2, 170mm
  • Bottom bracket: LUX LAB MID 24mm
  • Sprocket: Odyssey Utility 30T, custom colour, acid stripped
  • Chain: Odyssey Bluebird
  • Front hub: LUX LAB Custom, 36H
  • Rear hub: LUX LAB Disc, 36H, 9T
  • Spokes: Spectre Stainless T302 with Spectre X LUX LAB smoked black nipples
  • Rims: Cinema 333
  • Tyres: Tall Order 20 x 2.3"
  • Seat: Eclat Exile Tyson Jones-Peni pivotal
  • Seat post: Wethepeople pivotal
  • Note: Custom leather top tube cover with a laser cut design

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

  • Fit the handlebars and line them up with the front wheel
  • Fit the front wheel, pedals and seat post
  • Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Wethepeople X LUX LAB 'Ironhide' Chaos Machine 20 Inch Custom Bike

Brand: Wethepeople SKU:

From

$3,051.99 AUD

 $3,184.88 AUD

Or 4 payments of $762.99 AUD with

Recommended Rider Height:

175cm+

Colour - Gloss Raw

Top Tube Length - 21.7

20 inch BMX sizing

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

  • A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
  • 22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
  • Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide

20 inch BMX sizing

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

  • A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
  • 22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
  • Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide
