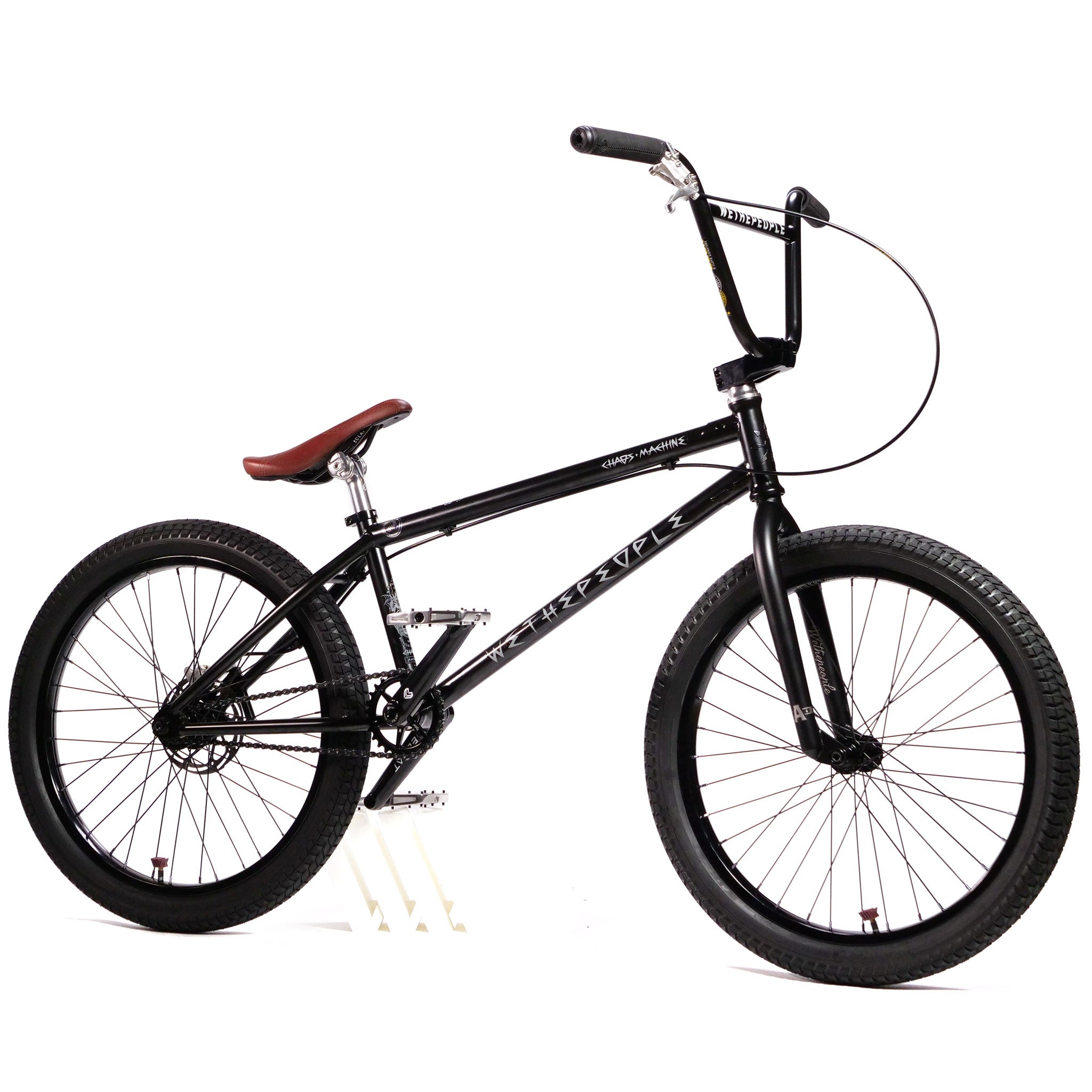

Wethepeople Chaos Machine Custom 22 Inch Bike with a black frame, brown seat, and large tires.

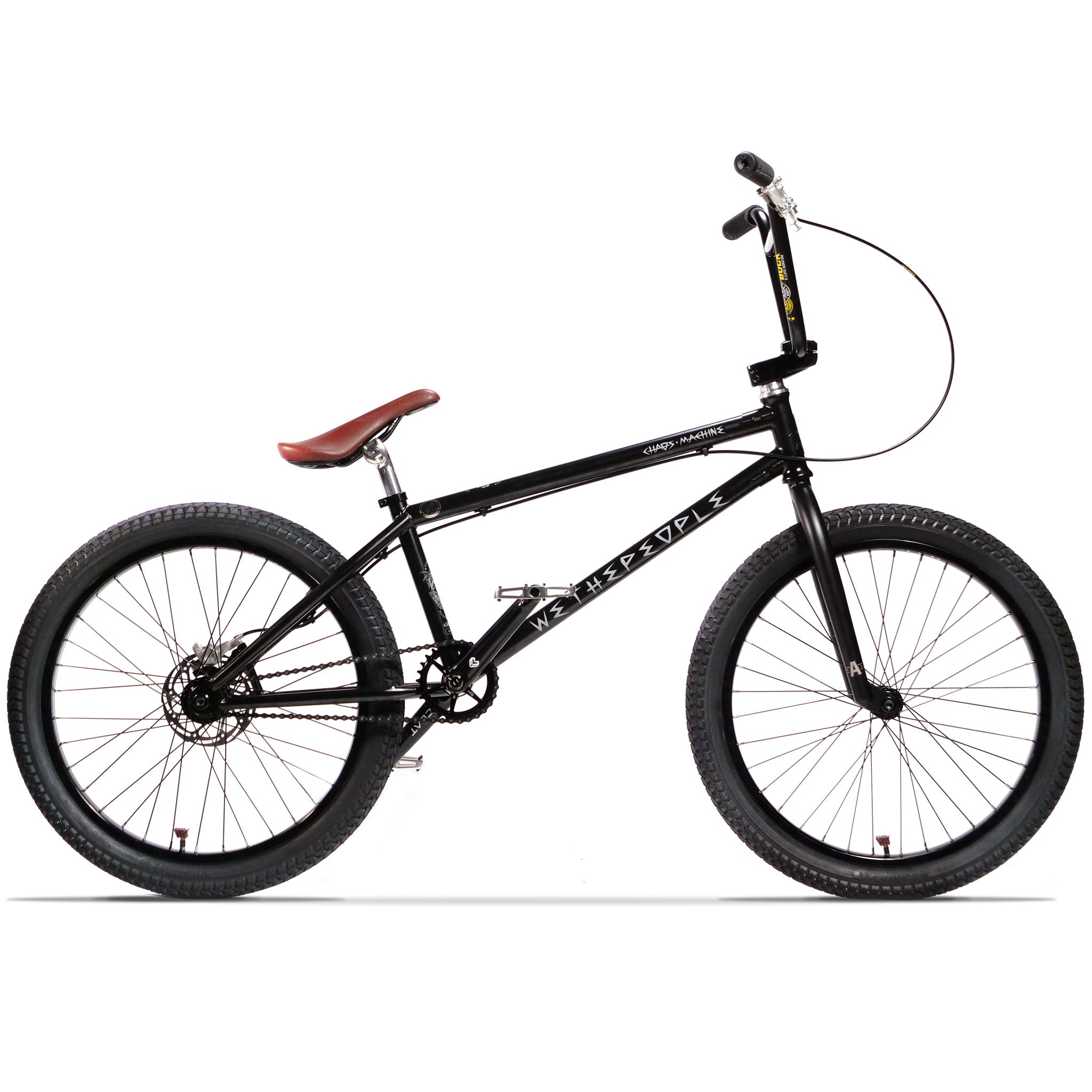

Wethepeople Chaos Machine Custom 22 Inch Bike in black with a brown seat and a rear disc brake.

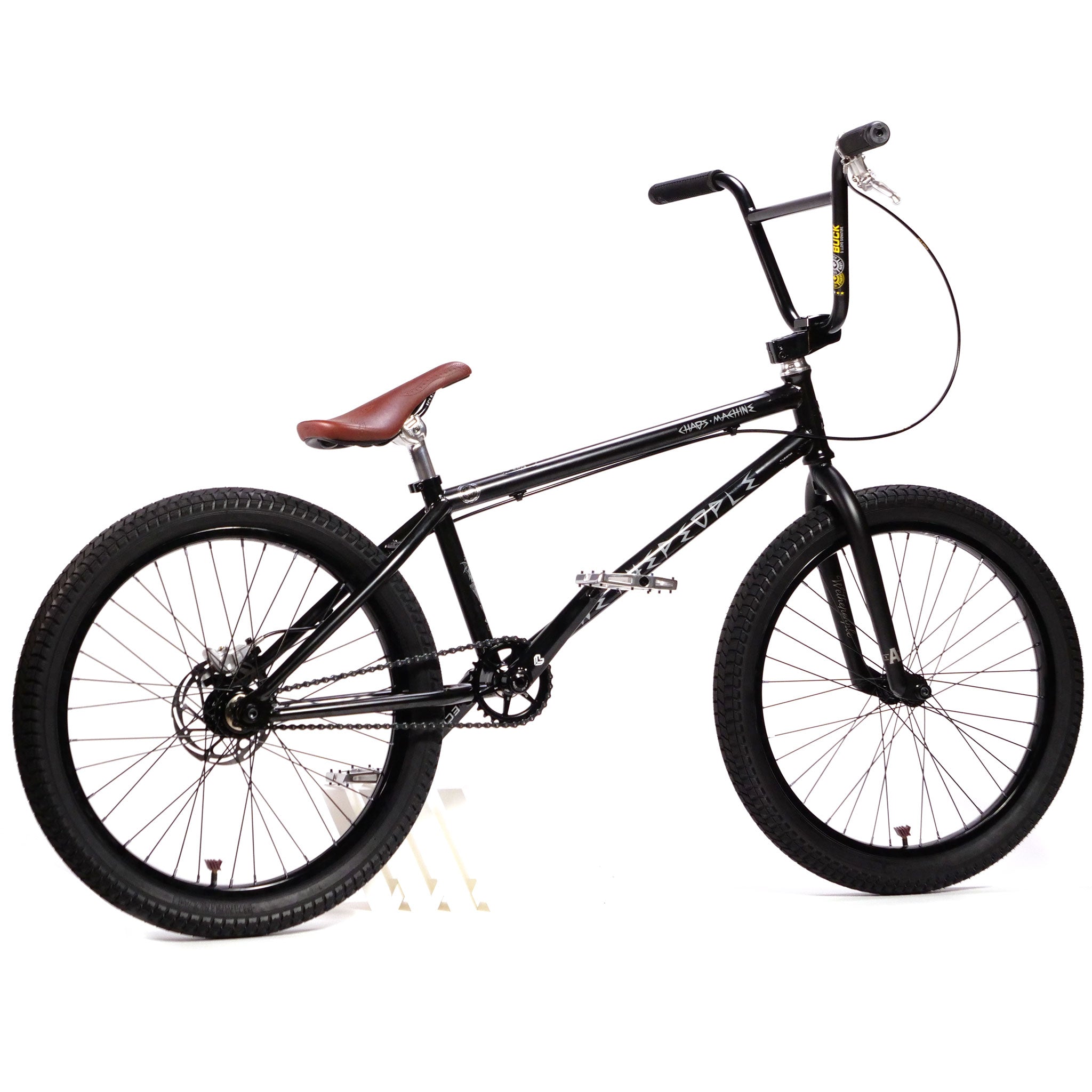

Black 22-inch Wethepeople Chaos Machine Custom 22 Inch Bike with a brown seat, high-rise handlebars, and knobby tires.

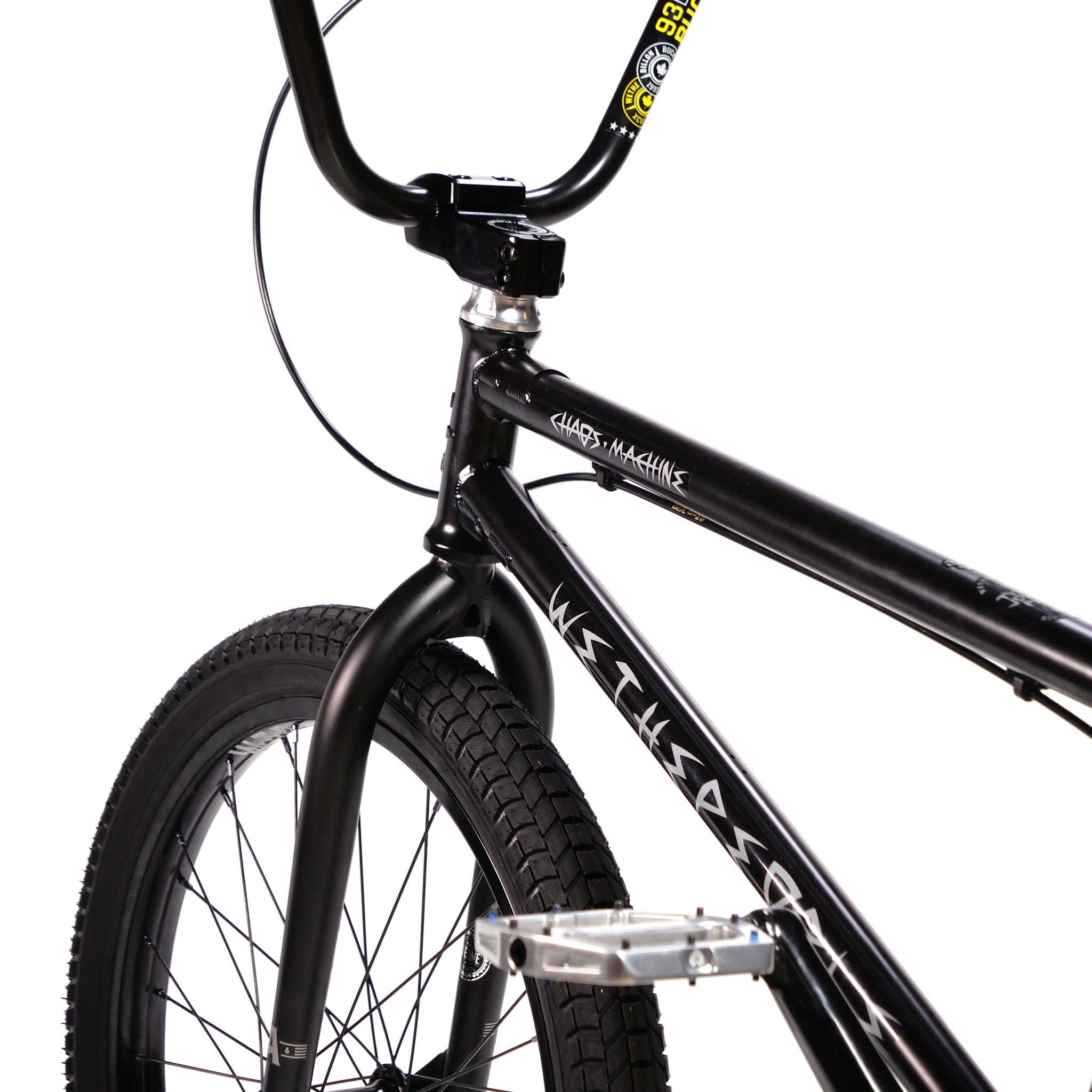

Close-up of a black Wethepeople Chaos Machine Custom 22 Inch Bike frame showing the decal on the top tube and a portion of the front tire and handlebars.

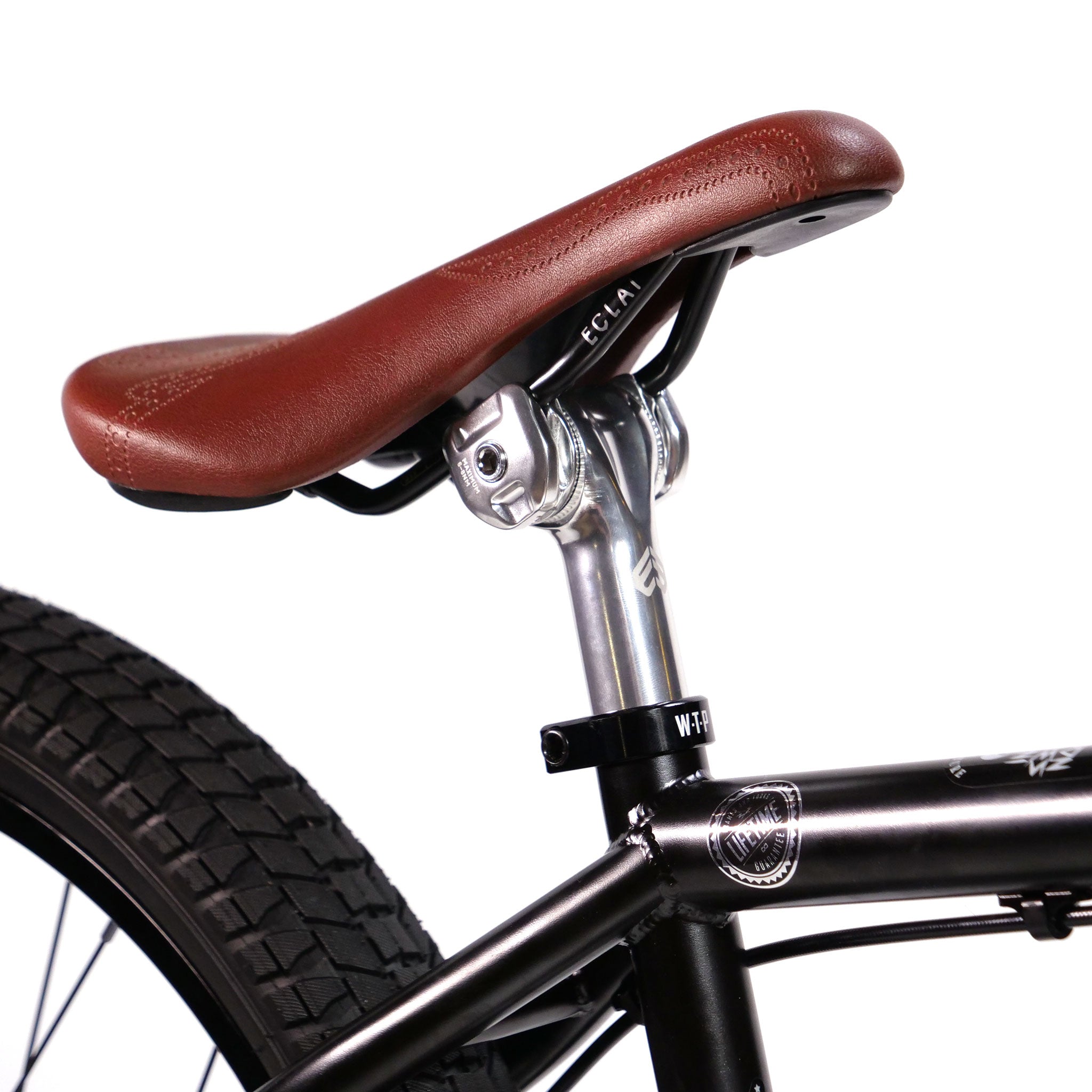

Brown bicycle seat on a silver seat post attached to the black frame of a Wethepeople Chaos Machine Custom 22 Inch Bike.

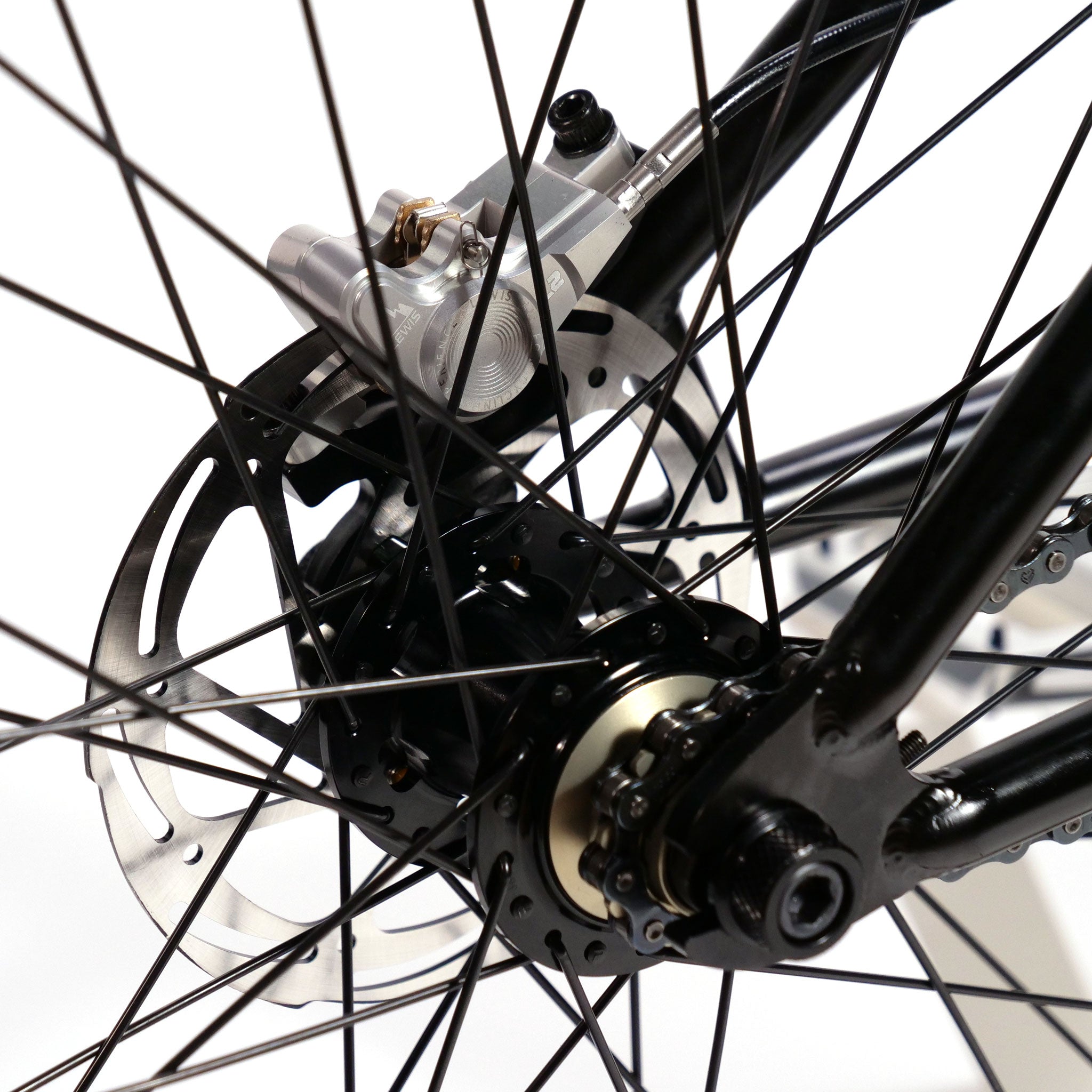

Close-up of a Wethepeople Chaos Machine Custom 22 Inch Bike rear wheel showing the disc brake rotor, brake caliper, and spokes.

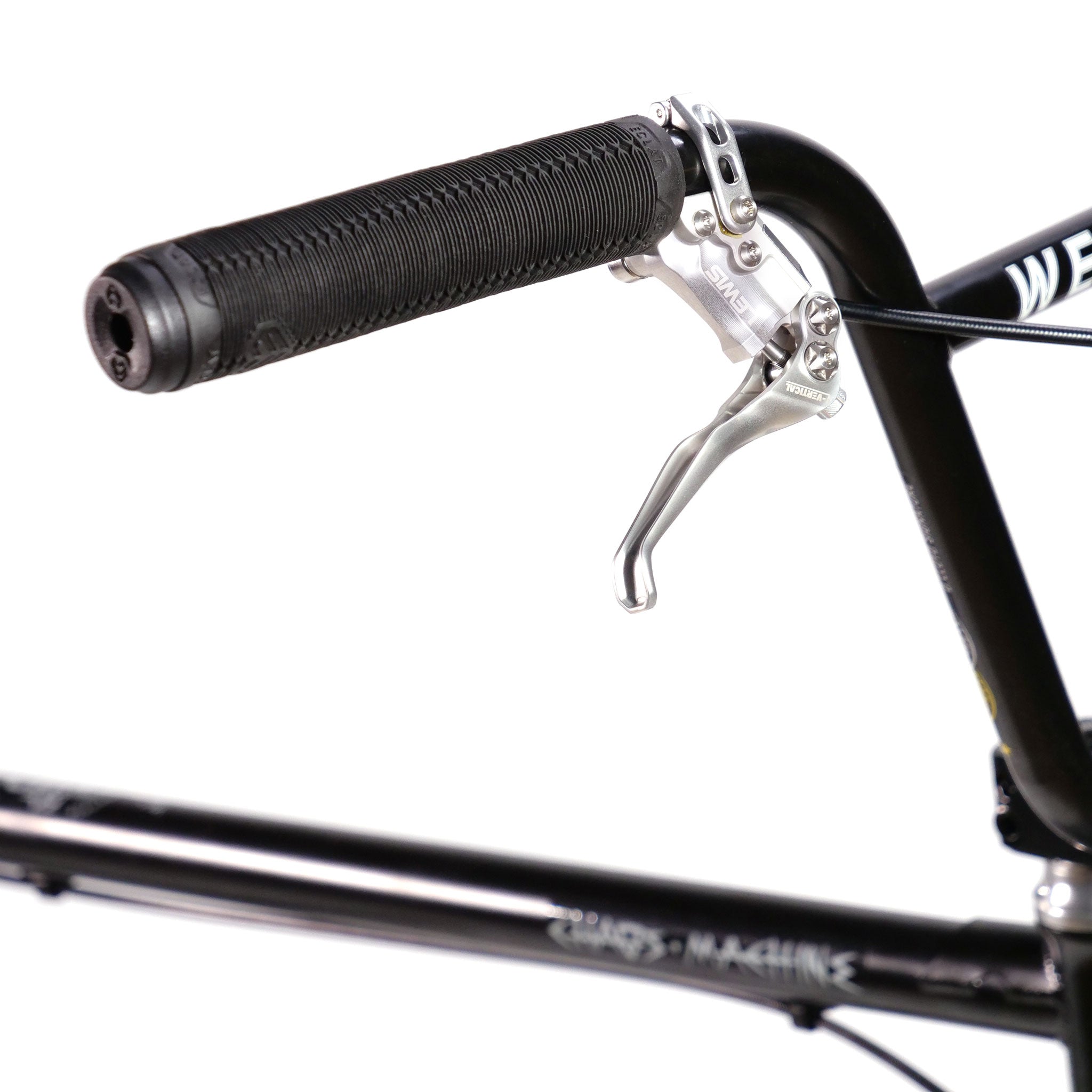

Wethepeople Chaos Machine Custom 22 Inch Bike handlebar in black with a black grip and a silver metal brake lever.

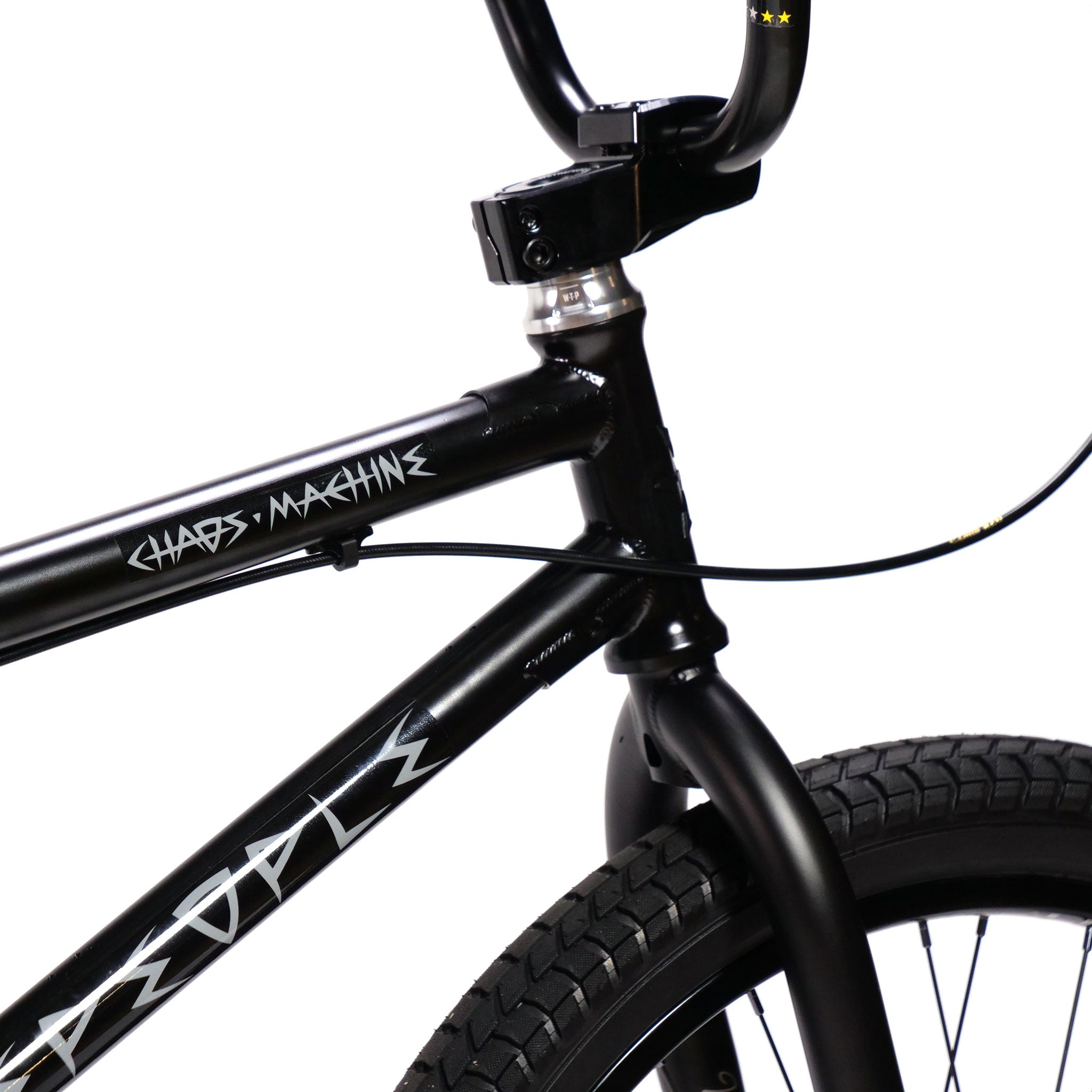

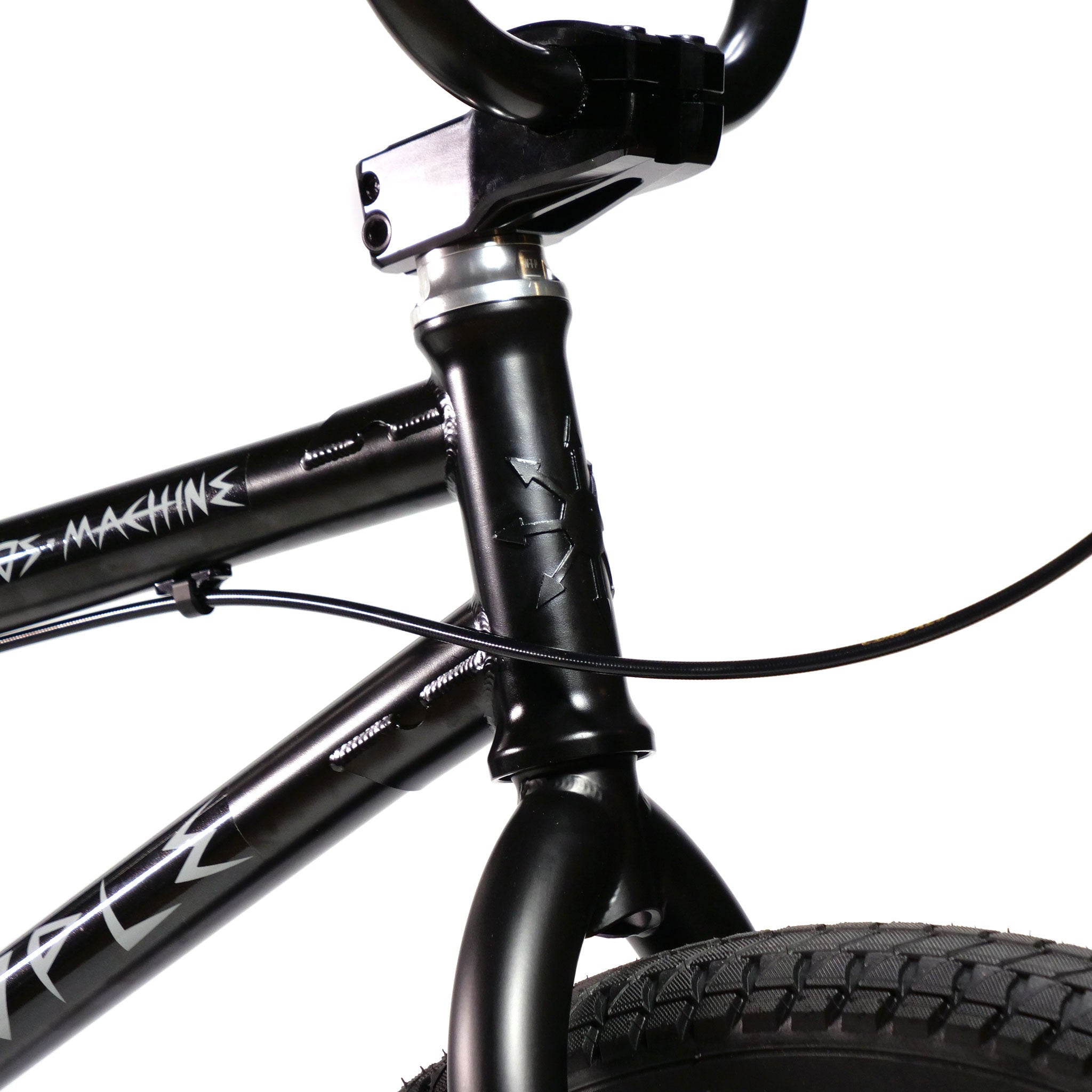

Black Wethepeople Chaos Machine Custom 22 Inch Bike frame and handlebars, showing the head tube, front fork, and part of the top tube with “CHAOS MACHINE” text.

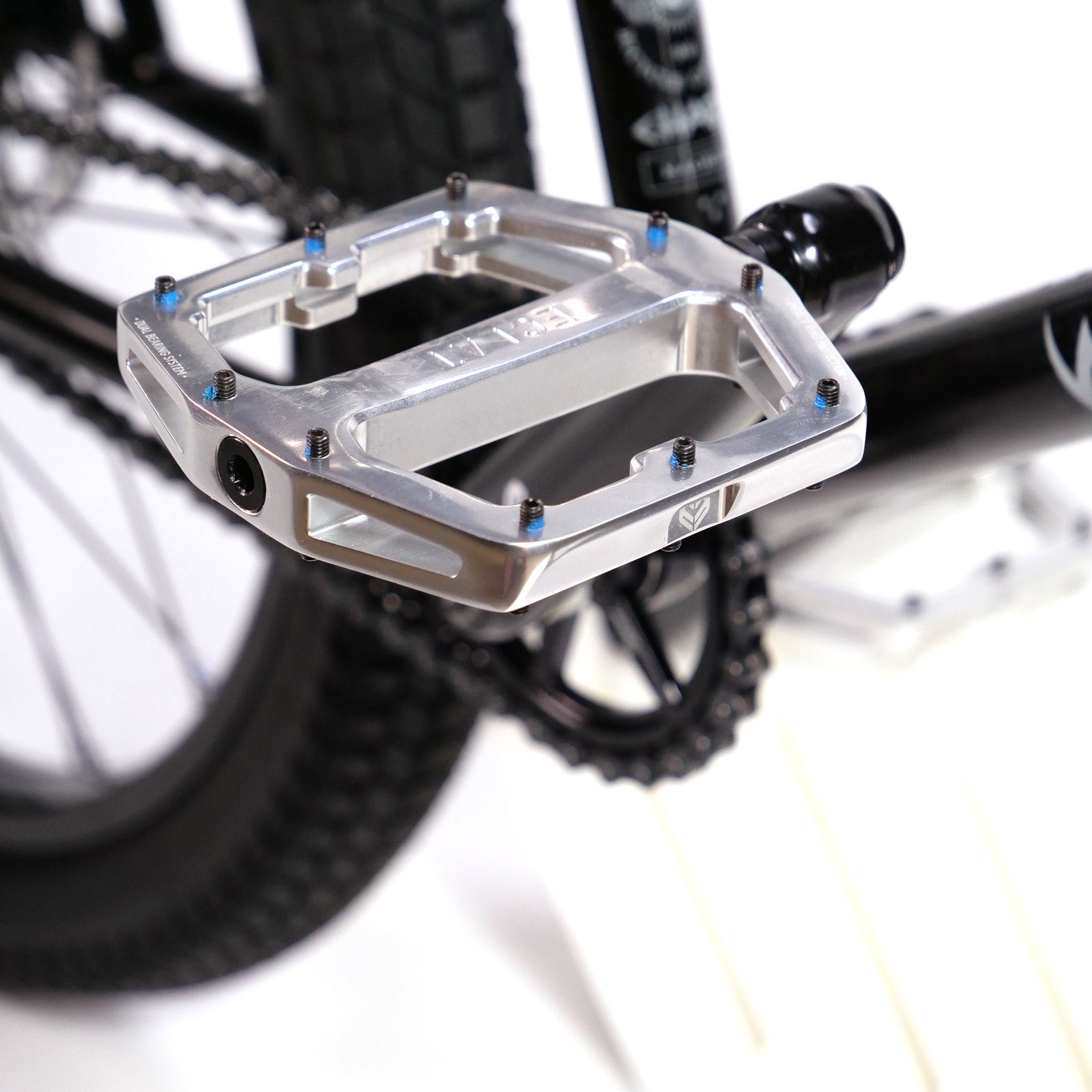

Close-up of a silver platform bicycle pedal with small blue pins attached to the black frame of a Wethepeople Chaos Machine Custom 22 Inch Bike.

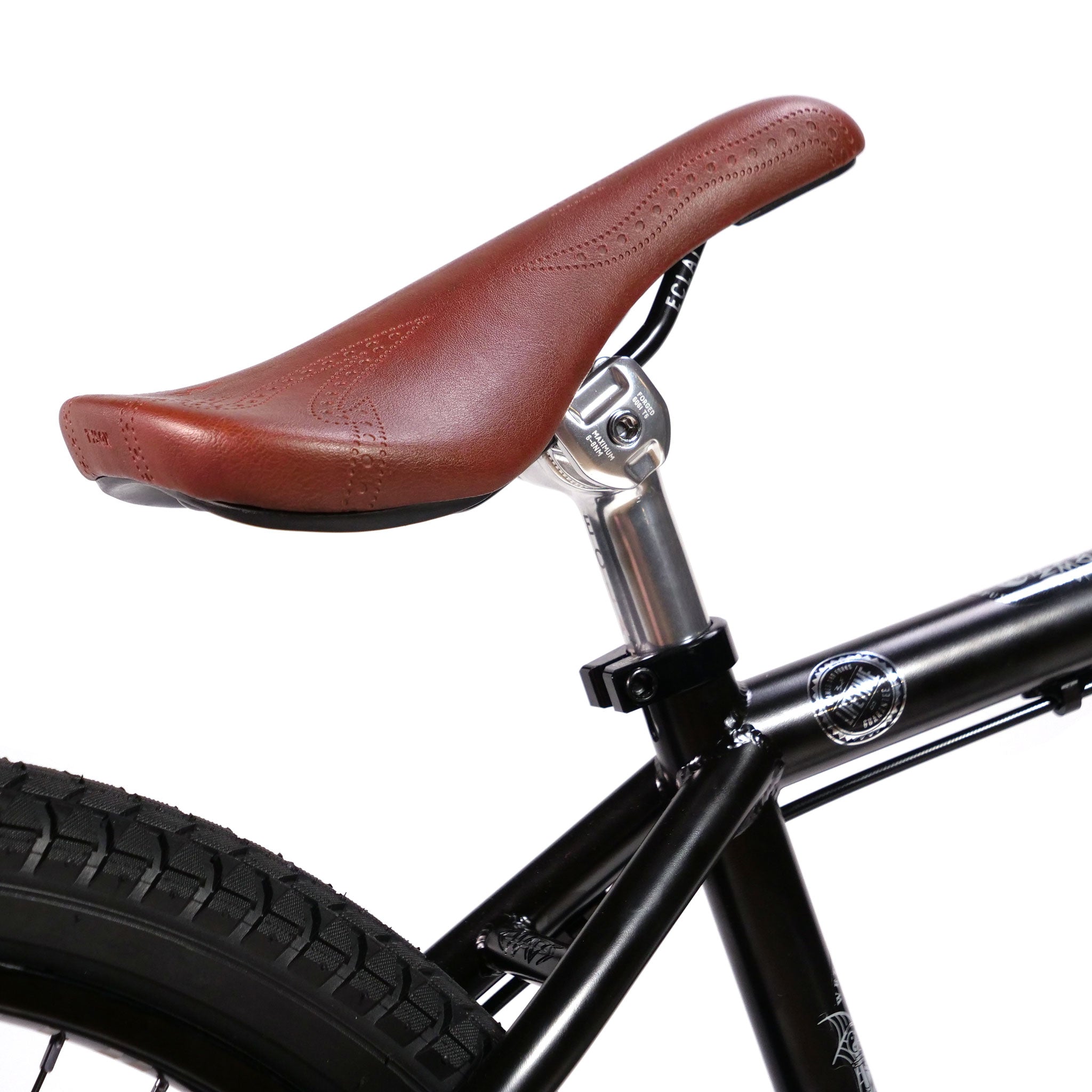

Brown bicycle seat on a silver seat post attached to the black frame of a Wethepeople Chaos Machine Custom 22 Inch Bike.

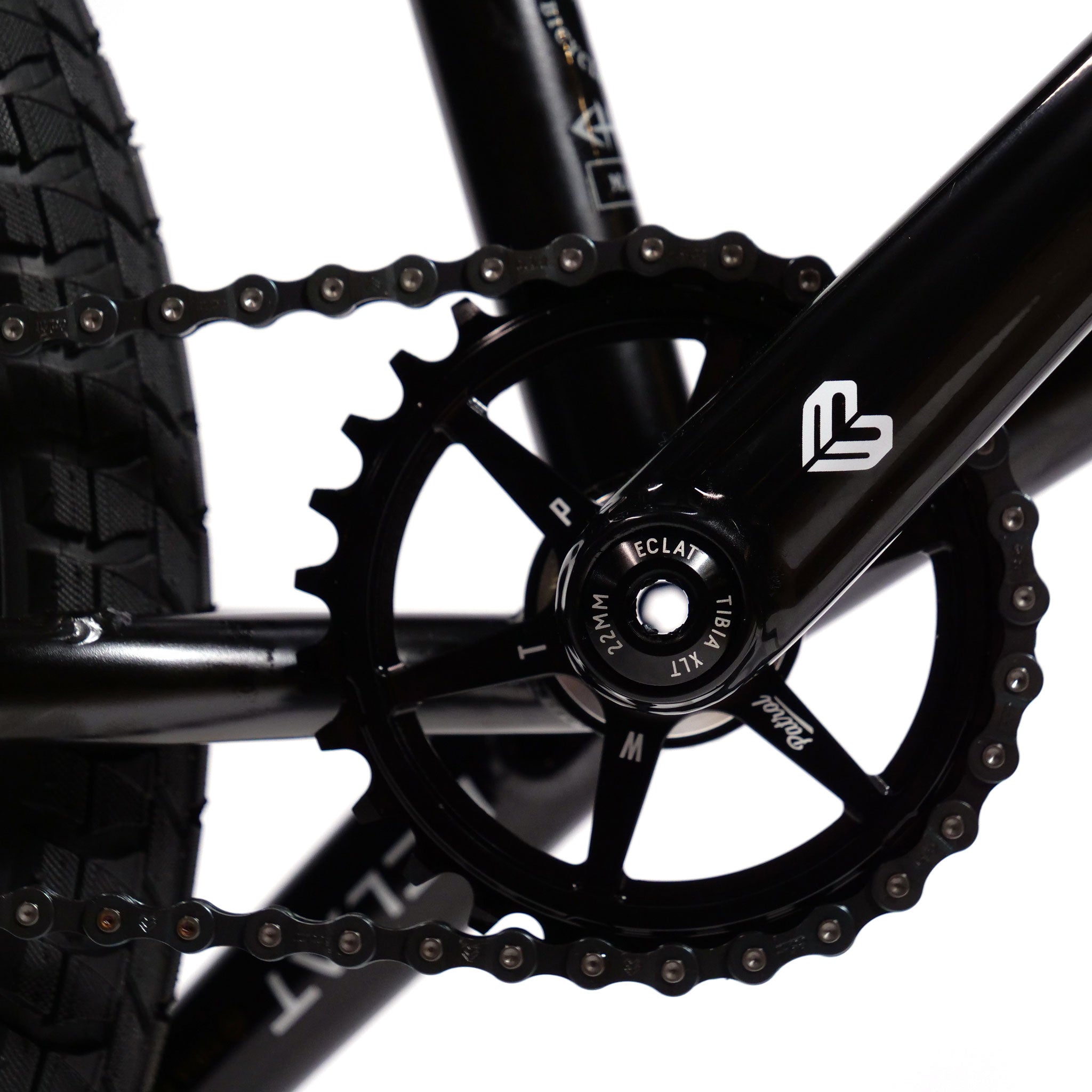

Close-up of a Wethepeople Chaos Machine Custom 22 Inch Bike drivetrain featuring a black chainring, crank, and chain.

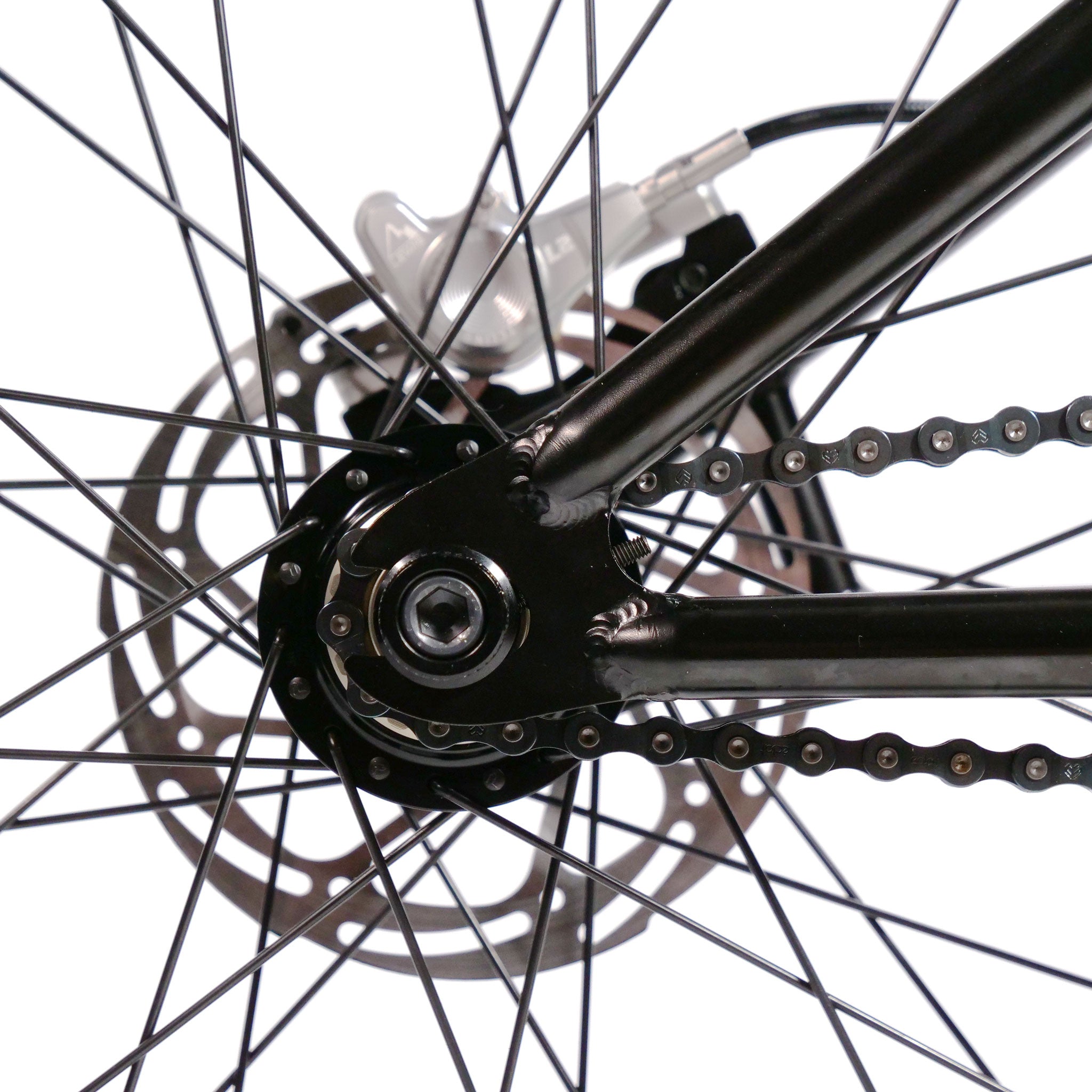

Close-up of a Wethepeople Chaos Machine Custom 22 Inch Bike rear wheel hub, showing the disc brake rotor, chain, and frame dropouts.
Brown leather bicycle seat on a silver seat post attached to a Wethepeople Chaos Machine Custom 22 Inch Bike frame.
Close-up of the rear wheel on a Wethepeople Chaos Machine Custom 22 Inch Bike, featuring a black rim, silver disc brake caliper, and rotor.
Black Wethepeople Chaos Machine Custom 22 Inch Bike with high handlebars and 22-inch wheels.

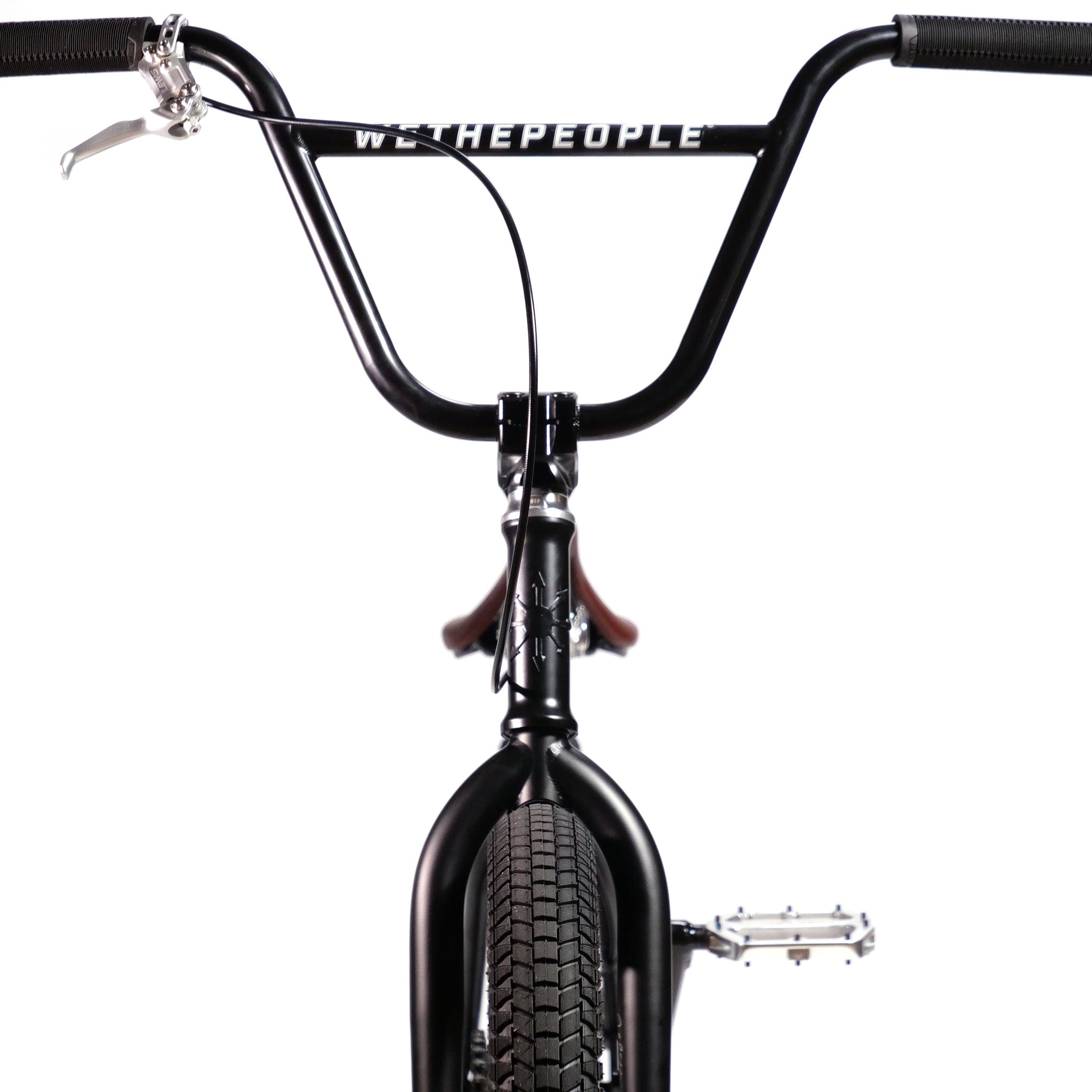

Front view of a black Wethepeople Chaos Machine Custom 22 Inch Bike with high handlebars, a left-hand brake lever, a brown seat, and treaded tires.

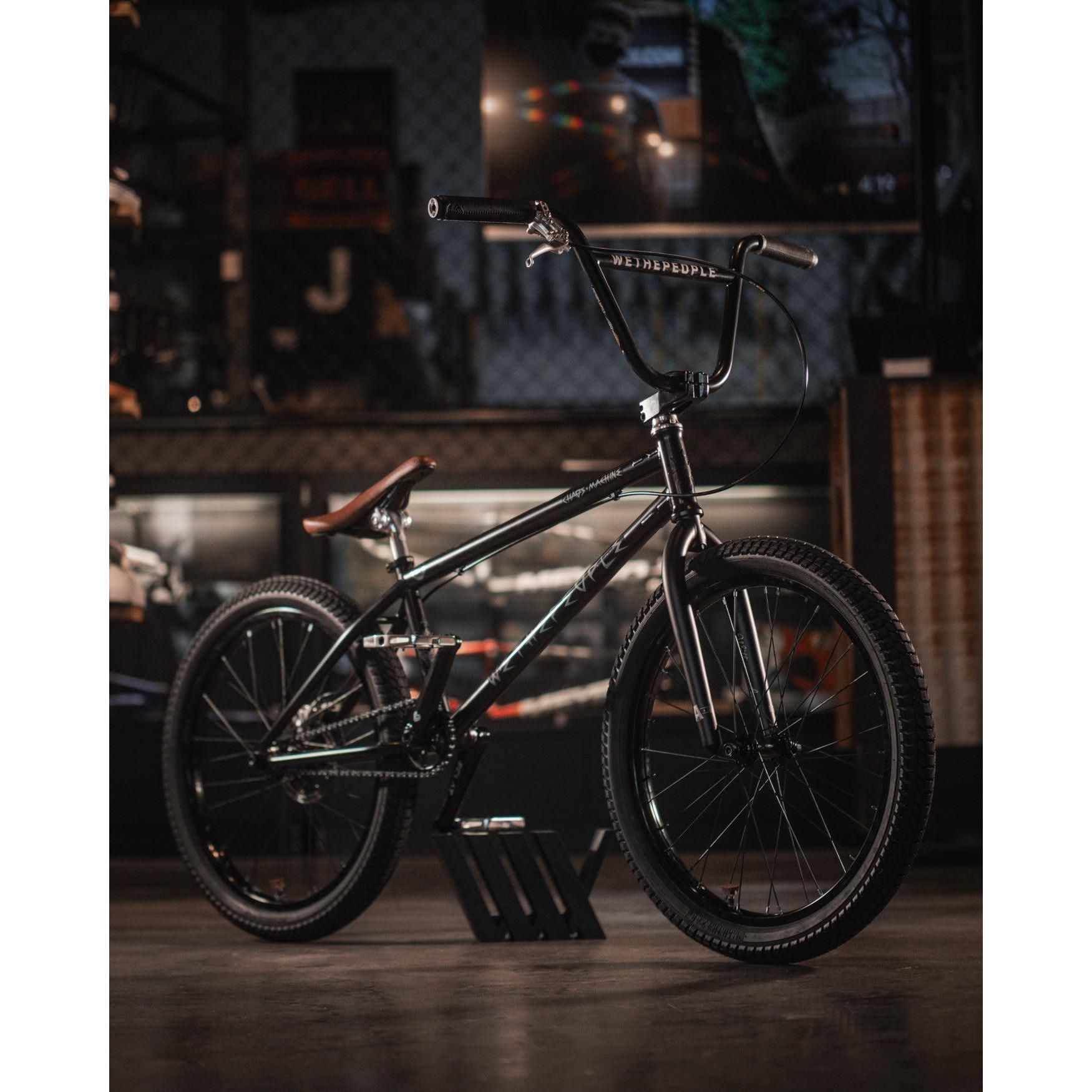

Wethepeople Chaos Machine Custom 22 Inch Bike in black with a brown seat, parked on a stand.
Black 22-inch Wethepeople Chaos Machine Custom 22 Inch Bike with high handlebars, knobby tires, and a single brake lever.

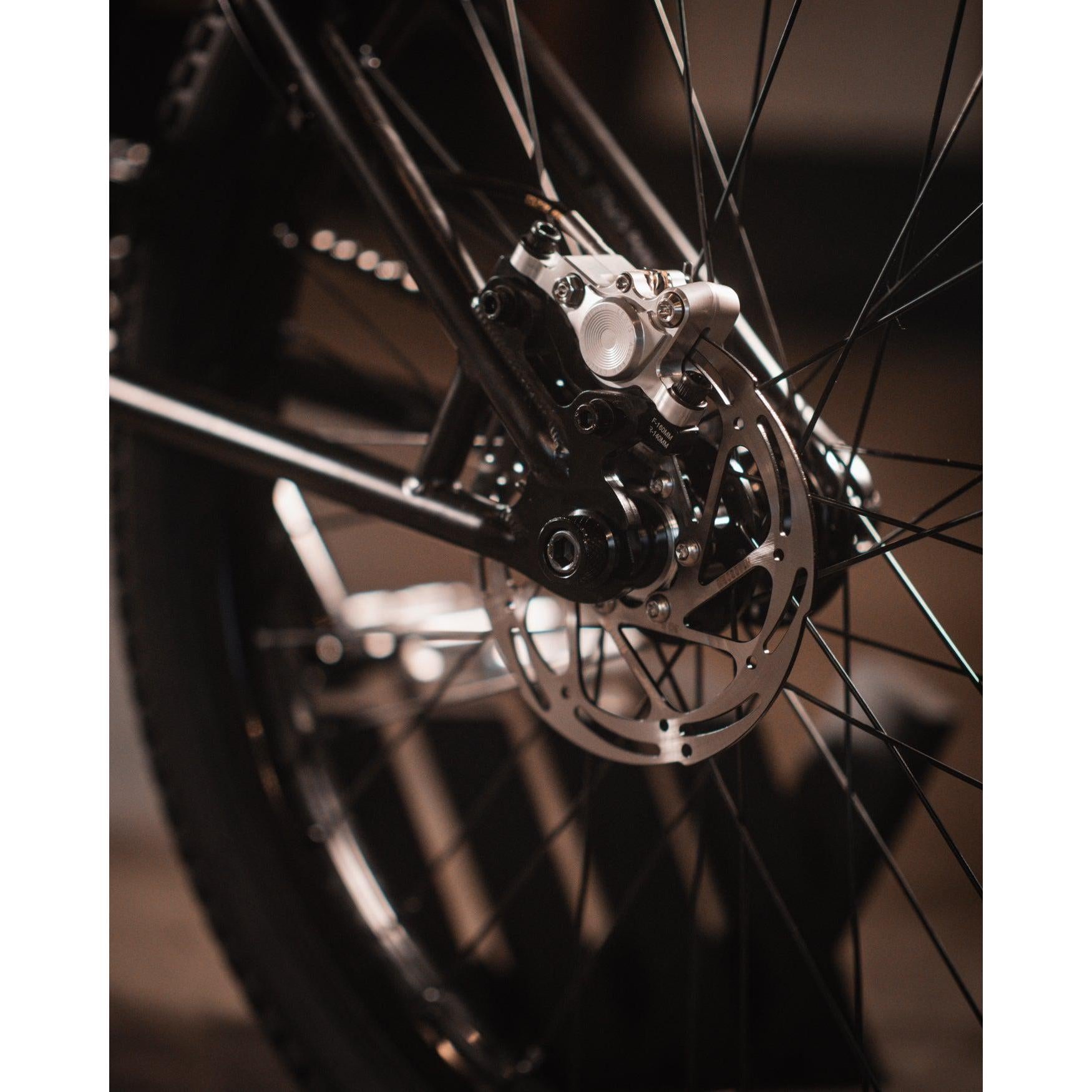

Close-up of a disc brake and rear wheel hub with spokes on a Wethepeople Chaos Machine Custom 22 Inch Bike.

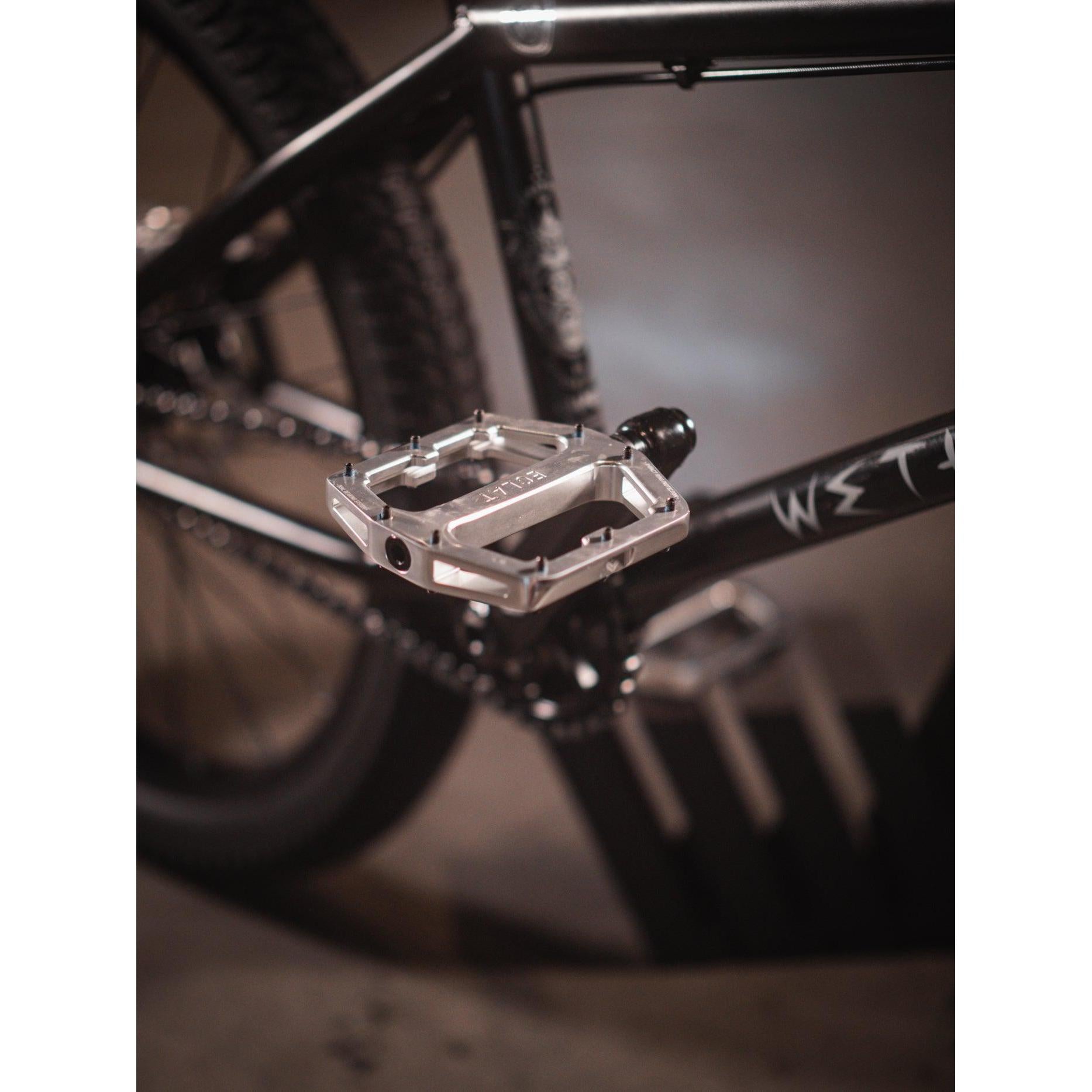

Close-up of a silver metal pedal on a dark-framed Wethepeople Chaos Machine Custom 22 Inch Bike.

Highlights

  • Fresh out of the LUX LAB
  • Tyson Jones-Peni Chaos Machine frame
  • Lewis LV2 post mount brake
  • Full Eclat drivetrain

Description

Fresh out of the LUX LAB is this 22 inch trails beast. Built around the 22 inch version of Tyson Jones Peni's Chaos Machine we cut no corners in building the best 22 inch rig we could.

Drop in for a test ride or get in contact if you need any more info. We have a feeling this thing won't stick around for long.

About the Brand
Wethepeople BMX began making its mark on history almost 15 years ago. Designing the first rough drawings of their frames and forks around the same time as the world started to see BMX in a different light, a time when rails were first grinded and the possibility that riding the streets was in fact the true way forward. To achieve their aims, Wethepeople knows exactly how to deploy their strengths with an efficiency that is unmatched in the BMX industry.

Features
  • Fresh out of the LUX LAB. A 22 inch trails build put together in house at LUXBMX, with no corners cut on the parts list.
  • Tyson Jones-Peni Chaos Machine frame. The 22 inch version of Tyson's signature Wethepeople frame, 22.25" top tube, matched with Audio 22 inch forks.

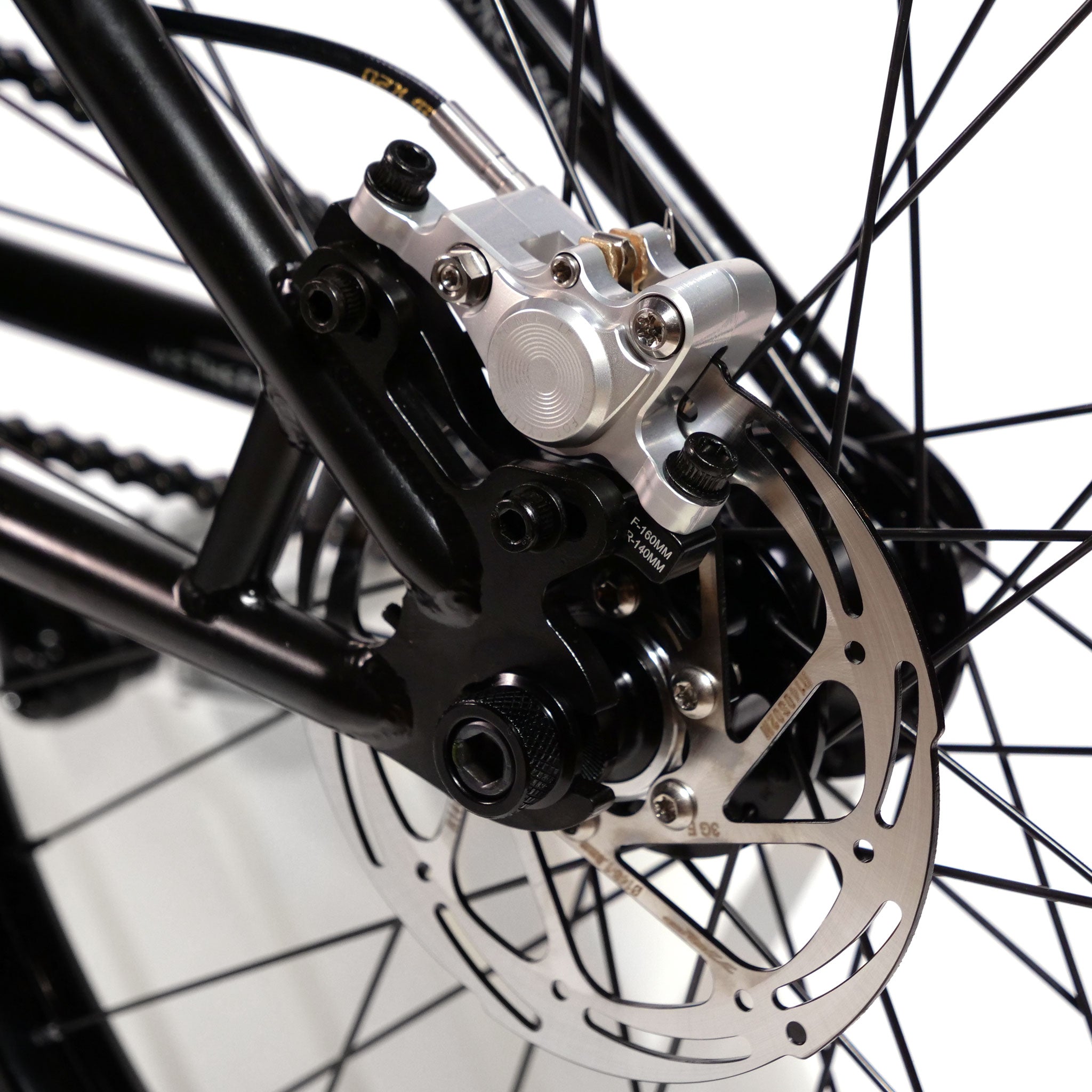

  • Lewis LV2 post mount brake. Running a TRP 140mm slotted rotor into an Eclat Exile Disc rear hub.
  • Full Eclat drivetrain. Tibia XLT 170mm cranks, a mid 22mm bottom bracket and a Diesel chain behind a 28T Wethepeople Patrol sprocket.
  • Fat 22 inch rubber. S&M Mainline V2 2.4" tyres on Wethepeople Logic 22" rims, laced with Spectre stainless spokes and alloy nipples.

Specifications
  • Size: 22 inch, 22.25" top tube
  • Frame: Wethepeople Chaos Machine 22 Inch Tyson Jones-Peni
  • Top tube: 22.25"
  • Fork: Wethepeople Audio 22 Inch
  • Headset: Wethepeople
  • Stem: Wethepeople Hydra 50-30
  • Bars: Wethepeople Buck 9.15"
  • Grips: Eclat Shogun
  • Brakes: Lewis LV2 BMX post mount, TRP 140mm slotted rotor
  • Cranks: Eclat Tibia XLT 170mm
  • Bottom bracket: Eclat Mid 22mm
  • Sprocket: Wethepeople Patrol 28T
  • Chain: Eclat Diesel
  • Front hub: Eclat Exile
  • Rear hub: Eclat Exile Disc
  • Spokes: Spectre stainless black, Spectre alloy nipples
  • Rims: Wethepeople Logic 22"
  • Tyres: S&M Mainline V2 22" x 2.4"

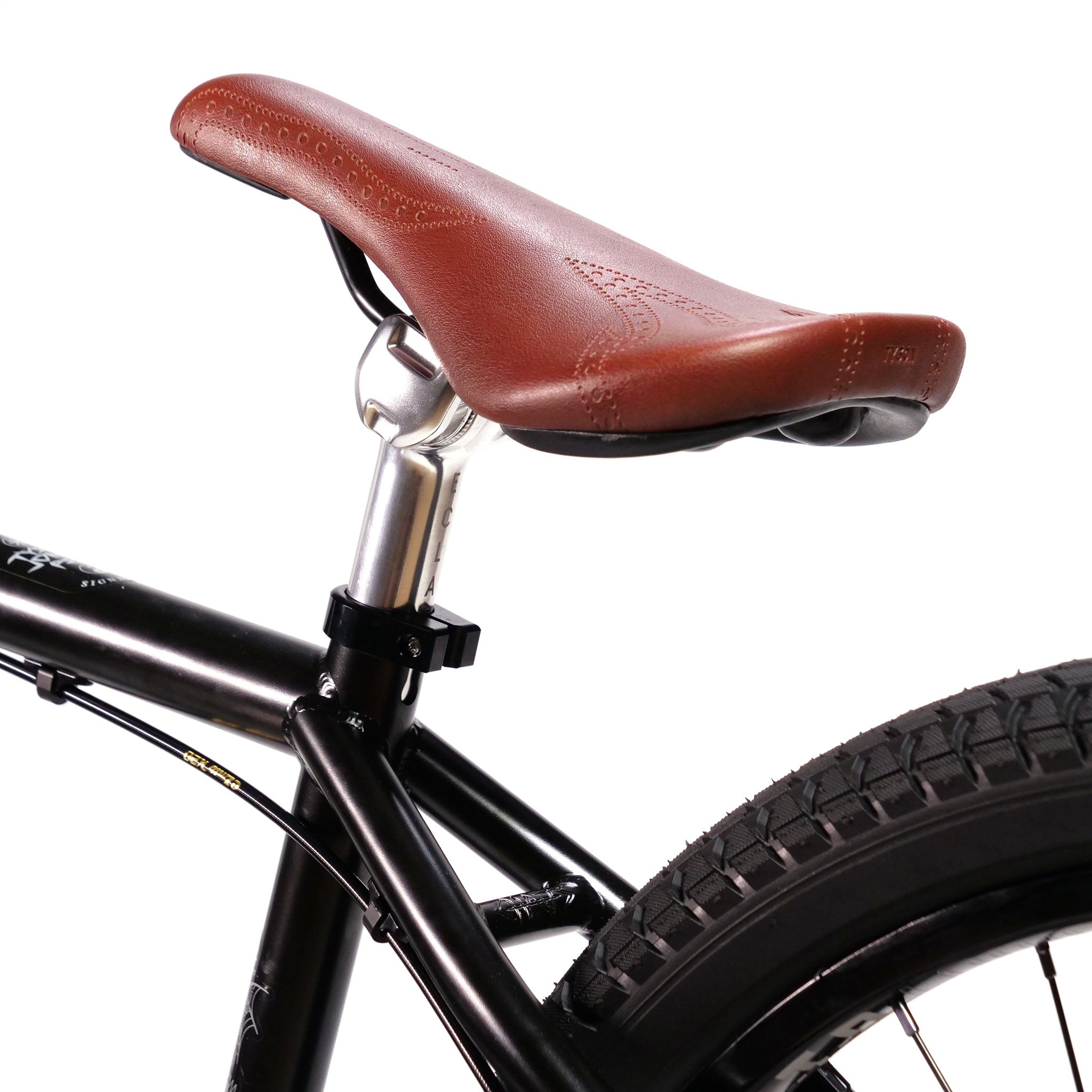

  • Seat: Eclat Exile Tyson Jones-Peni railed
  • Seat post: Eclat Exile railed

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

  • Fit the handlebars and line them up with the front wheel
  • Fit the front wheel, pedals and seat post
  • Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Wethepeople Chaos Machine Custom 22 Inch Bike

Brand: Wethepeople SKU:

From

$3,399.99 AUD

 $4,038.76 AUD

Or 4 payments of $849.99 AUD with

Recommended Rider Height: 175 cm and taller

Colour - Black

Top Tube Length - 22.25

22 inch BMX sizing

A 22 inch is a BMX with a bigger wheel, for riders about 160cm and up, on a 21 to 22.25 inch top tube. It is a different ride feel rather than a bigger frame for taller riders.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. A big wheel rides longer than its top tube number suggests, so do not compare it straight against a 20 inch.

How to measure

Stand against a wall in the shoes you ride in, heels flat, and mark the top of your head. Measure from the floor to the mark.

  • Choose a big wheel for the ride feel, not because you are tall. Plenty of tall riders stay on 20 inch.
  • Coming off a 20 inch? Expect it to feel longer and more stable, and slower to spin.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide

22 inch BMX sizing

A 22 inch is a BMX with a bigger wheel, for riders about 160cm and up, on a 21 to 22.25 inch top tube. It is a different ride feel rather than a bigger frame for taller riders.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. A big wheel rides longer than its top tube number suggests, so do not compare it straight against a 20 inch.

How to measure

Stand against a wall in the shoes you ride in, heels flat, and mark the top of your head. Measure from the floor to the mark.

  • Choose a big wheel for the ride feel, not because you are tall. Plenty of tall riders stay on 20 inch.
  • Coming off a 20 inch? Expect it to feel longer and more stable, and slower to spin.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide
