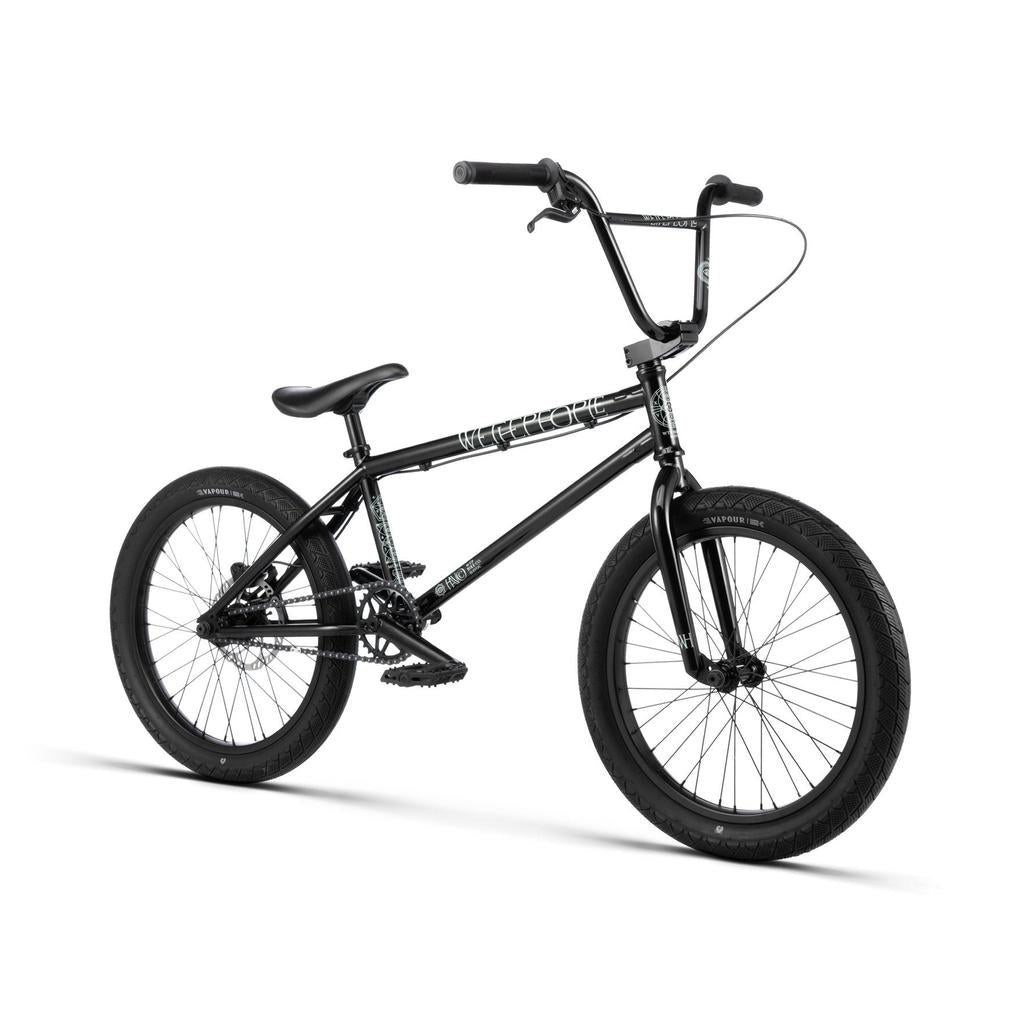

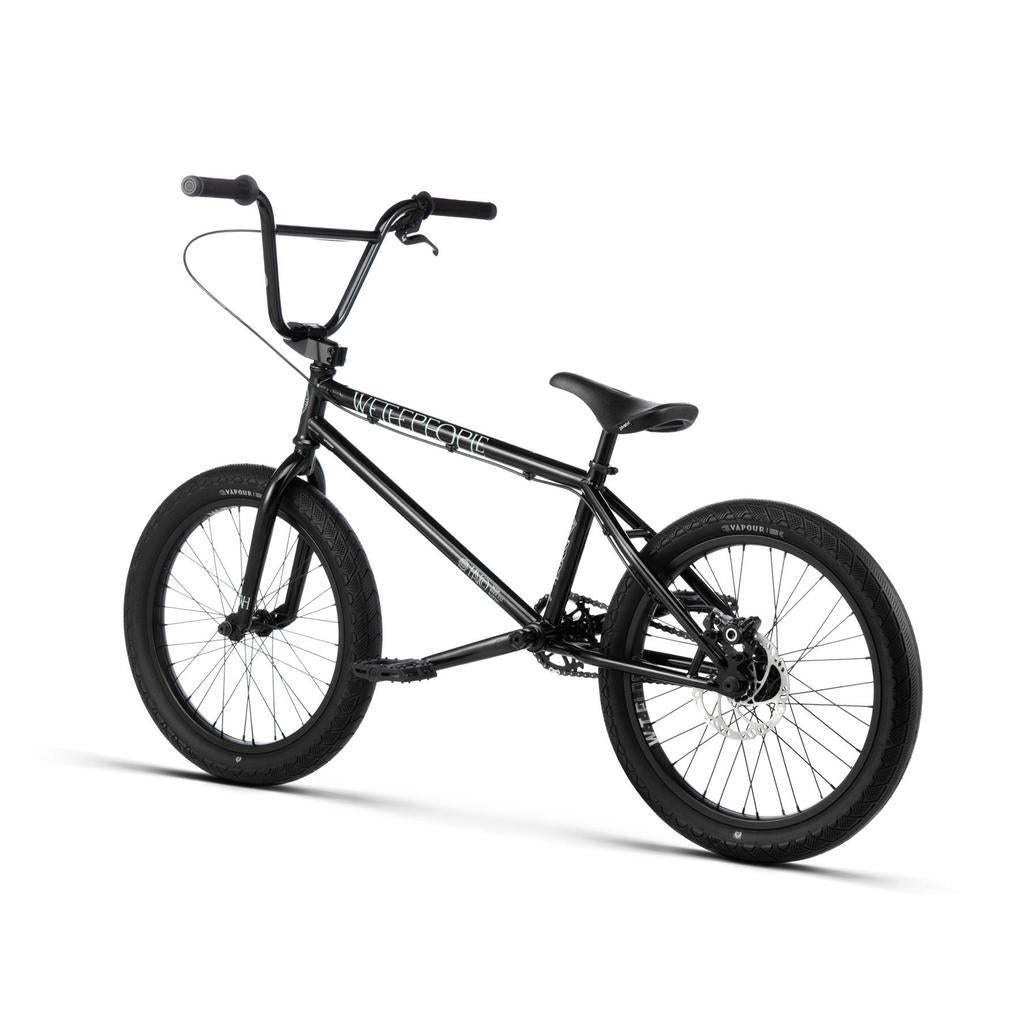

Wreak Havoc with one of these disc braked beasts from WTP! Take your riding to another level with this purpose built shred machine. Full Chromo, Fully Sealed, stacked with Eclat parts, Magura Disc Brake... seriously, my tummy be grumbling at how tasty this thing is looking,
Frame - WETHEPEOPLE "HAVOC 20" trail geometry, 4130 full CrMo, disc brake mount

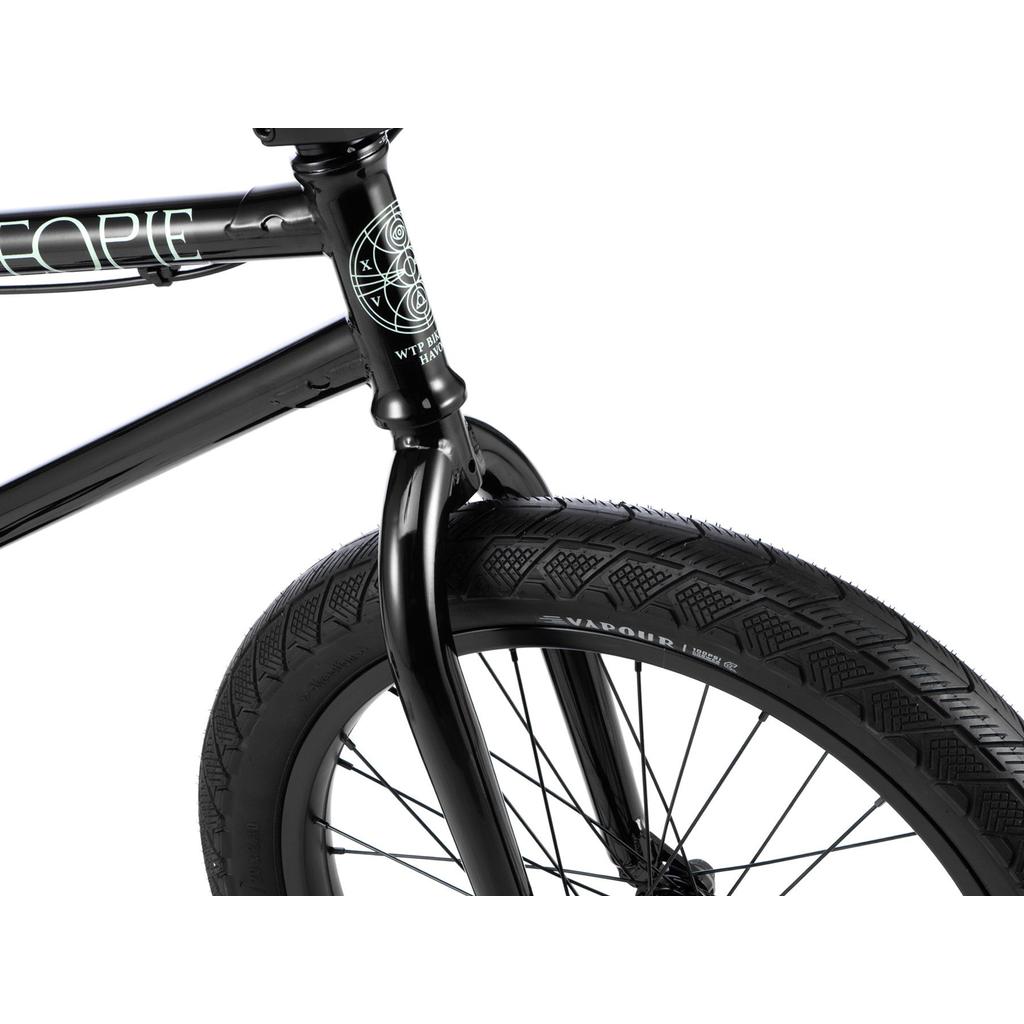

Fork - WETHEPEOPLE "HAVOC 20" 4130 full CrMo, 32mm offset

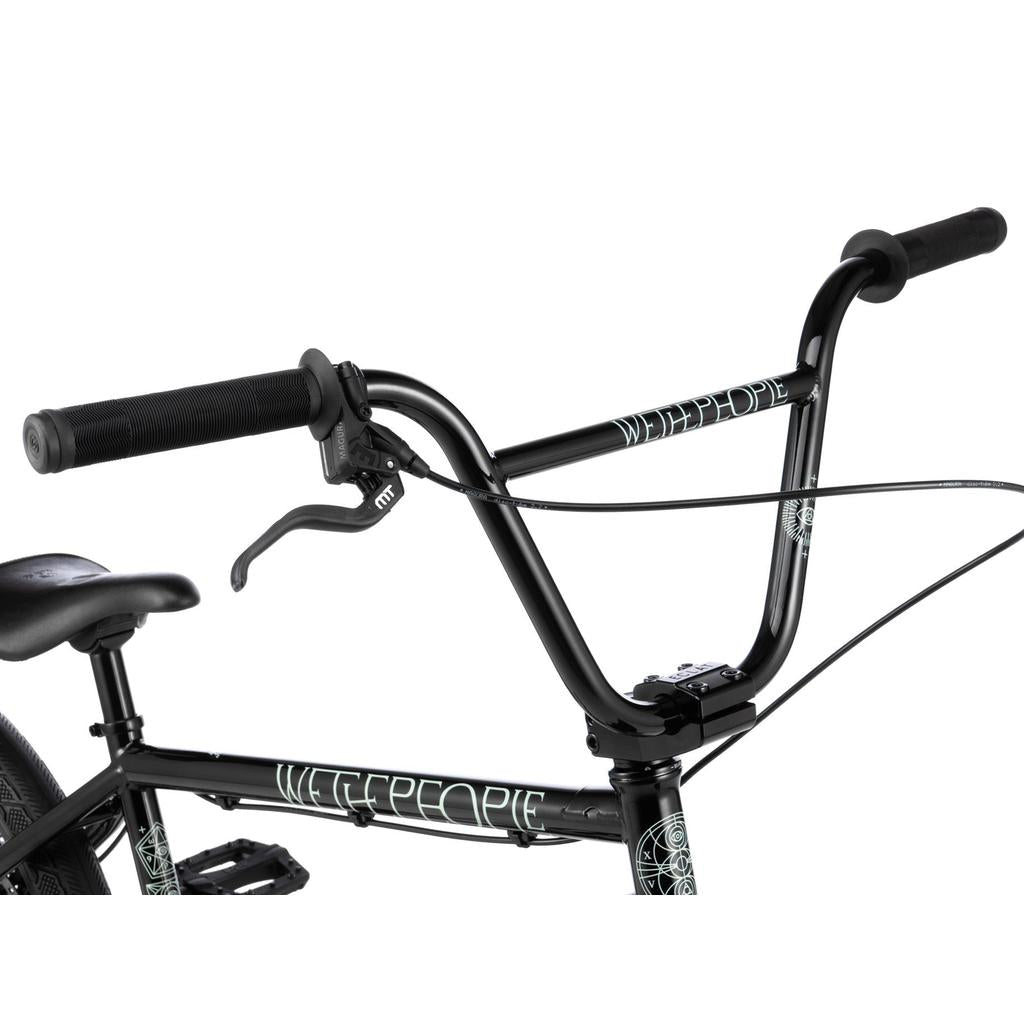

Handlebar - WETHEPEOPLE "HAVOC 20" full 4130 CrMo
Grips - SALT "EX" grips, 155.4mm, with flange

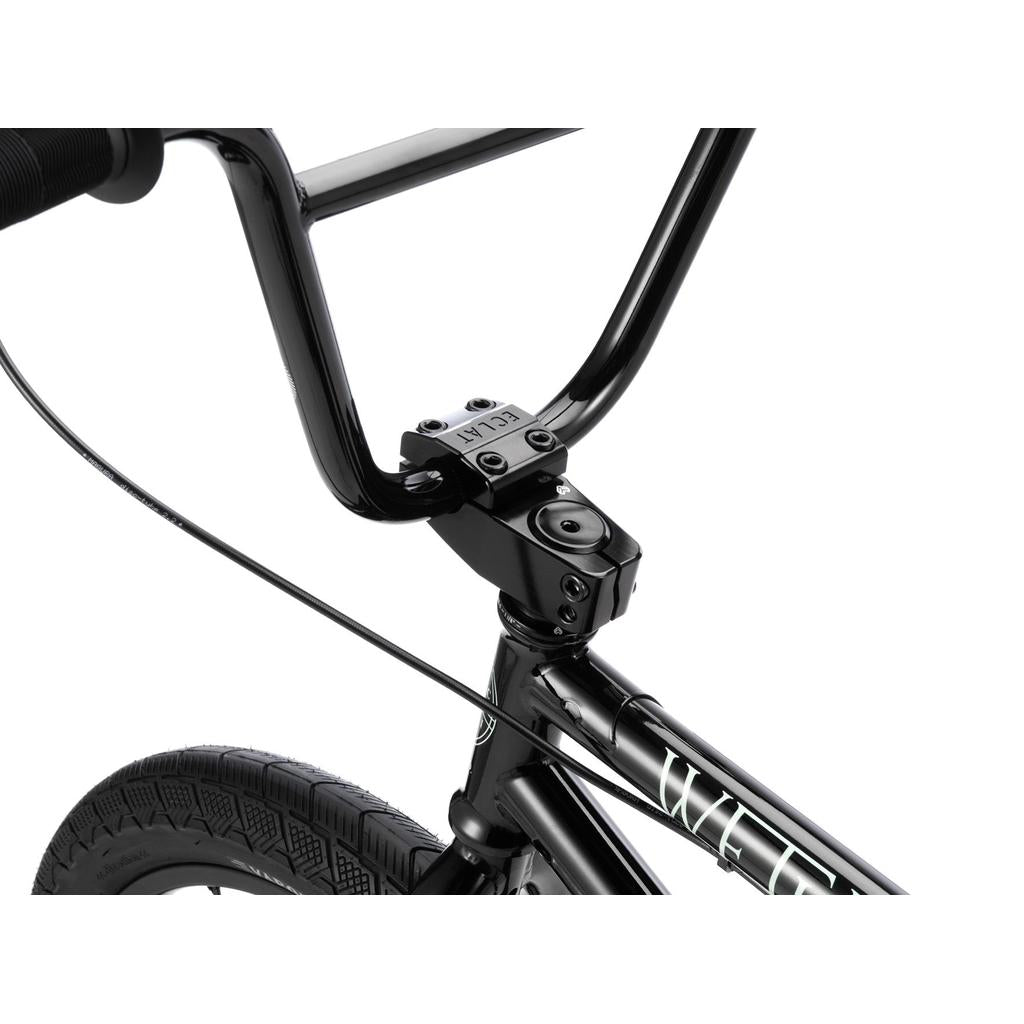

Stem - ÉCLAT "METRA" top load stem, CNC alloy, 51mm reach, 30mm rise
Headset - ÉCLAT "WAVE 6" int. headset, sealed bearing
Gyro - No holes for removable gyro tabs
Brake lever - MAGURA "MT4" hydraulic disc brake lever

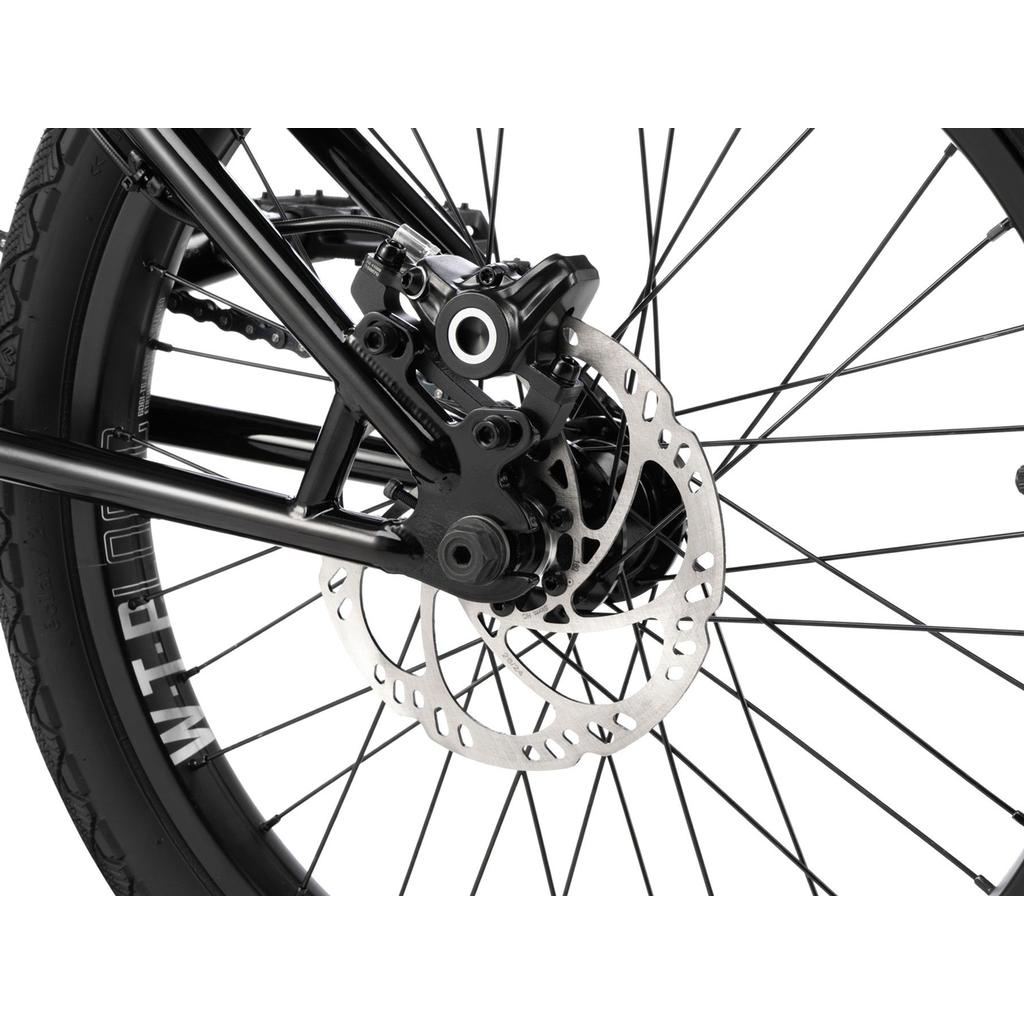

Brakes - MAGURA "MT4" hydraulic disc brake, 140mm rotor

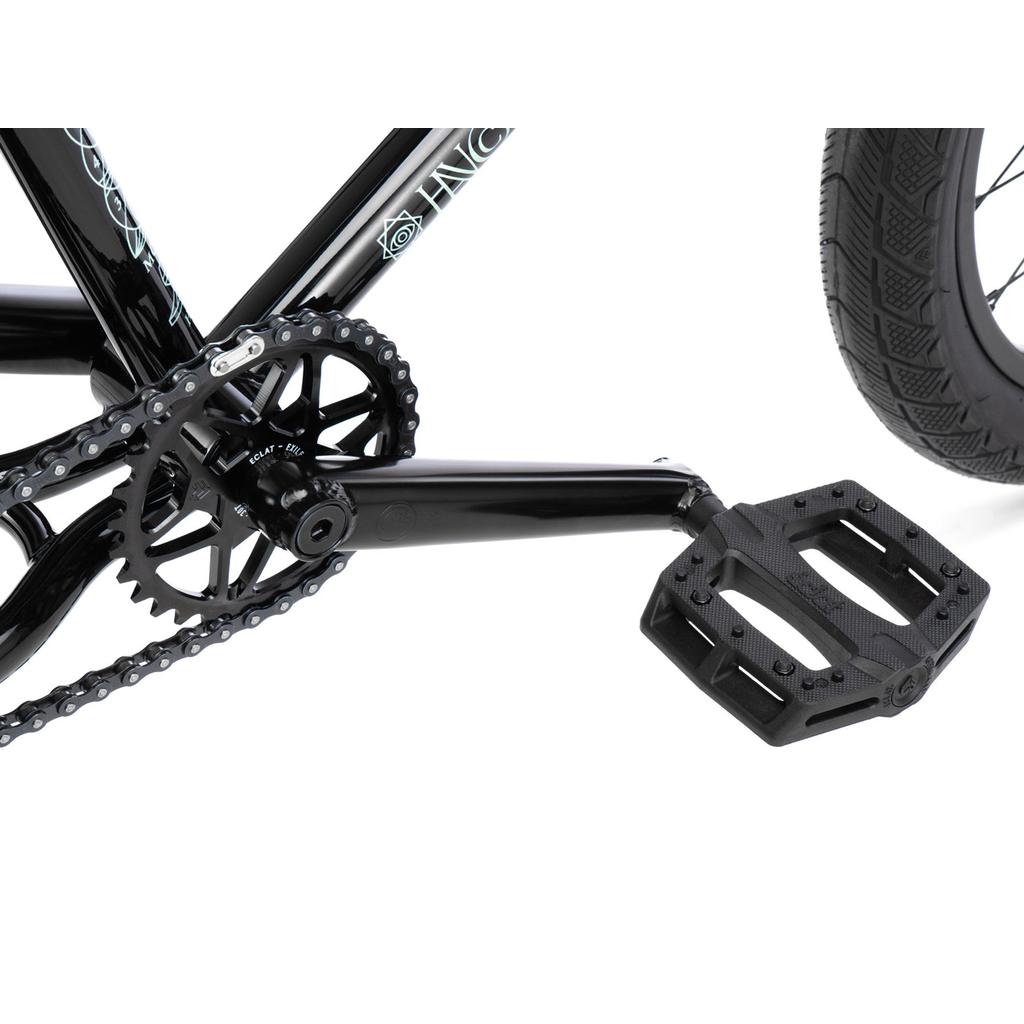

Crank - SALTPLUS "ULTRA" square profile 3pc "TSS" crank, CrMo, 170mm, 8 spline
BB - SALT "MID" BB, 19mm, press fit, sealed bearing
Pedals - ÉCLAT "CONTRA" pedals, nylon/fibreglass
Chain - WETHEPEOPLE "SUPPLY" chain
Sprocket - ÉCLAT "EXILE" sprocket, CNC, 7075-T6 alloy, 30T
Driver - 1pc cassette driver, 9T (RSD)
Front hub - ÉCLAT "EXILE" hub, fully sealed, 3/8"s axle, 36H

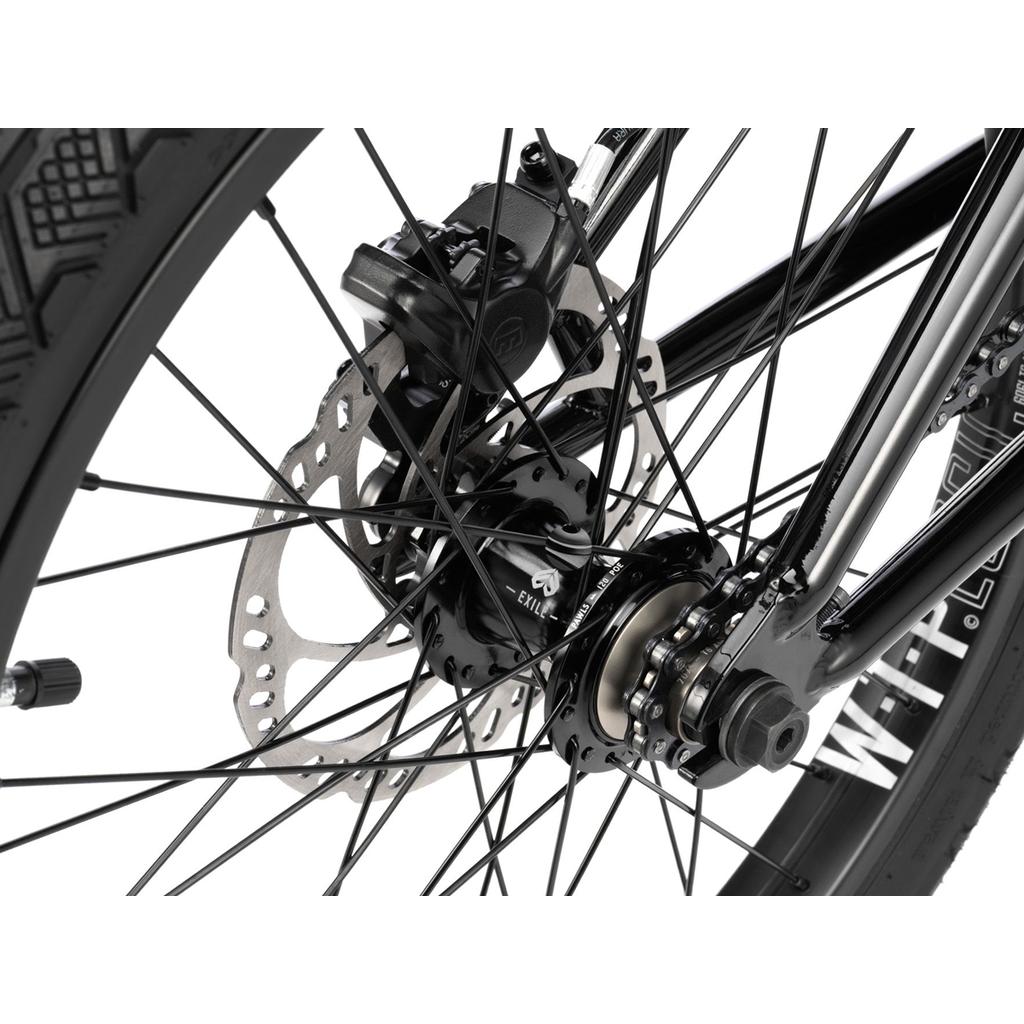

Rear hub - ÉCLAT "EXILE DISC" cassette hub, fully sealed, 9T, female axle, 36H, disc brake mount
Front rim - WETHEPEOPLE "LOGIC" rim, double wall, sleeved, 36H
Rear rim - WETHEPEOPLE "LOGIC" rim, double wall, sleeved, 36H

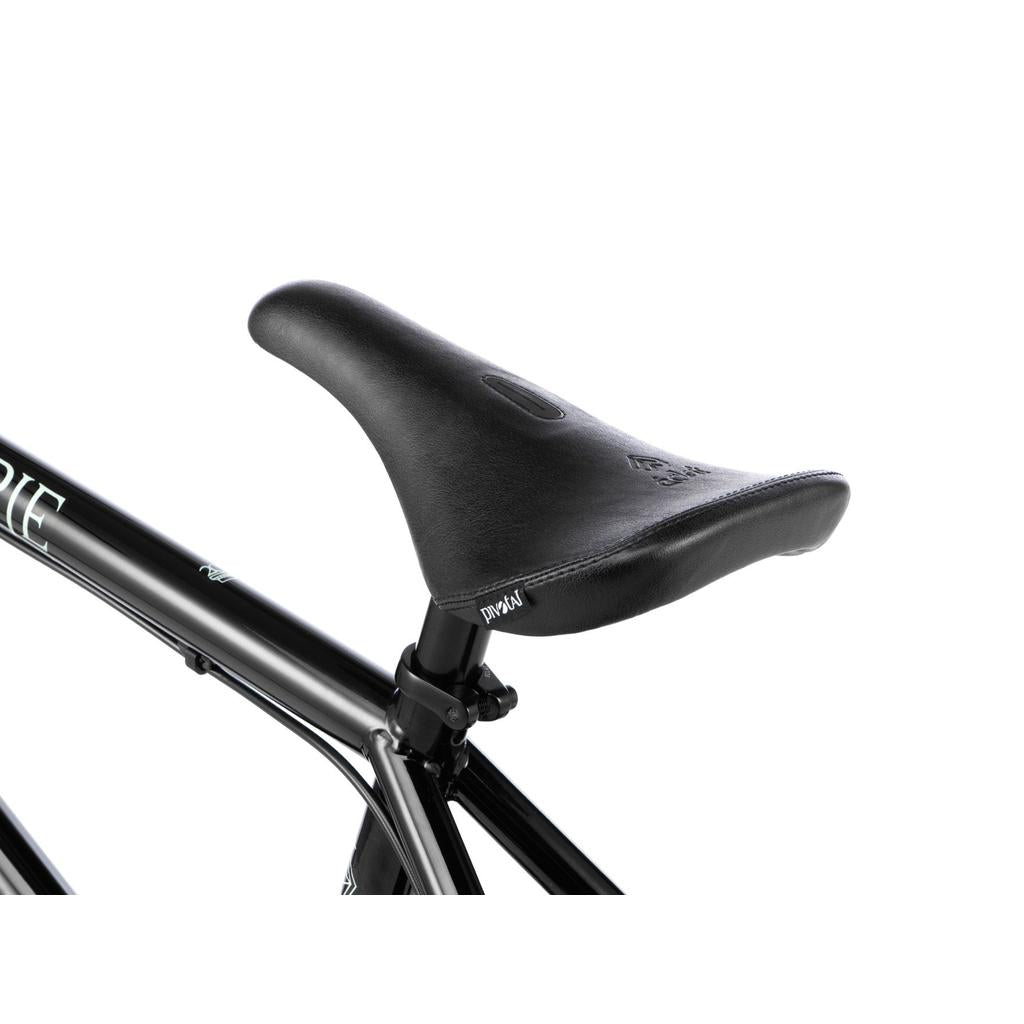

Seat - ÉCLAT "EXILE" pivotal seat, slim padded
Seat post - SALT "AM" pivotal seat post, 200mm, alloy
Seat clamp - ÉCLAT "PURE" seat clamp, forged alloy
Tyres - ÉCLAT - Vapor 20x2.4" front and 2.25" rear.
Weight - TBC
Frame geometry
Top tube length – 21.35"
Chain stay length – 14.1"
Head tube angle – 74.25°
Seat tube angle – 71°
BB height – 11.5"
Standover height – 9.5"
Bar geometry
Bar rise – 9.25"
Bar width – 29.25"
Bar back sweep – 12°
Bar upsweep – 2.5°
