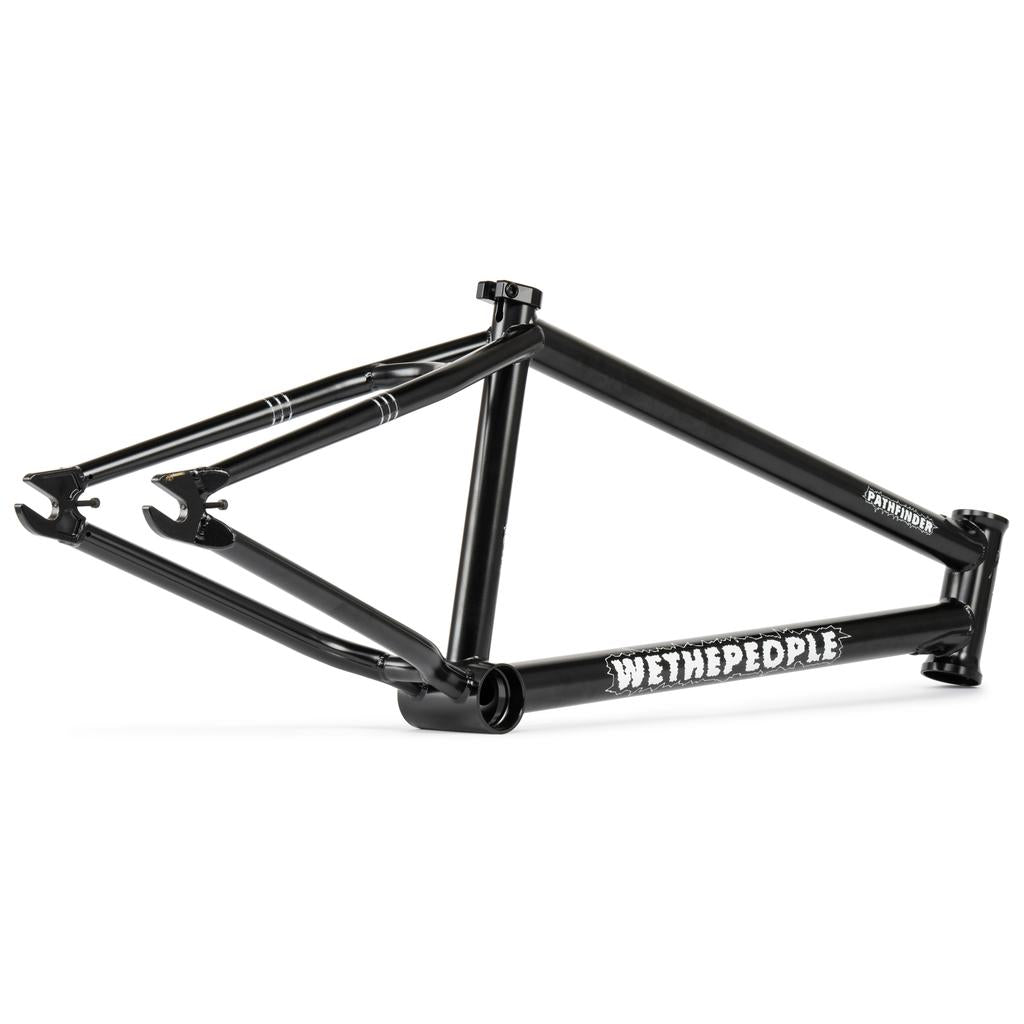

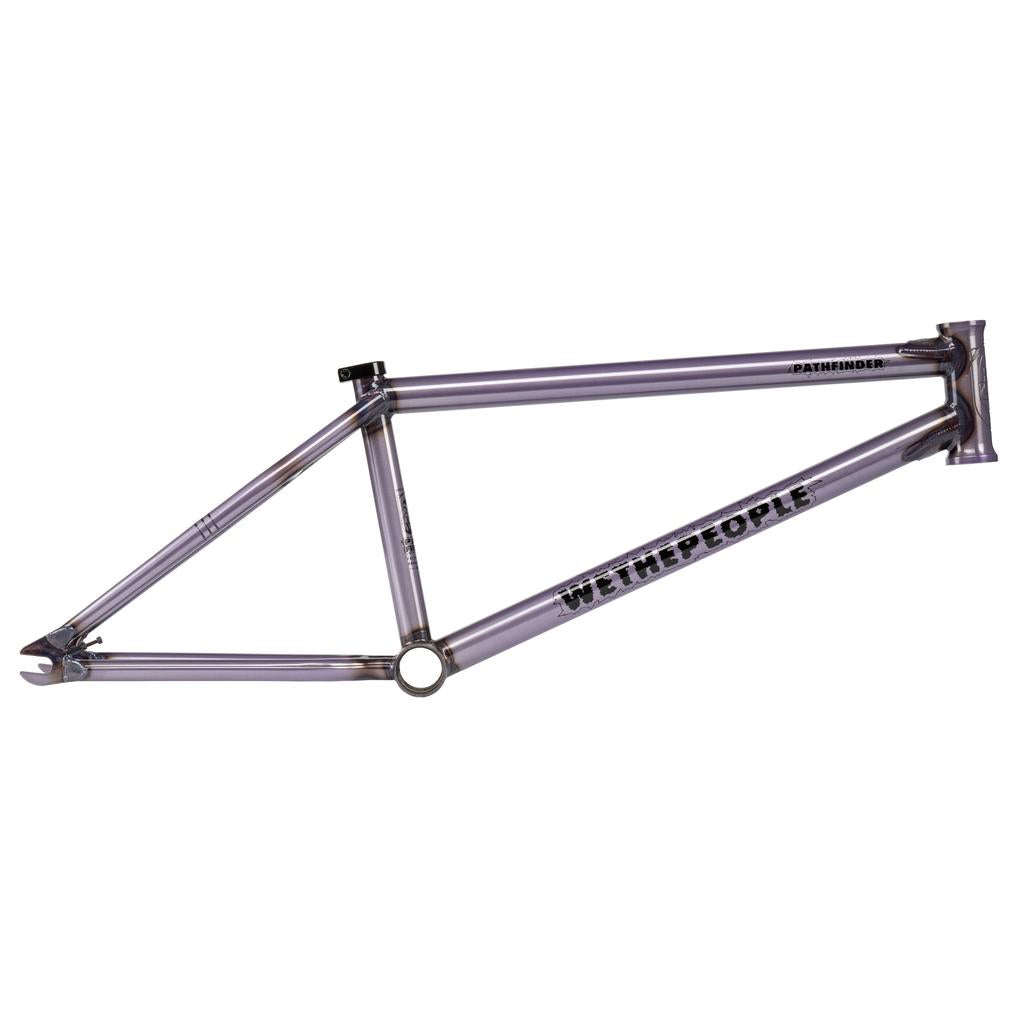

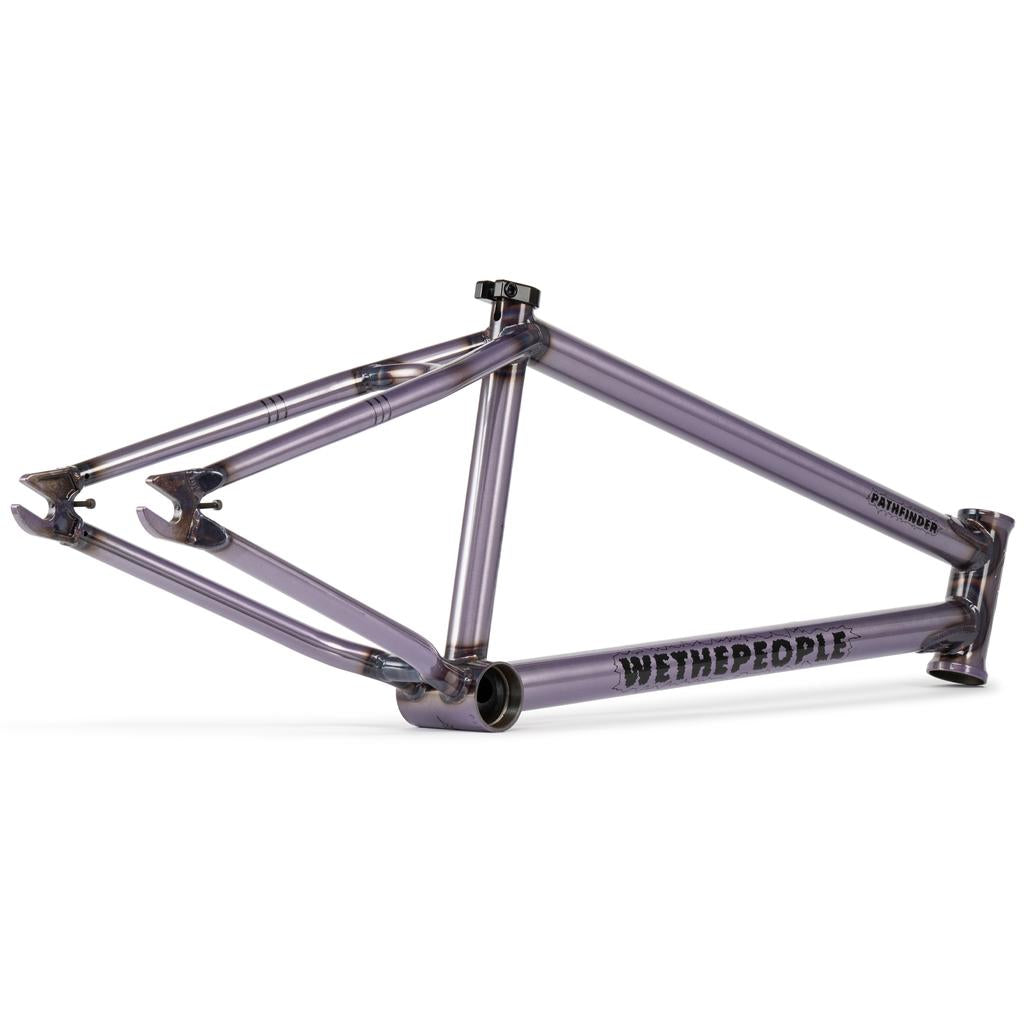

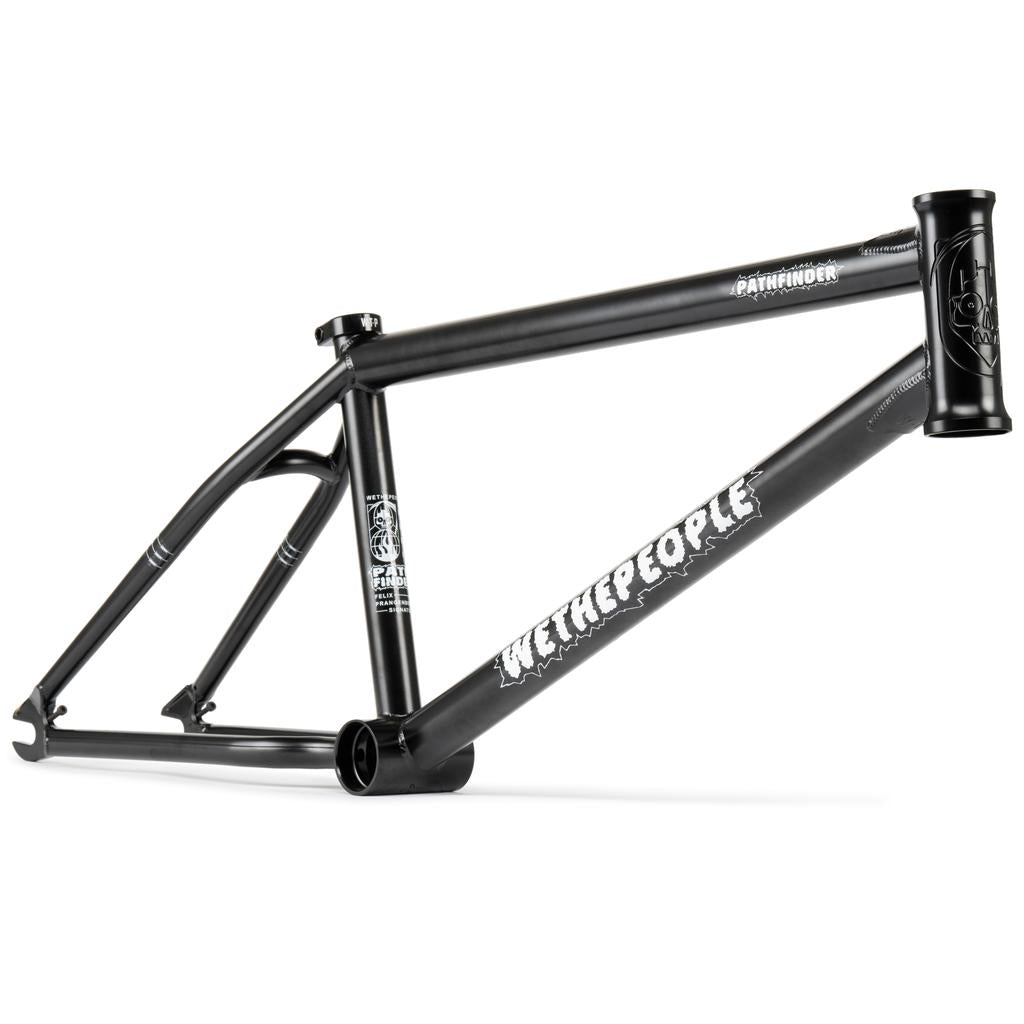

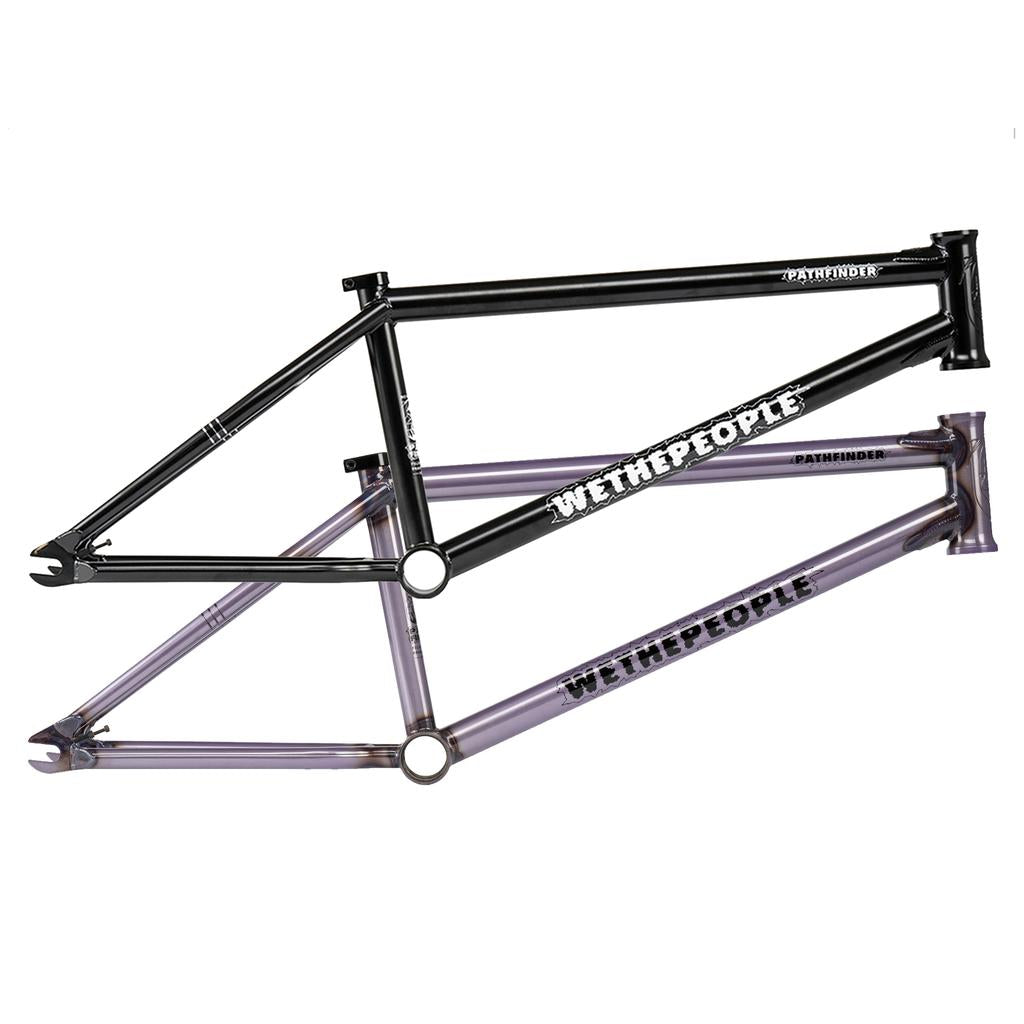

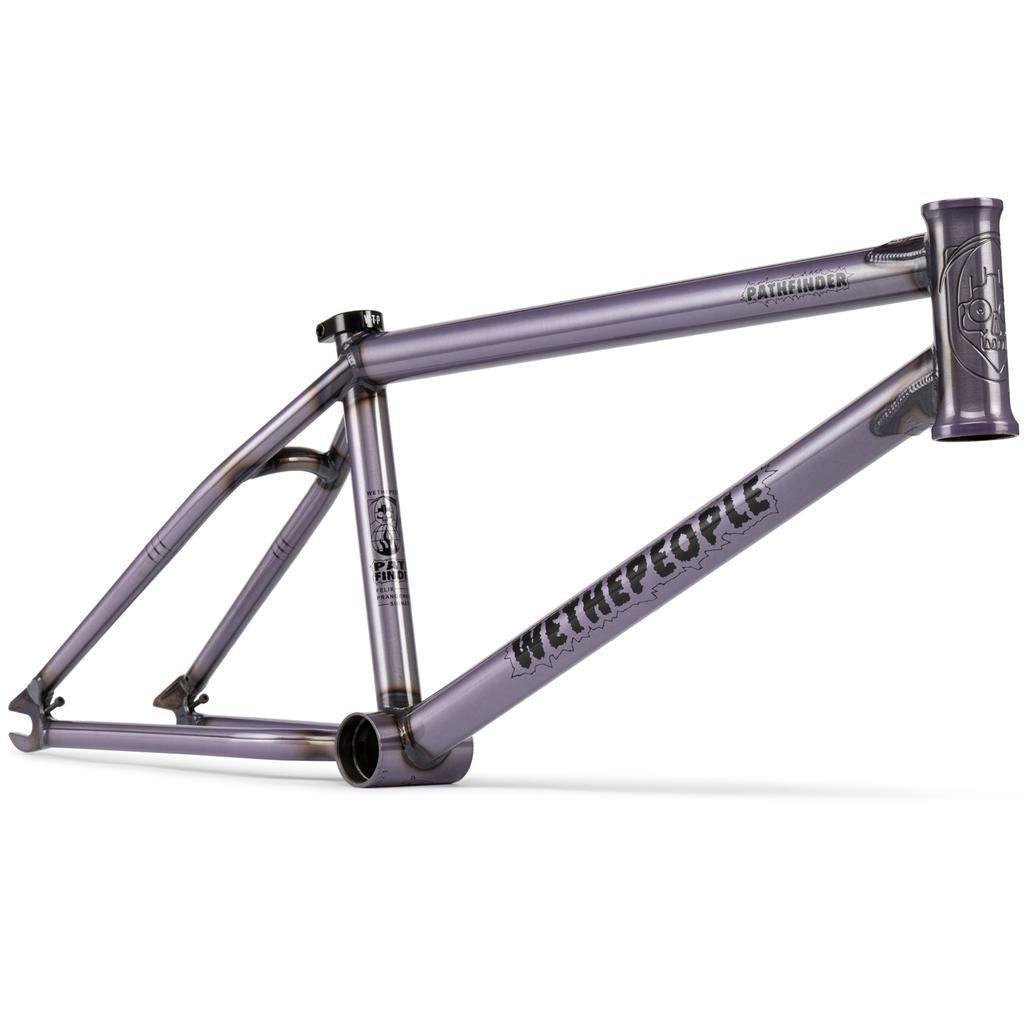

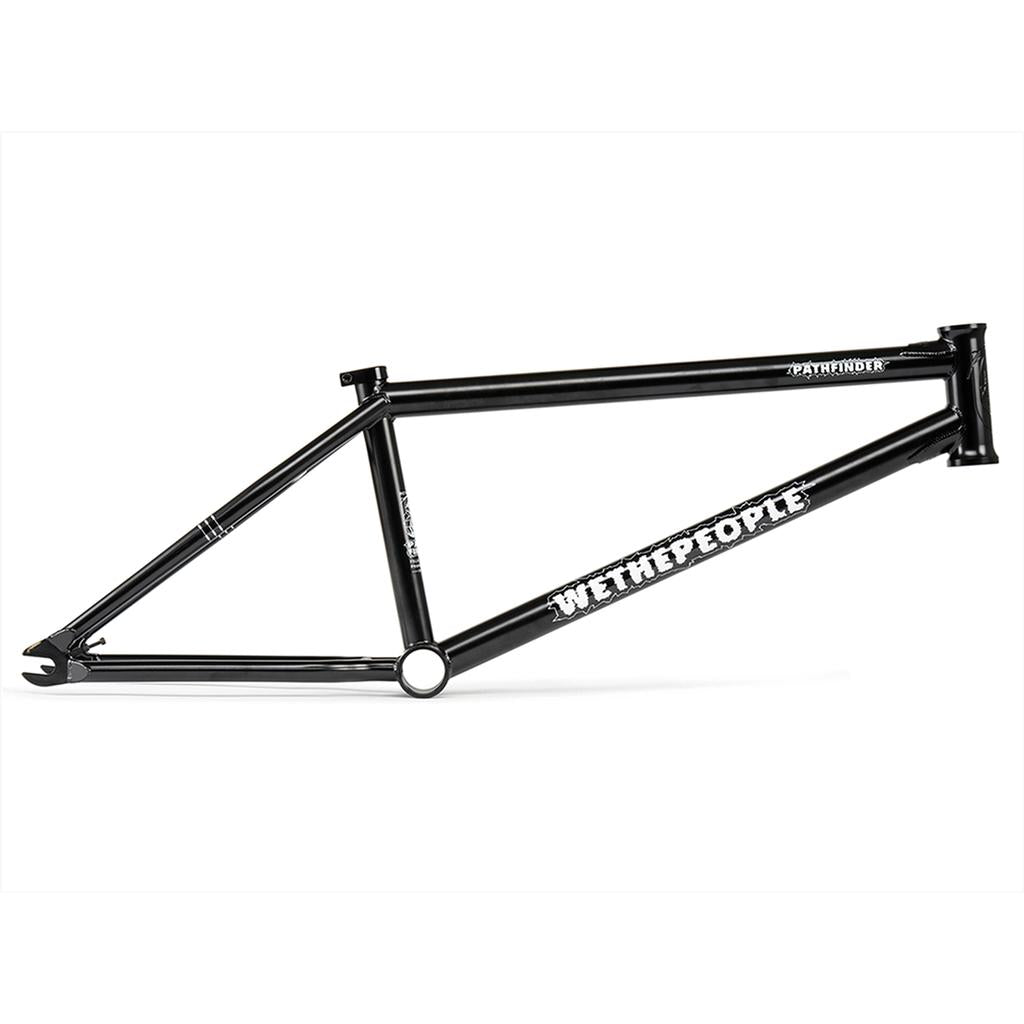

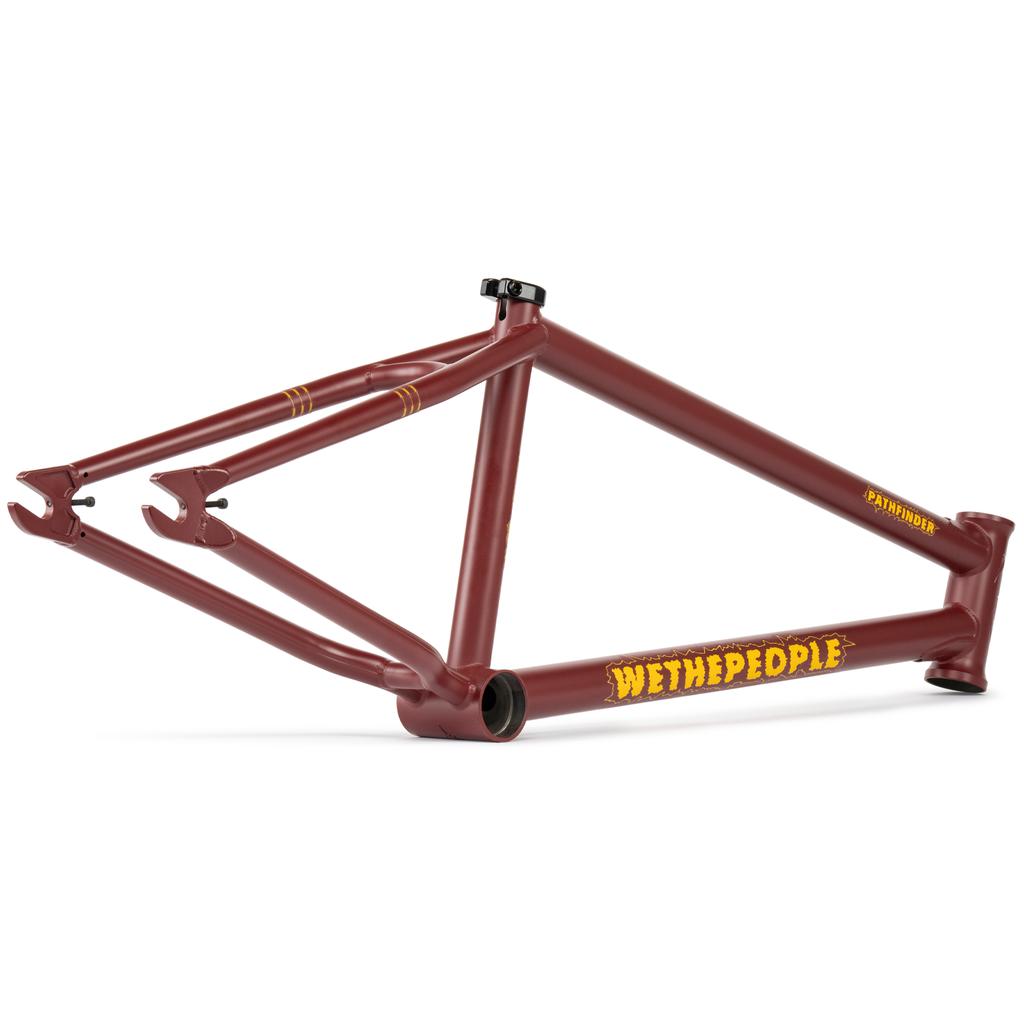

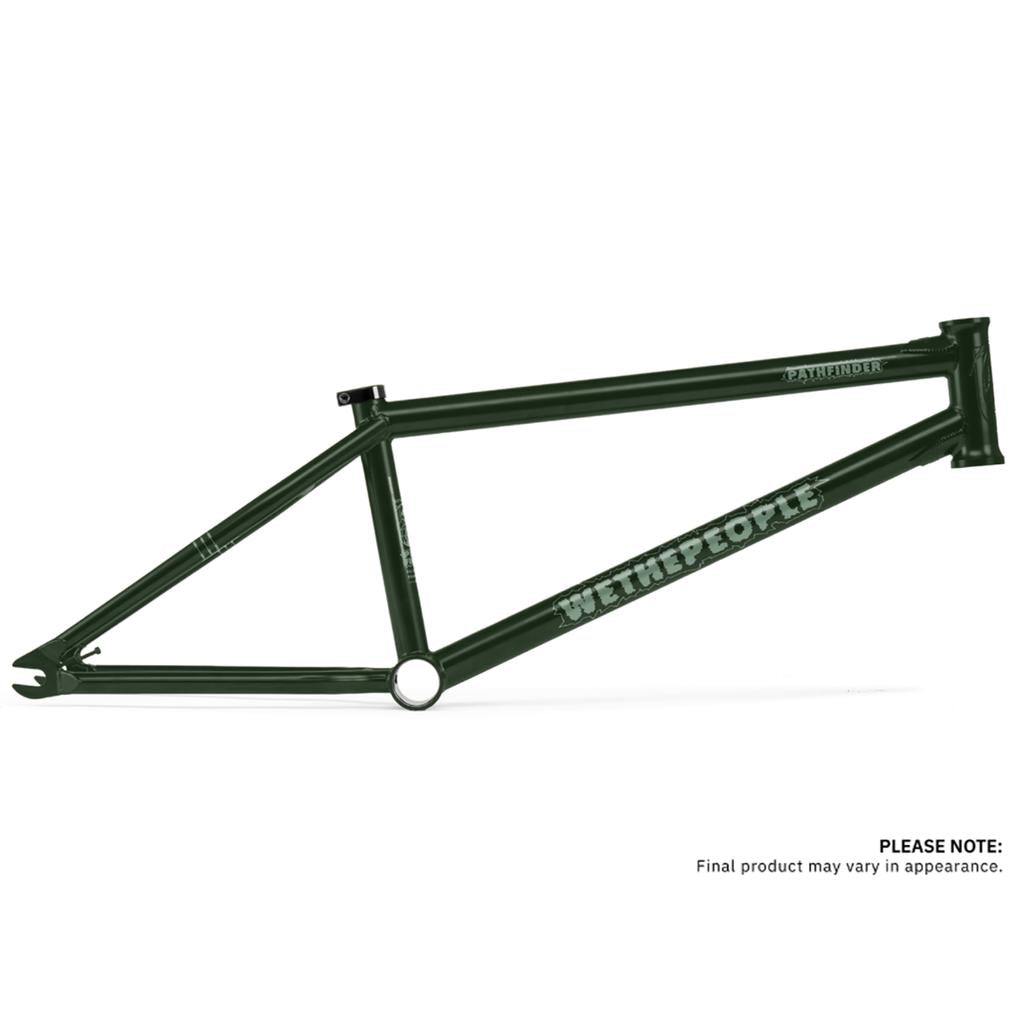

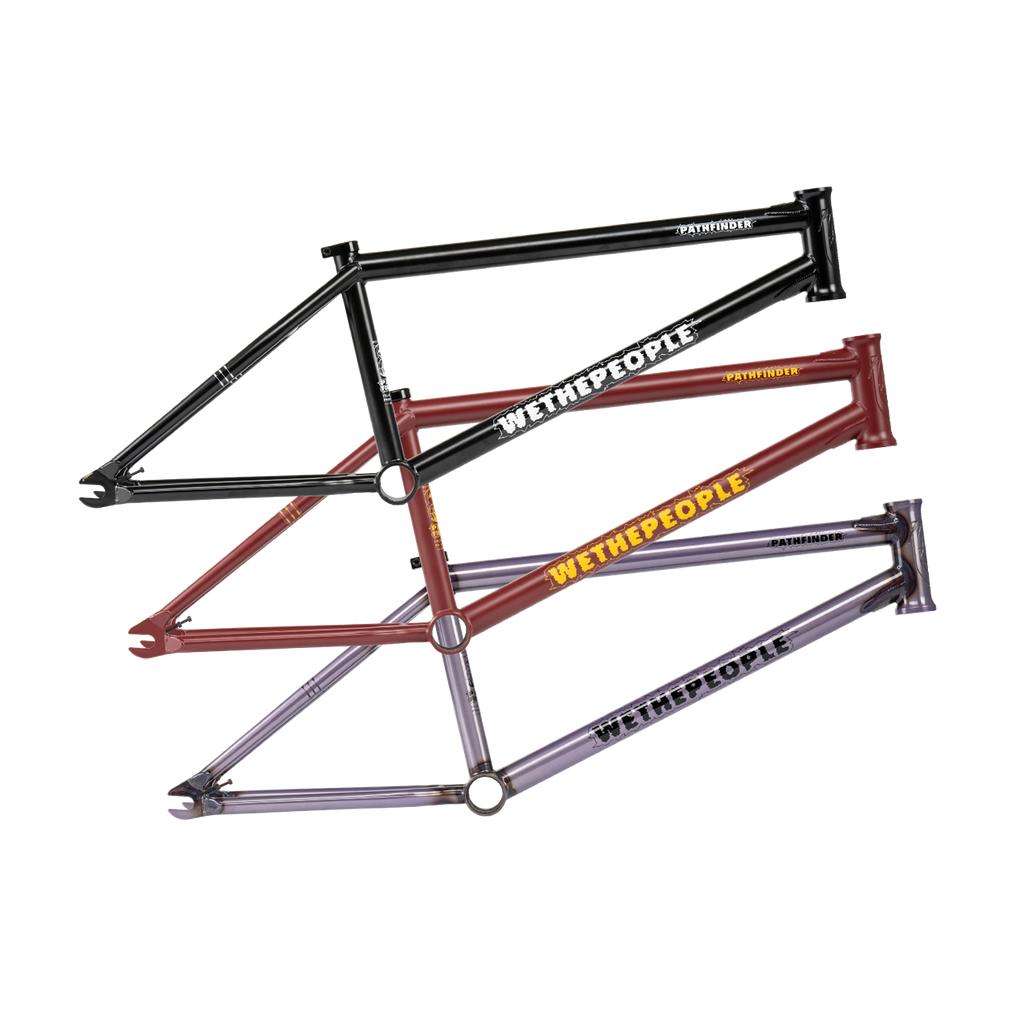

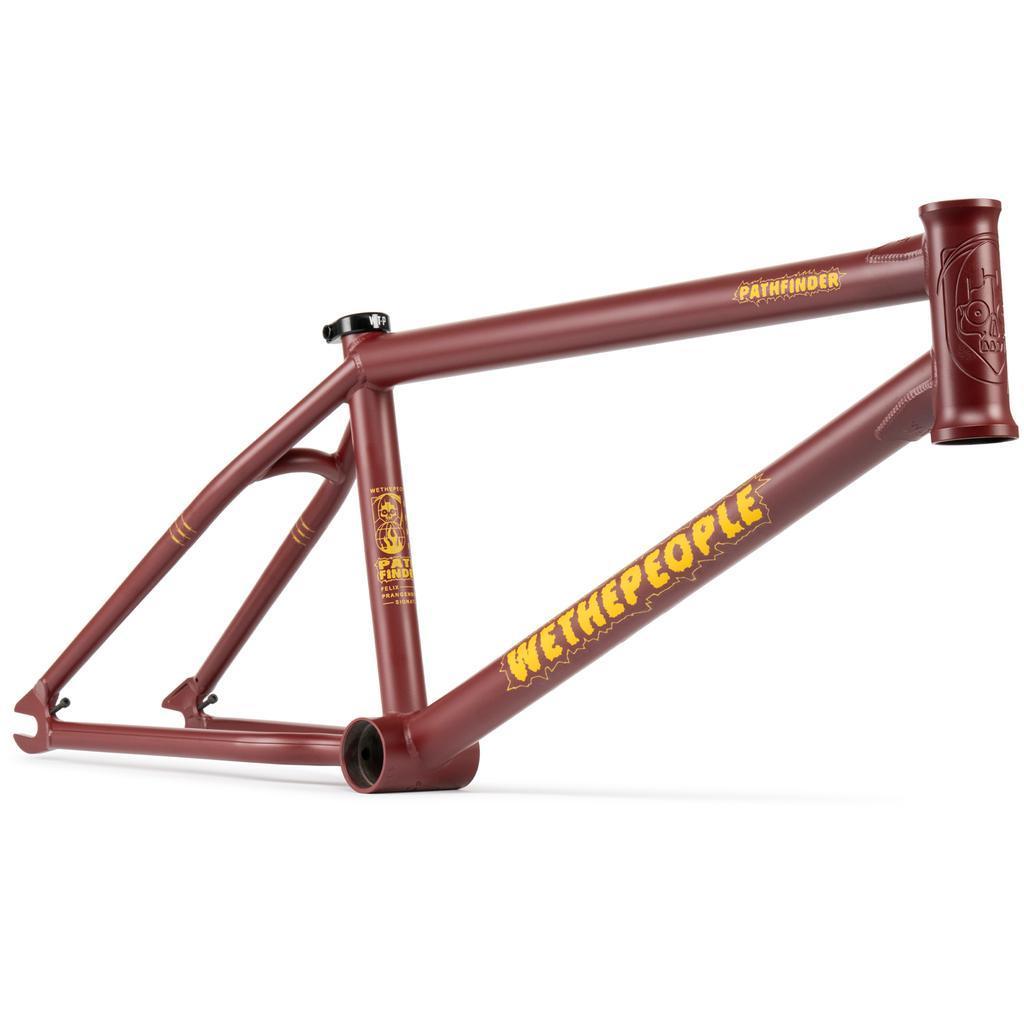

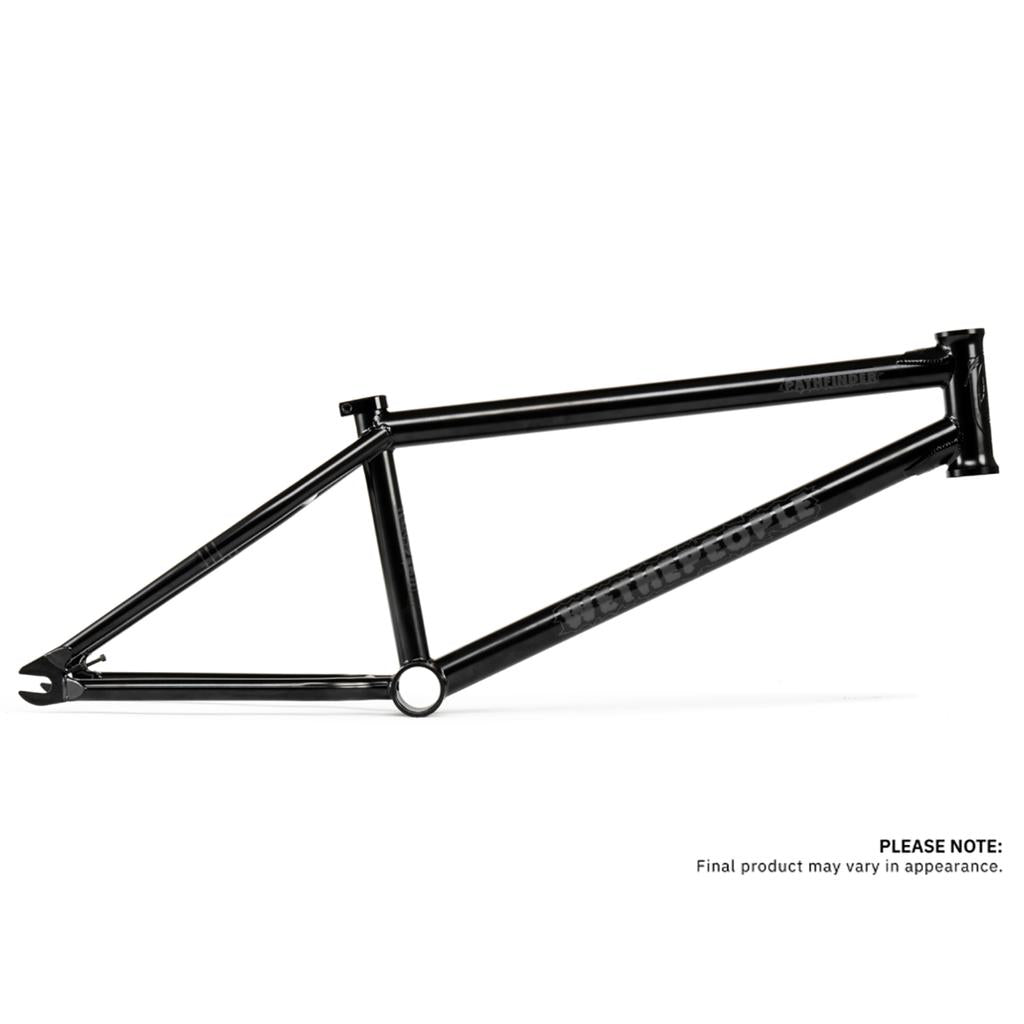

Felix Prangenberg’s signature Pathfinder frame is a product that reflects the originality, progression and power of Felix’s riding. Boasting a short 13” chainstay and a taller 9.666” standover height, the Pathfinder frame utilizes a ground-breaking offset thickness chainstay and bottom bracket shell, to strengthen the frame in areas susceptible to grind damage. Now with brand new graphics, and CNC detailing on the head tube and bottom bracket shell. Includes a lifetime guarantee.
Features
- 127mm tall head tube for less spacers with an uncut fork

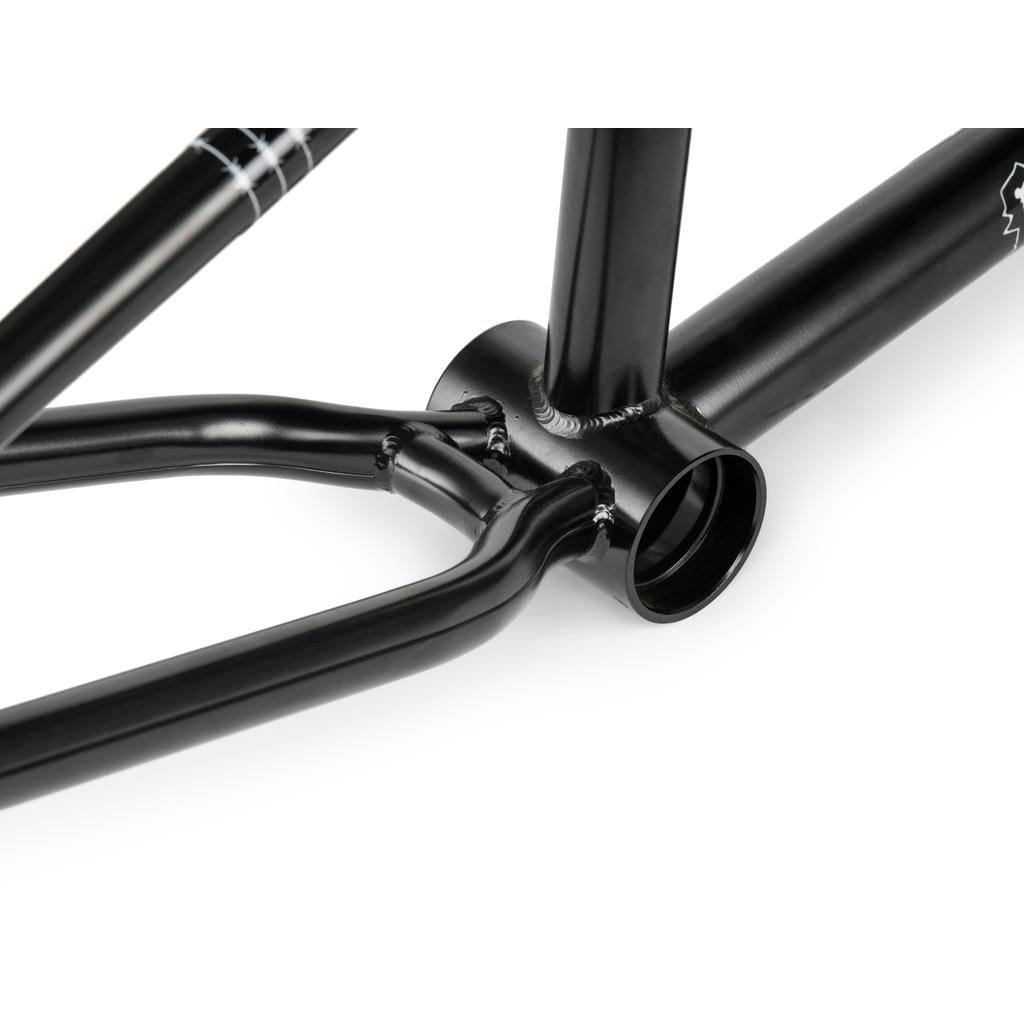

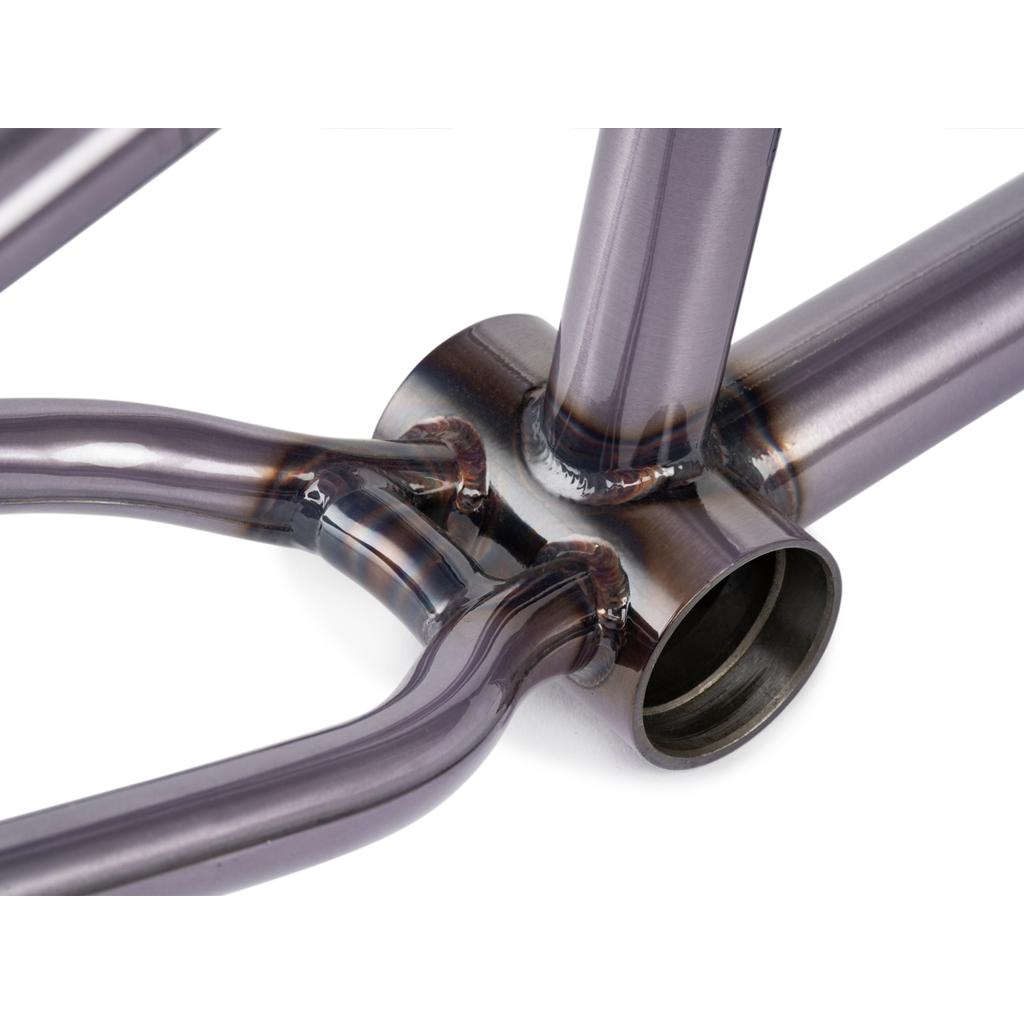

- Extruded offset thickness dent-resistant chain stays and bottom bracket shell
- Steeper 76° head tube and taller 9.666" stand-over
- Extra thick double-butted top tube
- Larger 1.8mm welding at the head tube
- Wider rear triangle allows clearance for a 2.4" tyre
- WTP top tube and down tube gusset

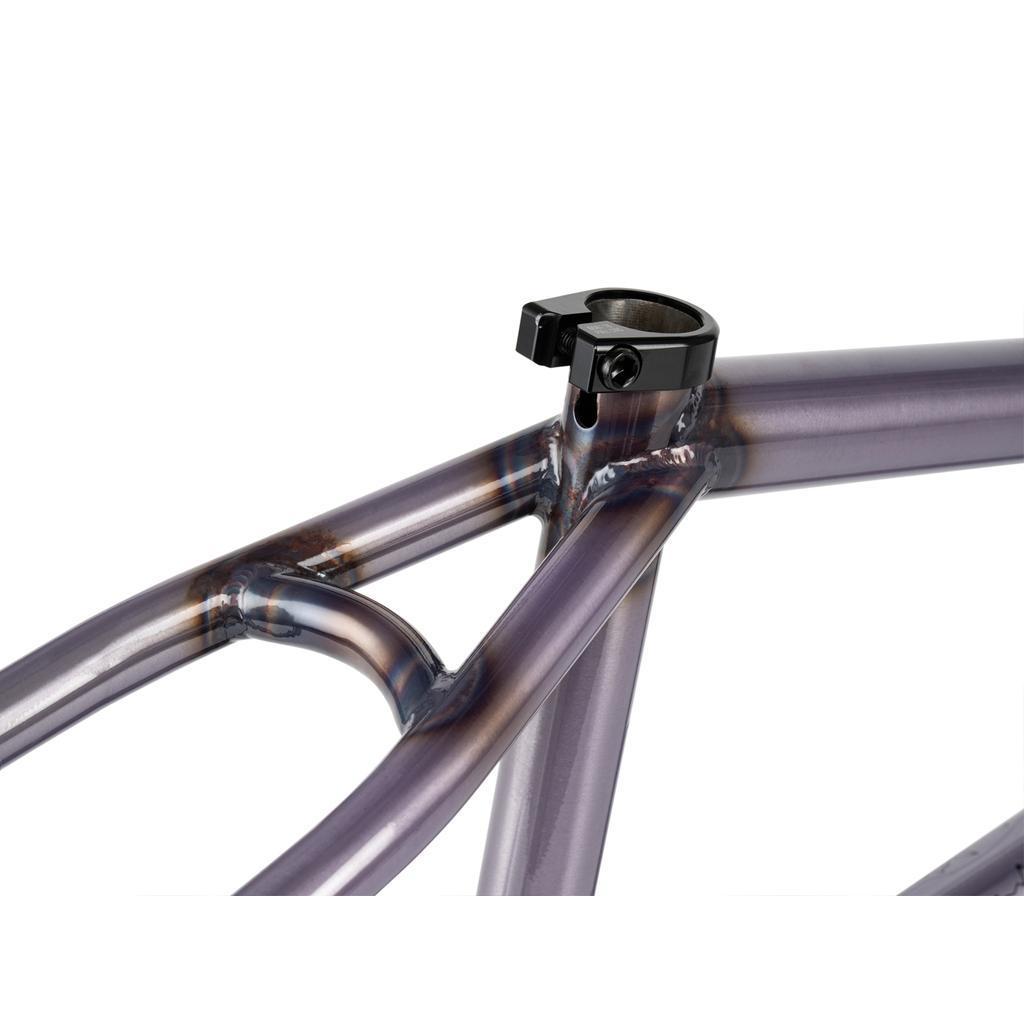

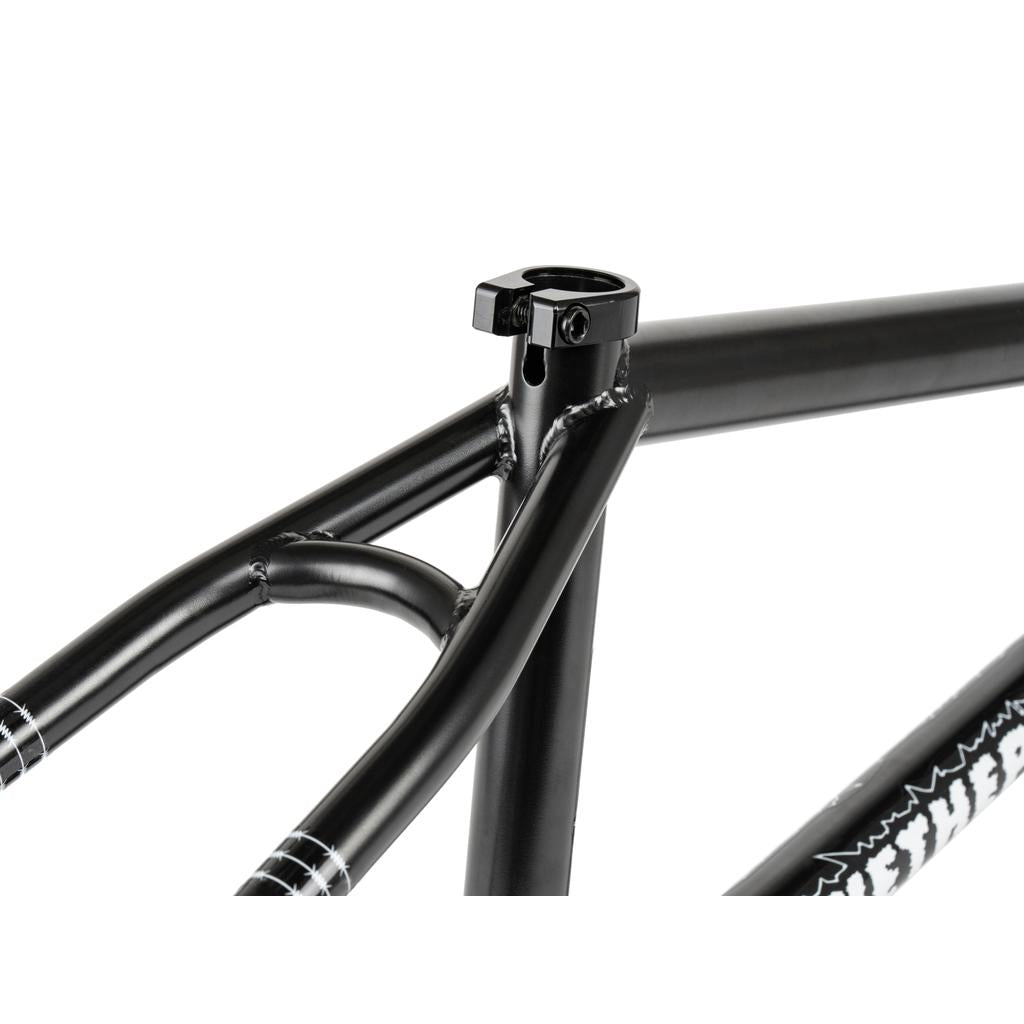

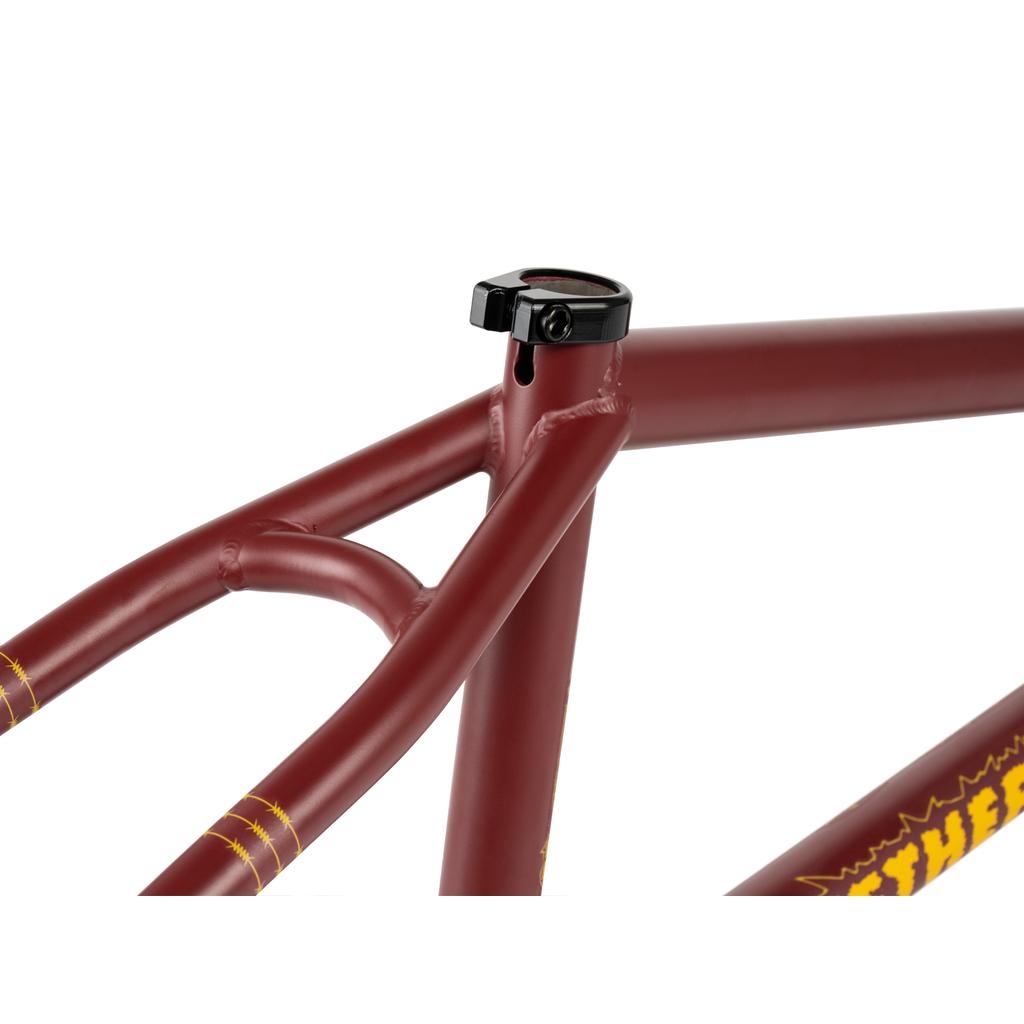

- WTP supreme seat clamp

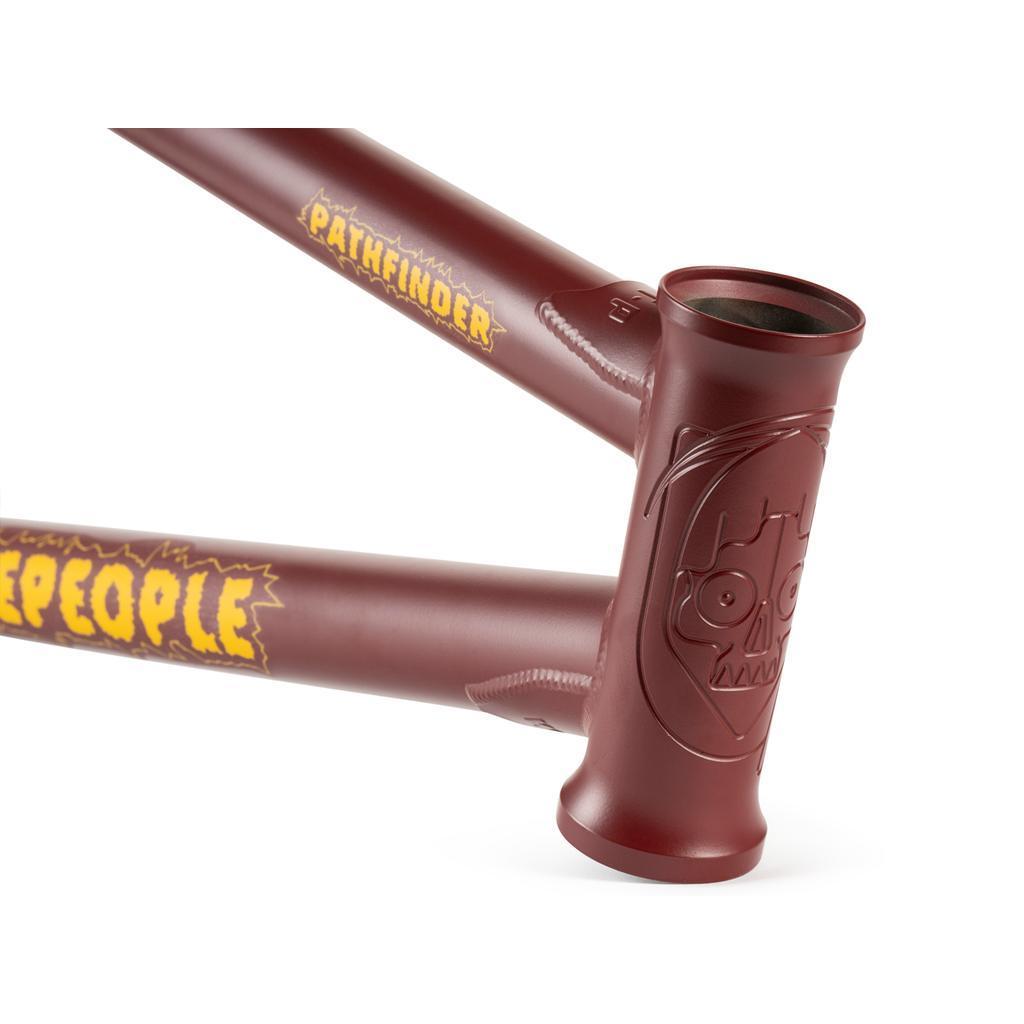

- CNC detailing on heat tube and bottom bracket
- Includes a lifetime guarantee
Specifications
Tubing - Butted, Japanese seamless 4130 chromo tubing

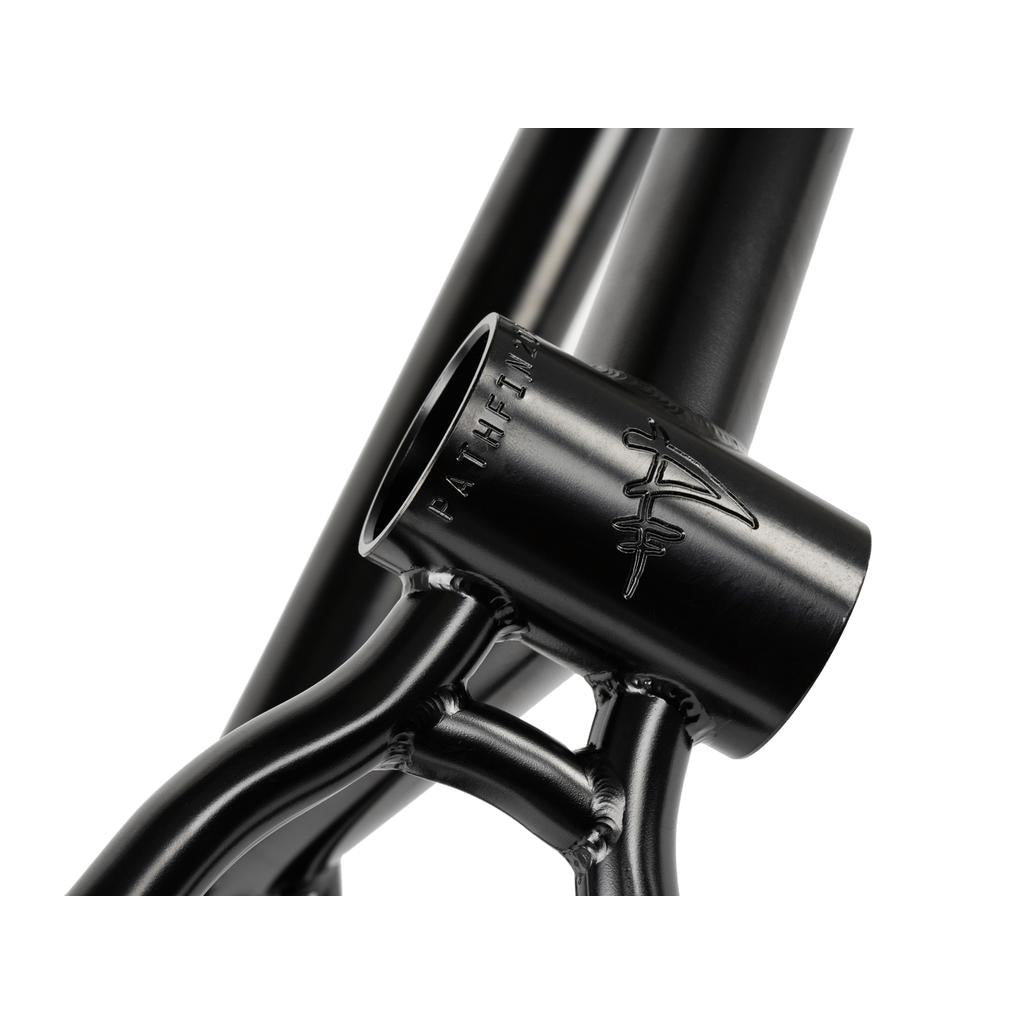

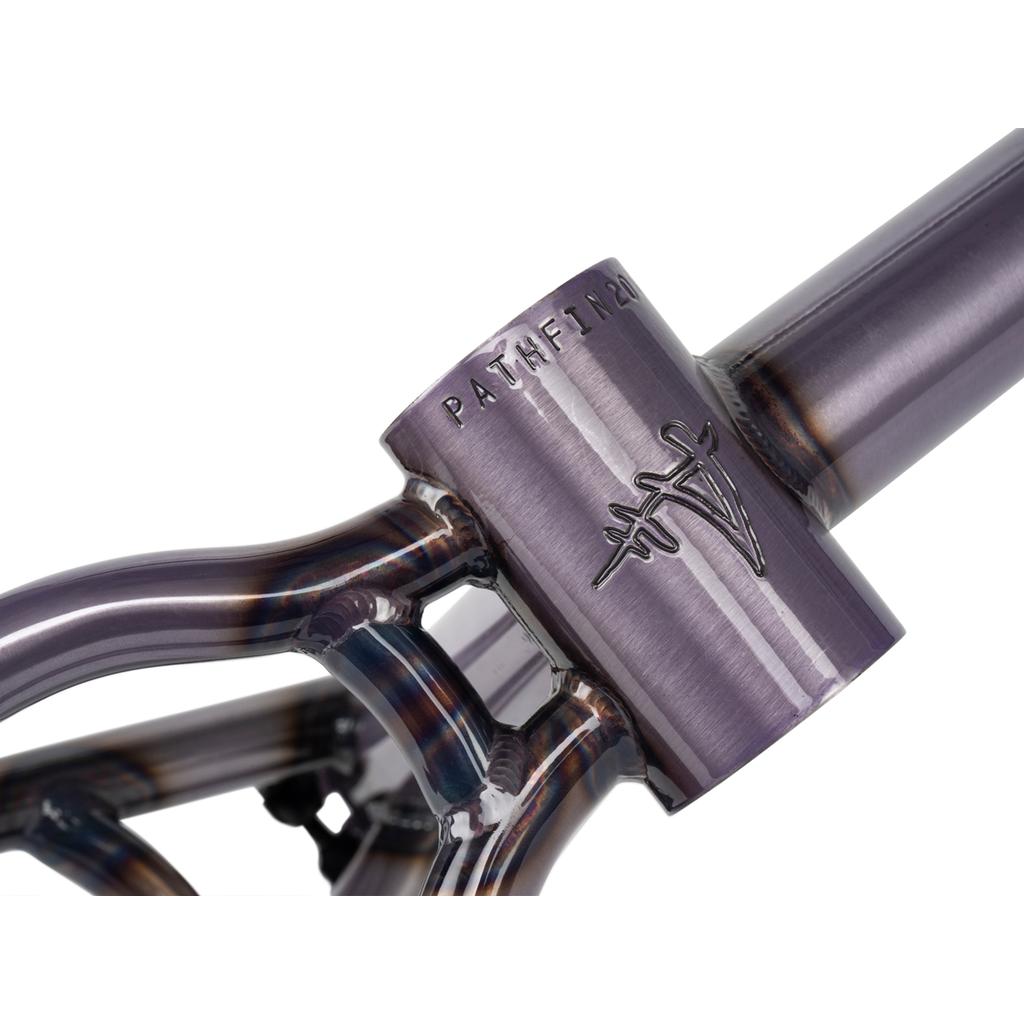

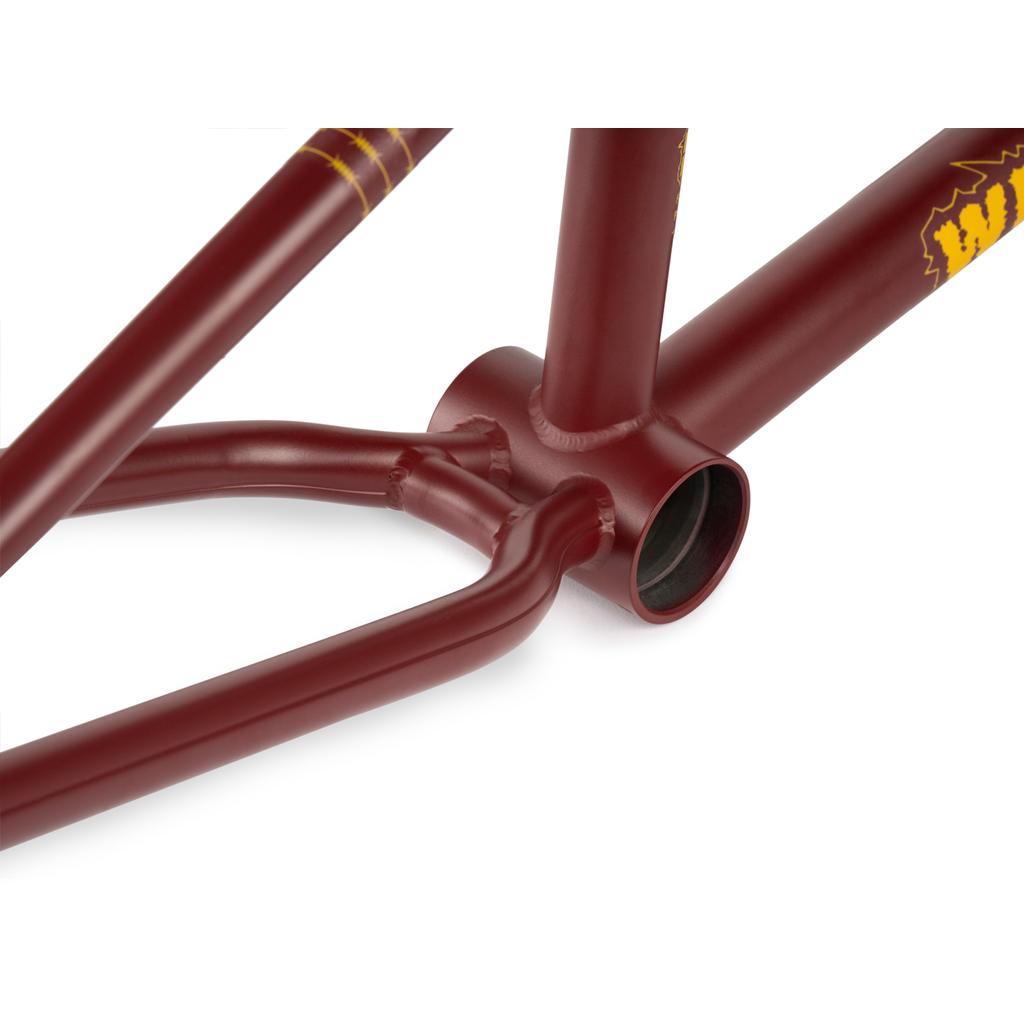

Bottom bracket - 74mm mid-size, offset CNC machined and heat-treated

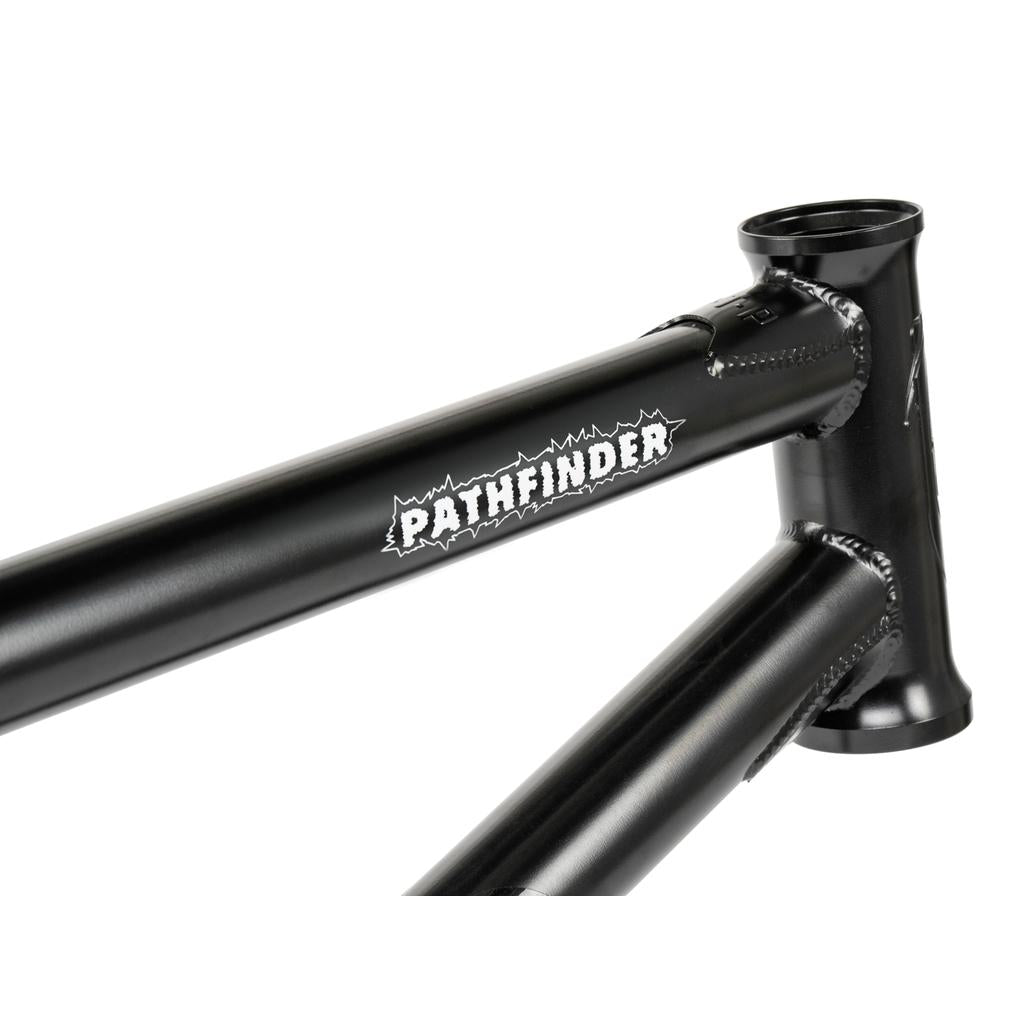

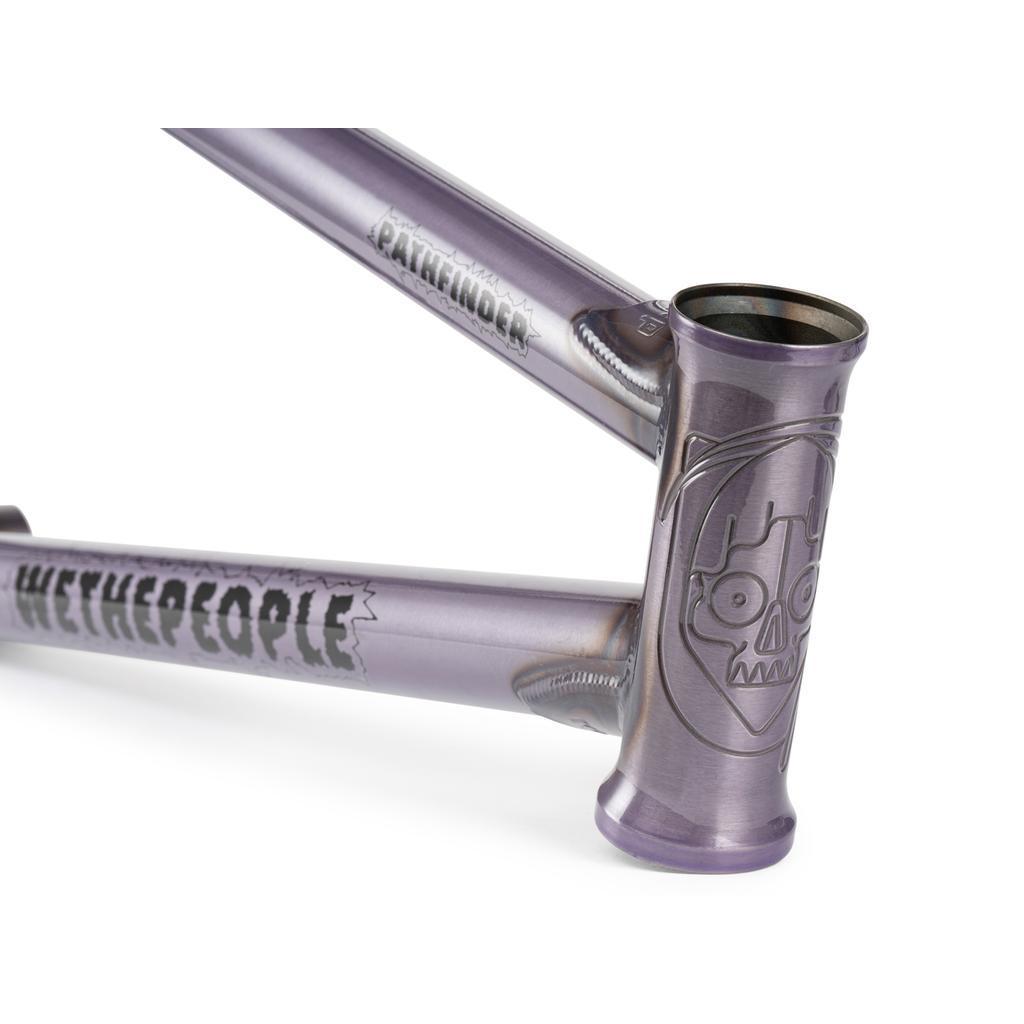

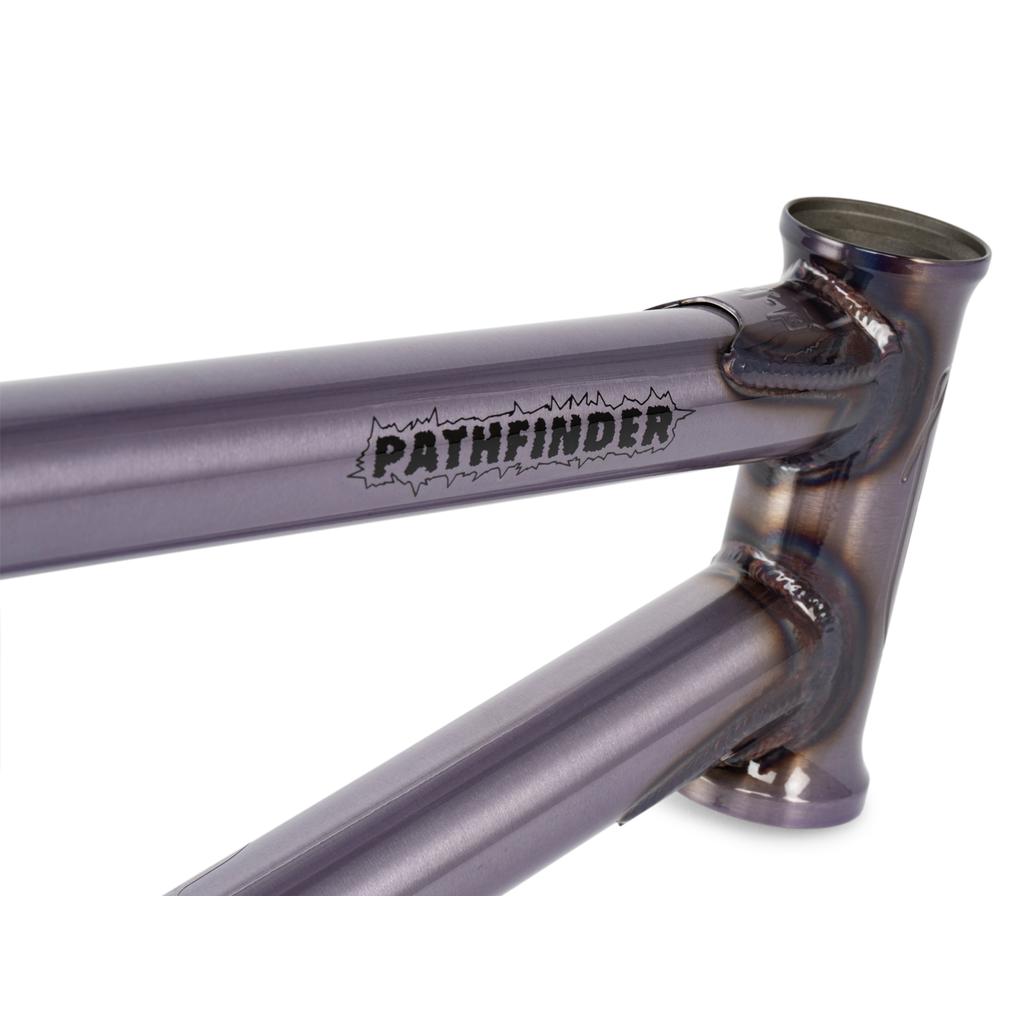

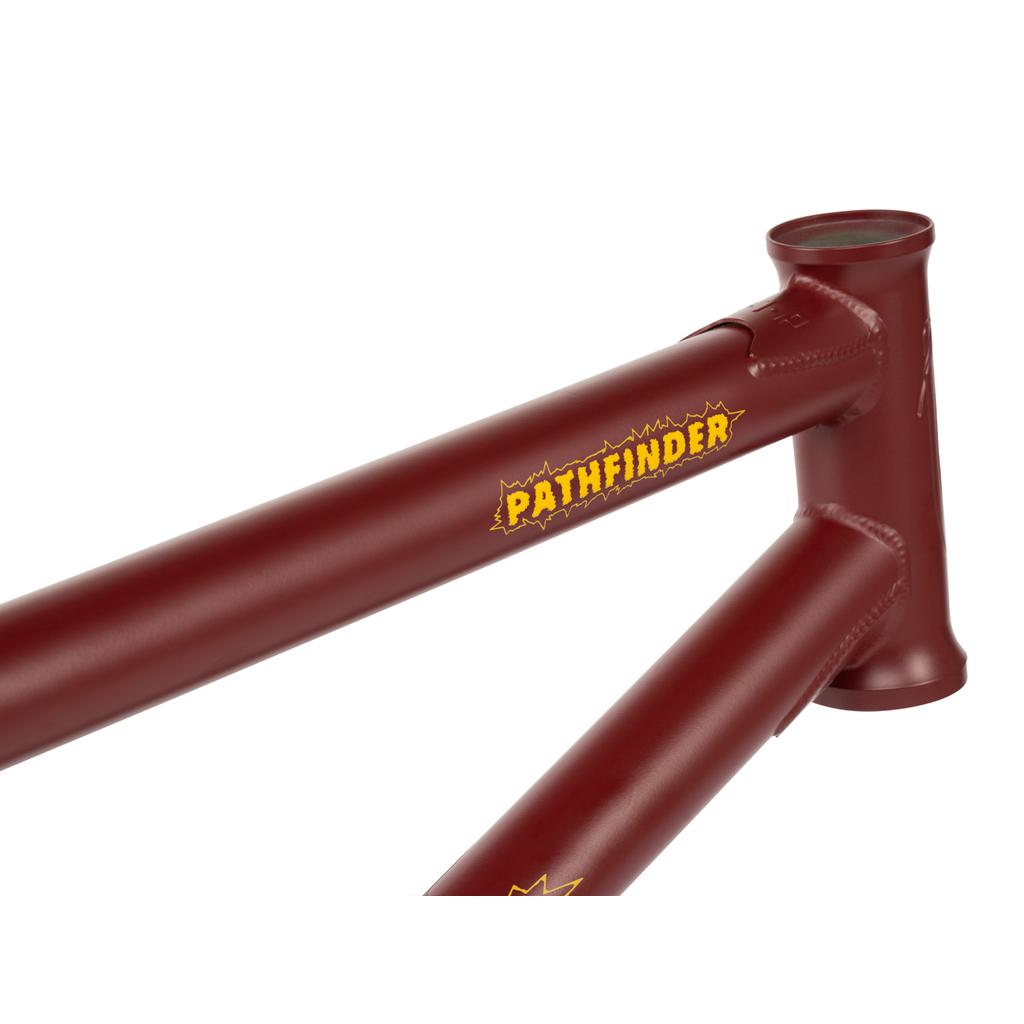

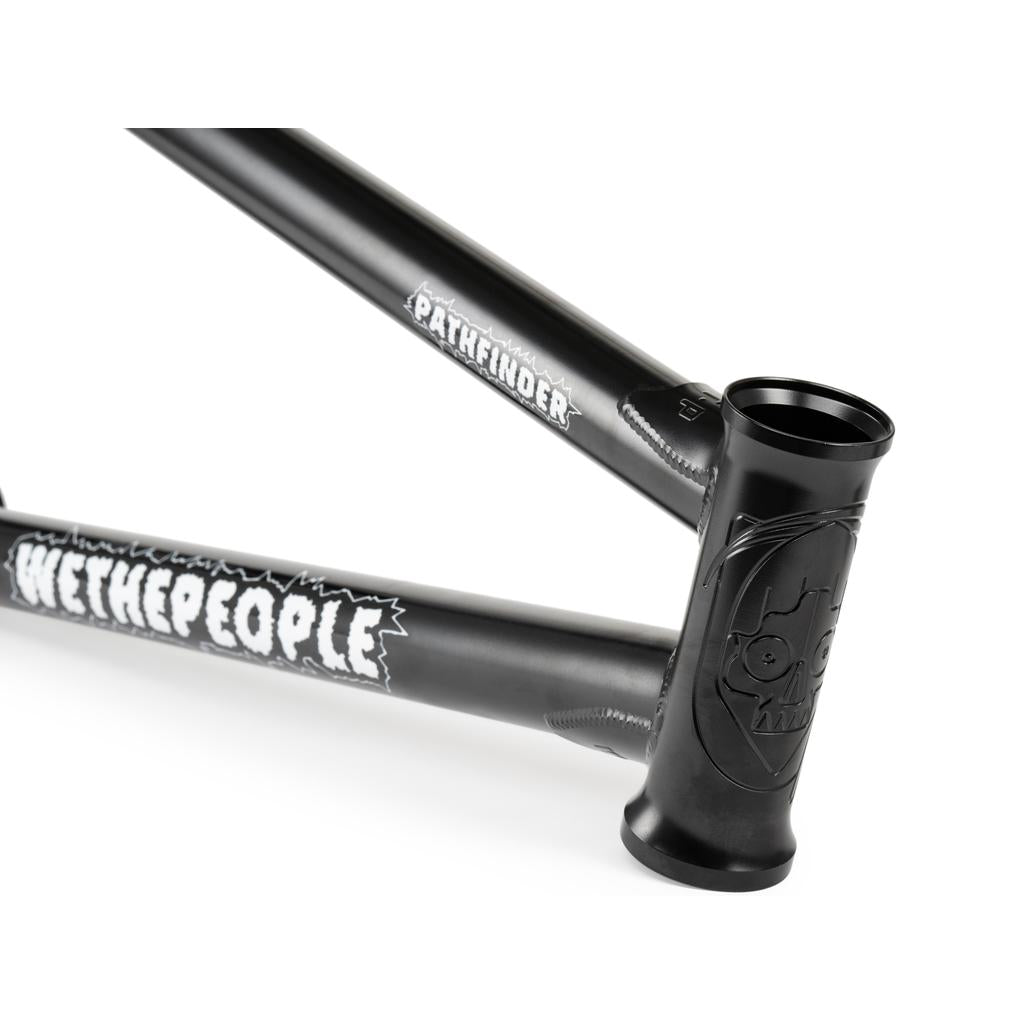

Head tube - 127mm CNC machined and heat-treated, integ. H/set

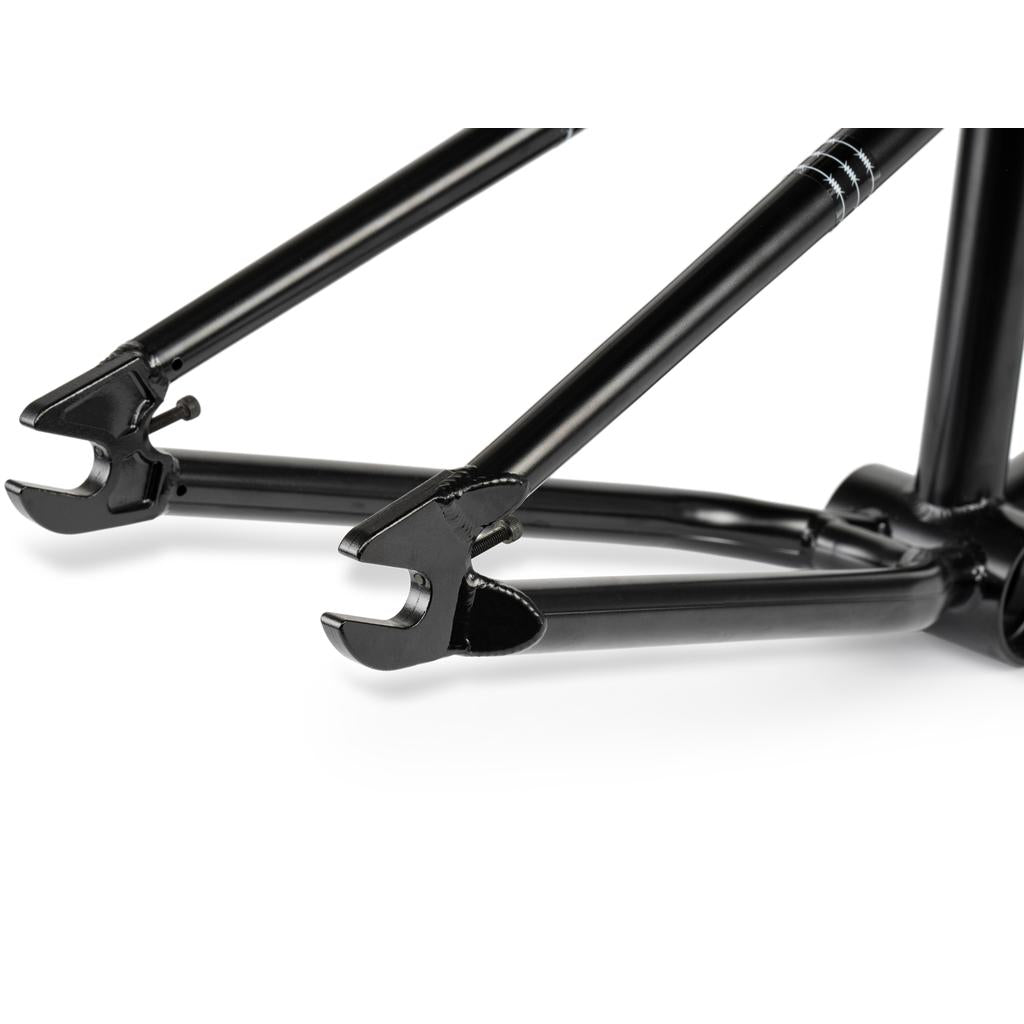

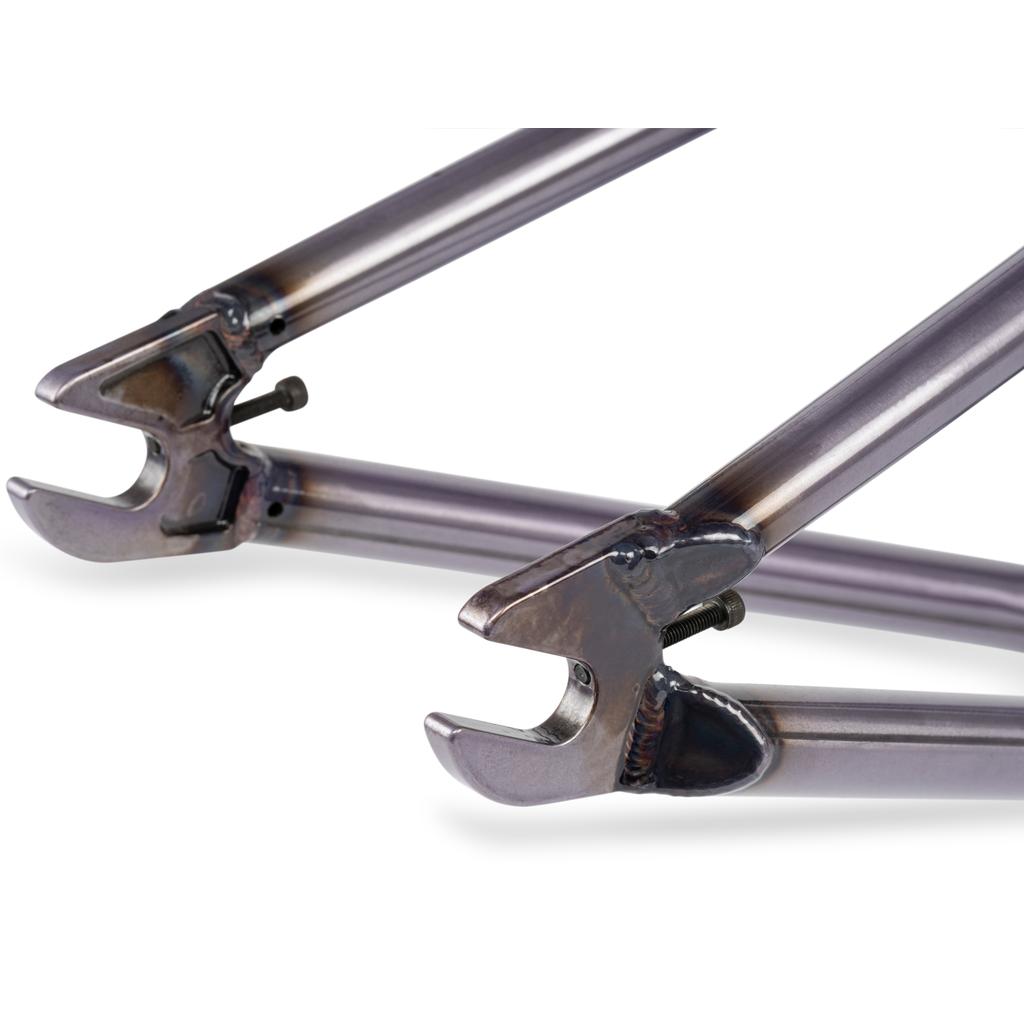

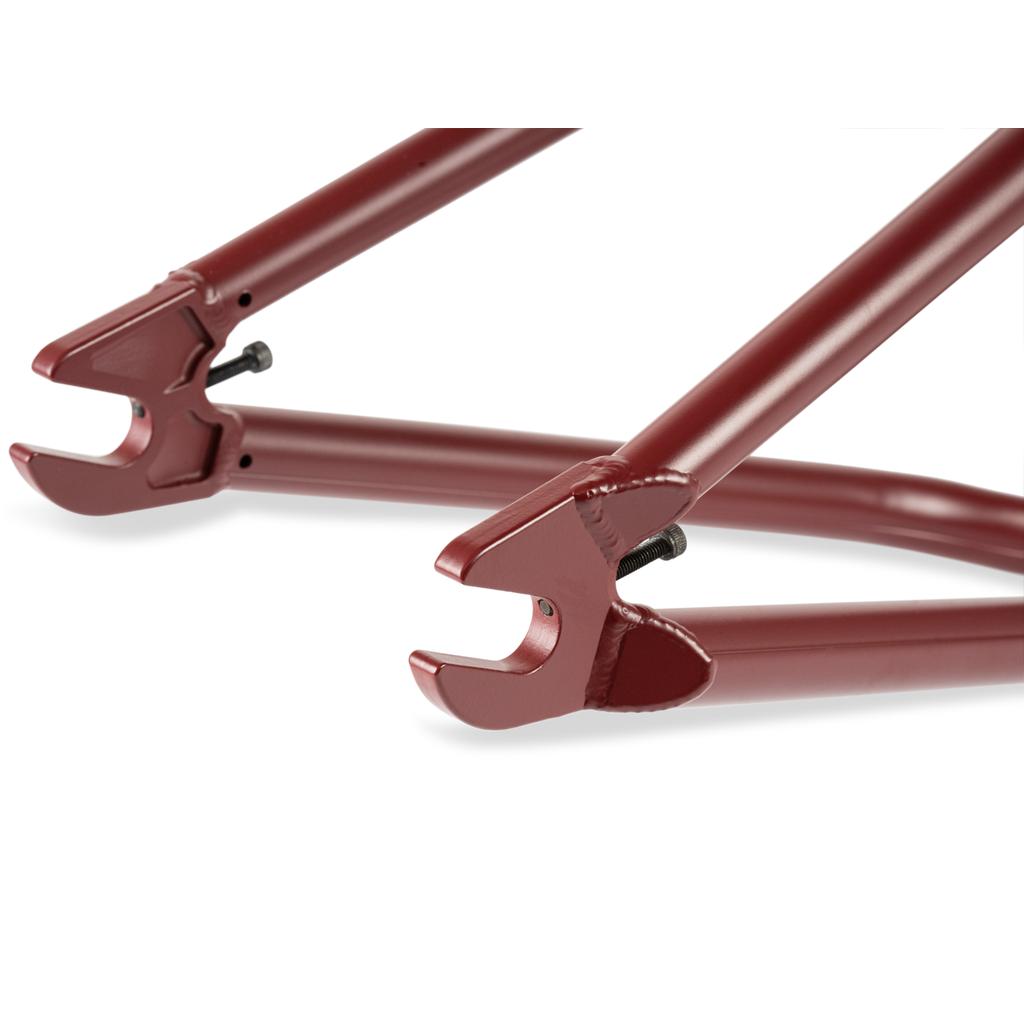

Dropouts - Invest cast 7.5mm thick, integrated chain tensioners, heat-treated 4130 chromo, perfect shape for pegs and hub guards
Brakes - Brakeless frame
Weight - 2.36kg - 21" tt
Geometry
Top tube length - 20.75", 21"
Chain stay length - 12.7"-13.25" - optimized for 12.75/13"
Head tube angle - 76°
Seat tube angle - 71°
Bb height - 11.7"
Standover height - 9.666" / 9.35"
