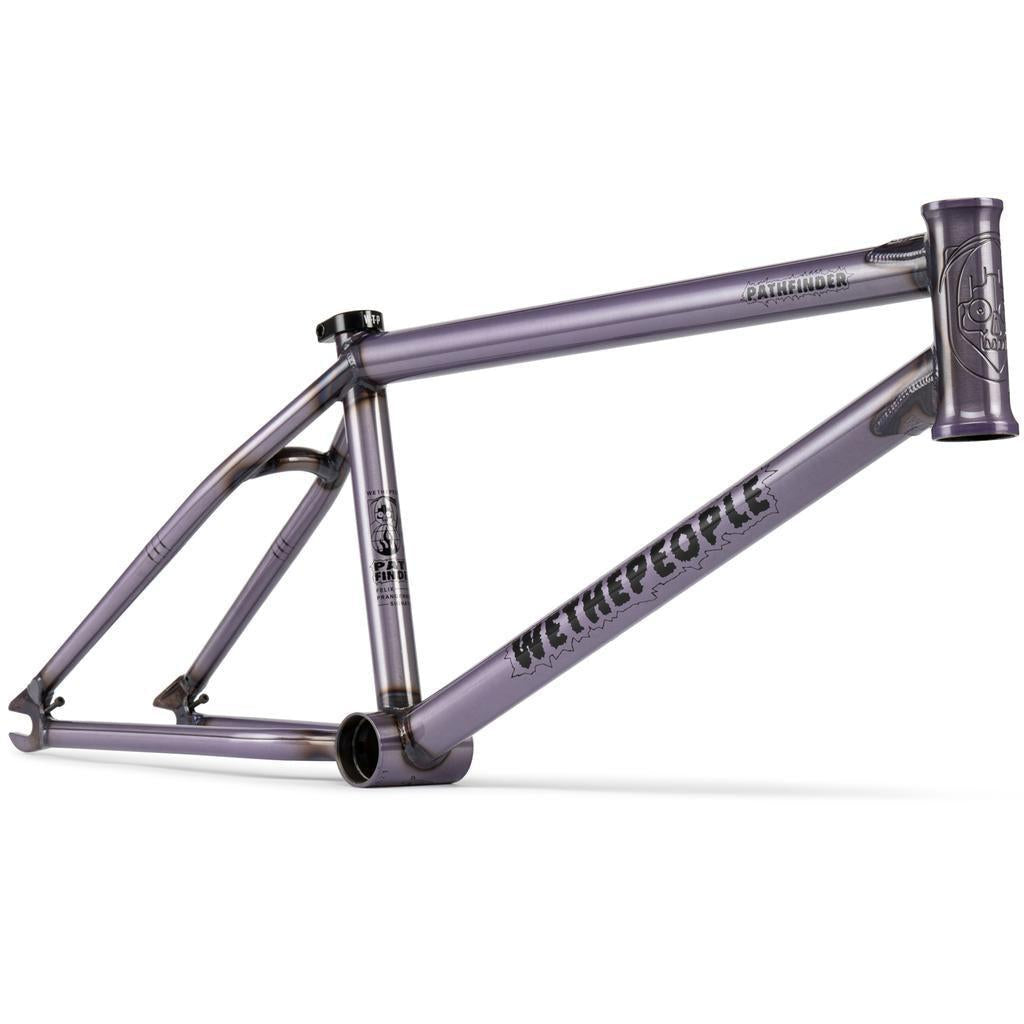

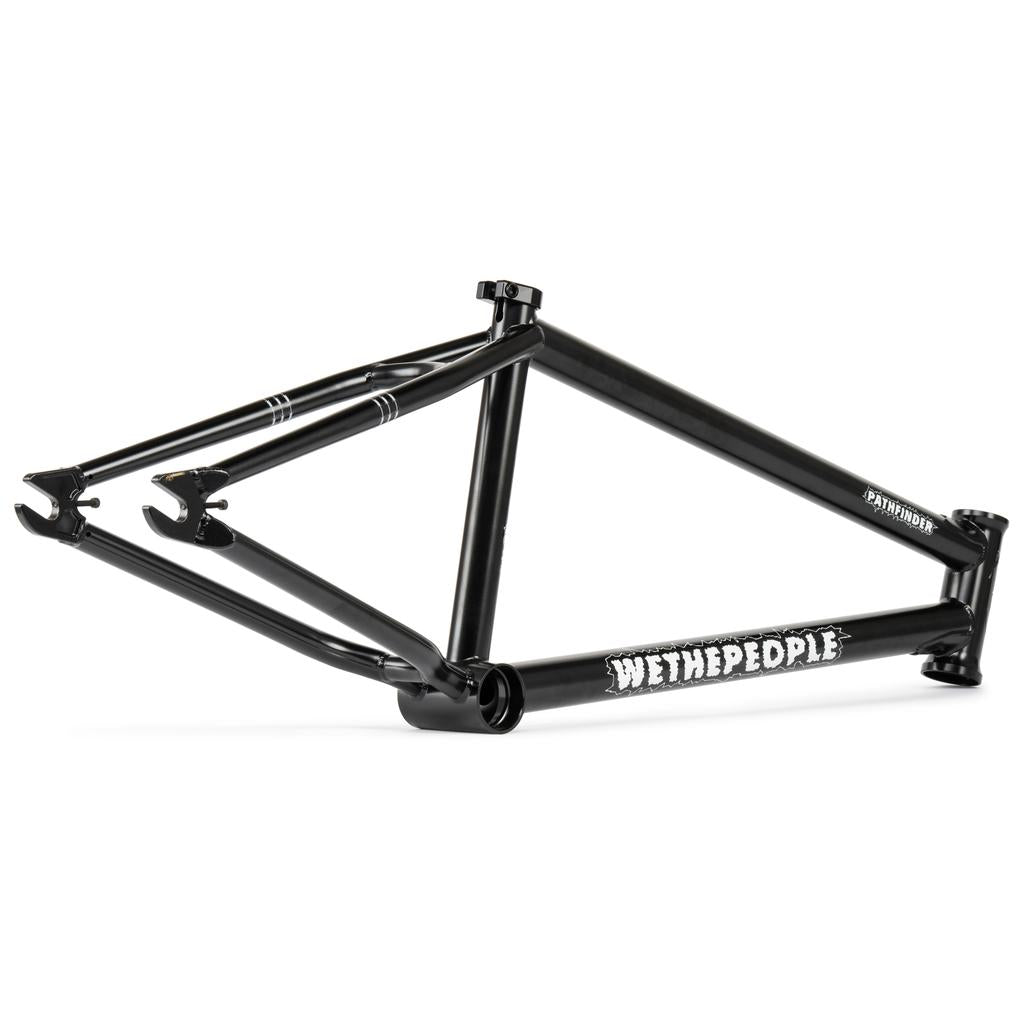

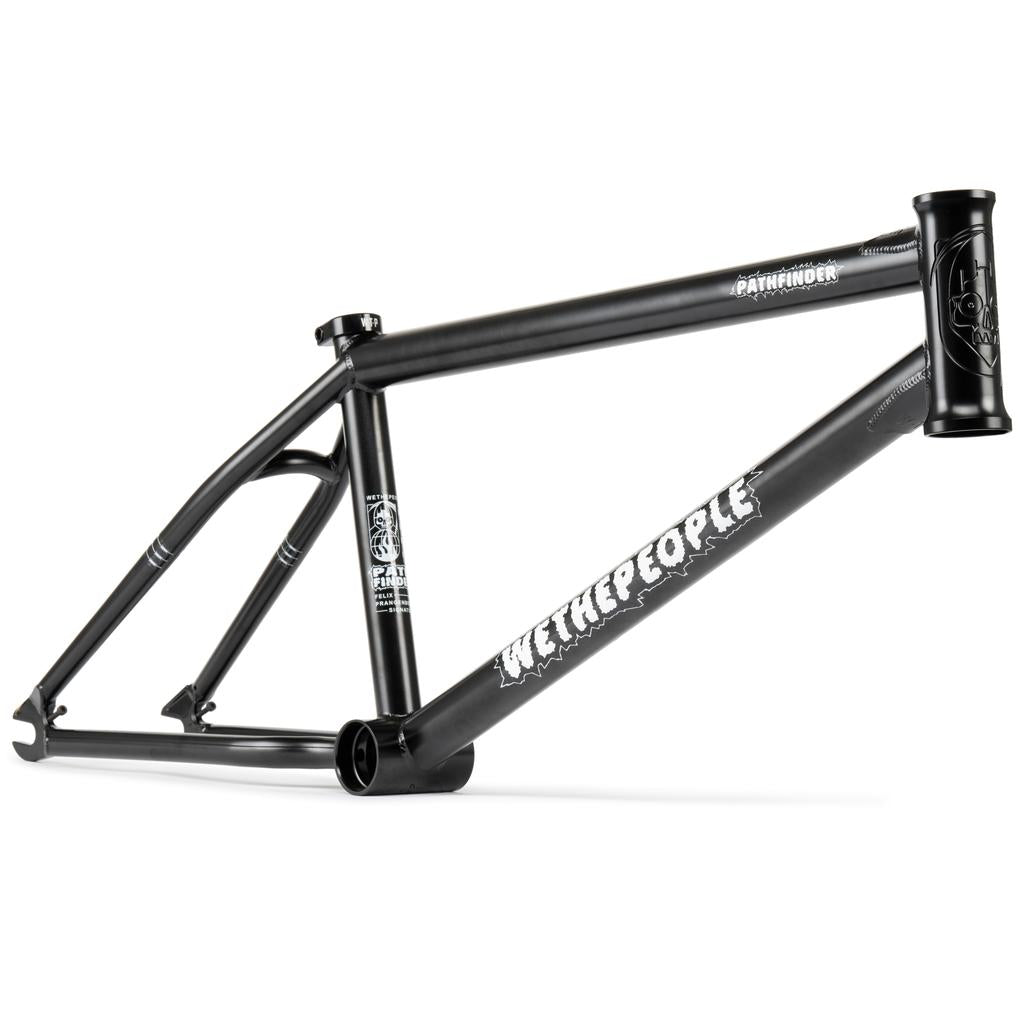

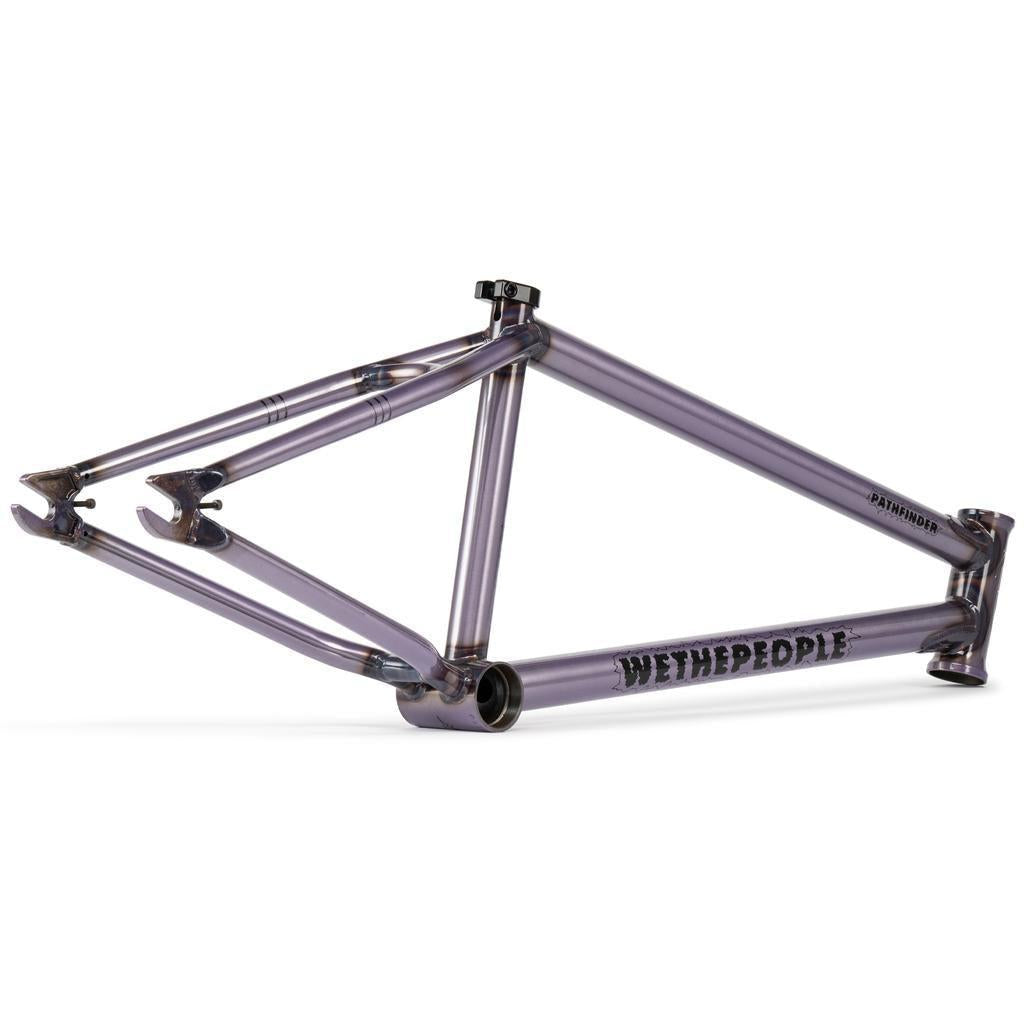

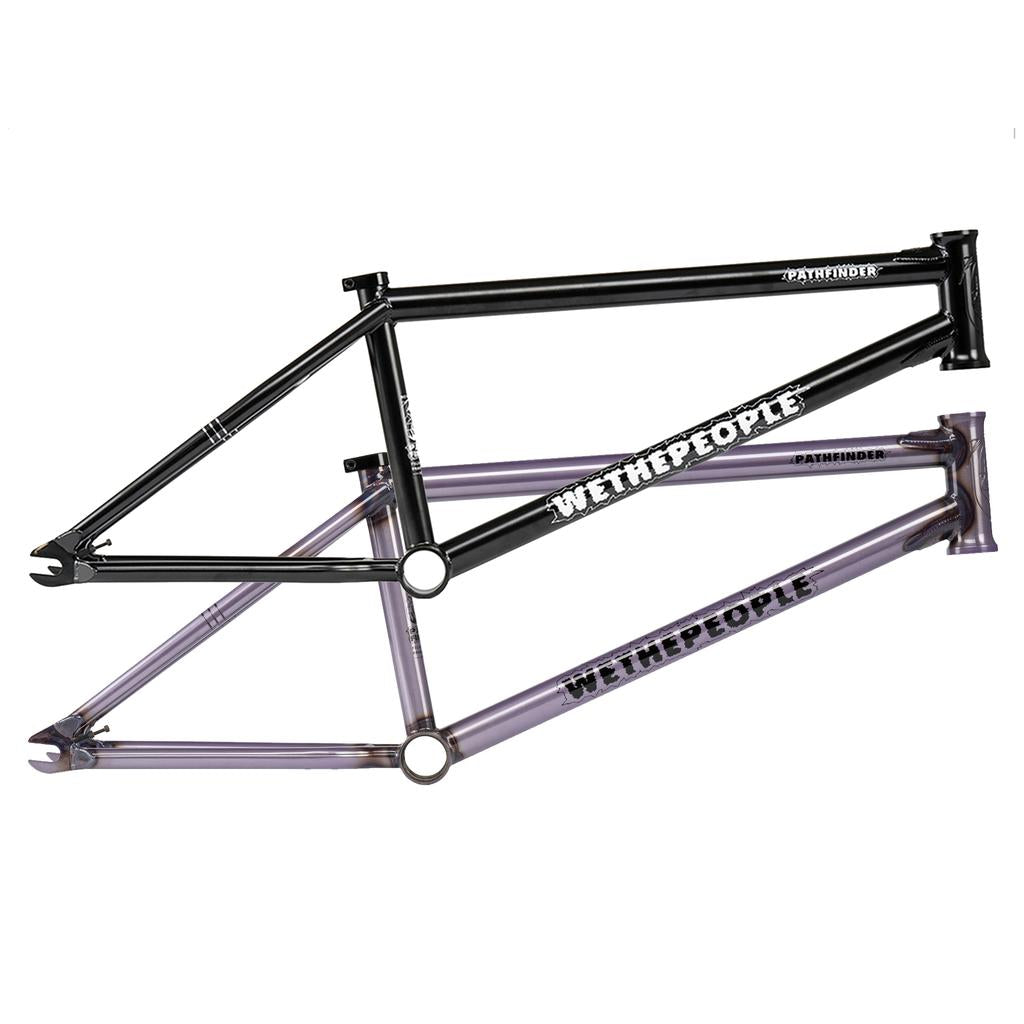

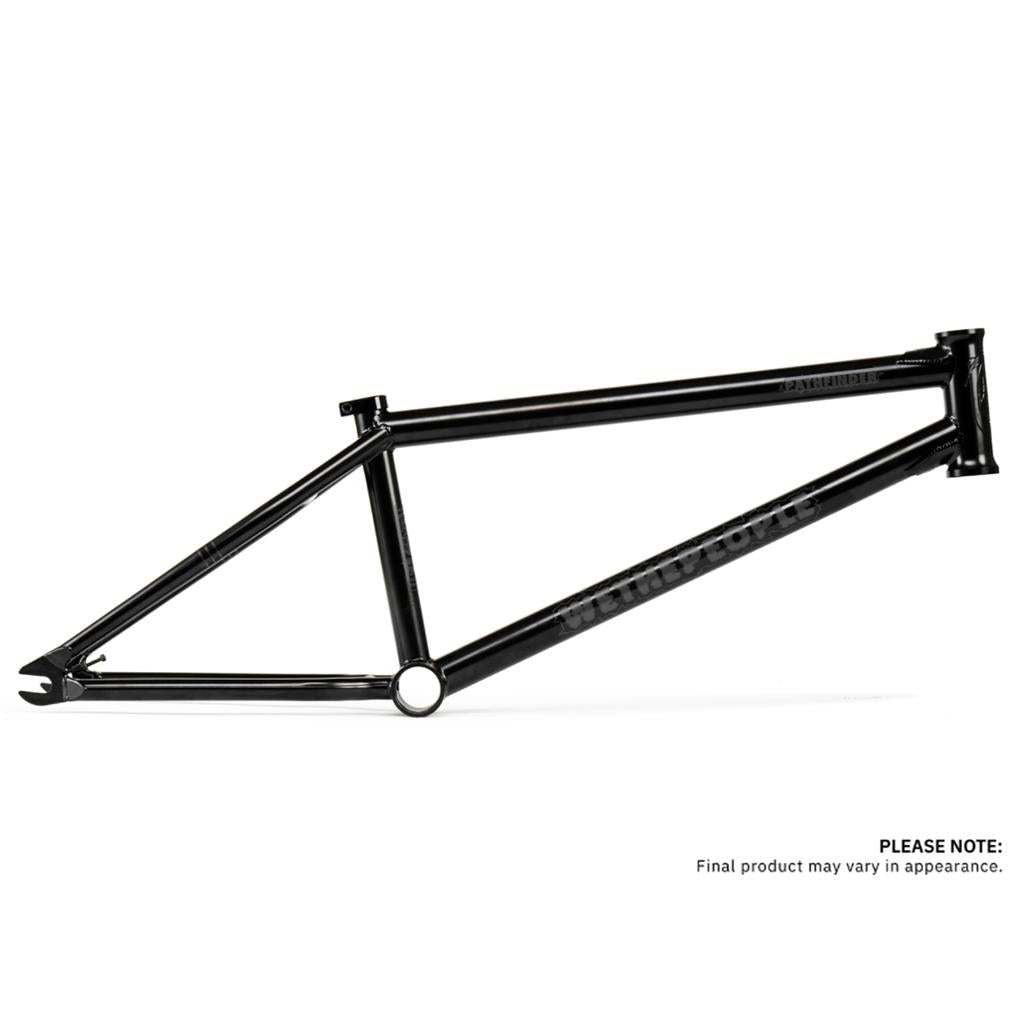

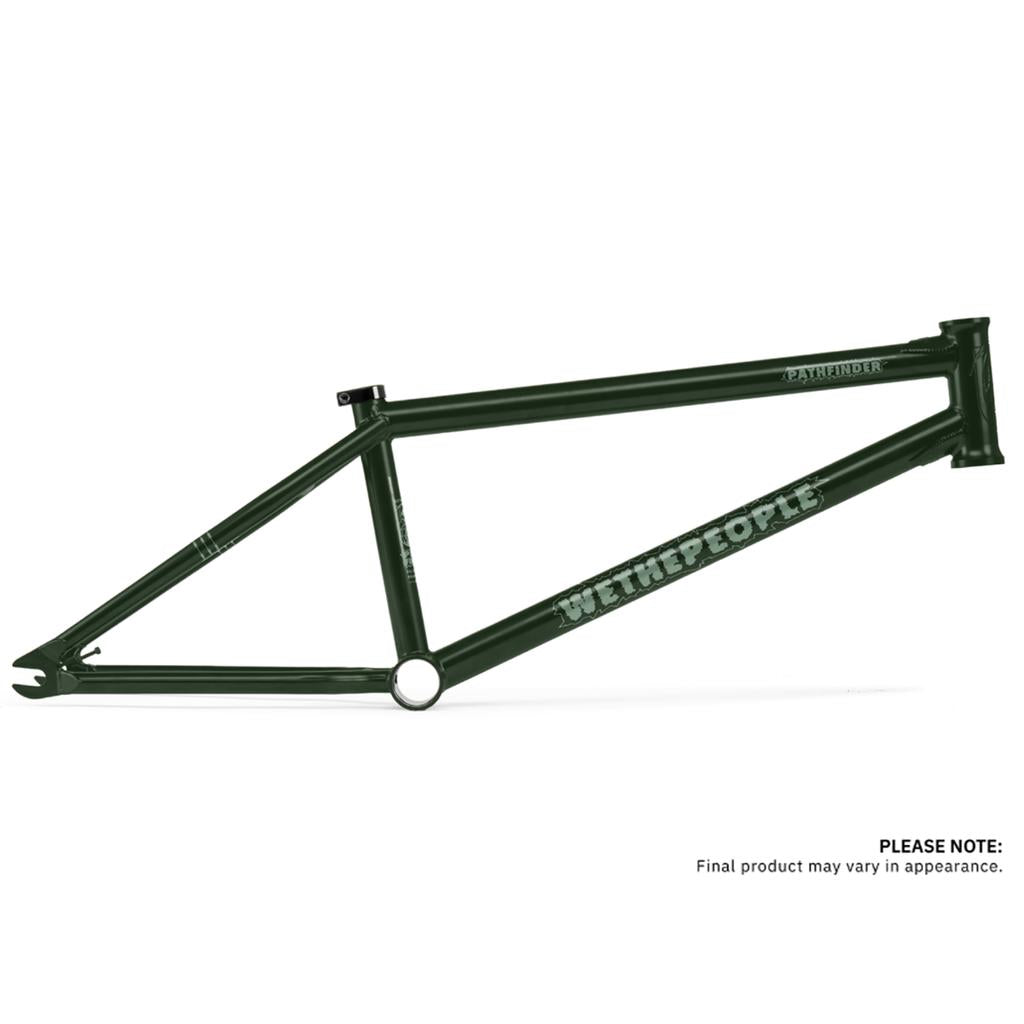

Felix Prangenberg’s signature Pathfinder frame is a product that reflects the originality, progression and power of Felix’s riding. Boasting a short 13” chainstay and a taller 9.666” standover height, the Pathfinder frame utilises a ground-breaking offset thickness chainstay and bottom bracket shell to strengthen the frame in areas susceptible to grind damage. Includes a lifetime guarantee.
Features
- 127mm tall head tube for less spacers with an uncut fork

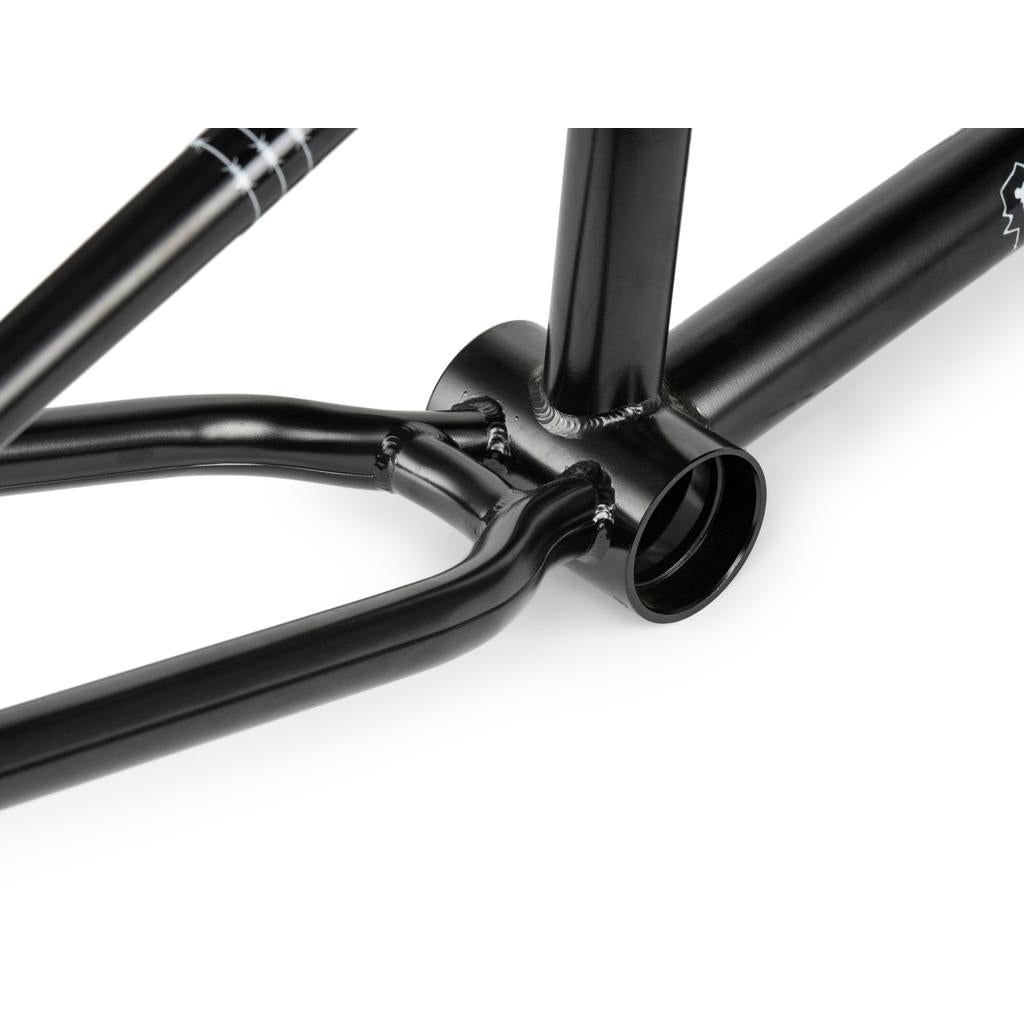

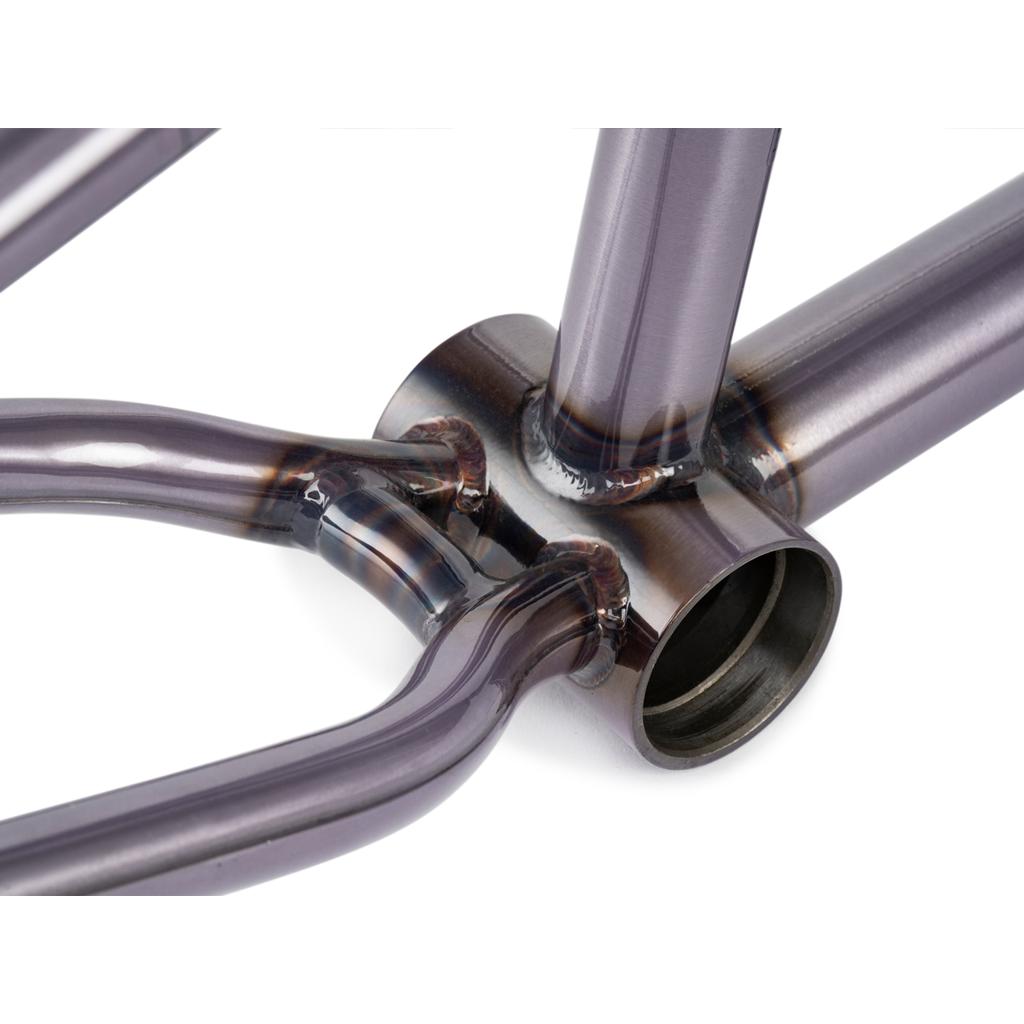

- Extruded offset thickness dent-resistant chain stays and bottom bracket shell
- Steeper 76° head tube and taller 9.666" stand-over
- Extra-thick double-butted top tube
- Larger 1.8mm welding at the head tube
- Wider rear triangle allows clearance for a 2.4" tyre
- WTP top tube and down tube gusset

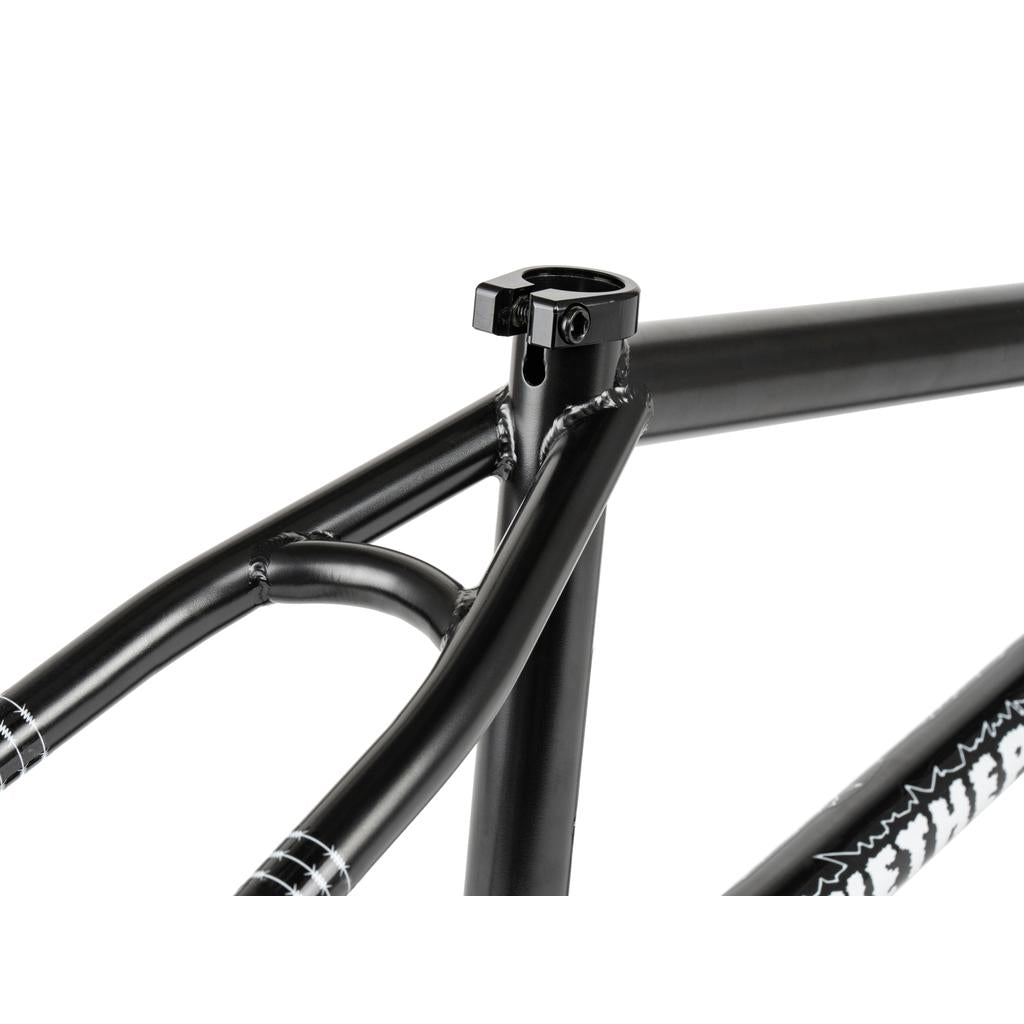

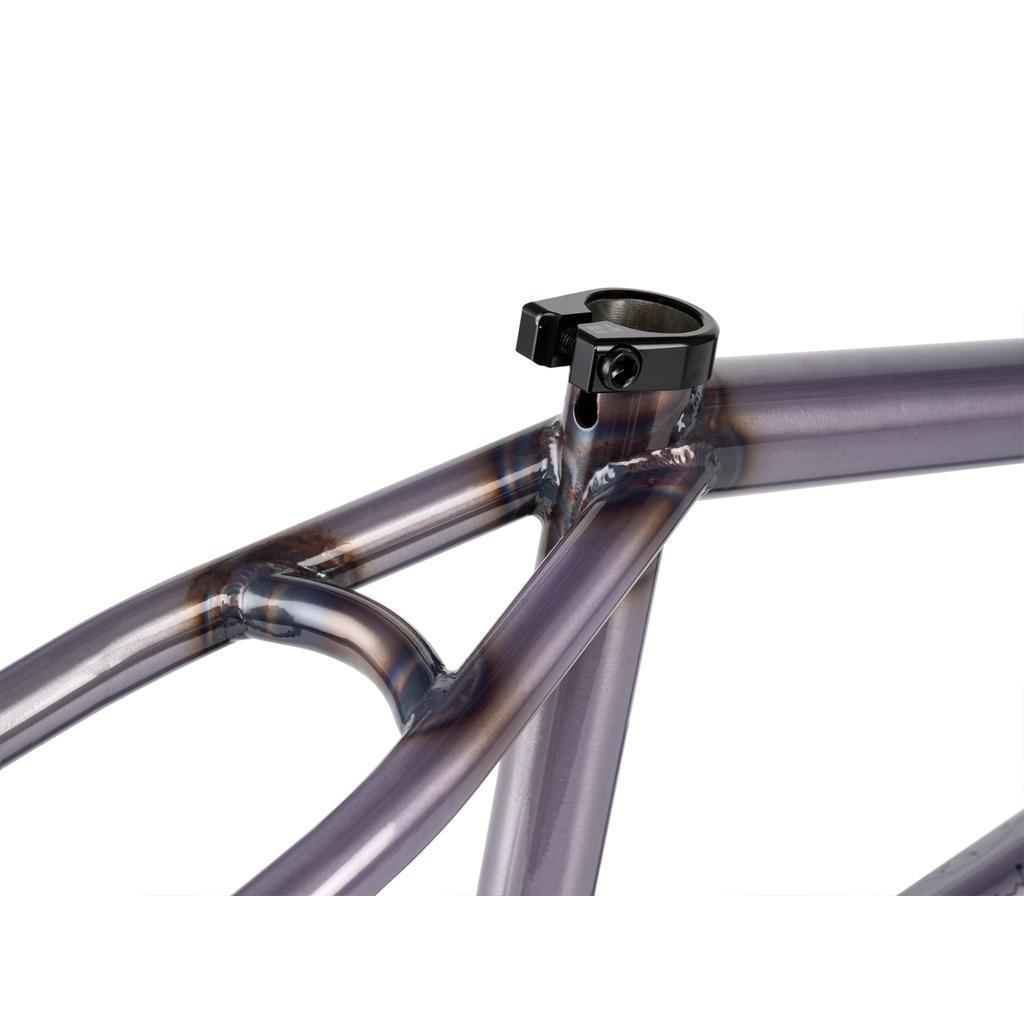

- WTP supreme seat clamp

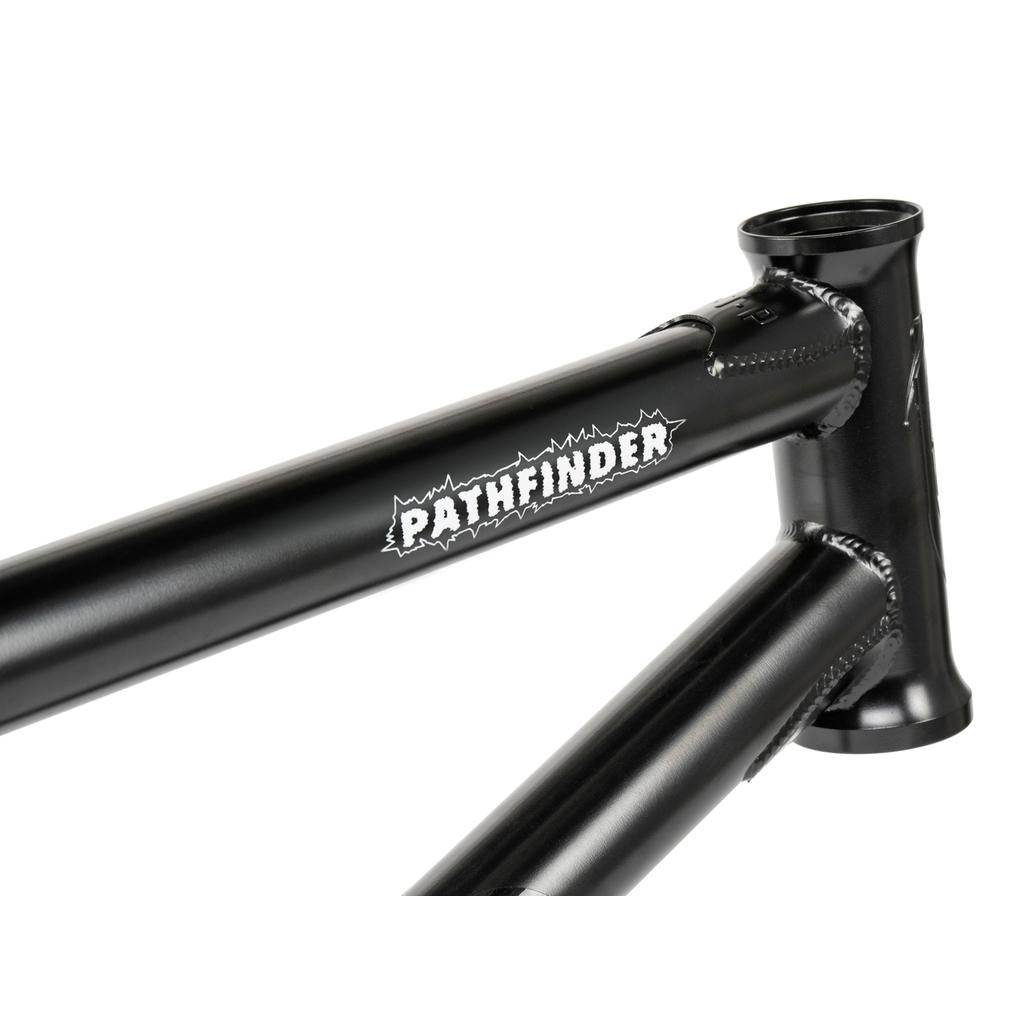

- CNC detailing on the head tube and bottom bracket
- Includes a lifetime guarantee
Specifications
Tubing - Butted, Japanese seamless 4130 chromo tubing

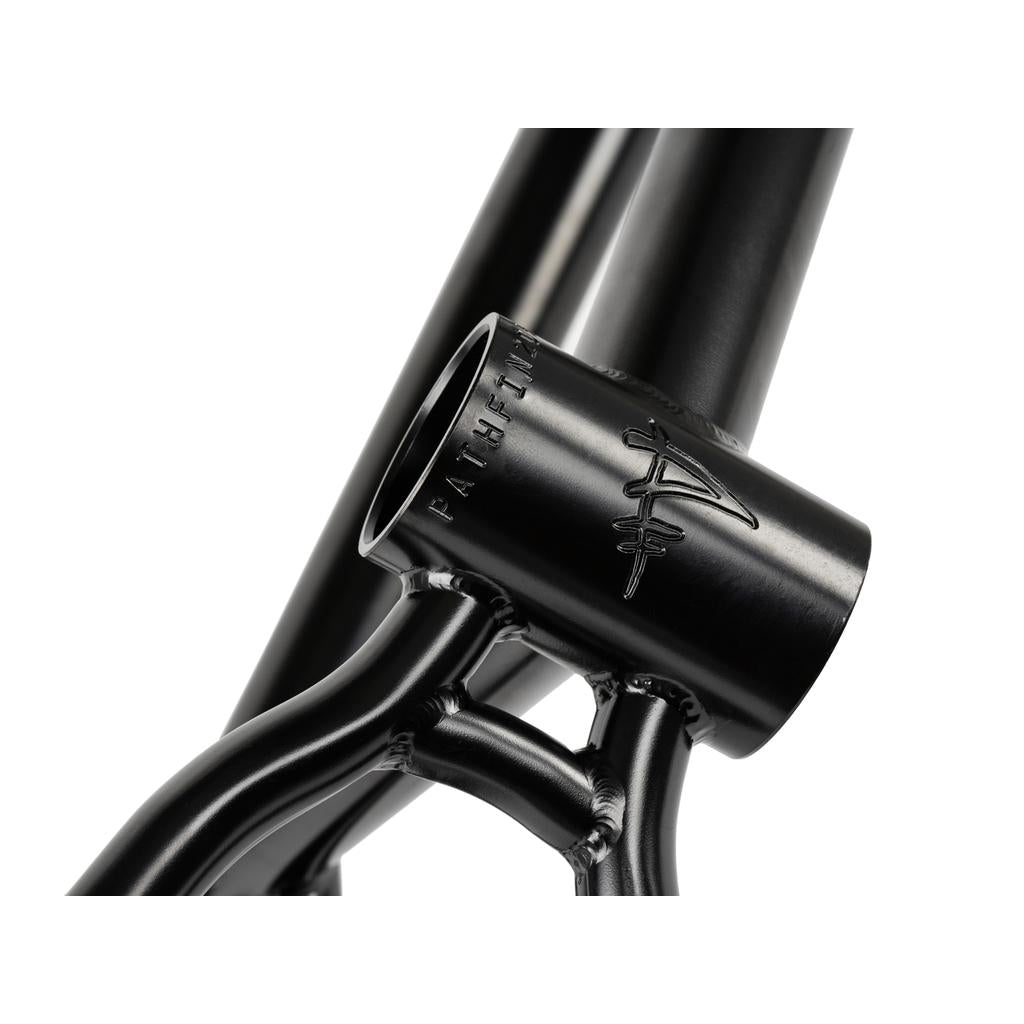

Bottom bracket - 74mm mid-size, offset, CNC-machined and heat-treated

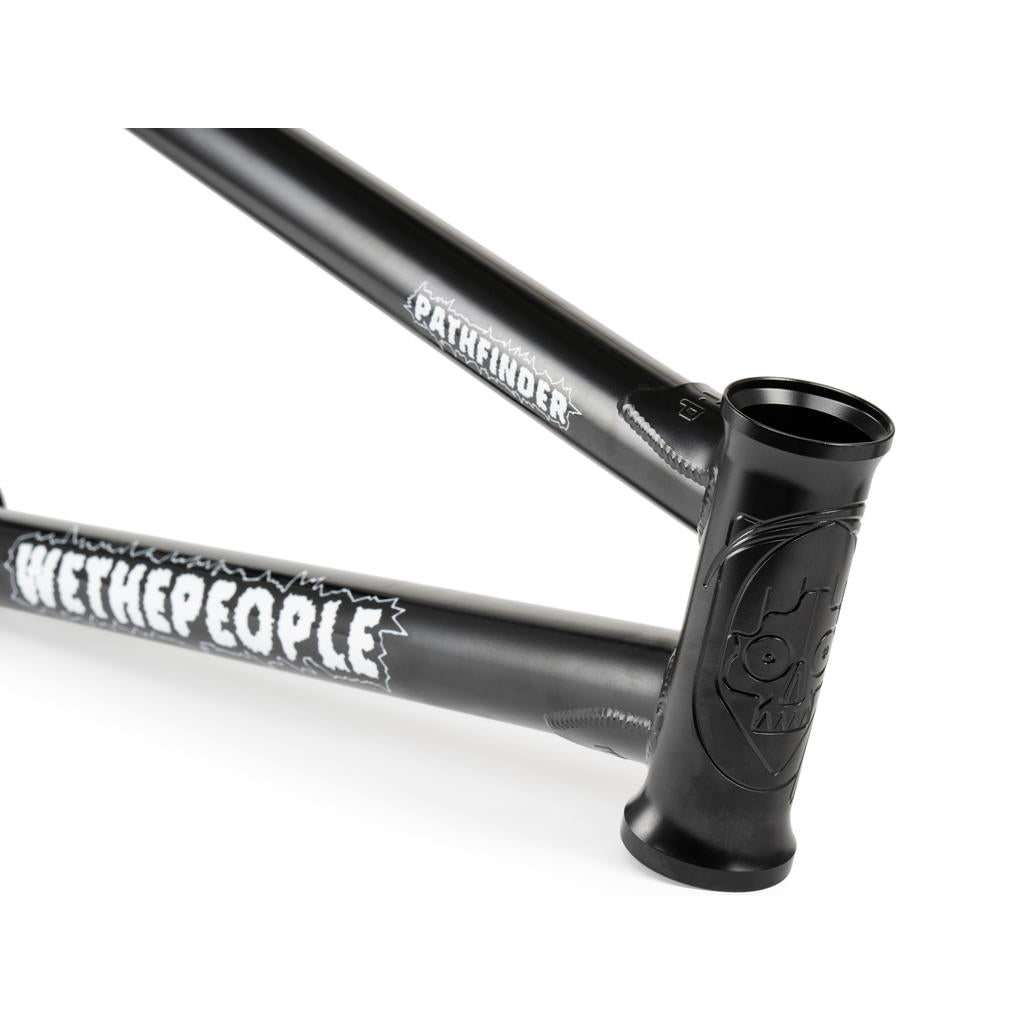

Head tube - 127mm CNC-machined and heat-treated, integrated. H/set

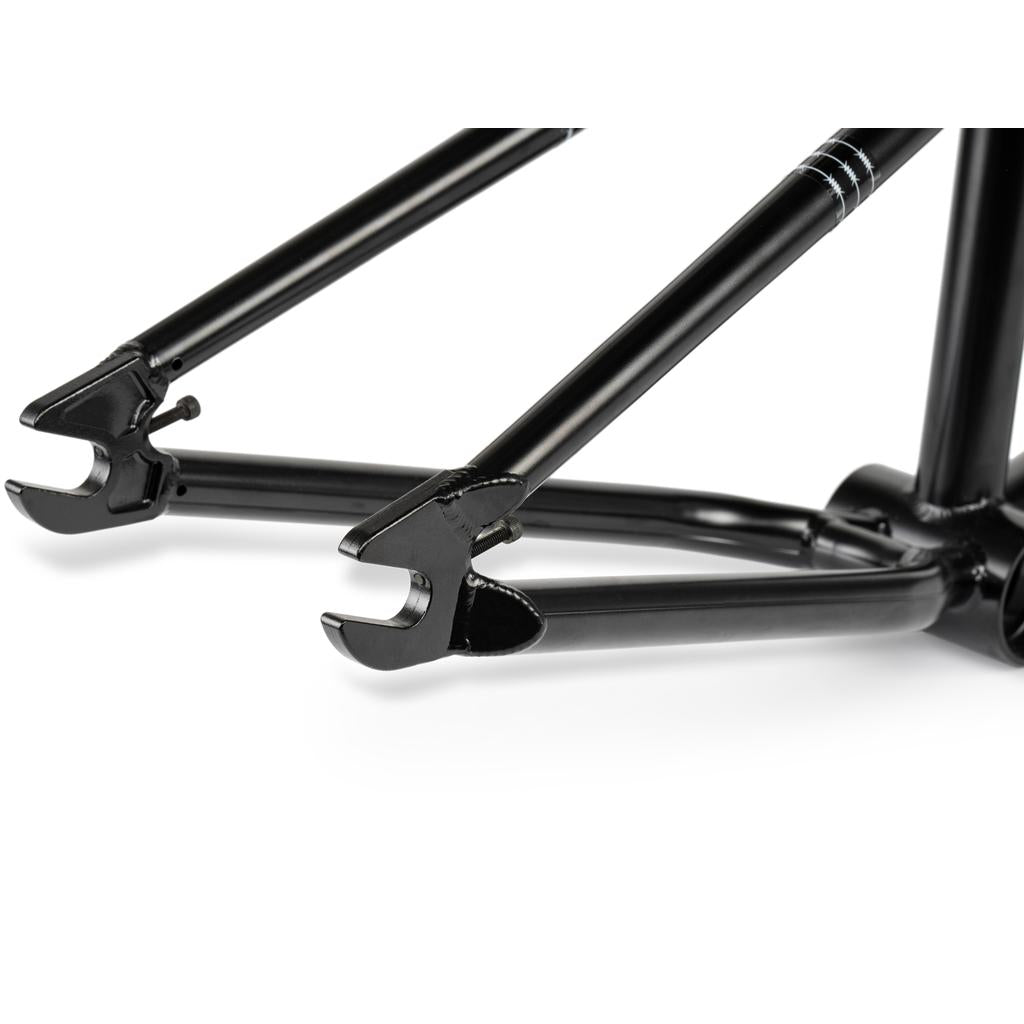

Dropouts - Invest cast 7.5mm thick, integrated chain tensioners, heat-treated 4130 chromo, perfect shape for pegs and hub guards
Brakes - Brakeless frame
Weight - 2.36kg - 21" tt
Geometry 20.75"/21"/21.25"
Top Tube Lengths: 20.75", 21", 21.25"
Chain Stay Length: 12.95" – 13.5" (optimised for 13" / 13.25" with 25-9)
Head Tube Angle: 76°
Seat Tube Angle: 71°
BB Height: 11.8"
Standover Height: 9.666"
Geometry 20.5"
Top Tube Length: 20.5"
Chain Stay Length: 12.7" – 13.25" (optimised for 12.75" / 13" with 25-9)
Head Tube Angle: 76°
Seat Tube Angle: 71°
BB Height: 11.8"
Standover Height: 9.3"
