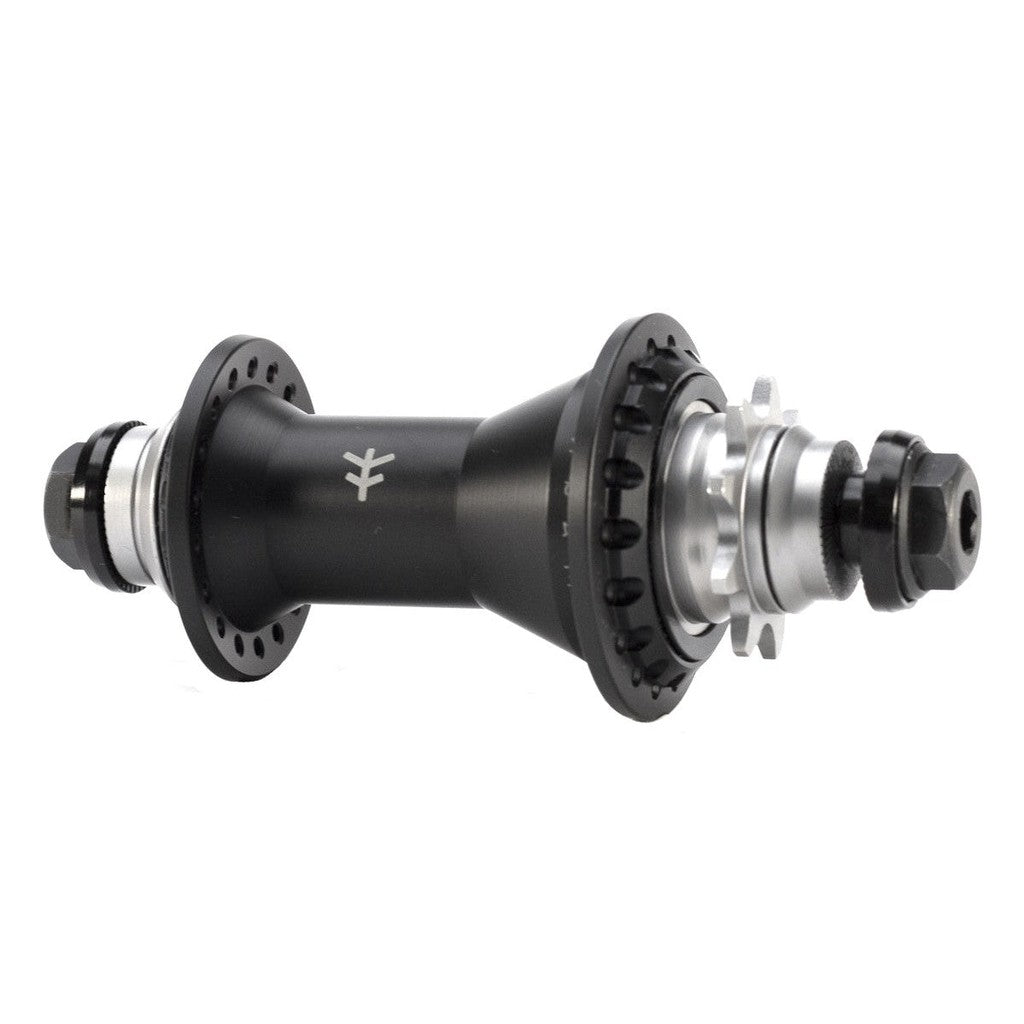

The Fly Magneto Cassette Hubs are here and they really are an amazing piece of kit. Featuring an incredible magnetic system, using the force of two magnets and allowing the ratchet ring to engage. The magnetic field provides an even repelling force which means the ratchet will work completely straight everytime. This system is created in a way that reduces friction compared to the use of springs. The unreal Neomidium magnets that Fly use maintain the magnetic field pretty much forever as well, giving these splendid hubs another huge TICK from us here at LUXBMX. The end result brings you one of the fastest, most reliable and durable hubs possible, and did we mention they look and sound absolutely amazing too.
With only one moving part, the assembly is as easy as it can get and reduces the overall weight, making these hubs a must for the weight-conscious rider also. The Fly Magneto Hubshell is made of a much stronger 7075 Aluminum and features the sunken spoke holes that you'll remember from the infamous Fly Classic Front Hubs. The driver, end caps and bolts use an anti-rust process that also gives the hub an awesome color finish. As with the Fly Magneto Front Hubs, these beauties are manufactured in Europe too to ensure the best quality possible.
Cassette Hub
Female Bolts. Crmo version features a 14mm (14x1mm thread) NDS and 14-10mm (10x1mm thread) DS bolt*,
9T / LHD or RHD
36 Hole
WEIGHT: Crmo Axle: 410g / 14.4oz Alloy Axle : 335g / 11.8oz
*Extra washers are needed on dropouts thinner than 4.5mm on 14-10mm (10x1mm thread) bolts
*You are looking at the Chromoly Axle version
Hub Dimensions
- Axle width (Locknut to Locknut) - 110mm
- Drive side flange diameter - 49mm
- Non-Drive side flange diameter - 42mm
- Drive side flange to locknut - 30mm
- Non-Drive side flange to locknut - 19mm
Cassette Hub
Female Bolts. Crmo version features a 14mm NDS and 14-10mm DS bolt, Alloy version features 2x 14-10mm Bolts
9T / LHD & RHD
36 Hole
WEIGHT: Crmo Axle: 410g / 14.4oz Alloy Axle : 335g / 11.8oz
*You are looking at the Chromoly Axle version
