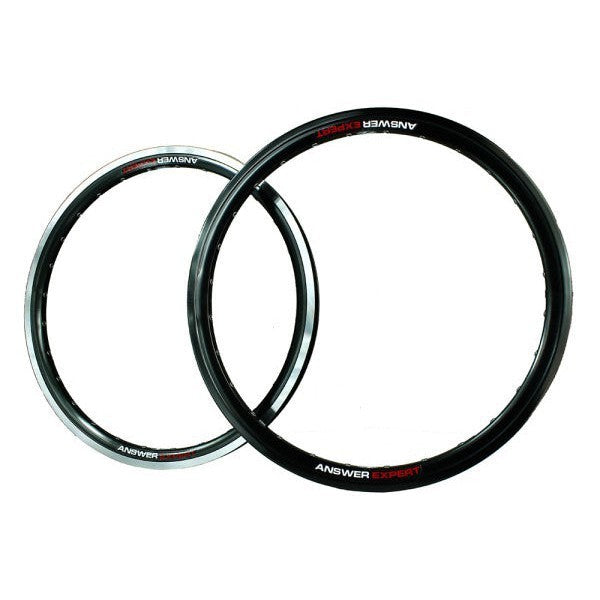

Answer 20 x 1.50in Expert Rim 28H (Black CNC-Walls) / Black

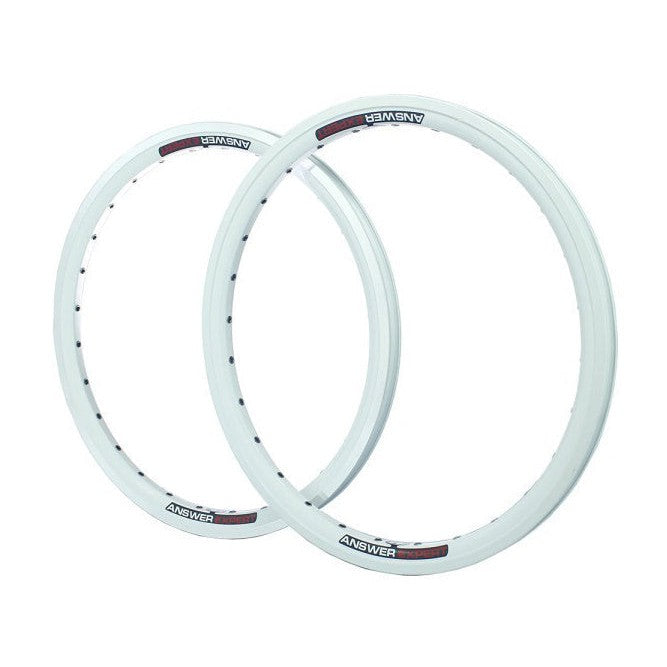

Answer 20 x 1.50in Expert Rim 28H (White CNC-Walls) / White

Highlights

Double wall alloy hoop
Eyeleted spoke holes
Machined rear sidewall
Pinned seam

Description

The Answer BMX Expert 20×1.5″ rim is extruded from lightweight aluminium featuring a double-wall design with single hollow chamber, eyeleted spoke holes for increased nipple support and a pinned seam. Front rim has colour matched sidewall, while rear rim has machined sidewalls to increase braking performance.

Features

Double wall alloy hoop. Extruded from lightweight aluminium with a double wall, single hollow chamber design for strength without the extra weight.
Eyeleted spoke holes. Every spoke hole is eyeleted for extra nipple support, so the rim holds tension better under load.
Machined rear sidewall. The rear rim gets machined sidewalls to increase braking performance, while the front runs a colour matched sidewall.
Pinned seam. The hoop is joined with a pinned seam, the standard join for a race rim of this weight.
Light on the scales. 357g for the front and 352g for the rear, on a 406mm bead diameter with a 378mm ERD.

Specifications

Wheel size: 20" (406mm bead diameter)
Material: Extruded aluminium, double wall with single hollow chamber
Hole count: 28
Nipples: Eyeleted spoke holes
Rim width: 24mm front, 23.8mm rear
Rim depth: 24.7mm
Brake surface: Machined sidewalls on the rear rim, colour matched sidewall on the front
Weight: 357g front, 352g rear
Note: E.R.D 378mm. Pinned seam.

Spoke calculator

Display

Pick the part it is laced to and we will give you the lengths to buy.

This rim

Looking up its measurements.

Check or change its figures

ERD effective rim diameter, from the spec sheet mm

Laced to which hub?

Find your hub

Or type its figures

Hub spacing locknut to locknut, 100 front or 110 rear on most BMX mm Same both sides front hubs, or matching flanges

Flange diameter spoke hole centre to the opposite hole centre. The drive side is the driver side, left or right hand drive alike, and is usually the bigger flange

Drive side mm Non-drive side mm

Flange position

Flange to locknut Centre to flange

Drive side mm Non-drive side mm
