The Arise Ozon Euro External Bottom Bracket, made from CNC machined 6061-T6 alloy in black, features BSA 1.37x24 threading for easy installation, enhancing your BMX race frame's performance.

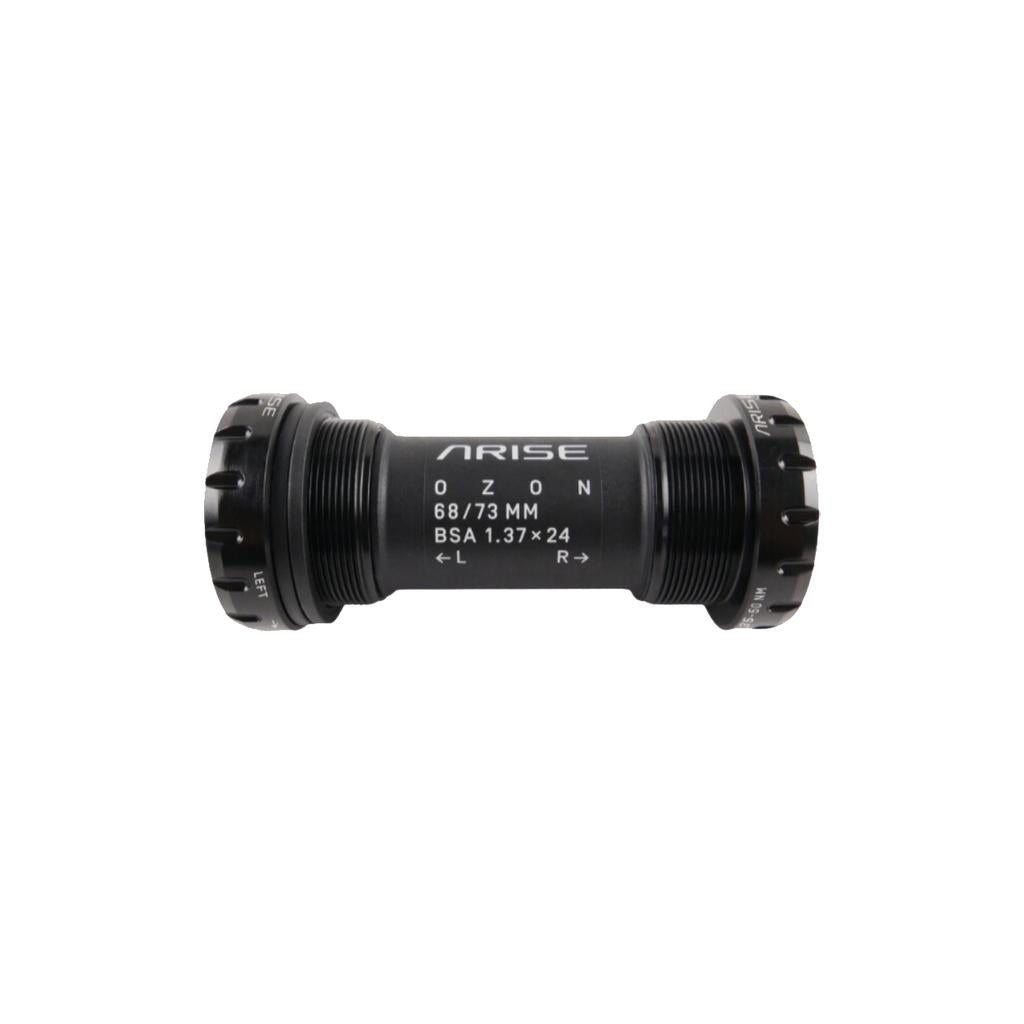

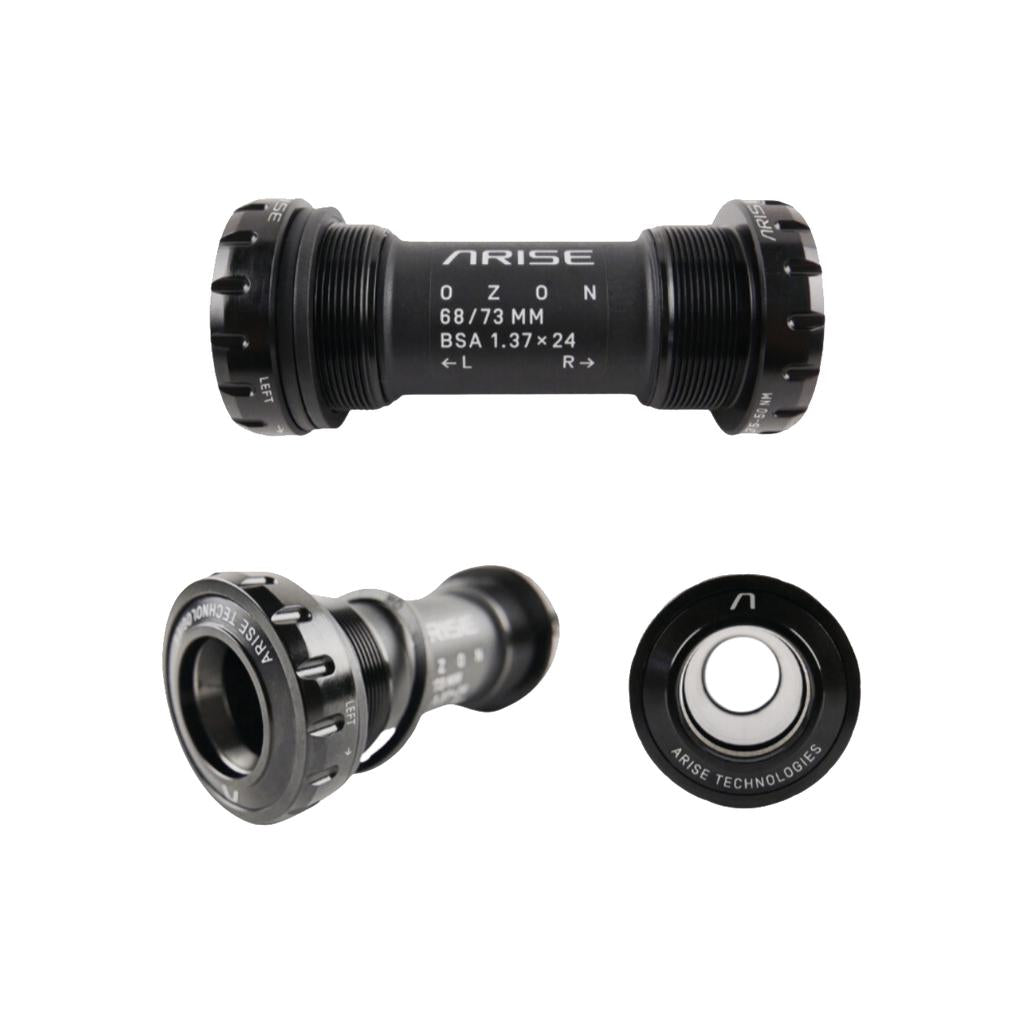

The Arise Ozon Euro External Bottom Bracket features a sleek black cylindrical design with BSA threading and grooves for easy installation, CNC machined from 6061-T6 alloy. It's ideal for enhancing your BMX race frame and includes multiple components.

Description

An external style Euro bottom bracket kit with CNC machined 6061-T6 alloy cups, put together as a partner for a BMX race frame. It threads into any frame with a BSA style shell, 1.37 inch 24T, from 68mm to 73mm wide.

The bearings are stainless steel and mount outside the shell, and the kit is set up for 24mm spindles. Two 2.5mm adjustment spacers are supplied, and the colours are matched to Arise headsets.

Features

Fits BSA threaded shells. It threads into any frame with a BSA style 1.37 inch 24T bottom bracket shell, from 68mm to 73mm wide.
Built for 24mm spindles. Set up for cranks running a 24mm spindle, so check what your cranks use before ordering.
External mounted bearings. Stainless steel bearings sit outside the shell, which spreads the load wider than a shell mounted bearing.
CNC machined alloy cups. The threaded cups are machined from 6061-T6 alloy, so the threads stay true in the frame.
Spacers in the box. Two 2.5mm adjustment spacers are supplied to take up the difference across shell widths.
