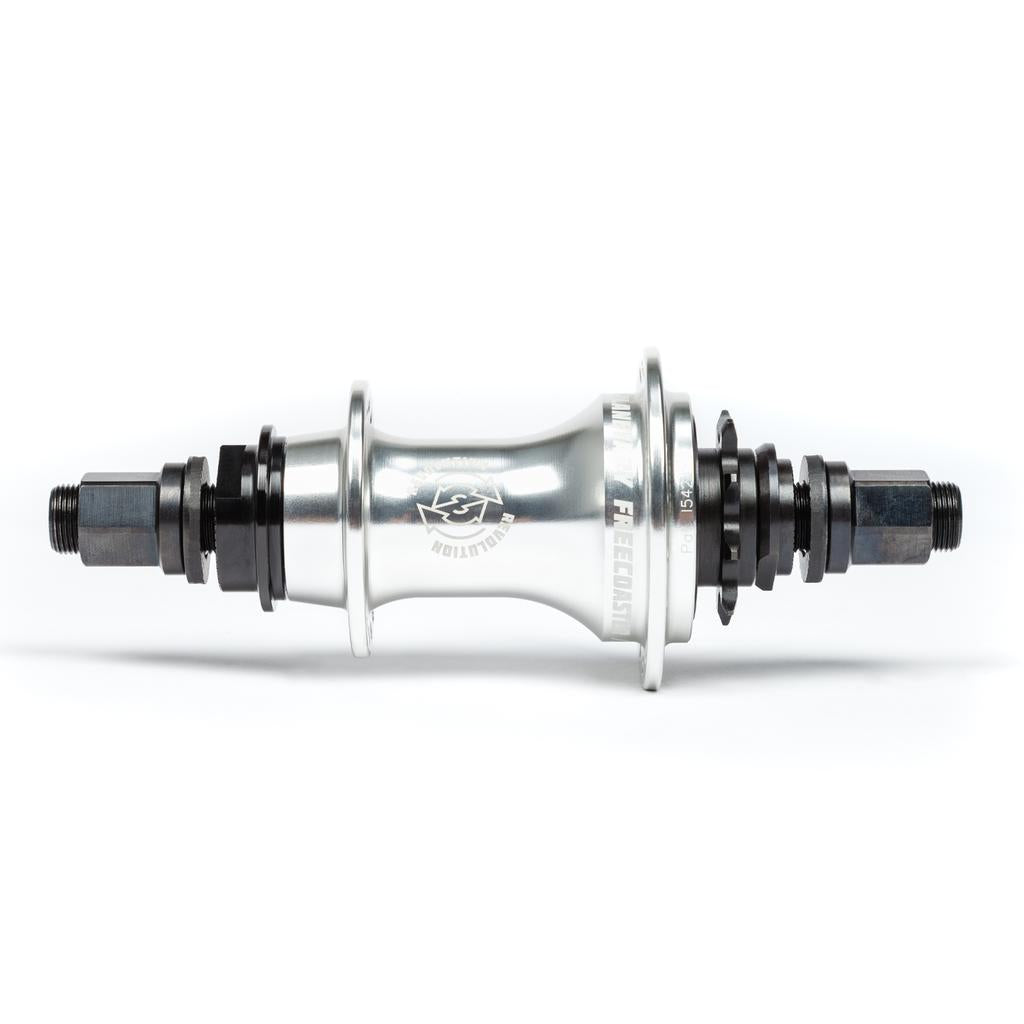

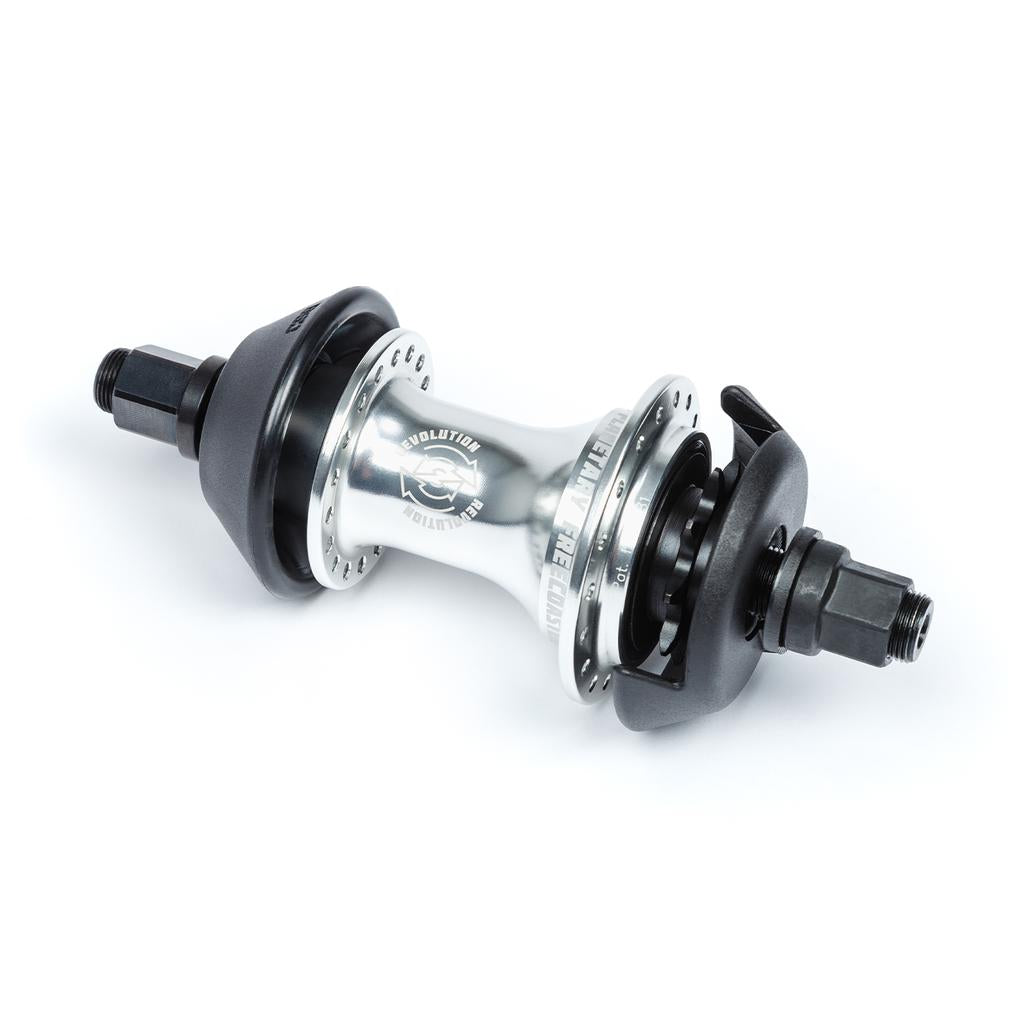

The BSD Revolution Rear Freecoaster Hub, with silver finish and black axle ends, showcases an innovative planetary clutch system for smooth performance, set against a white background.

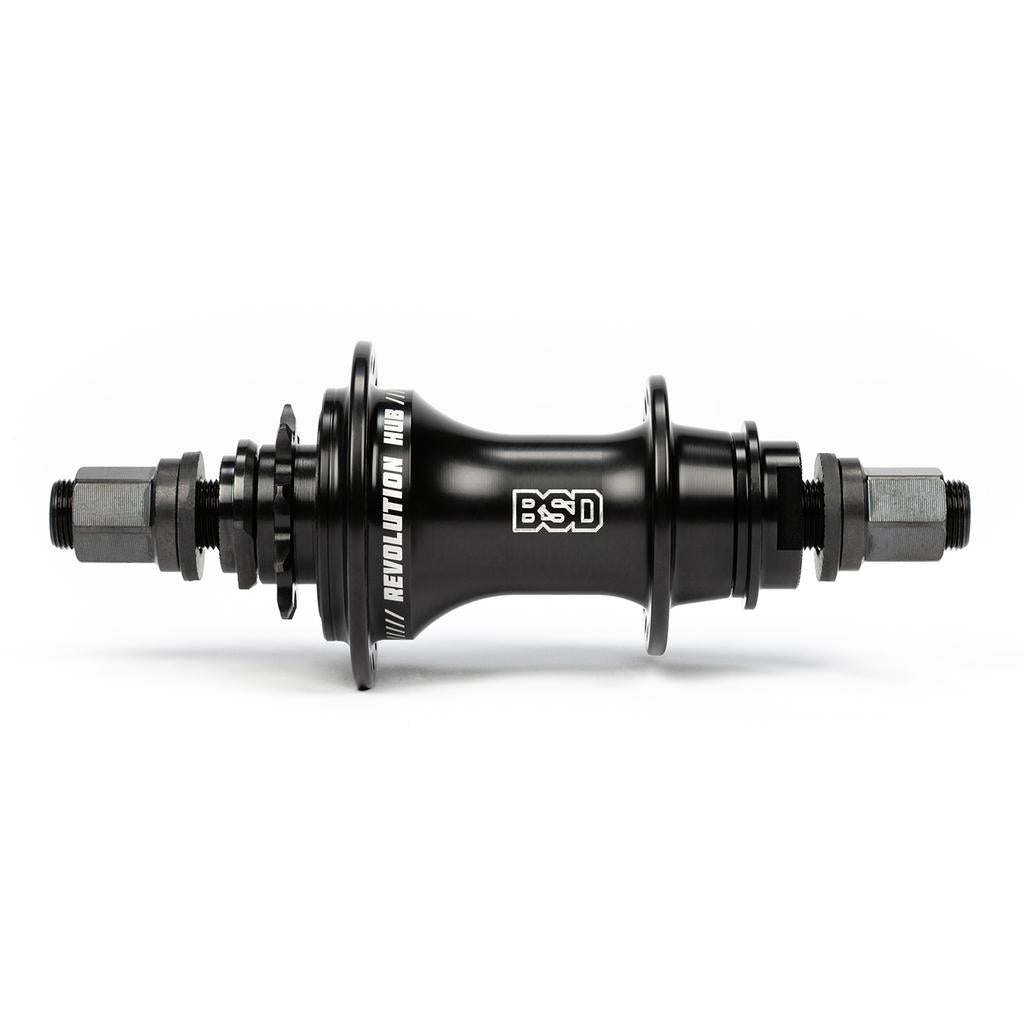

The BSD Revolution Rear Freecoaster Hub, shown in black with gears and bolt threads on both ends, features an advanced Planetary clutch system against a white background.
Framed against a plain white background, the BSD Revolution Rear Freecoaster Hub features silver with black threaded ends and an innovative planetary clutch system, viewed from the side.

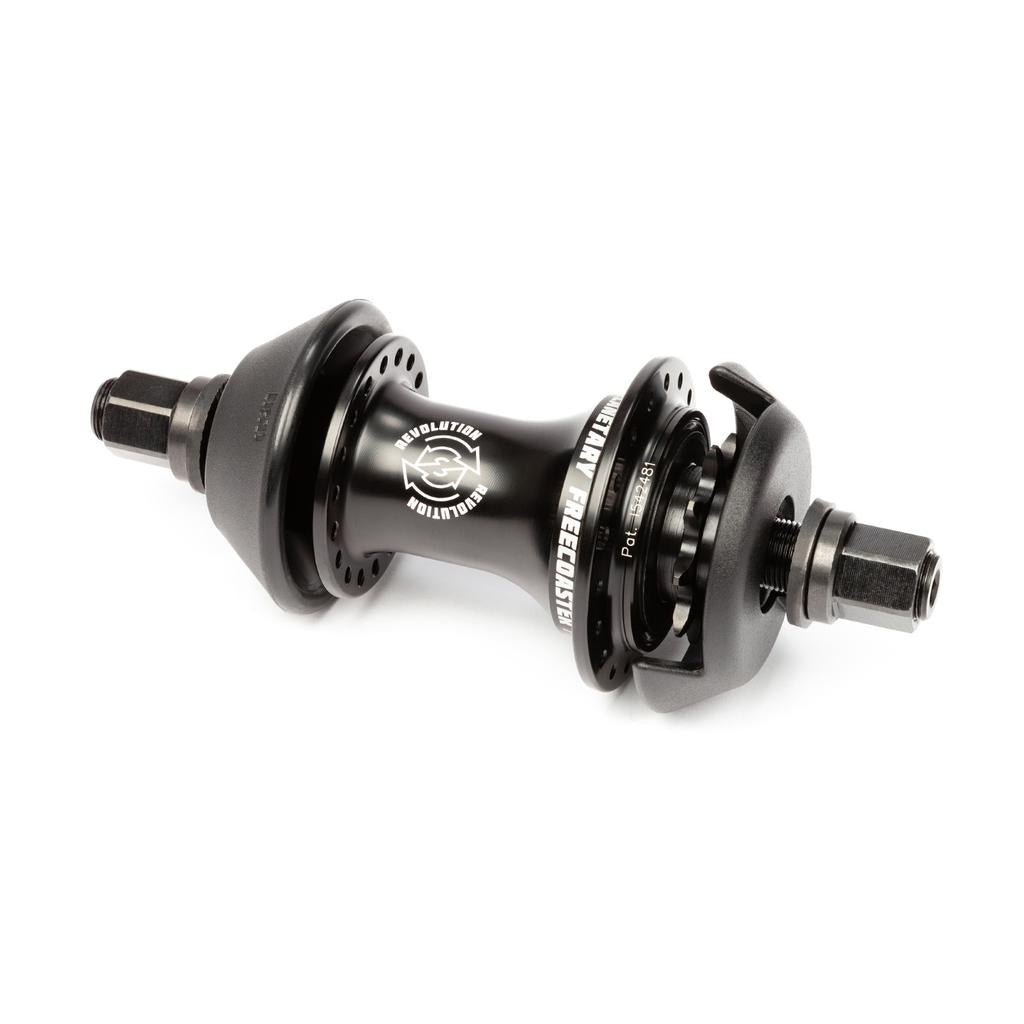

The BSD Revolution Rear Freecoaster Hub in black features a planetary clutch system, flanged ends, sturdy bolts, and visible branding against a white background.

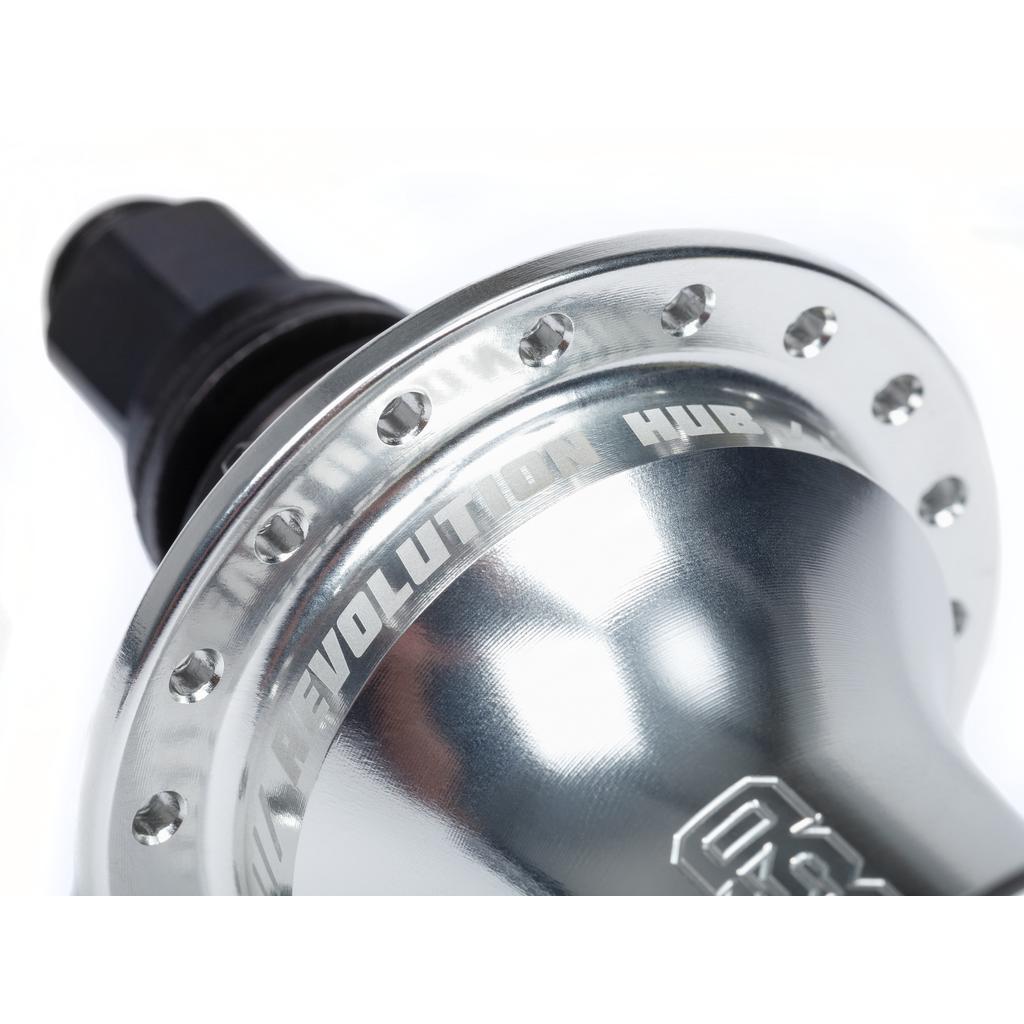

Close-up of a shiny metallic hub with engraved "BSD Revolution Rear Freecoaster Hub" text and bolt holes around its edge, showcasing an innovative design.

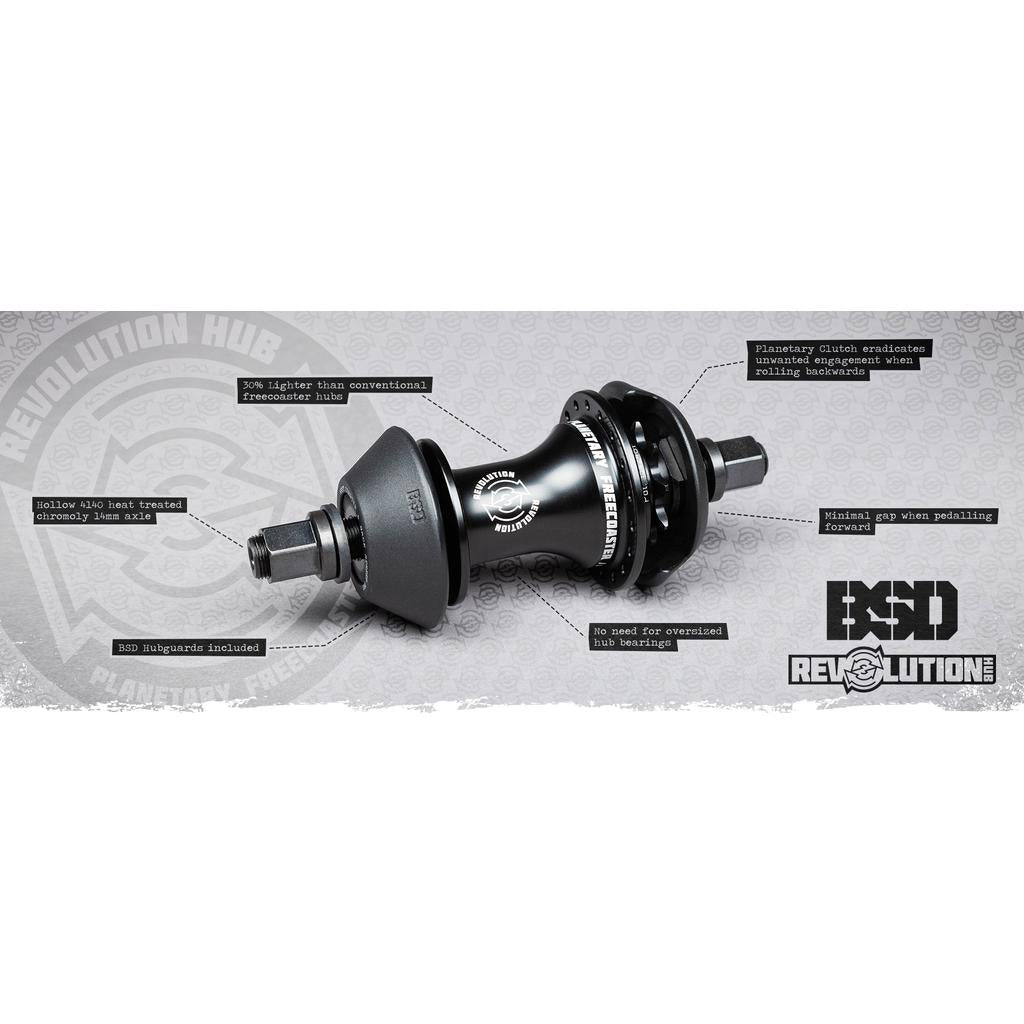

The BSD Revolution Rear Freecoaster Hub, with engravings and a hollow 4130 axle, is 20% lighter. It boasts an advanced planetary clutch system, included hubguards, and prominently displays various logos.

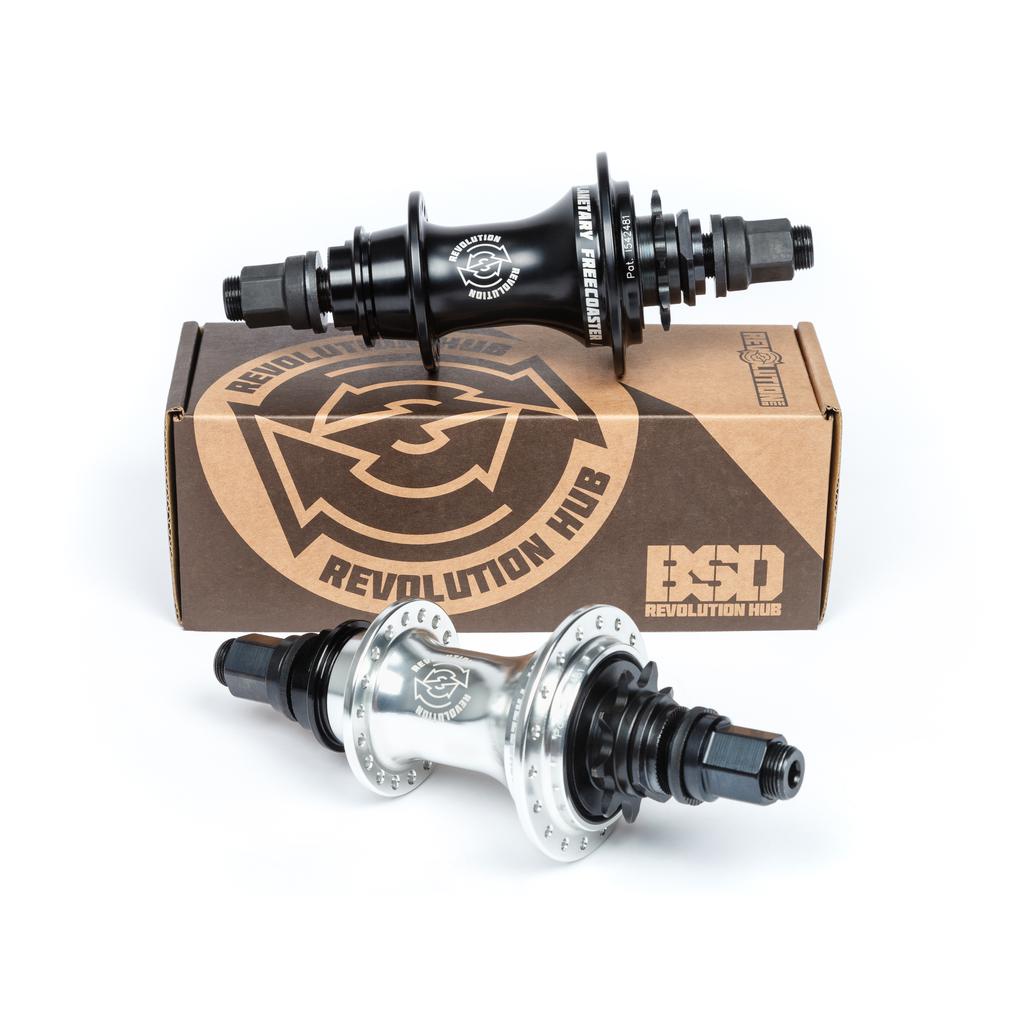

Two BSD Revolution Rear Freecoaster Hubs, with an innovative planetary clutch system, are shown in sleek black and silver next to branded cardboard packaging.

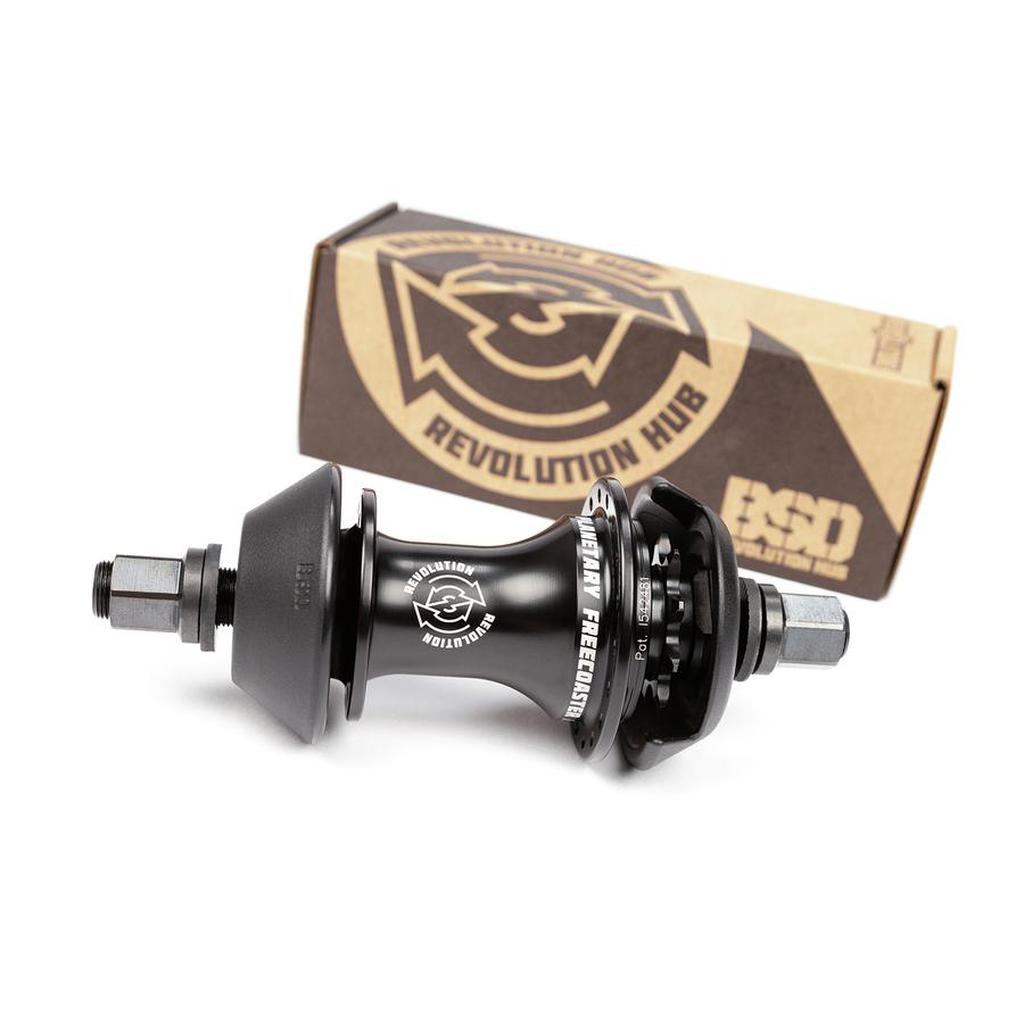

The BSD Revolution Rear Freecoaster Hub, equipped with the advanced Planetary clutch system, is showcased against a cardboard box backdrop.

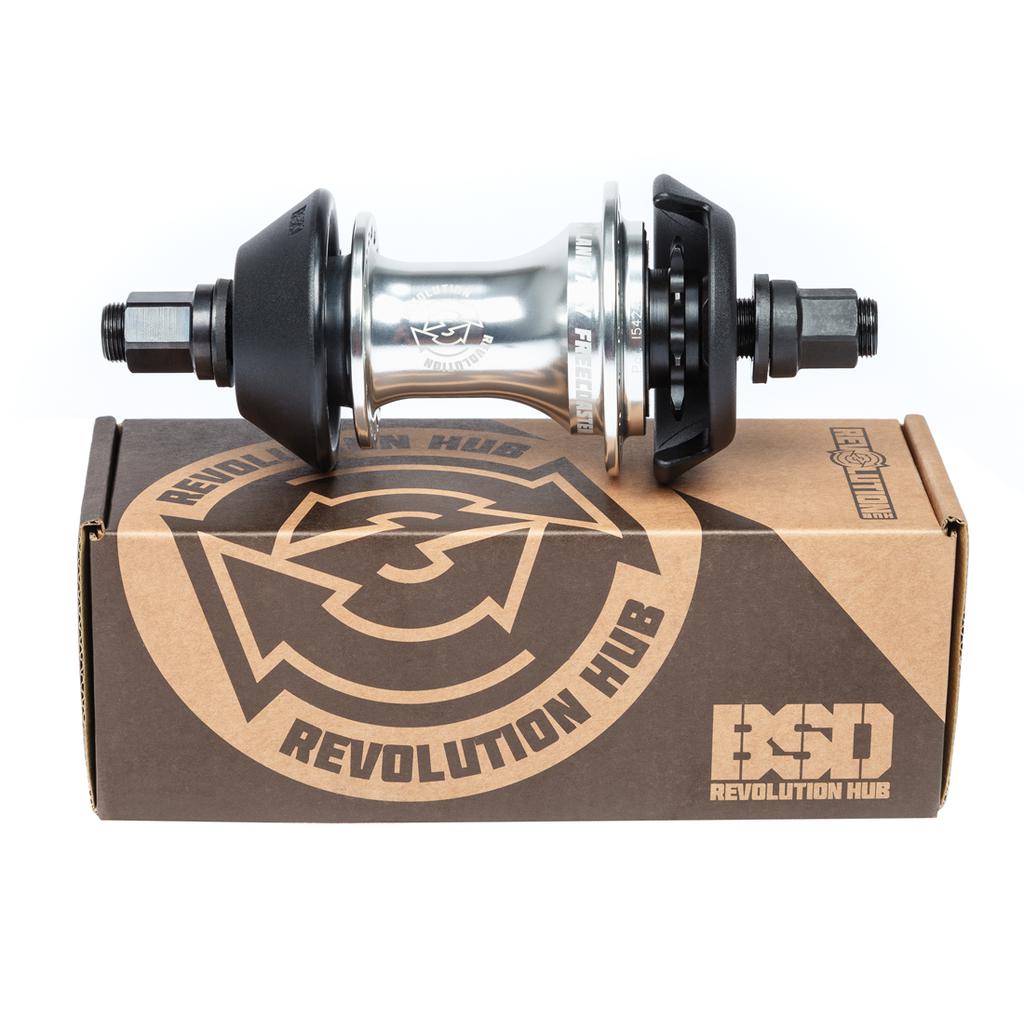

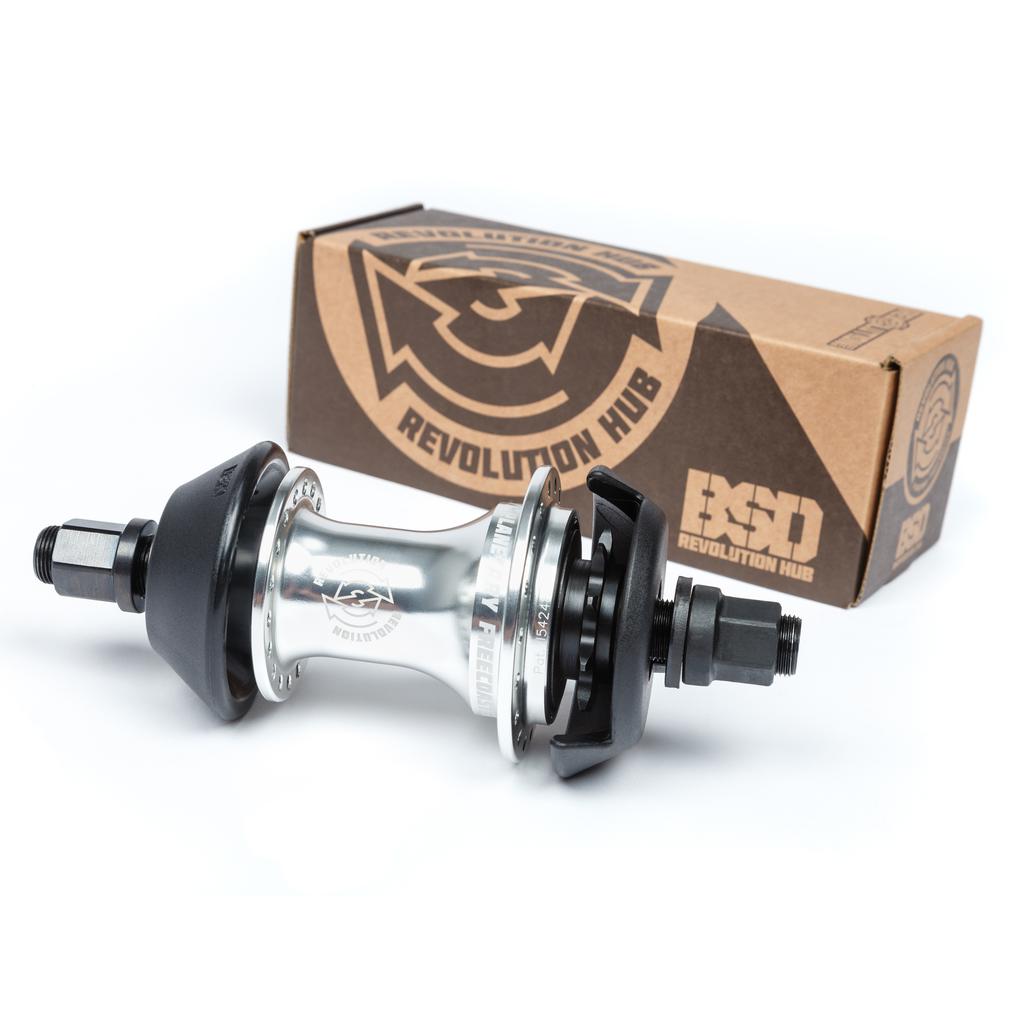

The BSD Revolution Rear Freecoaster Hub showcases a chrome design with black components, packaged in a brown box labeled "BSD Revolution Hub." It features an innovative planetary clutch system for smooth and efficient operation typical of high-quality free coaster hubs.
A silver BMX bike hub with a planetary clutch system sits on a cardboard box labeled "BSD Revolution Rear Freecoaster Hub" featuring the iconic logo.

Highlights

  • Feels like a cassette hub
  • 30 per cent lighter
  • Hollow 14mm chromoly axle
  • No unwanted rollback engagement

Description

A freecoaster that feels like a cassette hub: the same weight, the same pedal gap and the same sound. The BSD Revolution uses a planetary clutch system that works in a different way to the heavyweight cone style clutch, and it was tested for two years before release.

That design makes it 30 per cent lighter than conventional freecoaster hubs, with no gap when pedalling forward and no unwanted engagement on rollbacks. Low axial load means it does not need oversized hub bearings, and it runs a hollow male 14mm chromoly axle with BSD hub guards included.

Features
  • Feels like a cassette hub. The planetary clutch leaves no gap when you pedal forward, so it picks up like a cassette rather than a freecoaster.
  • 30 per cent lighter. Thirty per cent lighter than conventional freecoaster hubs, which takes real weight out of the back wheel.
  • Hollow 14mm chromoly axle. A tough male 14mm axle, so it bolts into frames running 14mm dropouts.
  • No unwanted rollback engagement. The clutch design stops the hub grabbing on rollbacks, so it stays predictable when you roll back in.
  • Hub guards included. BSD hub guards come with the hub, and low axial load means no oversized hub bearings are needed.

Specifications
  • Bearings: Hub shell 2 x 6902, driver 2 x 6802 and 1 x 15267
  • Axle: Hollow male 14mm chromoly
  • Included: BSD hub guards
  • Note: Spoke dimensions: pitch circle diameter 58mm and 45mm, centre to flange 26mm

Spoke calculator
Display

Pick the part it is laced to and we will give you the lengths to buy.

This hub

Looking up its measurements.

Check or change its figures

Flange diameter/PCD (pitch circle diameter) spoke hole centre to the opposite hole centre. The drive side is the driver side, left or right hand drive alike, and is usually the bigger flange

Flange position

Laced to which rim?

Or type its figures

Spoke lengths to buy

Drive side —mm
Non-drive side —mm

Pick the rim and your lengths will appear here.

Open the full spoke calculator for offset rims, other cross patterns and measuring help.
