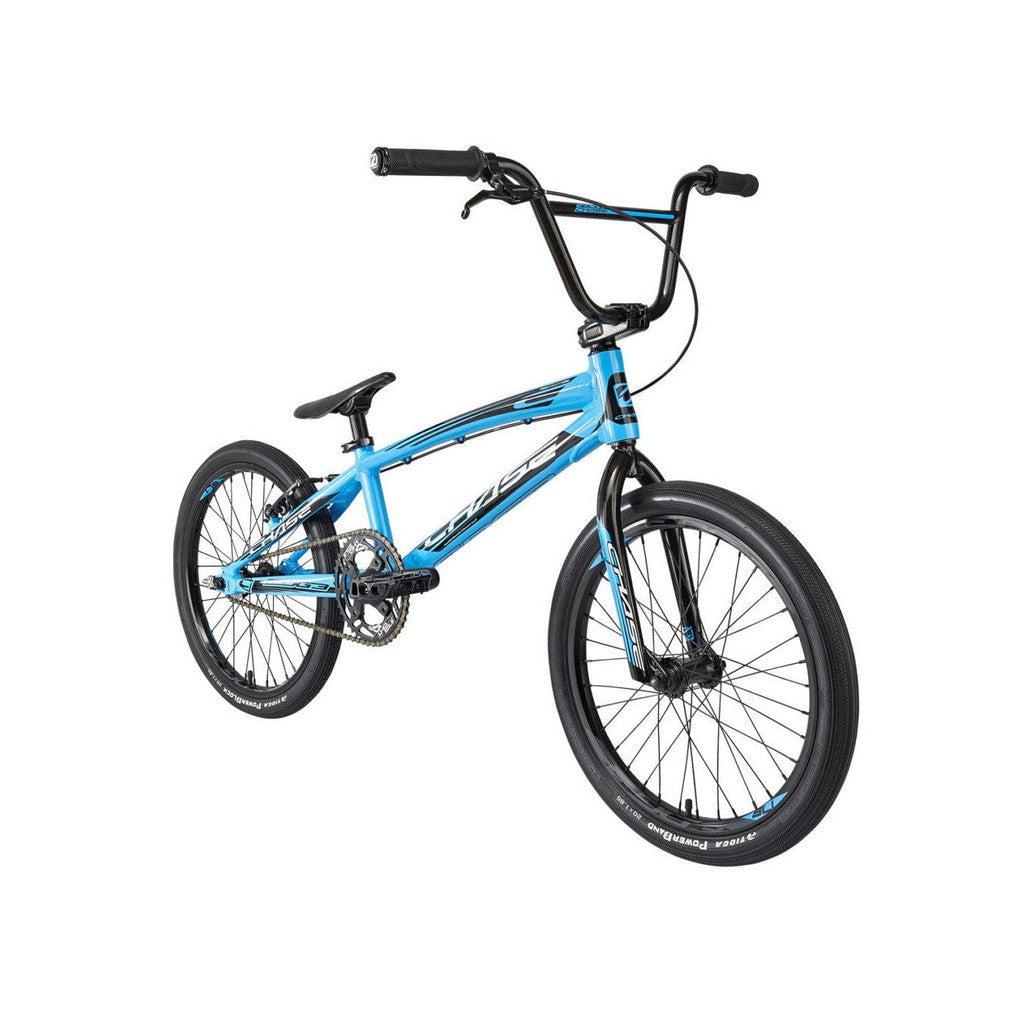

The Chase Edge Pro XL Bike (2019) has a 21TT and is available in Sky Blue with Black parts. For the 2019 Edge series bikes, chase has upgraded their bikes with a new Triple butted Premium Ultralight Alloy Hydroformed tubed frame on the entire size range. This year, the Edge Mini has Tioga PowerBlock and Powerband Tires, a 44T Insight Chainring, Sealed bearings throughout and a massive list of other awesome options!
WEIGHT: 9.51 KG WITHOUT PEDAL
RIDER SIZE: 170cm – 180cm
|
Frame: Chase Edge Pro XL 21″ Top Tube 6061 T6 Alloy Triple Butted Hydroformed, Integrated Head Tube, 1-1/8″, Water Decals
Fork: Chase Edge Full Cr-mo, 1-1/8″ Steer Tube With Tapered Blades
Headset: Integrated Sealed Bearing
Handlebar: Chase Edge Bar 8″ Rise, 12° Back Sweep & 1° Up Sweep
Grips: Insight C.O.G.S 145mm Alloy Clamps Laser Etched Logo, PVC End Plug
Stem: Chase Edge 50mm 6061 T6 Alloy Laser Etched Logo
BB: 118mm Sealed Cartridge Square BB
Chainring: Insight 44 Tooth 4 Bolts 104mm 1/2″x3/32″ 3mm Alloy Ring
Crank: Chase Edge 3 Pieces Crank 180mm Alloy Arm With Laser Etched Logo, Cr-mo Chain Ring Bolts and Nuts
Pedal: Platform Pedal 9/16″ Chain: KMC Z33 1/2″x3/32″
Cog: 16T
Front Hub: Pro Hub, 36H, double contact sealed bearing mech with Dust Caps, 3/8″ Axle/Nuts
Rear Hub: 36H, Sealed Cartridge Bearings with Dust Caps, 3/8″ Axle/Nuts, Steel Cassette Body, 4 Pawls, 96 Points Of Engagement
Spokes: 14 Gauge
Nipples: Brass Nipples
Front Rim: Chase Edge 175 Double Wall 36H 20″x1.75″ Schrader Valve
Rear Rim: Chase Edge 175 Double Wall 36H 20″x1.75″ Schrader Valve
Front Tyre: Tioga PowerBand 20″x1.85″
Rear Tyre: Tioga PowerBlock 20″x1.60″
Tubes: 20”x1.50″-1.75″ Schrader Valve
Brake Lever: Tektro ML520
Brake Caliper: Tektro 837AL
Saddle: Pro Pivotal
Seat Post: Pivotal 27.2x250mm Alloy
Seat Clamp: Chase Edge QR Alloy 31.8mm
Chain Tensioner: Insight Twin Hole Laser Etched Logo |
