Colony Eclipse 24 Bike / Nardo Grey / 22TT
Close-up of the front wheel and black fork, highlighting tire tread, spokes, and part of the blue chromoly frame on the Colony Eclipse 24 Inch Bike against a white background.

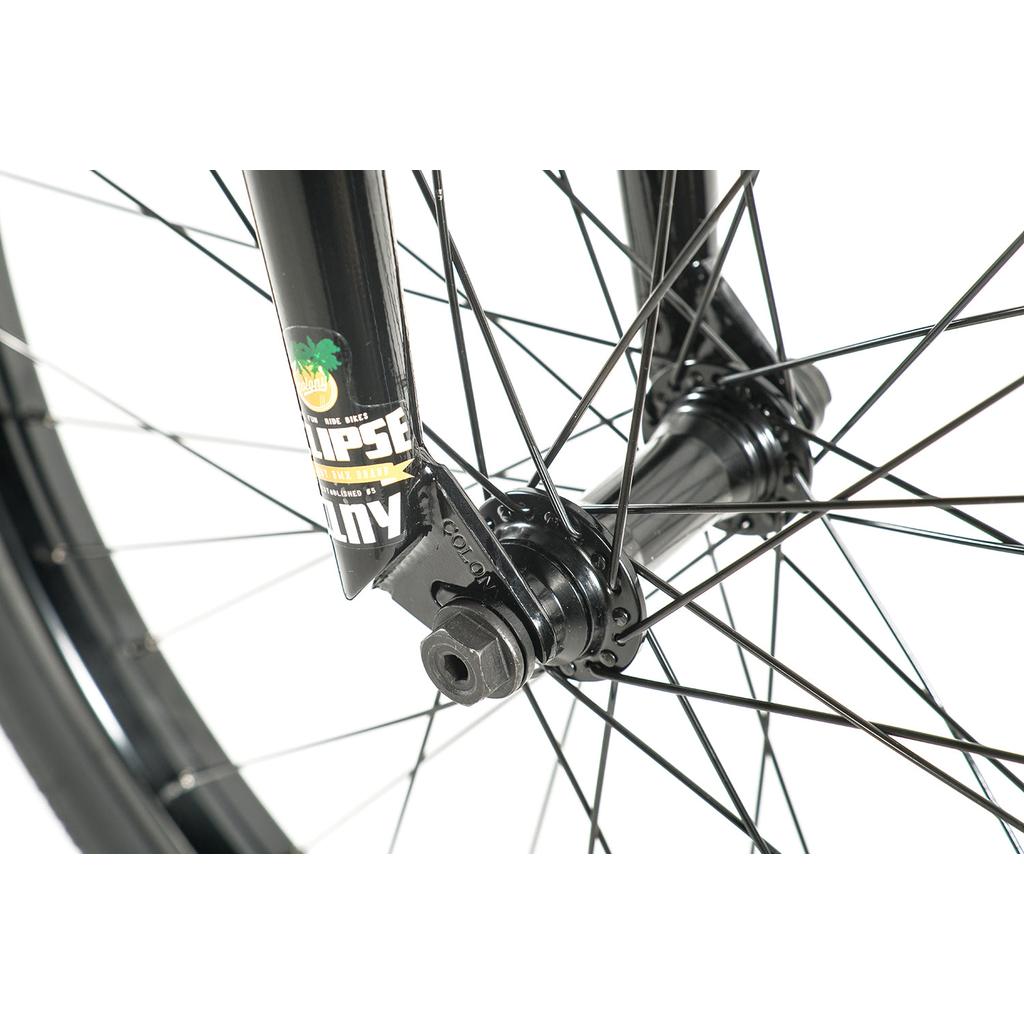

Close-up of the Colony Eclipse 24 Inch Bike’s front wheel, featuring black spokes, hub, axle, fork with a colorful sticker, and chromoly frame details—a stylish BMX cruiser set against a white background.

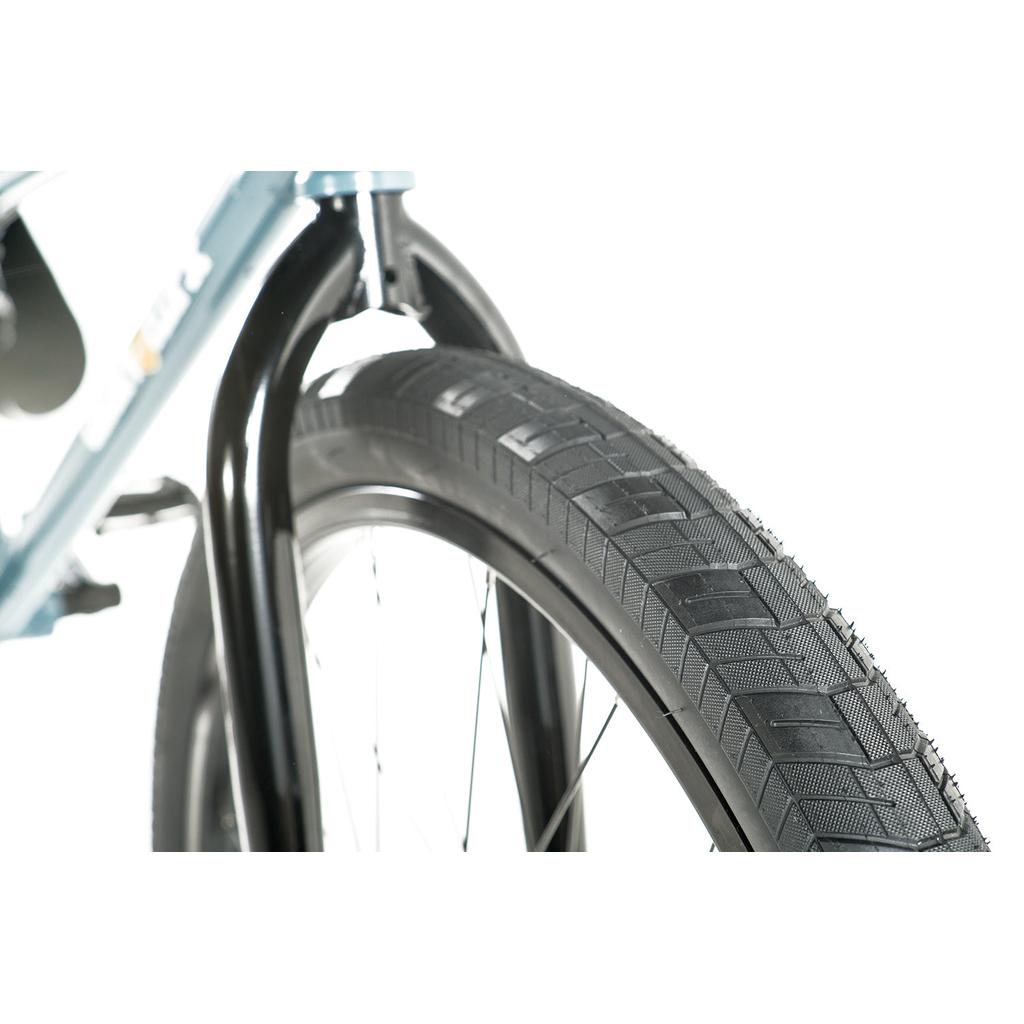

Close-up of the front tire and fork on the Colony Eclipse 24 Inch Bike, showing the tread pattern and a section of the chromoly frame against a white background.

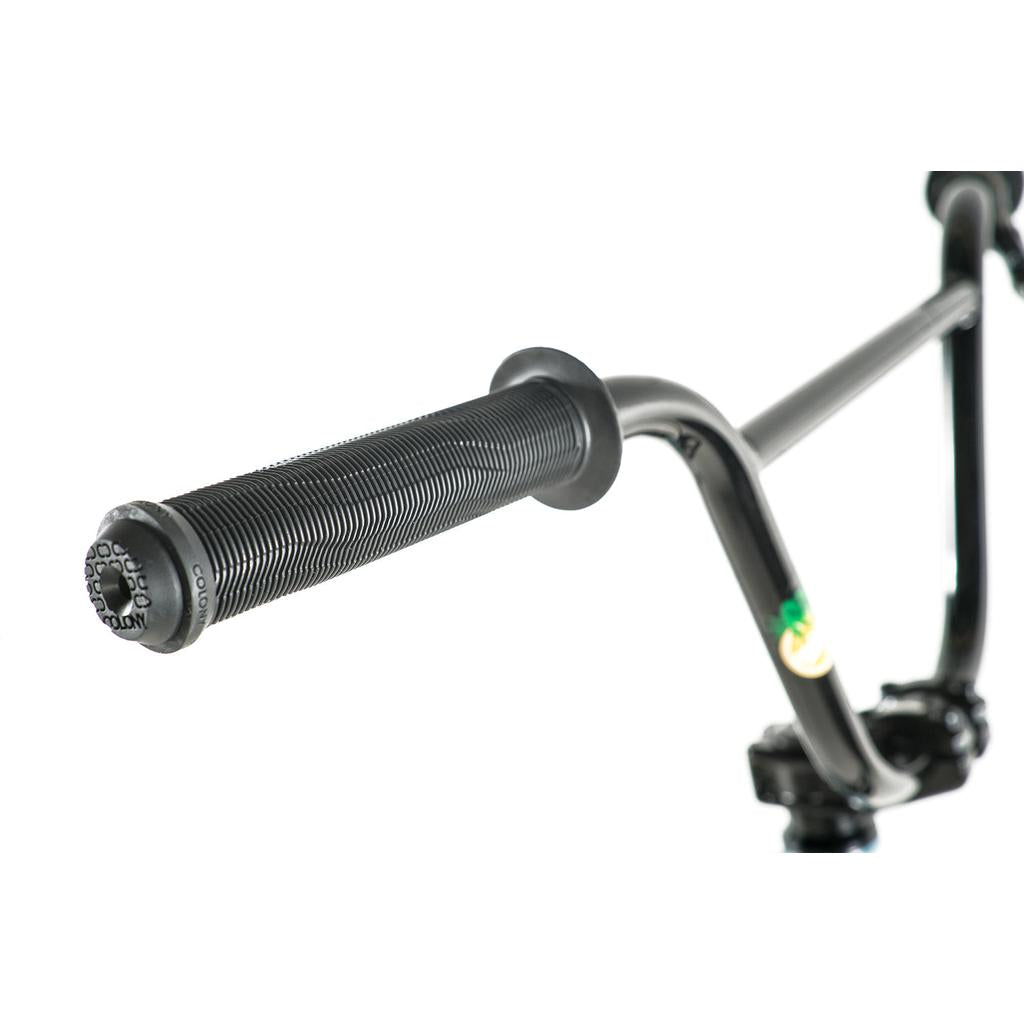

Close-up view of a black handlebar with textured rubber grip and plastic end cap, featured on the Colony Eclipse 24 Inch Bike BMX cruiser, set against a white background.

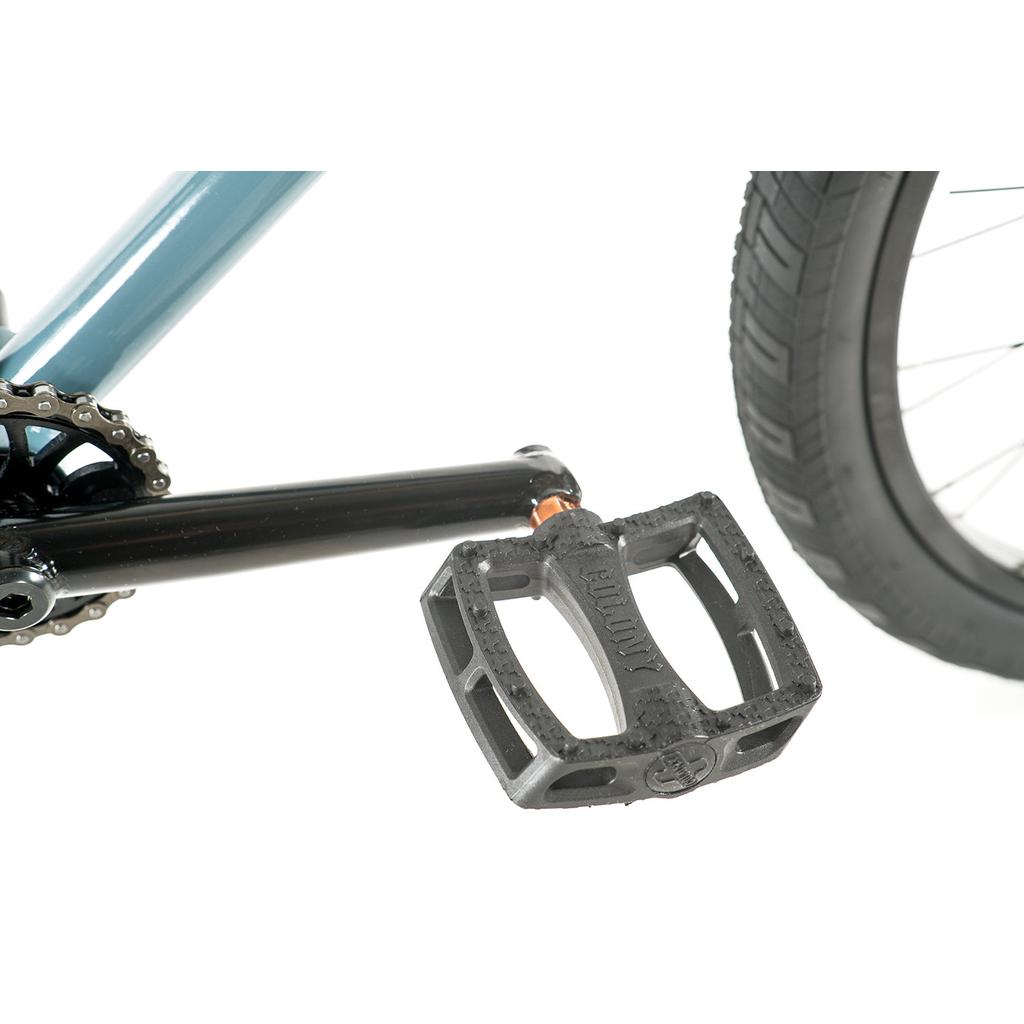

Close-up of a BMX cruiser pedal, crank arm, chain, and rear tire on the Colony Eclipse 24 Inch Bike set against a white background.

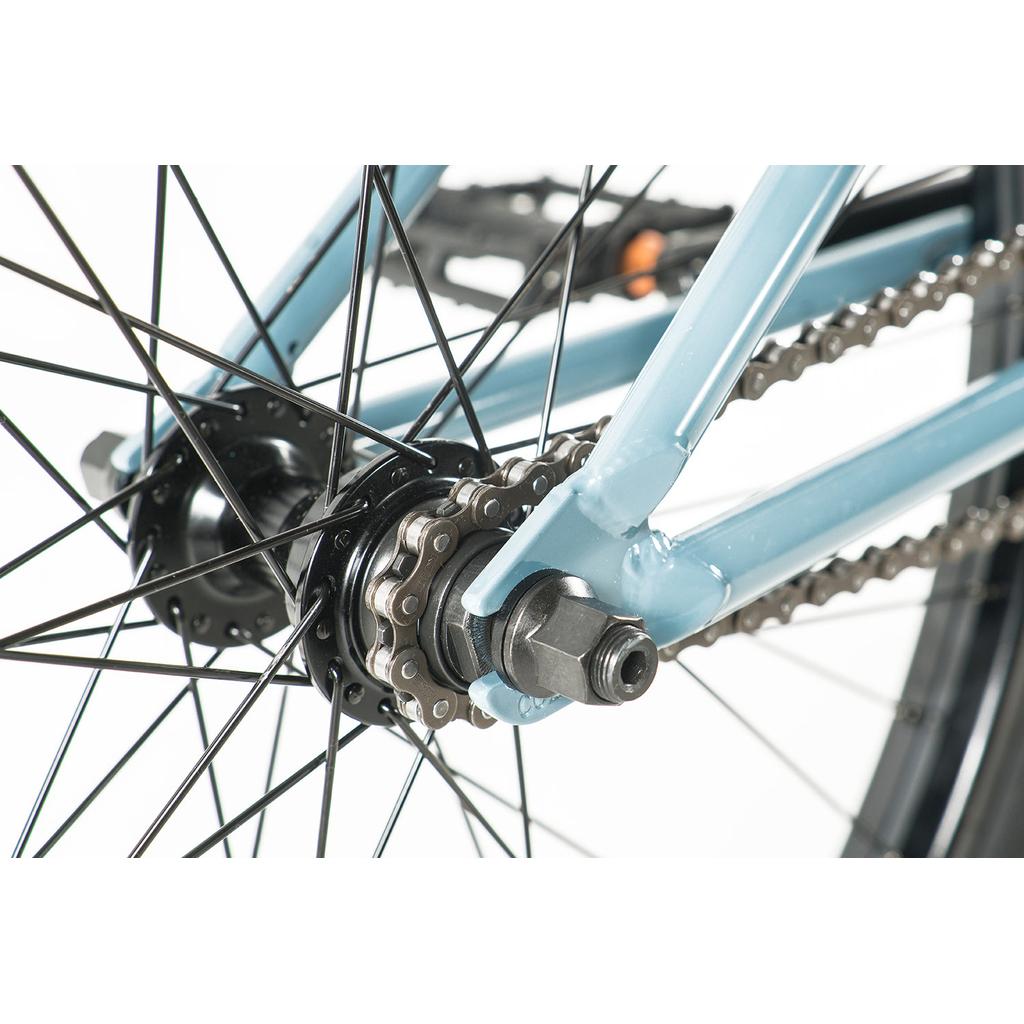

Close-up of the rear wheel hub, axle, chain, and spokes on the blue chromoly frame of the Colony Eclipse 24 Inch Bike against a white background.

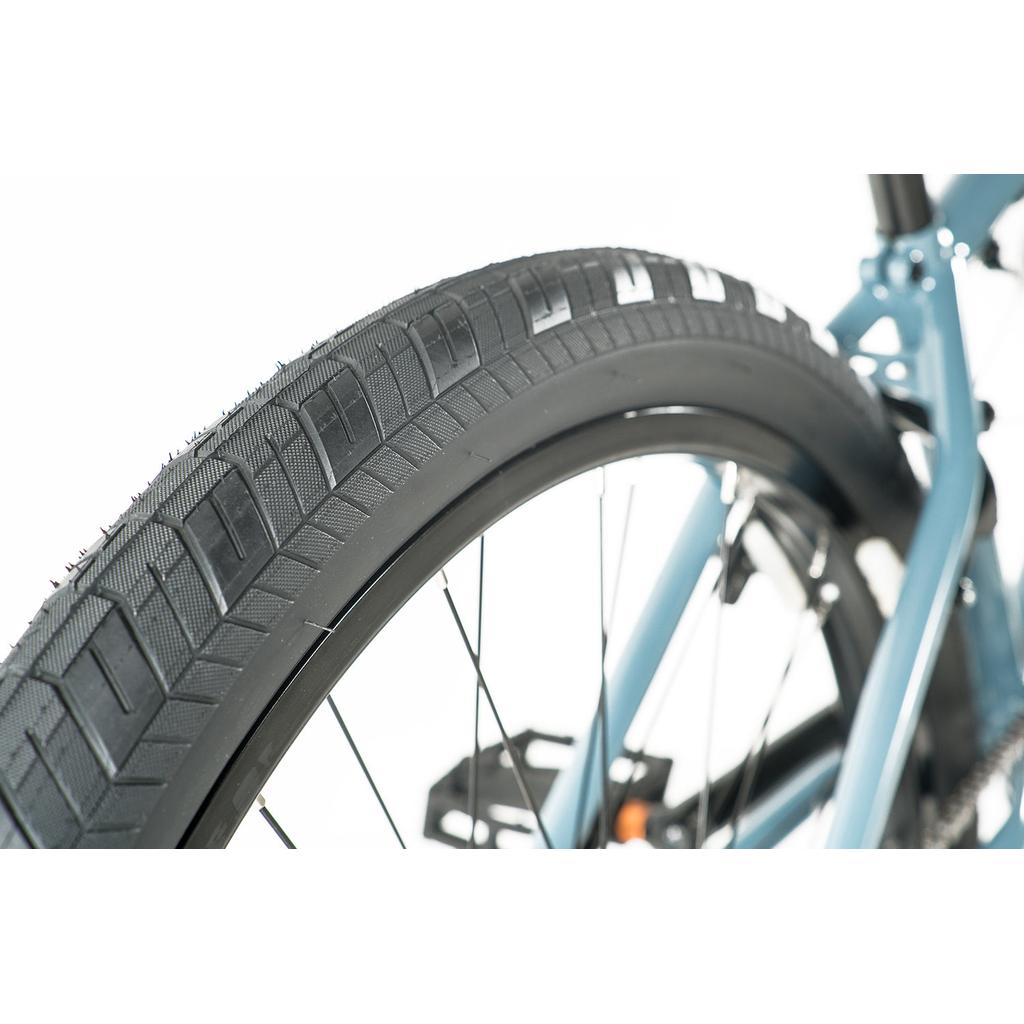

Close-up of a black tire and part of the blue Colony Eclipse 24 Inch Bike chromoly frame, showcasing the tread pattern and spokes against a white background.

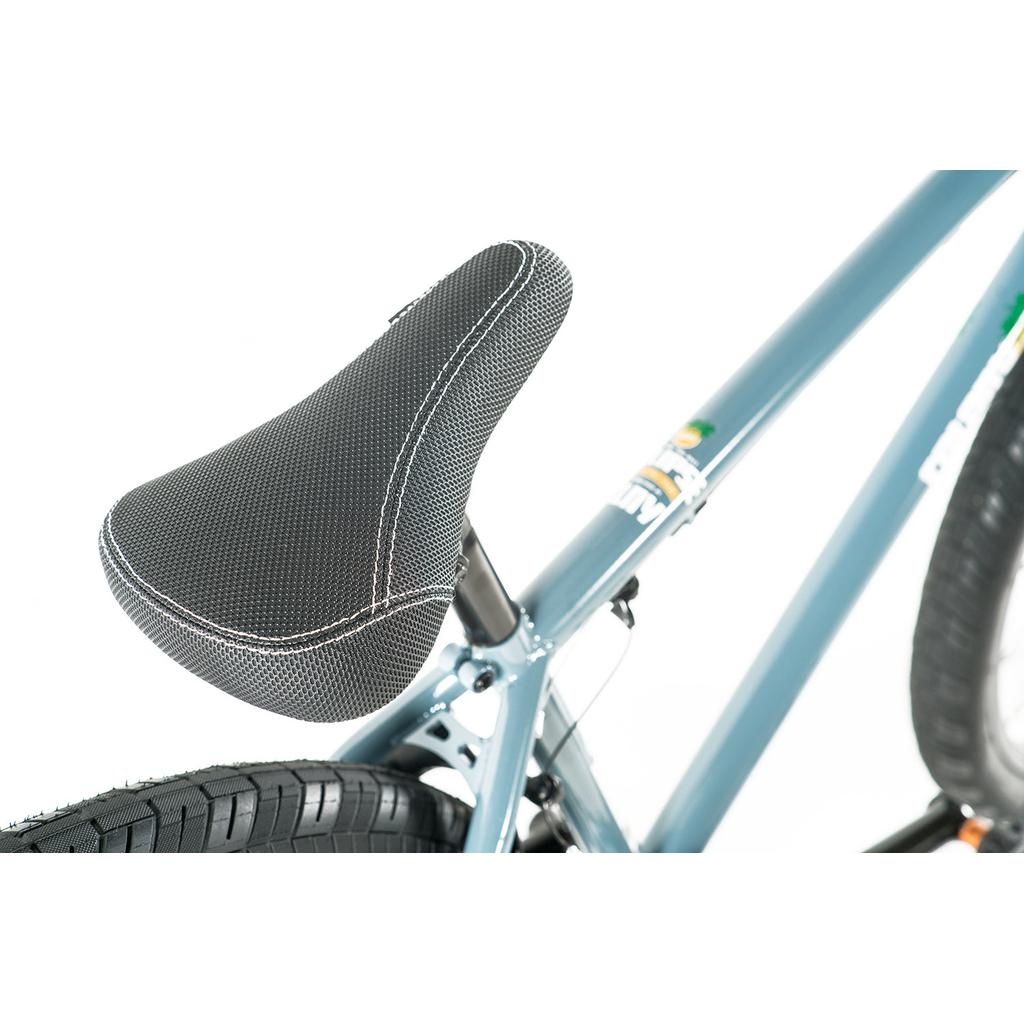

Close-up of the black seat with visible stitching and rear wheel on a blue Colony Eclipse 24 Inch Bike, showing part of its chromoly frame.

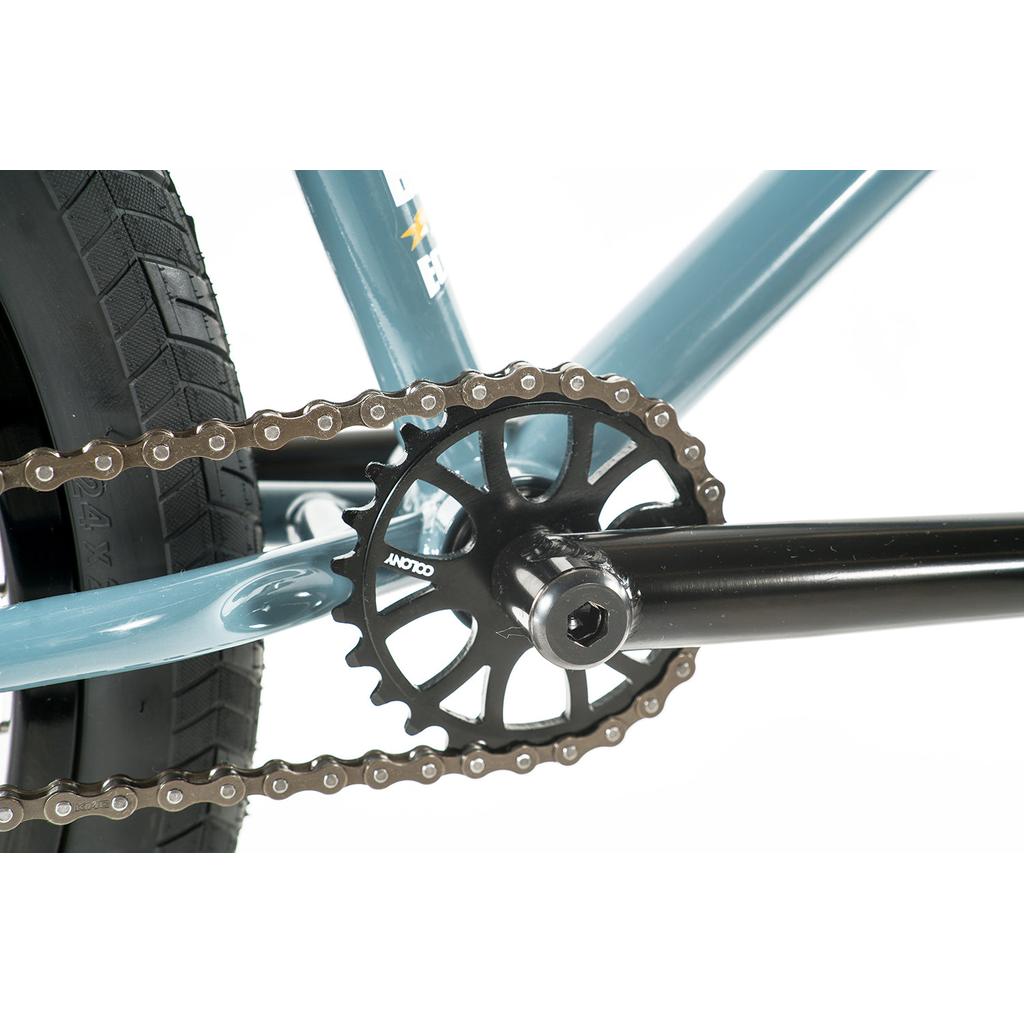

Close-up view of the bicycle chain, chainring, and crank arm on the blue chromoly frame of a Colony Eclipse 24 Inch Bike with a black rear tire.

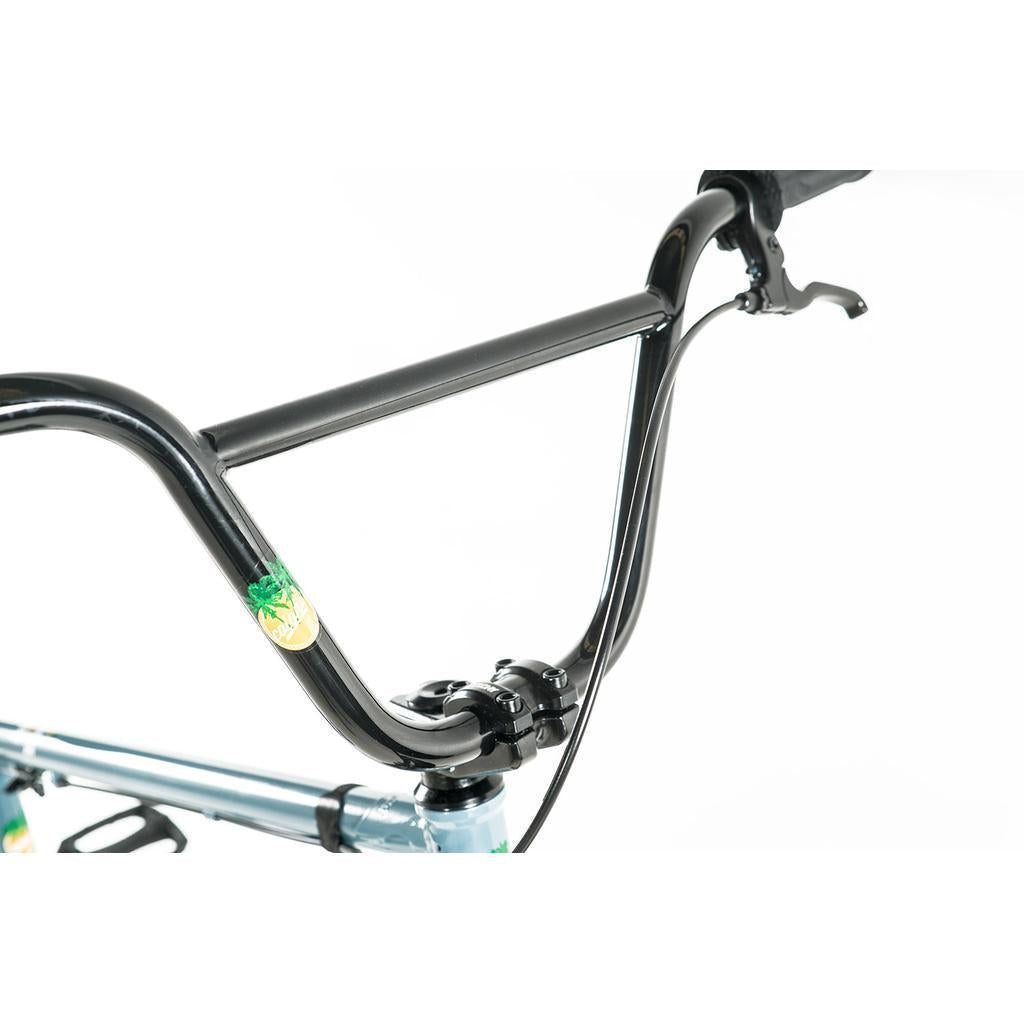

Close-up of a black BMX handlebar with brake lever mounted on the light blue chromoly frame of the Colony Eclipse 24 Inch Bike, set against a white background.

Description

Get ready to have an absolute blast on this super sturdy and stylish cruisers from the legends over at Colony! The frame features a 22inch top tube for the ultimate in handling and has been constructed from chromoly for supreme strength. Colony have decked these rigs out with loads of epic parts to ensure you shred in absolute joy! If you are after a bike to rip around the bike paths, pump tracks and broadwalks- it's time you got an eclipse!

Features
  • Full chromoly 24 inch cruiser. A 22.0" top tube and 14.5" rear end built from chromoly for strength, with extra wide tyre clearance at both ends.
  • Geometry built for handling. A 75.2° head tube, 71° seat tube, 10.0" standover and 12.25" bottom bracket height, at home on bike paths and pump tracks.
  • Chromoly forks with a CNC steerer. Tapered legs and a one piece CNC steer tube up front, with a forged top load alloy stem at 50mm reach.
  • Sealed bearings front and rear. Colony alloy hubs run full sealed bearings and a 10T cassette driver, laced 36h to double wall 6000 series alloy rims.
  • Wide 24 x 2.3" tyres. Grip on both ends, with 170mm chromoly tubular cranks, a 25T Endeavour sprocket and Much Room grips, all up 12.2kg.

Specifications
  • Size: 24" wheels, 22.0" top tube
  • Frame: Colony Eclipse 24", full chromoly, mid BB, integrated headset, extra wide tyre clearance
  • Top tube: 22.0"
  • Chainstay: 14.5"
  • Head tube angle: 75.2°
  • Seat tube angle: 71°
  • Standover: 10.0" (centre of BB shell to centre of TT)
  • Bottom bracket height: 12.25" (centre of BB shell to ground)
  • Fork: Colony Eclipse, full chromoly, tapered legs, 1 piece CNC steer tube
  • Headset: Integrated
  • Stem: Colony forged top load alloy, 50mm reach
  • Bars: Colony full chromoly, 7.75" rise x 28.0" wide
  • Grips: Colony Much Room
  • Brakes: Alloy 990 style rear, Linear Slick cable
  • Brake lever: Alloy
  • Cranks: Colony chromoly tubular, 8 tapered spline, 19mm spindle, 170mm
  • Bottom bracket: Sealed mid, 19mm
  • Sprocket: Colony Endeavour alloy 25T
  • Chain: KMC
  • Pedals: Colony Fantastic Plastic
  • Front hub: Colony alloy female axle, full sealed bearing, 36h
  • Rear hub: Colony alloy cassette, 14mm axle, full sealed bearing, 10T driver, 36h
  • Spokes: Black
  • Rims: Double wall 6000 series alloy, 36h
  • Tyres: 24 x 2.3" front and rear
  • Seat: Colony CC seat and post combo
  • Weight: 12.2kg

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

  • Fit the handlebars and line them up with the front wheel
  • Fit the front wheel, pedals and seat post
  • Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Colony Eclipse 24 Inch Bike

Brand: Colony SKU:

$1,299.99 AUD

Or 4 payments of $324.99 AUD with

Recommended Rider Height:

175cm+

Colour - Nardo Grey

Top Tube Length - 22

24 inch BMX sizing

A 24 inch cruiser is a BMX with a bigger wheel, for riders about 160cm and up, on a 21.75 to 22 inch top tube. It is a different ride feel rather than a bigger frame for taller riders.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. A big wheel rides longer than its top tube number suggests, so do not compare it straight against a 20 inch. Race cruisers are sized differently again: see the race guide.

How to measure

Stand against a wall in the shoes you ride in, heels flat, and mark the top of your head. Measure from the floor to the mark.

  • Choose a big wheel for the ride feel, not because you are tall. Plenty of tall riders stay on 20 inch.
  • Coming off a 20 inch? Expect it to feel longer and more stable, and slower to spin.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide

24 inch BMX sizing

A 24 inch cruiser is a BMX with a bigger wheel, for riders about 160cm and up, on a 21.75 to 22 inch top tube. It is a different ride feel rather than a bigger frame for taller riders.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. A big wheel rides longer than its top tube number suggests, so do not compare it straight against a 20 inch. Race cruisers are sized differently again: see the race guide.

How to measure

Stand against a wall in the shoes you ride in, heels flat, and mark the top of your head. Measure from the floor to the mark.

  • Choose a big wheel for the ride feel, not because you are tall. Plenty of tall riders stay on 20 inch.
  • Coming off a 20 inch? Expect it to feel longer and more stable, and slower to spin.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide
