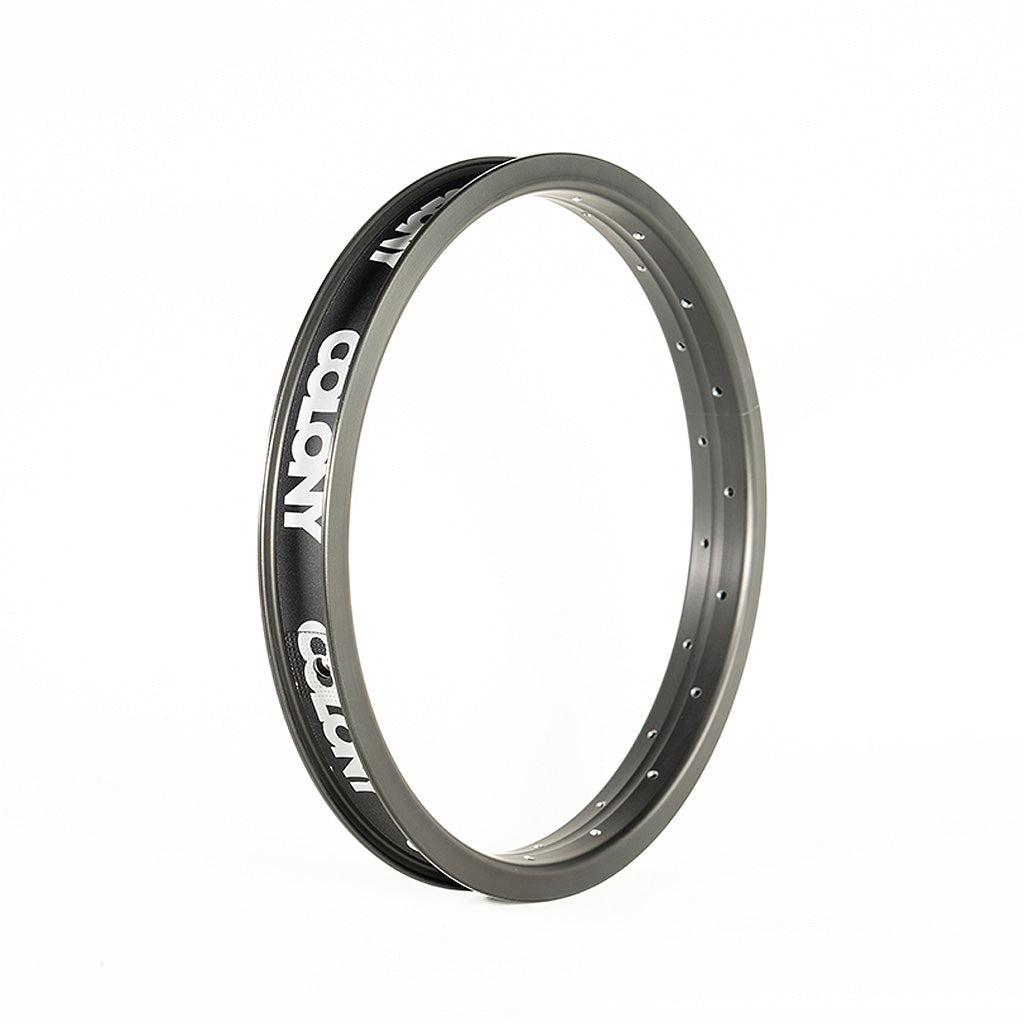

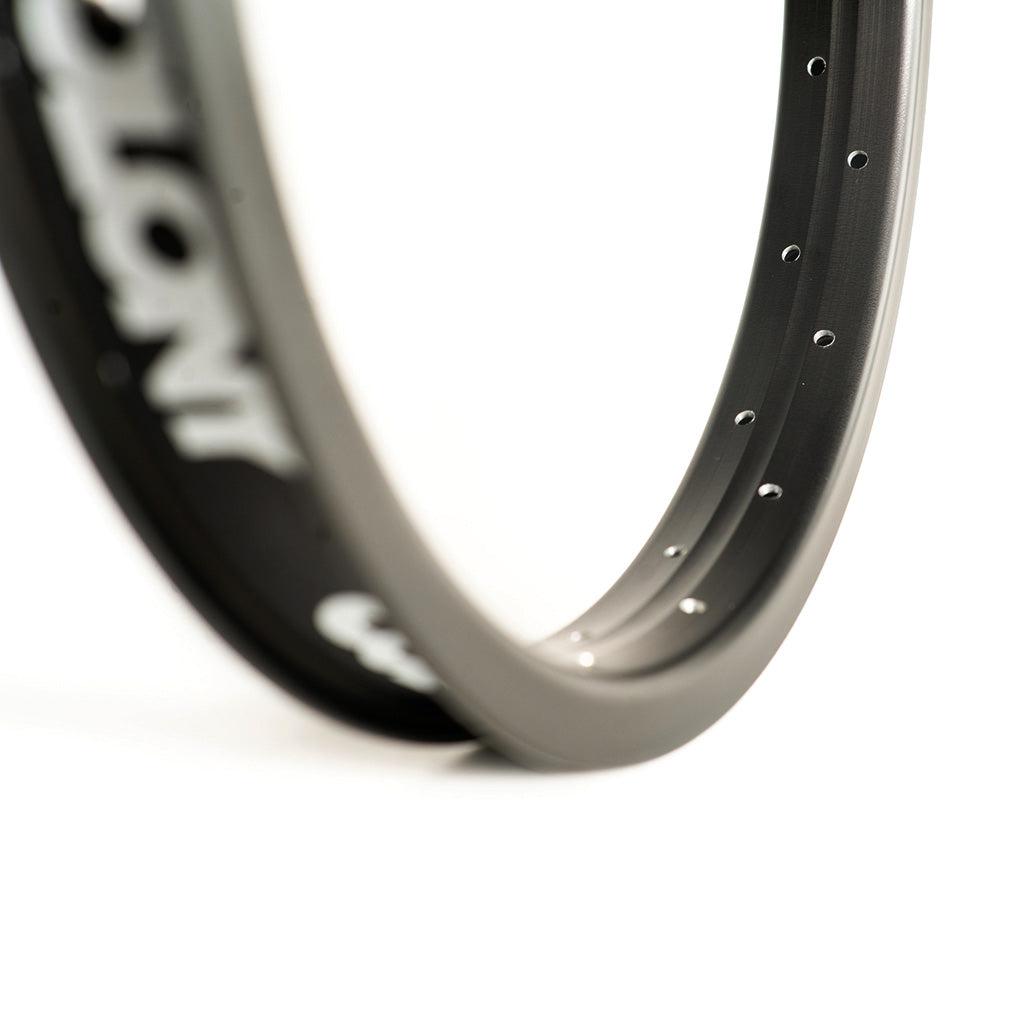

Black Colony Pintour 16 Inch Rim (36H) with 36 spoke holes.

Black Colony Pintour 16 Inch Rim (36H) with spoke holes.

Description

The Colony Pintour 16 Inch Rims are an affordable option for riders on a budget. These rims are an economical 16" version of the full-size 20" Contour BMX rim, with a rim width of 37mm. They feature an engraved logo and come with a Colony rim strip. These rims are only available in a 36 hole option.

The effective rim diameter (ERD) is 285mm for the 16" rim.

They are also available in sizes 18", and 20".

Weight = 534g or 1.18lbs.

Specifications

- Economical 20″ Pinned version of our Contour BMX Rim

- 37mm rim width

- Engraved logo

- Comes with Colony rim strip

- 36 hole only

- Also available for 18″ & 20" size

- ERD is 388mm. (18″ Rim 335mm)

- Weight : 534g or 1.18lbs.

Spoke calculator

Display

Pick the part it is laced to and we will give you the lengths to buy.

This rim

Looking up its measurements.

Check or change its figures

ERD effective rim diameter, from the spec sheet mm

Laced to which hub?

Find your hub

Or type its figures

Hub spacing locknut to locknut, 100 front or 110 rear on most BMX mm Same both sides front hubs, or matching flanges

Flange diameter/PCD (pitch circle diameter) spoke hole centre to the opposite hole centre. The drive side is the driver side, left or right hand drive alike, and is usually the bigger flange

Drive side mm Non-drive side mm

Flange position

Flange to locknut Centre to flange

Drive side mm Non-drive side mm
