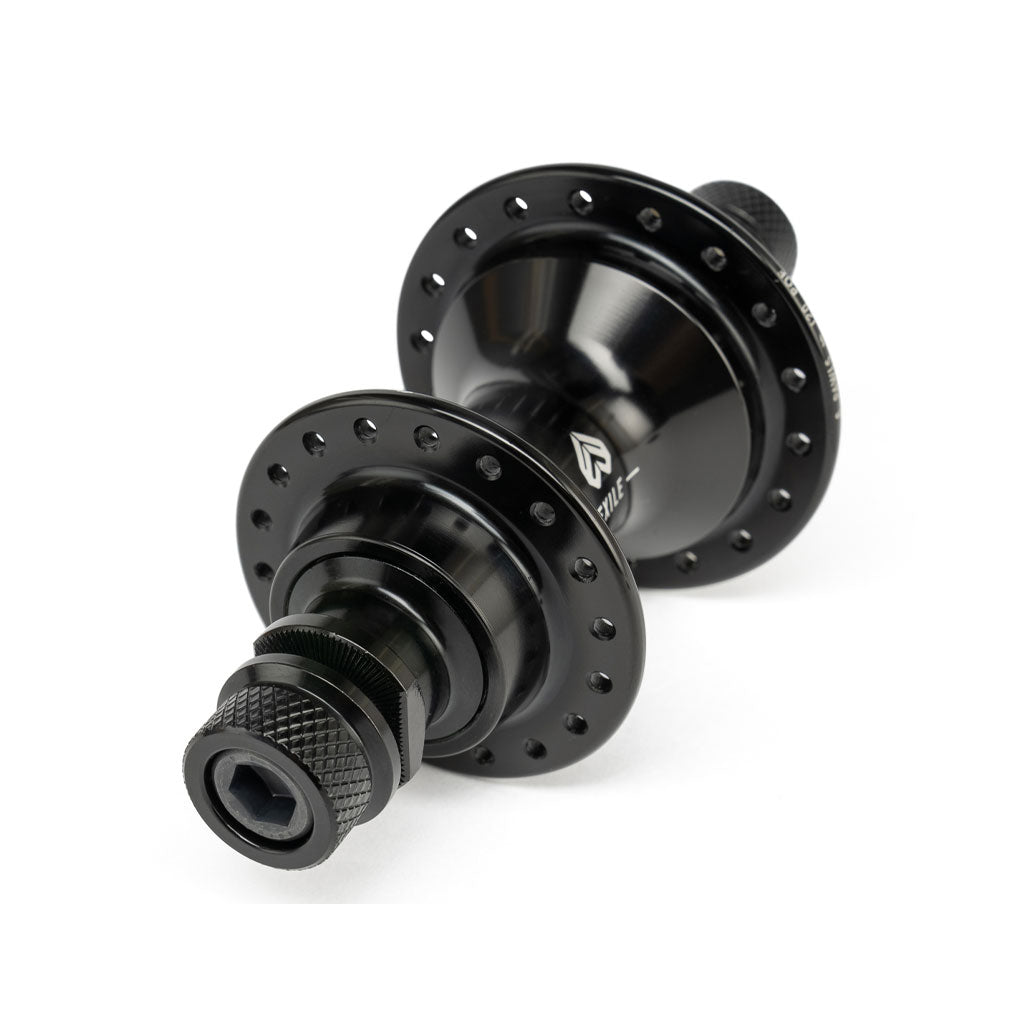

A lightweight Eclat Exile CS Rear Cassette Hub on a white background.

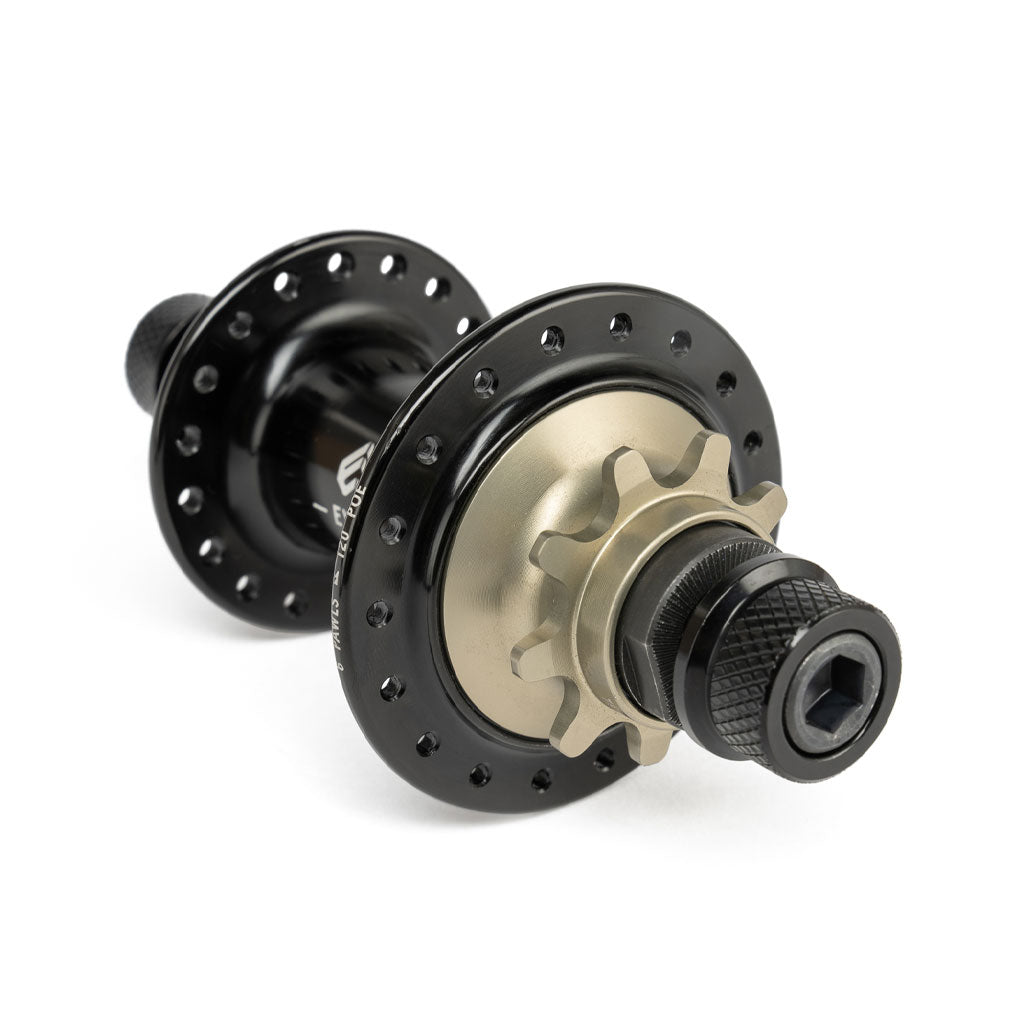

An image of the Eclat Exile CS Rear Cassette Hub on a white background.

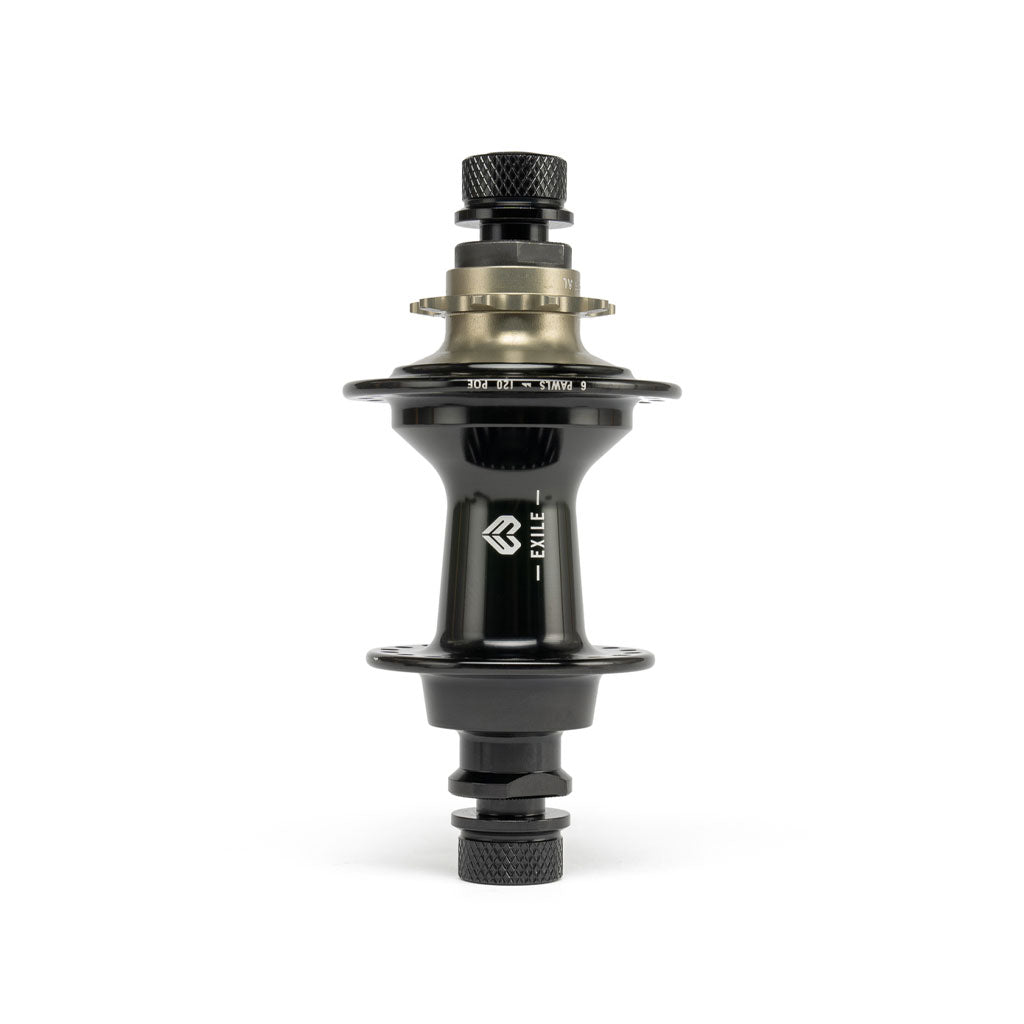

A pair of lightweight black Eclat Exile CS Rear Cassette Hubs on a white background.

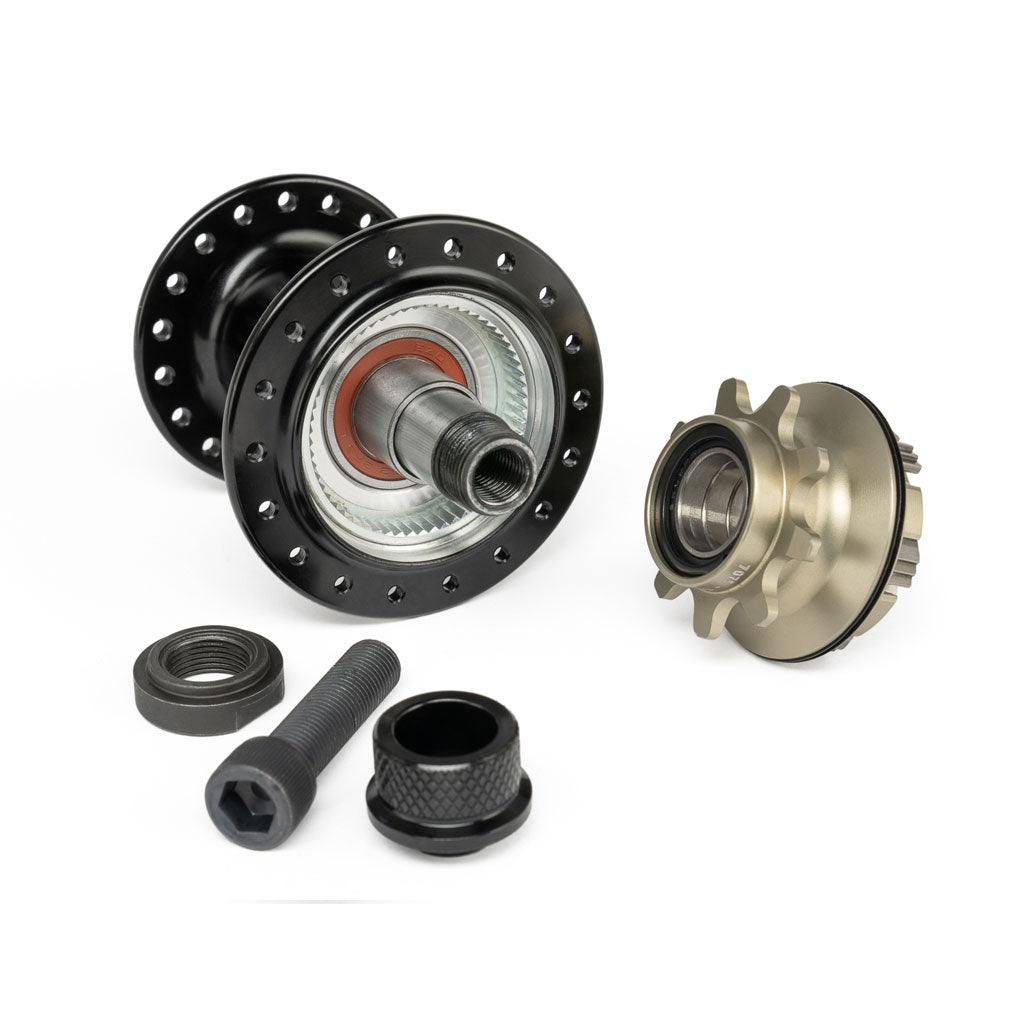

An image of the Eclat Exile CS Rear Cassette Hub and a lightweight wheel bearing.

Description

The Exile CS is Eclat's cassette hub for trail and transition riding, designed together with Tyson Jones-Peni. The 6061-T6 alloy shell is drilled 36 hole and runs a 4130 chromoly female axle with a 3/8 inch thread, plus adaptors for 14mm dropouts.

Inside, a lightweight 7075-T6 alloy driver runs six multi-tooth pawls for 120 points of engagement, backed by a three bearing driver system and two sealed bearings in the shell. It is disc brake ready, ships with 17mm hex bolts, and weighs 405 grams.

Features

Fits 14mm or 3/8 inch dropouts. The 4130 chromoly female axle runs a 3/8 inch thread and comes with 14mm adaptors, plus 17mm hex bolts in the box.
120 points of engagement. Six multi-tooth pawls pick up quickly, so the first application of pedal pressure goes straight into forward motion.
36 hole, 110mm axle width. The 6061-T6 alloy shell is drilled 36 hole and measures 110mm locknut to locknut, with a 58mm drive side flange.
Disc brake ready. You can run a disc setup on this hub, which suits the trail and transition builds it was designed around.
9t driver, 10t sold separately. The 7075-T6 alloy driver comes as a 9 tooth, with a 10 tooth available separately if you want to change gearing.

Specifications

Fits: 3/8 inch dropouts as standard, 14mm dropouts with the included adaptors
Width: 110mm locknut to locknut
Material: 6061-T6 alloy hub shell
Bearings: 2 sealed hub bearings, 3 driver bearings
Engagement: 120 points, 6 pawl multi-tooth
Driver: 7075-T6 alloy, 9t (10t sold separately)
Spokes: 36h
Axle: 4130 chromoly female axle, 3/8 inch thread with 14mm adaptors
Included: 17mm hex bolts and adaptors for 14mm dropouts
Weight: 405 grams
Note: Disc brake ready. Drive side flange diameter (PCD) 58mm, non-drive side 49mm. Drive side flange to locknut 28mm, non-drive side 27mm. CNC machined knurled flush bolt caps.
