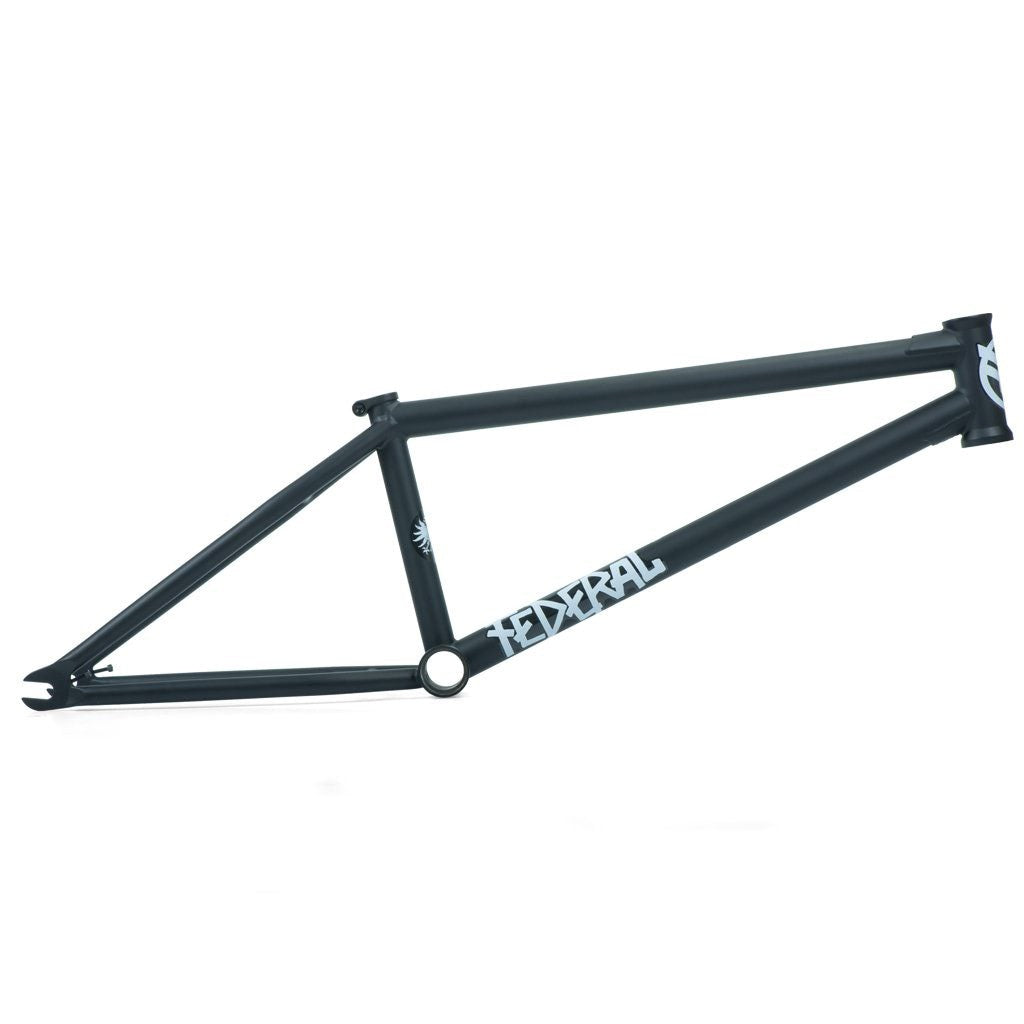

Federal Bruno 2 Frame / Matte Black / 20.85TT

Highlights

Brakeless street frame
6.5mm investment cast dropouts
Investment cast bridges and seat clamp
Embossed down tube gusset

Description

The Federal Bruno 2 is a brakeless street frame built from 4130 chromoly tubing, with an embossed down tube gusset carrying the F logo and graphics drawn by Rich Forne.

Investment cast parts do the heavy lifting: 6.5mm dropouts with integrated chain tensioners, seat stay and chain stay bridges, and an integrated seat clamp. Tapered chain stays and a mid bottom bracket finish it off, with a choice of 20.85", 21" or 21.25" top tubes.

Features

Brakeless street frame. The Bruno 2 runs brakeless only, keeping the rear end clean with nothing bolted to the seat stays.
6.5mm investment cast dropouts. Thick cast dropouts with integrated chain tensioners take the impact of grinds and keep the rear wheel where you set it.
Investment cast bridges and seat clamp. Cast seat stay and chain stay bridges and an integrated cast seat clamp mean fewer bolt-on parts to work loose.
Embossed down tube gusset. The gusset carries the F logo and adds material where the down tube meets the head tube.
Three top tube lengths. Take 20.85", 21" or 21.25" with a 75 degree head tube, a 71 degree seat tube and chain stays slammed at 13.6".

Specifications

Sizes: 20.85", 21" or 21.25" top tube
Chainstay: 13.6" (slammed)
Head tube angle: 75 degrees
Seat tube angle: 71 degrees
Standover: 9"
Bottom bracket height: 11.8"
Bottom bracket: Mid
Material: 4130 chromoly
Dropouts: 6.5mm thick investment cast, integrated chain tensioners
Brake mounts: None, brakeless only
Seat clamp: Integrated, investment cast
Weight: 2.2 kg

Federal Bruno 2 Frame

Name: Federal Bruno 2 Frame
Brand: Federal
SKU: FRFE018-BK3-2085
Price: 549.99 AUD
Availability: OutOfStock

Brand: Federal SKU: Click to copy the SKU and show the pick location

From

$549.99 AUD

$639.99 AUD

Or 4 payments of $137.49 AUD with

Colour - Matte Black

Top Tube Length - 20.85

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider height	Top tube
147 to 157cm	19.75 to 20.25"
157 to 168cm	20 to 20.5"
168 to 175cm	20.25 to 20.75"
175 to 183cm	20.5 to 21"
183 to 190cm and up	20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

Size up for stability through trails and transitions.
Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider height	Top tube
147 to 157cm	19.75 to 20.25"
157 to 168cm	20 to 20.5"
168 to 175cm	20.25 to 20.75"
175 to 183cm	20.5 to 21"
183 to 190cm and up	20.75 to 21.5"

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

Size up for stability through trails and transitions.
Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide
