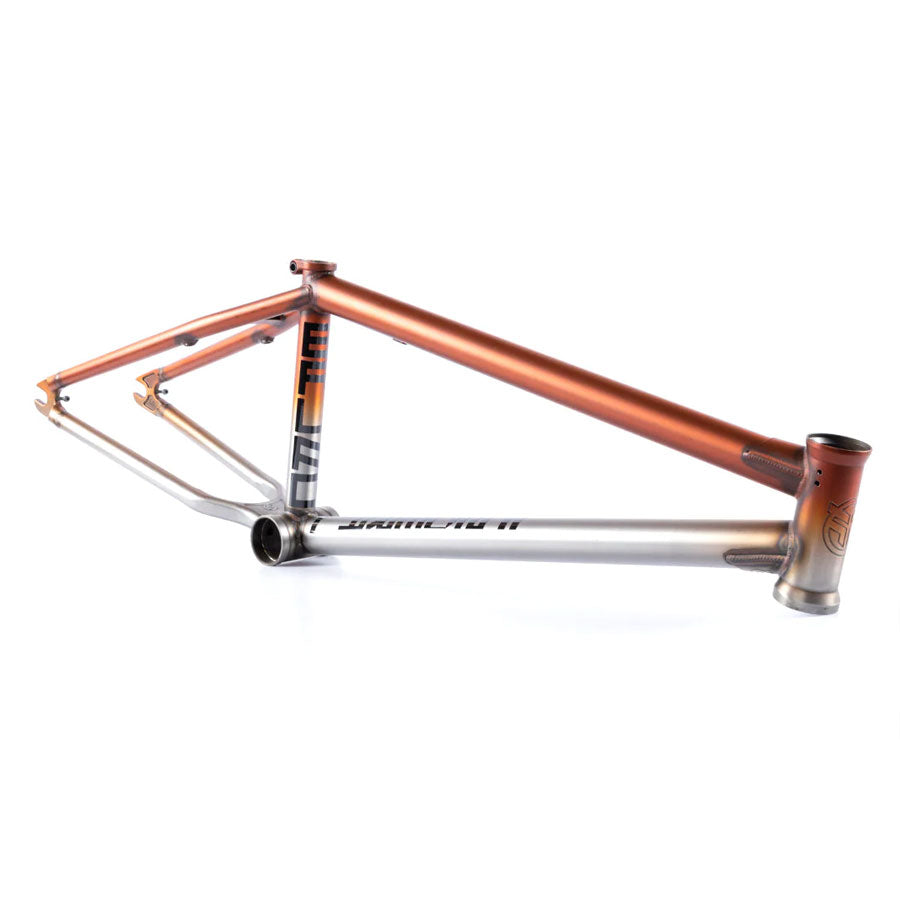

A Federal Bruno Frame ICS2 with a copper finish.

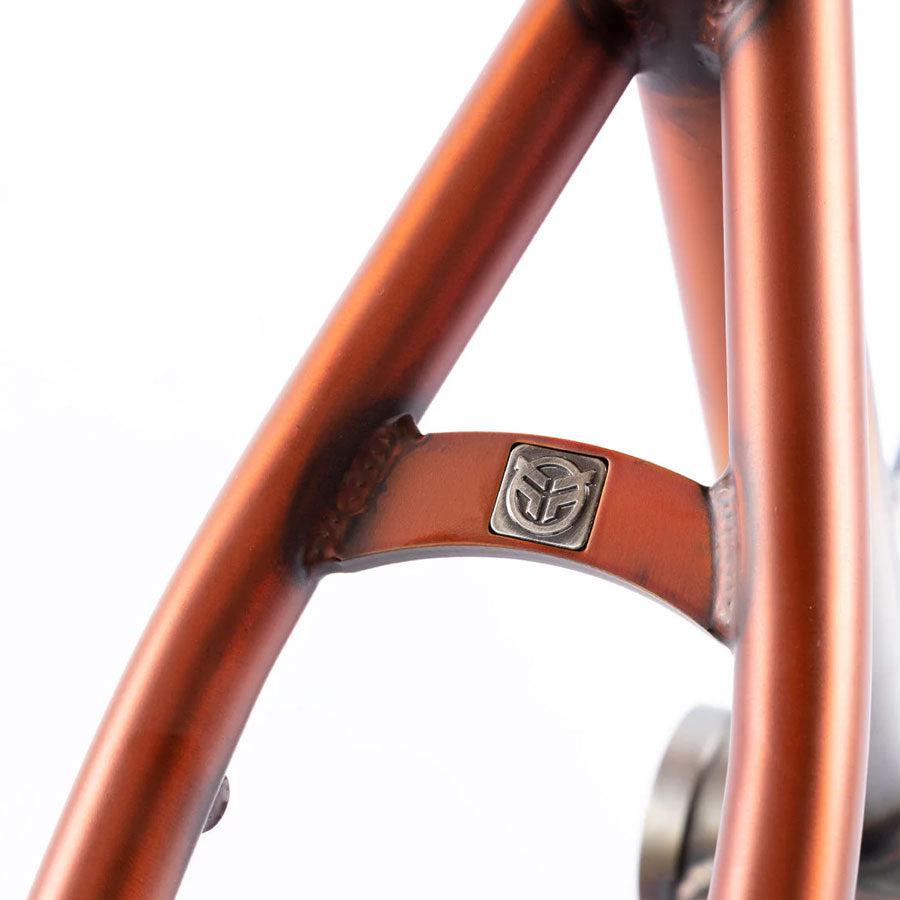

A close up of the Federal Bruno Frame, showcasing its Matt Trans Burnt Orange color and Raw Fade aesthetic.

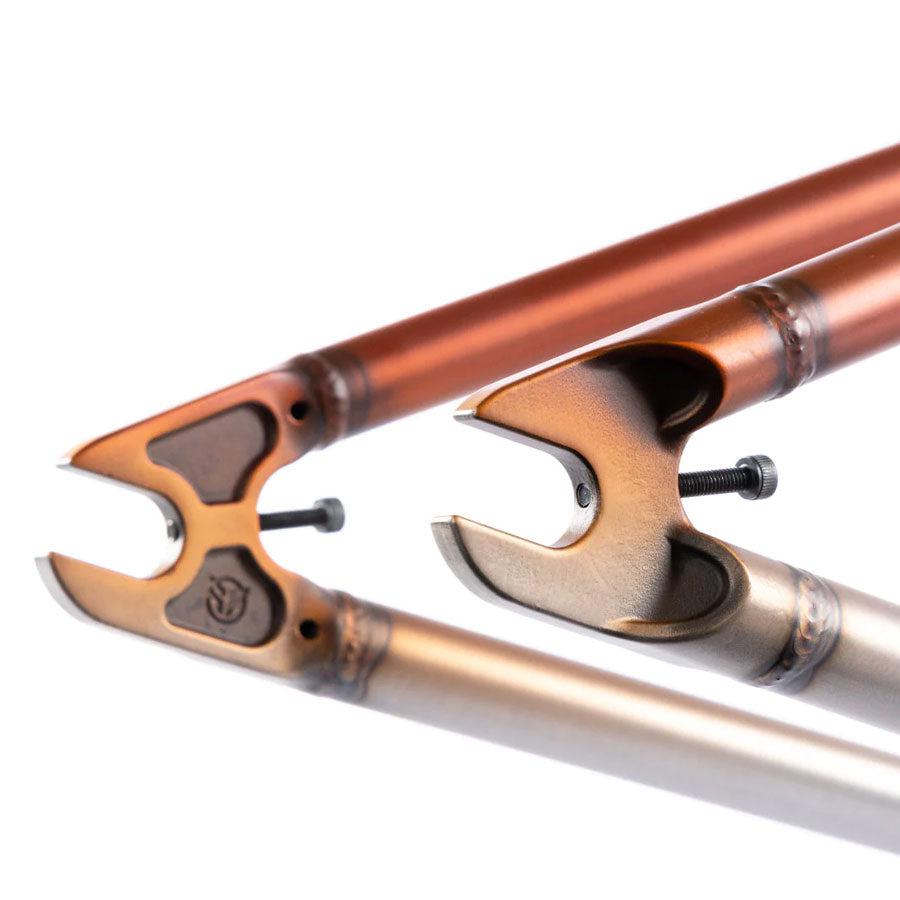

A pair of Federal Bruno Frame bike tools with a brown handle and a black handle.

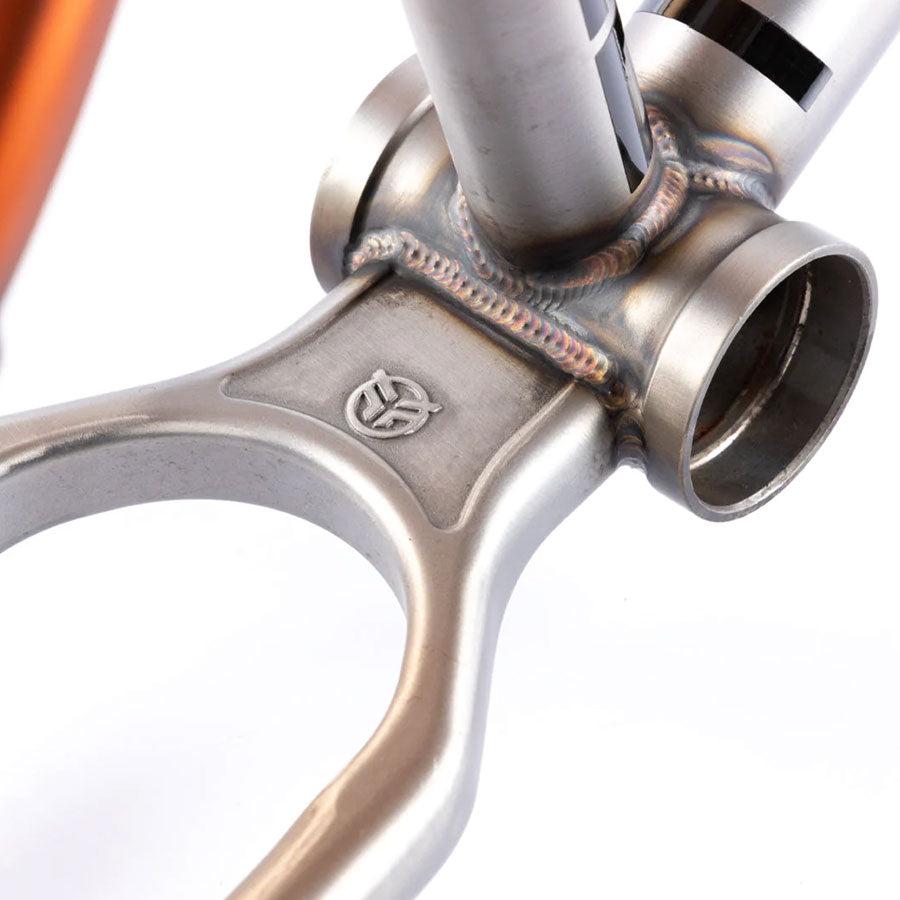

A close up image of a bicycle handlebar with a Federal Bruno Frame.

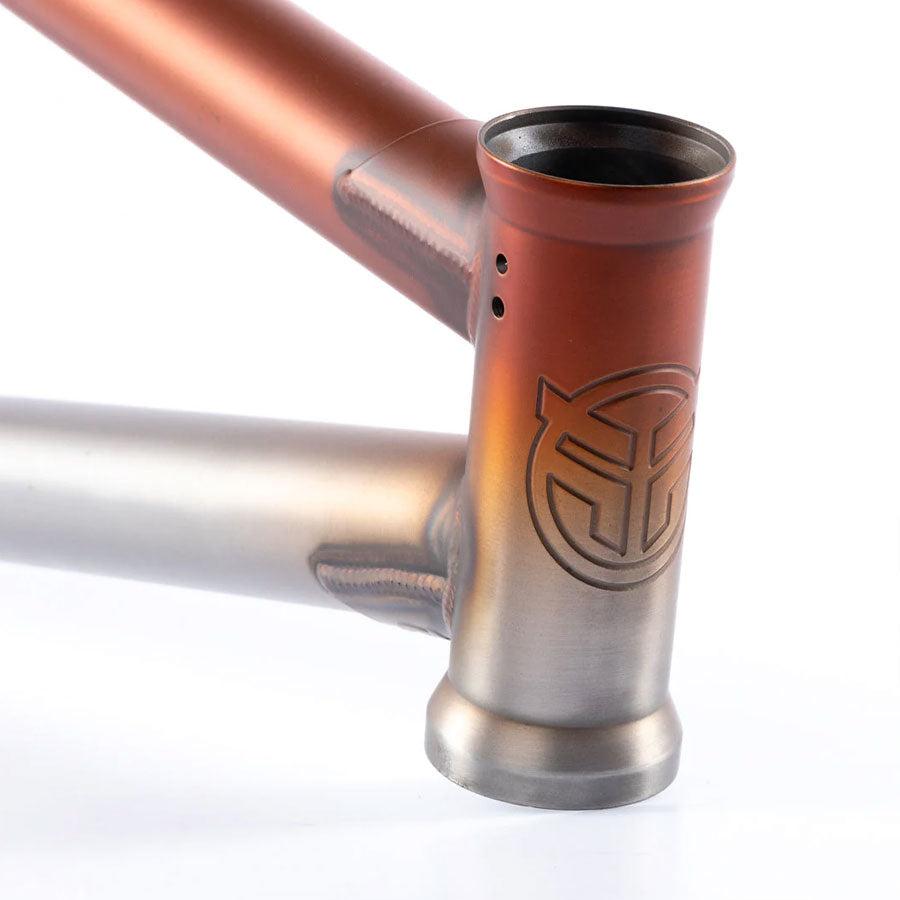

The Federal Bruno Frame showcases a stunning orange and silver finish, exuding a Raw Fade aesthetic that incorporates the essence of a Matt Trans Burnt Orange color scheme.

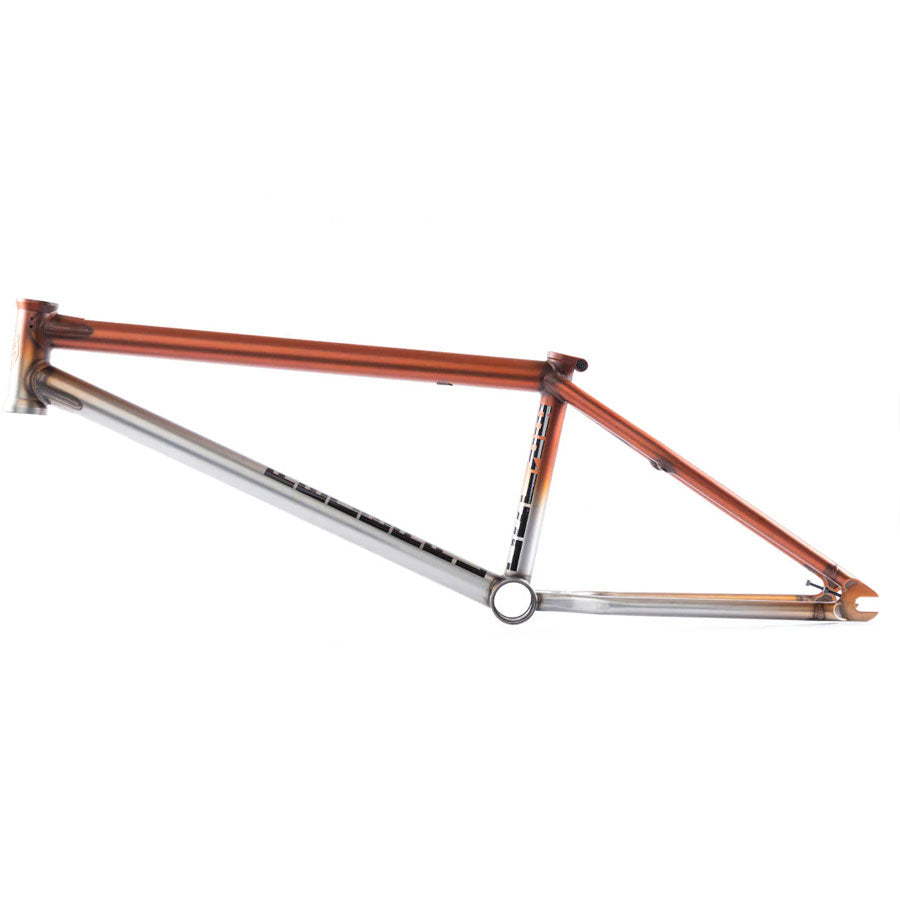

A Federal Bruno frame on a white background.

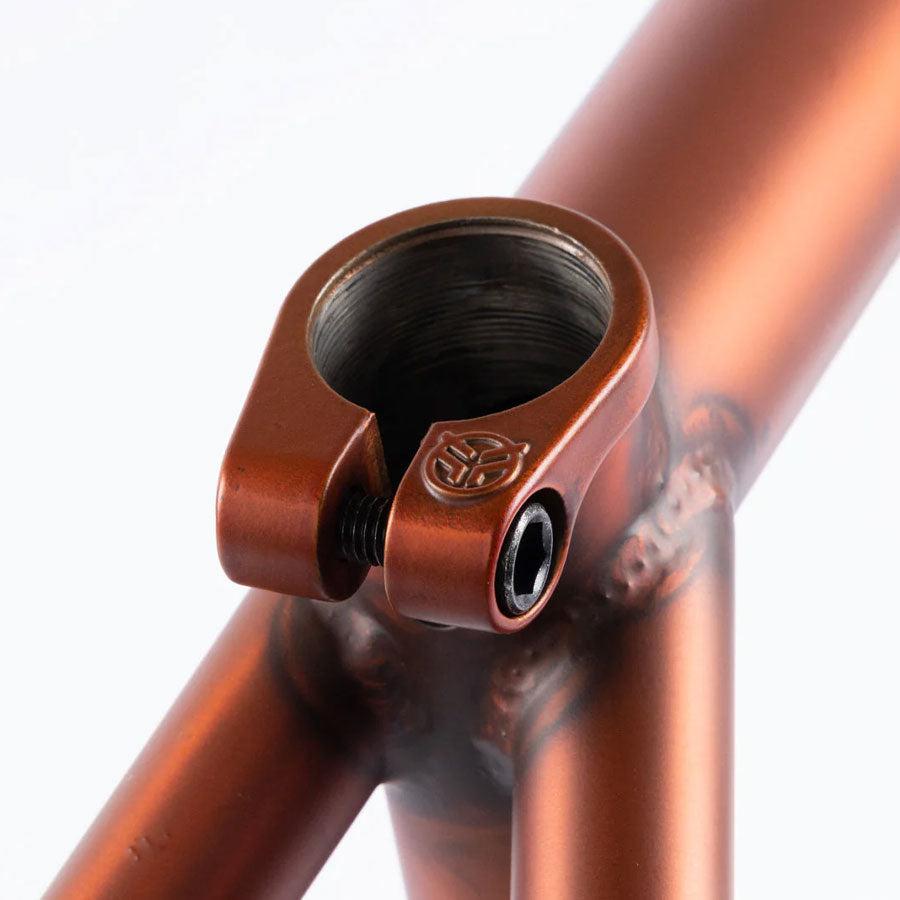

A close up of a Federal Bruno Frame Burnt Orange bicycle frame.

Highlights

ICS2 wishbone rear end
Redesigned investment cast dropouts
75.5° head tube for quick steering
Removable brake mounts on the seat stays

Description

Federal Bruno ICS2 Frame - Matt Trans Burnt Orange To Raw Fade

The Bruno frame has been updated to now feature the ICS2 wishbone. As with previous models it features an engraved Federal logo on the headtube, brand new invest cast dropouts and Bruno’s latest geometry. The new dropouts have been completely redesigned using a smaller overall shape that runs in line with the chainstay tubing. The headtube is now at 75.5° for a more responsive feel and also comes with removable brake mounts on the seat stays. Graphics designed by Rich Forne.

Removable brake mounts sold separately

Please note that with the finish on these frames being a clear coat over raw tubing that there possibly could be some vein-like effects underneath the coating. This will be different on every frame. This is purely cosmetic and will not affect the frame in any other way.

Features

ICS2 wishbone rear end. The Bruno has been updated with Federal's ICS2 wishbone, so the back end is the latest version of the design.
Redesigned investment cast dropouts. A smaller shape that runs in line with the chainstay tubing, with integrated chain tensioners to hold the wheel where you set it.
75.5° head tube for quick steering. The steeper head angle gives the frame a more responsive feel, and the head tube carries an engraved Federal logo.
Removable brake mounts on the seat stays. Run a rear brake or strip the mounts off for a clean look, with the mounts themselves sold separately.
4130 chromoly, 2.51 kg. Chromoly tubing with a stamped F logo down tube gusset, tapered chainstays and seat stays, and an integrated investment cast seat clamp.

Specifications

Top tube: 20.85" or 21"
Chainstay: 13.6" (slammed)
Head tube angle: 75.5°
Seat tube angle: 71°
Standover: 9"
Bottom bracket height: 11.8"
Bottom bracket: Mid
Material: 4130 chromoly
Dropouts: Investment cast, redesigned, with integrated chain tensioners
Brake mounts: Removable, on the seat stays. Mounts sold separately
Seat clamp: Integrated, investment cast
Weight: 2.51 kg
Colour: Matt trans burnt orange to raw fade
Note: The clear coat sits over raw tubing, so there may be vein-like effects underneath. This differs on every frame and is purely cosmetic.

Federal Bruno Frame

Name: Federal Bruno Frame
Brand: Federal
SKU: FEDBRUNOICS221
Price: 599.99 AUD
Availability: OutOfStock

Brand: Federal SKU: Click to copy the SKU and show the pick location

From

$599.99 AUD

$639.99 AUD

Or 4 payments of $149.99 AUD with

Colour - Matt Trans Burnt Orange To Raw Fade

Top Tube Length - 21

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider height	Top tube
147 to 157cm	19.75 to 20.25"
157 to 168cm	20 to 20.5"
168 to 175cm	20.25 to 20.75"
175 to 183cm	20.5 to 21"
183 to 190cm and up	20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

Size up for stability through trails and transitions.
Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider height	Top tube
147 to 157cm	19.75 to 20.25"
157 to 168cm	20 to 20.5"
168 to 175cm	20.25 to 20.75"
175 to 183cm	20.5 to 21"
183 to 190cm and up	20.75 to 21.5"

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

Size up for stability through trails and transitions.
Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide

Federal Bruno Frame - Matt Trans Burnt Orange To Raw Fade / 21
