Fiend Type B+ 20 Inch Bike / Flat Black / 20.75TT

Highlights

Freecoaster for backwards tricks
Chromoly head, top and down tubes
Full chromoly fork, tapered legs
3-piece chromoly cranks, 165mm

Description

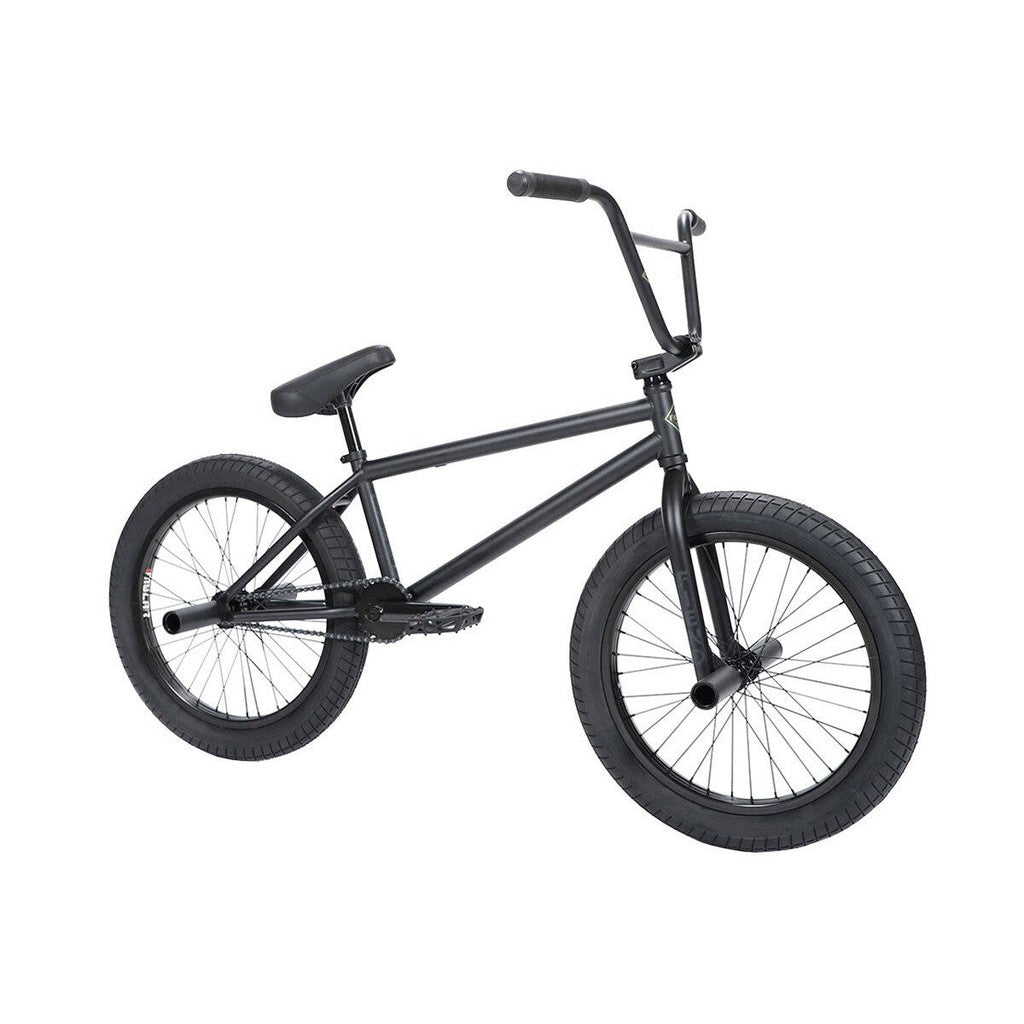

The Fiend Type B+ 20 Inch Bike features all of the same quality components as the Type B but mixes in a rear freecoaster hub to have the ability to learn backwards rolling tricks. The Type B frame has a chromoly head tube, 20.75" chromoly top tube and chromoly down tube with removable brake mounts and features a full chromoly 9” rise handlebar, full chromoly Type B fork with tapered legs, 3-piece chromoly cranks with a sealed Mid bottom bracket, Fiend Reynolds PC pedals, a fully sealed 14mm rear freecoaster hub, a sealed front hub, Mission Mylar rims, a 1-piece Fiend seat/post combo, 2.4” street style tires 4 steel pegs with nylon sleeves and Fiend flangeless Team grips.

Features

Freecoaster for backwards tricks. The same components as the Type B plus a sealed 14mm Mission Deploy freecoaster, so you can learn backwards rolling tricks.
Chromoly head, top and down tubes. The Embryo frame runs chromoly in the three tubes that work hardest, with removable brake mounts.
Full chromoly fork, tapered legs. Backed up by a 9" rise chromoly bar and a Fiend Crown top load stem.
3-piece chromoly cranks, 165mm. Turning on a sealed Mid bottom bracket, with Mission nylon pedals to match.
Four pegs and 2.4" tyres. Steel pegs with nylon sleeves and Innova street rubber on Mylar double wall rims, 11.7 kg without brakes or pegs.

Specifications

Size: 20" wheels
Frame: Fiend Embryo with chromoly head, top and down tubes, removable brake mounts
Top tube: 20.75"
Chainstay: 12.75"
Fork: Fiend Embryo, full chromoly, tapered legs
Stem: Fiend Crown top load
Bars: Fiend Embryo chromoly, 9" rise
Grips: Fiend flangeless Team
Cranks: Chromoly 3-piece, 165mm
Bottom bracket: Sealed Mid
Pedals: Mission nylon
Front hub: Mission Echo sealed
Rear hub: Mission Deploy sealed 14mm freecoaster with 9T driver (RHD)
Rims: Mission Mylar double wall
Tyres: Innova 2.40" street
Seat: Fiend 1-piece seat and post combo
Pegs: 4 steel pegs with nylon sleeves
Weight: 11.7 kg without brakes or pegs

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

Fit the handlebars and line them up with the front wheel
Fit the front wheel, pedals and seat post
Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Fiend Type B+ 20 Inch Bike

Name: Fiend Type B+ 20 Inch Bike
Brand: Fiend
SKU: kabx2600
Price: 1099.99 AUD
Availability: OutOfStock

Brand: Fiend SKU: Click to copy the SKU and show the pick location

$1,099.99 AUD

Or 4 payments of $274.99 AUD with

Recommended Rider Height:

168cm+

Colour - Flat Black

Top Tube Length - 20.75

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider height	Wheel size	Top tube
60 to 91cm	12"	12 to 12.5"
81 to 106cm	14"	14 to 14.5"
96 to 122cm	16"	16 to 16.5"
122 to 147cm	18"	18 to 18.5"
147 to 157cm	20"	19.75 to 20.25"
157 to 168cm	20"	20 to 20.5"
168 to 175cm	20"	20.25 to 20.75"
175 to 183cm	20"	20.5 to 21"
183 to 190cm and up	20"	20.75 to 21.5"
160cm and up	22"	21 to 22.25"
160cm and up	24"	21.75 to 22"
160cm and up	26"	22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide
