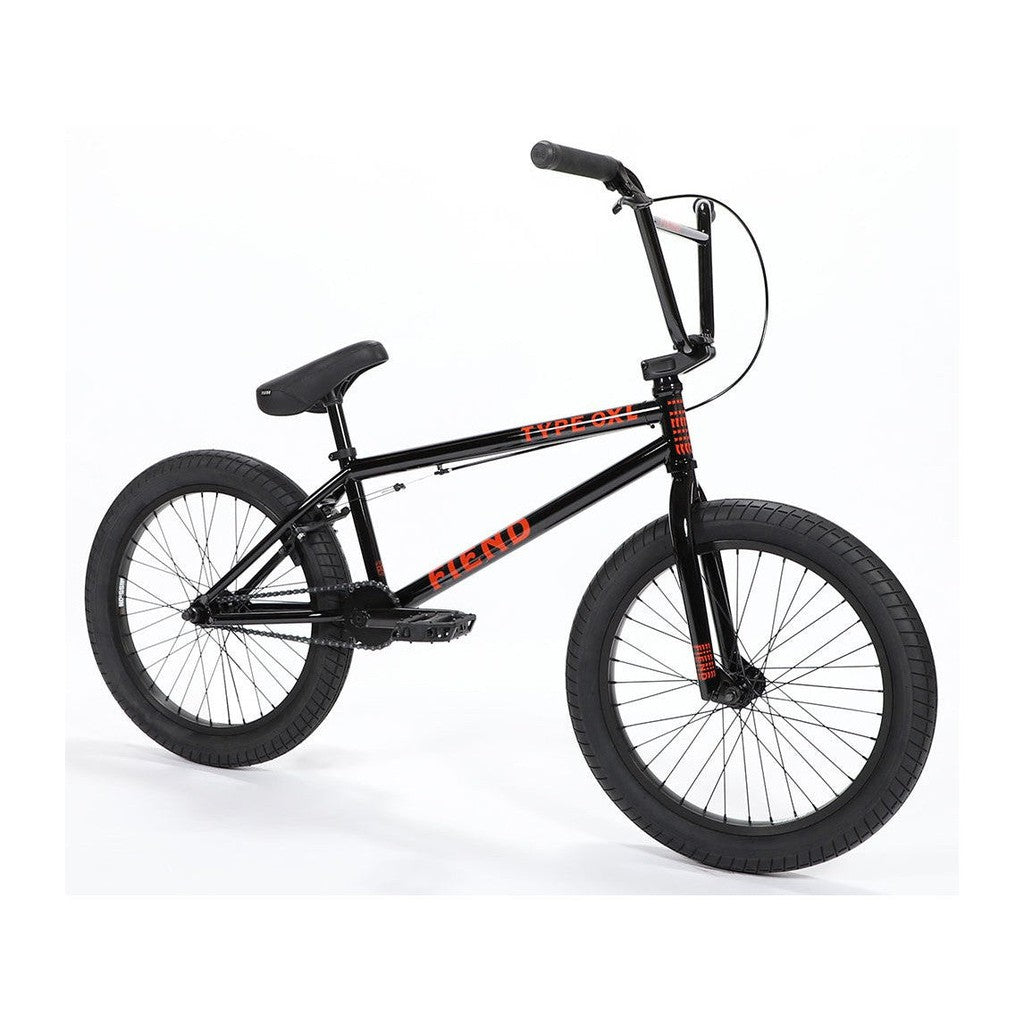

Fiend Type O XL 20 Inch Bike / Gloss Black Chrome / 21TT

Highlights

Built for taller first-timers
Chromoly top and down tubes
Sealed 14mm cassette hub
165mm 3-piece chromoly cranks

Description

Fiend Type O XL 20 Inch Bike (2022)

The Type O XL was designed and spec'ed for taller riders just entering BMX needing a longer 21” top tube while being budget friendly and still looking like a high end model. The Type O frame has a chromoly top and down tube and features include the Type O fork with a chromoly steerer tube, 3-piece chromoly cranks with a sealed Mid bottom bracket, a fully sealed 14mm rear cassette hub, an embossed 1-piece Fiend seat/post combo, 2.4” street style tires and Fiend flangeless Team grips.

Features

Built for taller first-timers. A 21" top tube gives longer riders room to move on a bike that still looks and rides like a high end model.
Chromoly top and down tubes. The Embryo frame puts chromoly in the tubes that take the most load, with a chromoly steerer in the tapered-leg fork.
Sealed 14mm cassette hub. The Mission Siege rear hub runs a sealed 9T driver, so the drive stays smooth and the gearing stays light.
165mm 3-piece chromoly cranks. Three-piece arms and a sealed Mid bottom bracket put real strength where entry level bikes usually give it up.
2.40" street tyres on X7 rims. Innova street rubber and Mission X7 rims roll fast on concrete, with a 1-piece Fiend seat and post combo, all up 11.3 kg.

Specifications

Size: 20" wheels
Frame: Fiend Embryo, chromoly top and down tubes
Top tube: 21"
Chainstay: 12.75"
Fork: Fiend Embryo, chromoly steerer tube, tapered legs
Stem: Fiend Crown top load
Bars: Fiend Embryo, 9" rise
Grips: Fiend flangeless Team
Cranks: 165mm chromoly, 3-piece
Bottom bracket: Sealed Mid
Front hub: Mission Echo, unsealed
Rear hub: Mission Siege sealed cassette, 14mm, 9T driver (RHD)
Rims: Mission X7
Tyres: Innova 2.40" street
Seat: Fiend 1-piece seat and post combo, embossed
Weight: 11.3 kg
Note: Specs subject to change without notice.

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

Fit the handlebars and line them up with the front wheel
Fit the front wheel, pedals and seat post
Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Fiend Type O XL 20 Inch Bike

Name: Fiend Type O XL 20 Inch Bike
Brand: Fiend
SKU: kabx2597
Price: 769.99 AUD
Availability: OutOfStock

Brand: Fiend SKU: Click to copy the SKU and show the pick location

$769.99 AUD

Or 4 payments of $192.49 AUD with

Recommended Rider Height:

175cm+

Colour - Gloss Black Chrome

Top Tube Length - 21

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider height	Wheel size	Top tube
60 to 91cm	12"	12 to 12.5"
81 to 106cm	14"	14 to 14.5"
96 to 122cm	16"	16 to 16.5"
122 to 147cm	18"	18 to 18.5"
147 to 157cm	20"	19.75 to 20.25"
157 to 168cm	20"	20 to 20.5"
168 to 175cm	20"	20.25 to 20.75"
175 to 183cm	20"	20.5 to 21"
183 to 190cm and up	20"	20.75 to 21.5"
160cm and up	22"	21 to 22.25"
160cm and up	24"	21.75 to 22"
160cm and up	26"	22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.
