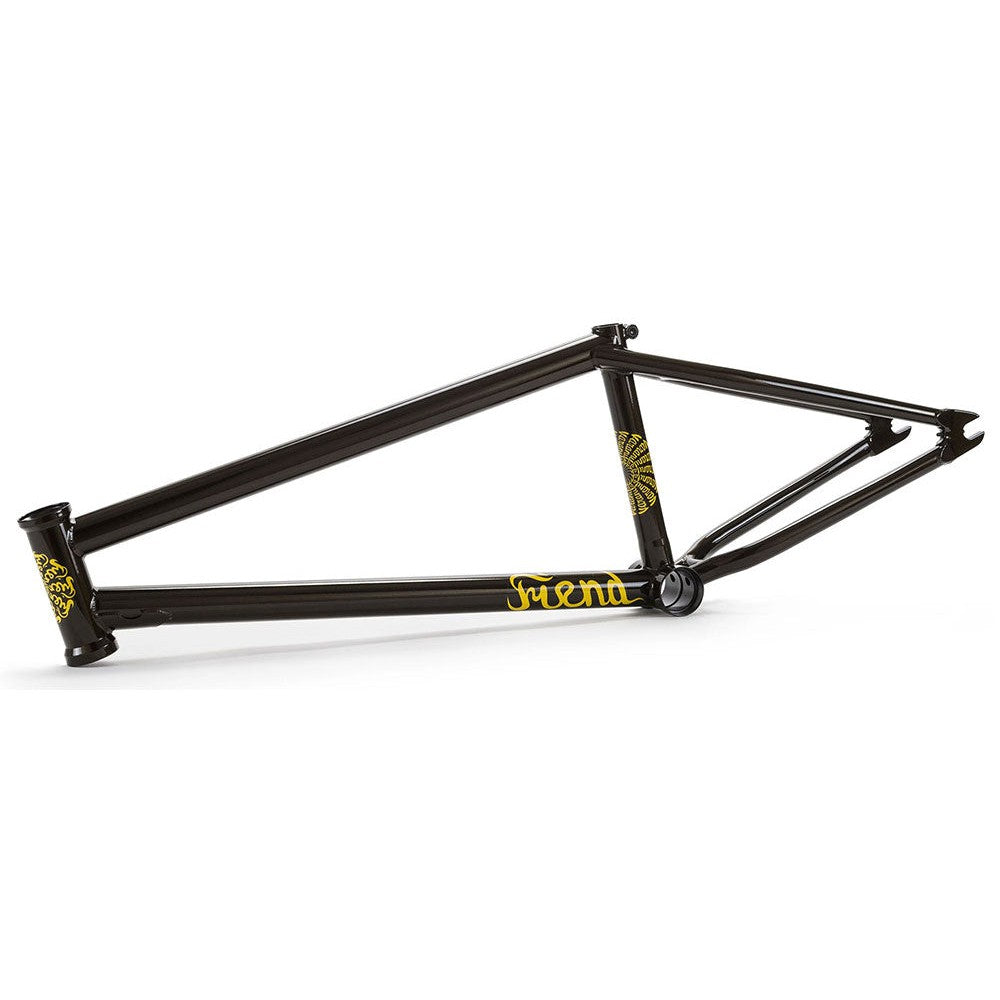

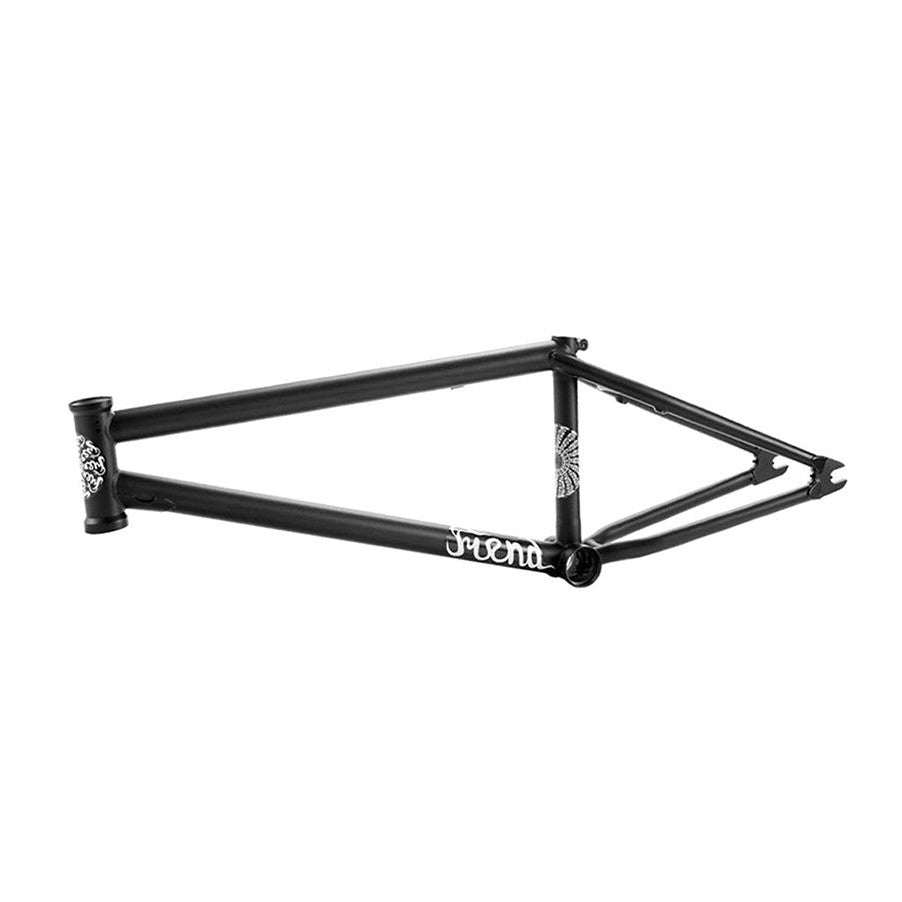

Fiend Varanyak V2 Frame

Designed by Colin Varanyak and constructed with 4130 chromoly throughout. Features include heat-treated Mid bottom bracket shell and integrated headtube, double-butted toptube, double-butted downtube with external gusset, externally butted seattube with integrated post clamp, tapered seatstays and 8mm thick investment cast dropouts with integrated chain tensioners. Available with removable brake mounts and cable guides.



Geometry:
20.75″ or 21″ top tube lengths
75.5* head tube
71* seat tube
8.8″ seat tube height (bottom bracket to top tube, centre to centre)
11.5″ Bottom Bracket Height
12.7″ chainstays
Weight 5lbs. @ 20.75″
