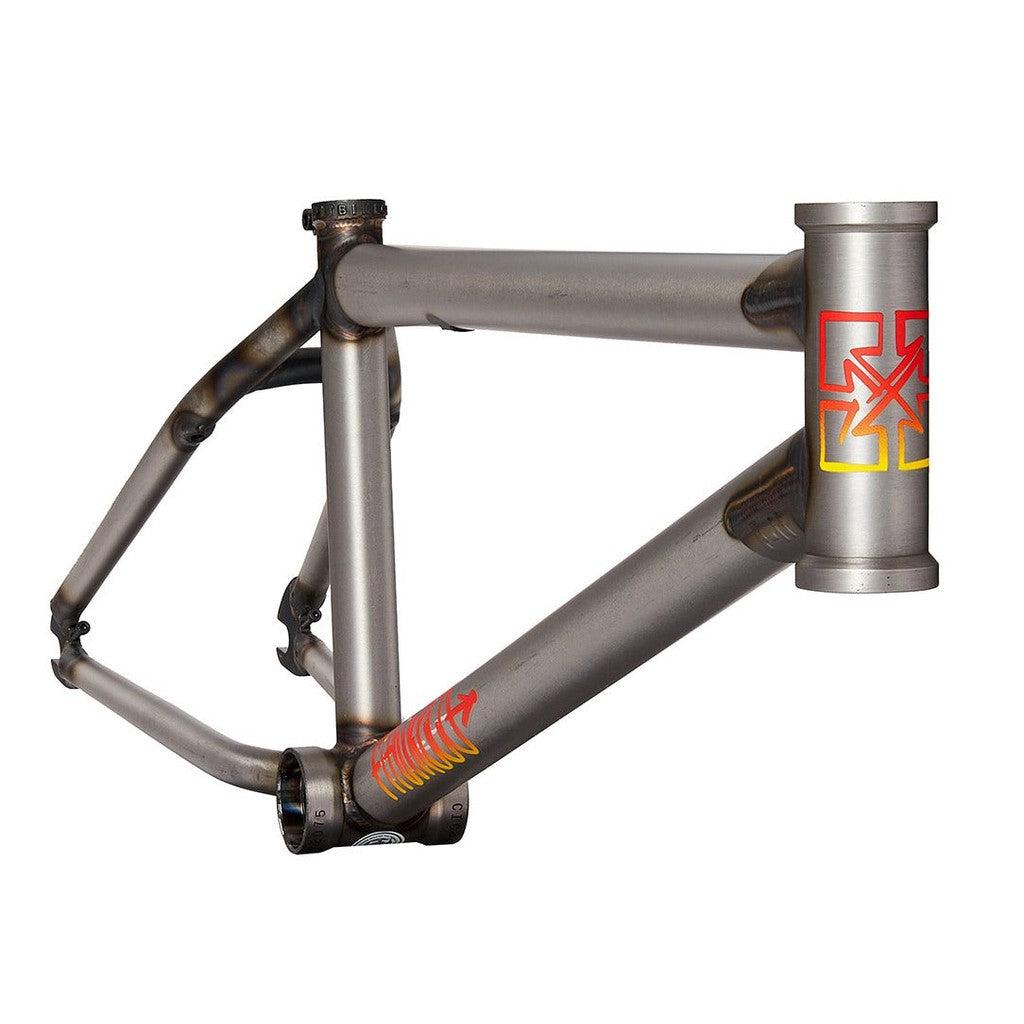

A responsive Fit Bike Co Shortcut Frame with precise welding details and vibrant logos on the head tube area, perfect for tech riders.

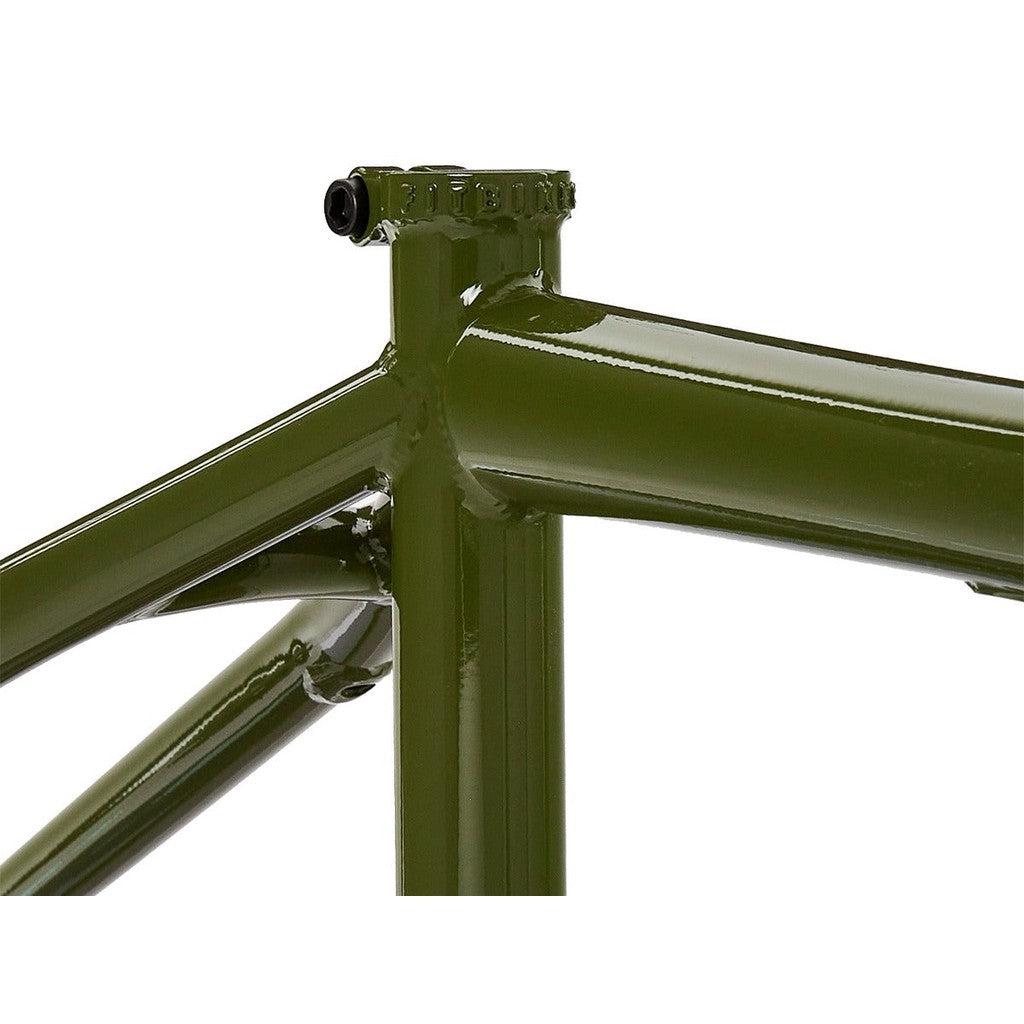

Close-up of the green Fit Bike Co Shortcut Frame, focusing on the top tube, seat tube, and seat stay joints. The responsive frame's welds and smooth finish are clearly visible, making it ideal for tech riders.

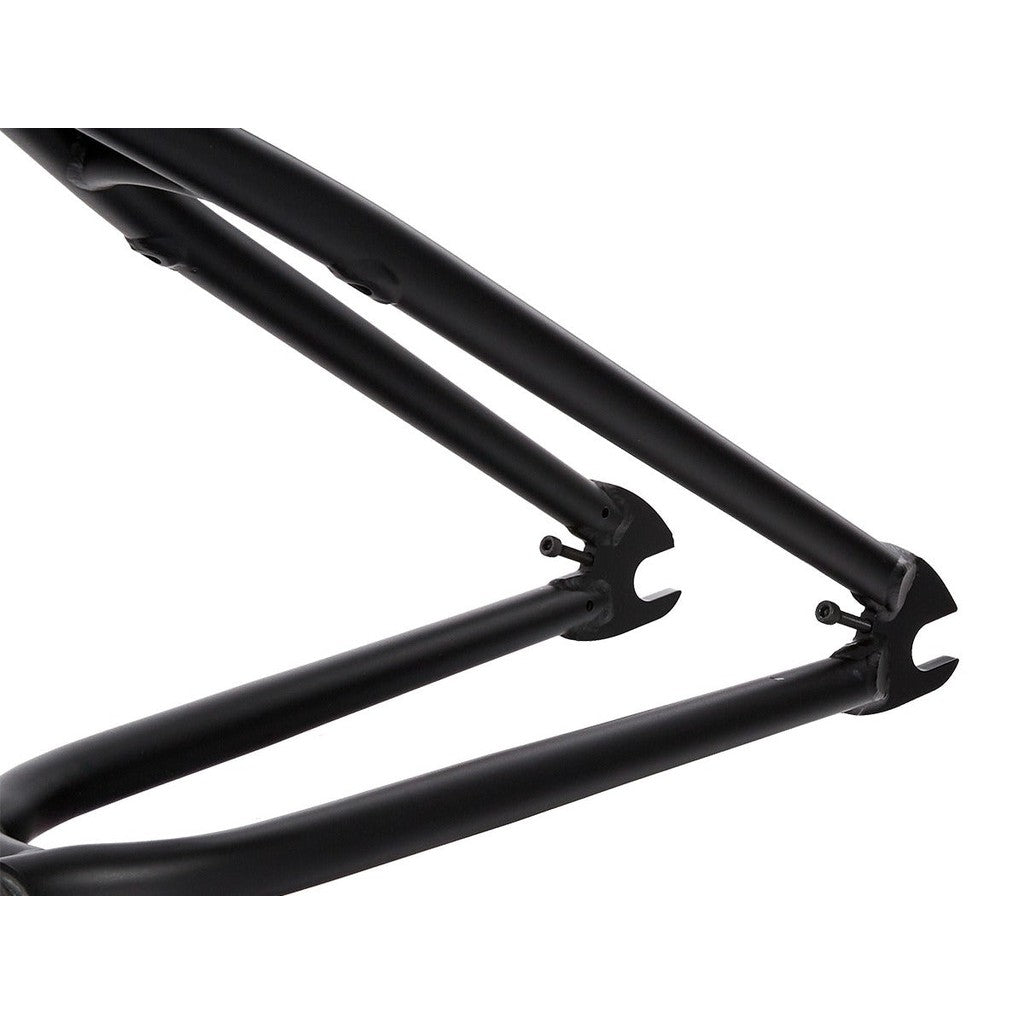

Close-up of a black Fit Bike Co Shortcut Frame's rear triangle, highlighting the dropout area for the rear wheel. The frame features a minimalist design and smooth welds, perfect for tech riders seeking a responsive frame.

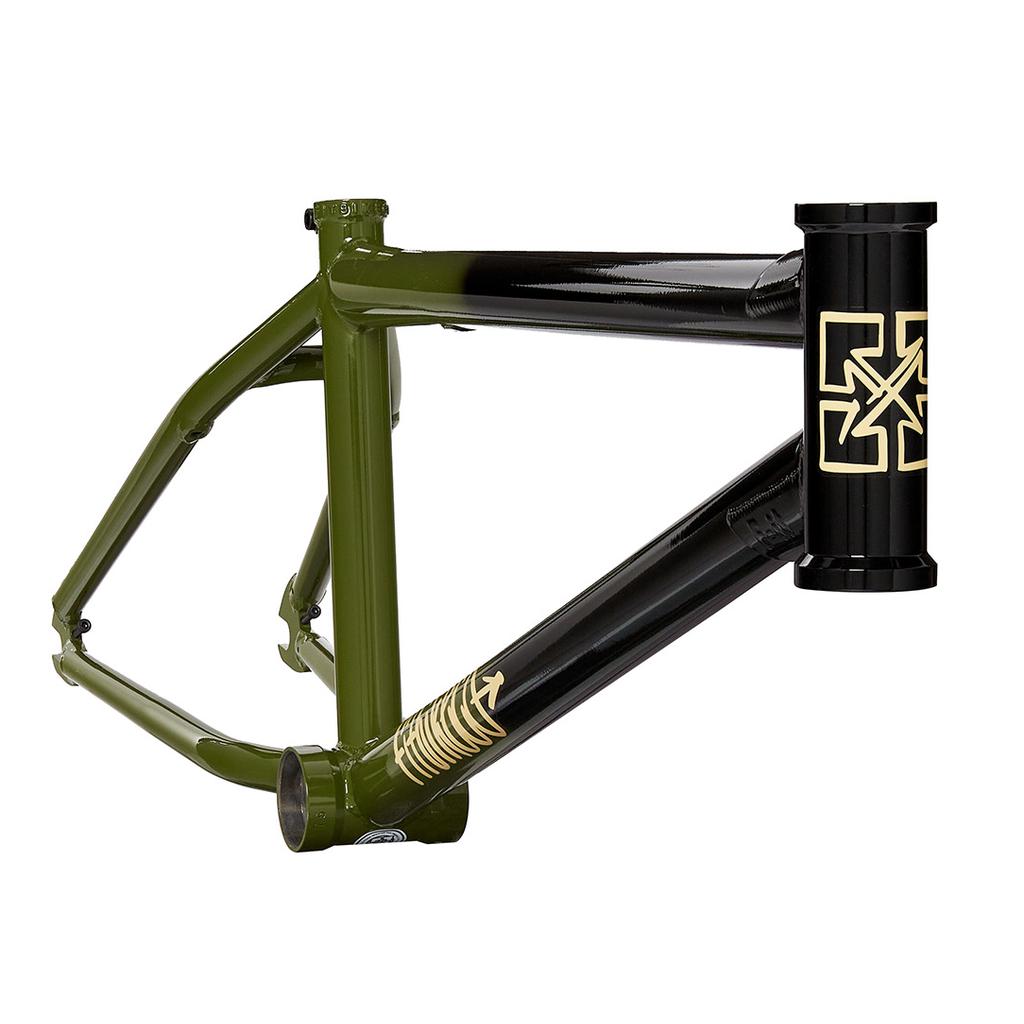

The Fit Bike Co Shortcut Frame features an olive green and black BMX design with gold accents on the head tube and middle bar, offering responsive geometry perfect for tech riders.

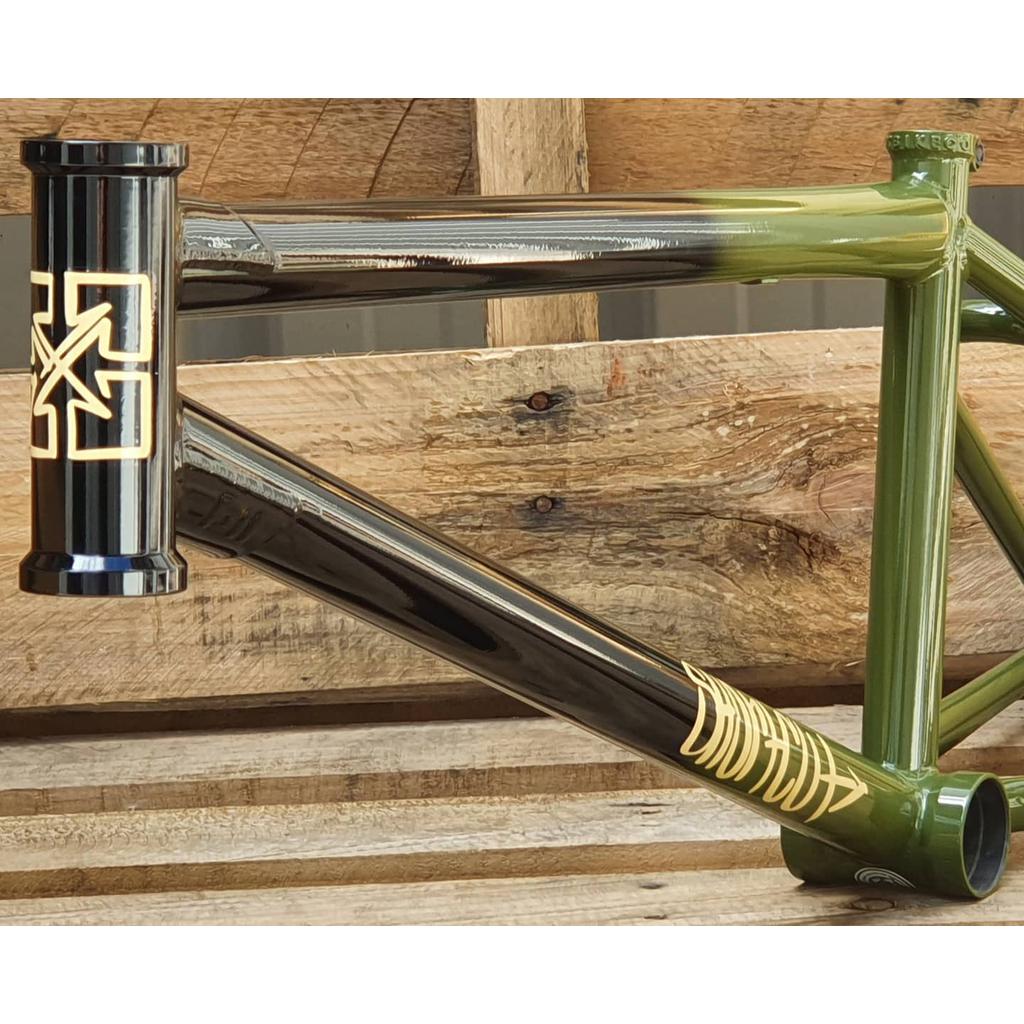

Close-up of the Fit Bike Co Shortcut Frame, showcasing green and black paint with gold decals, resting on a wooden pallet.

Description

The Fit Bike Co Shortcut runs the shortest chainstay in BMX at 12.4". It is one of the most responsive frames on the market and one of the most reliable, using the tried and true front triangle from the Mixtape with its dent resistant down tube and proven geometry.

The Shortcut is ideal for tech riders, or any rider who wants to take some of the effort out of learning tricks. It is the first member of Fit's Taiwan line, which is how they get all of their best technology into a more accessible frame.

Features

Shortest chainstay in BMX. At 12.4" the back end sits right under you, which is what makes the Shortcut so responsive.
Dent resistant down tube. The front triangle comes from the Mixtape, with proven geometry and a down tube built to take knocks.
Made for tech riding. Fit built it for tech riders and for anyone who wants their bunnyhops to take a little less effort.
Butted Thermal X tubing. Butted tubes keep the 20.5" size down to 2.27 kg without giving up the reliability Fit built in.
Investment cast dropouts with tensioners. 14mm 4Q-baked dropouts with built in tensioners, so the back wheel stays where you set it.

Specifications

Sizes: 20.5", 20.75", 21" top tube
Chainstay: 12.4"
Head tube angle: 75.5°
Seat tube angle: 71°
Standover: 8.75"
Bottom bracket height: 11.7"
Bottom bracket: Mid
Tubing: Butted Thermal X
Dropouts: 14mm, investment cast with tensioners, 4Q-baked, no gyro tabs
Brake mounts: Thread-on
Head tube: Integrated (45°/45°, 41.8mm)
Seat tube: 25.4mm seat post
Seat clamp: Integrated
Weight: 2.27 kg (20.5")

Fit Bike Co Shortcut Frame

Name: Fit Bike Co Shortcut Frame
Brand: Fit Bike Co
SKU: FTFR012-02-BLK
Price: 453.99 AUD
Availability: OutOfStock

Brand: Fit Bike Co SKU: Click to copy the SKU and show the pick location

From

$453.99 AUD

$599.99 AUD

Or 4 payments of $113.49 AUD with

Colour - Matte Black

Top Tube Length - 20.5

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider height	Top tube
147 to 157cm	19.75 to 20.25"
157 to 168cm	20 to 20.5"
168 to 175cm	20.25 to 20.75"
175 to 183cm	20.5 to 21"
183 to 190cm and up	20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

Size up for stability through trails and transitions.
Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider height	Top tube
147 to 157cm	19.75 to 20.25"
157 to 168cm	20 to 20.5"
168 to 175cm	20.25 to 20.75"
175 to 183cm	20.5 to 21"
183 to 190cm and up	20.75 to 21.5"

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

Size up for stability through trails and transitions.
Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide
