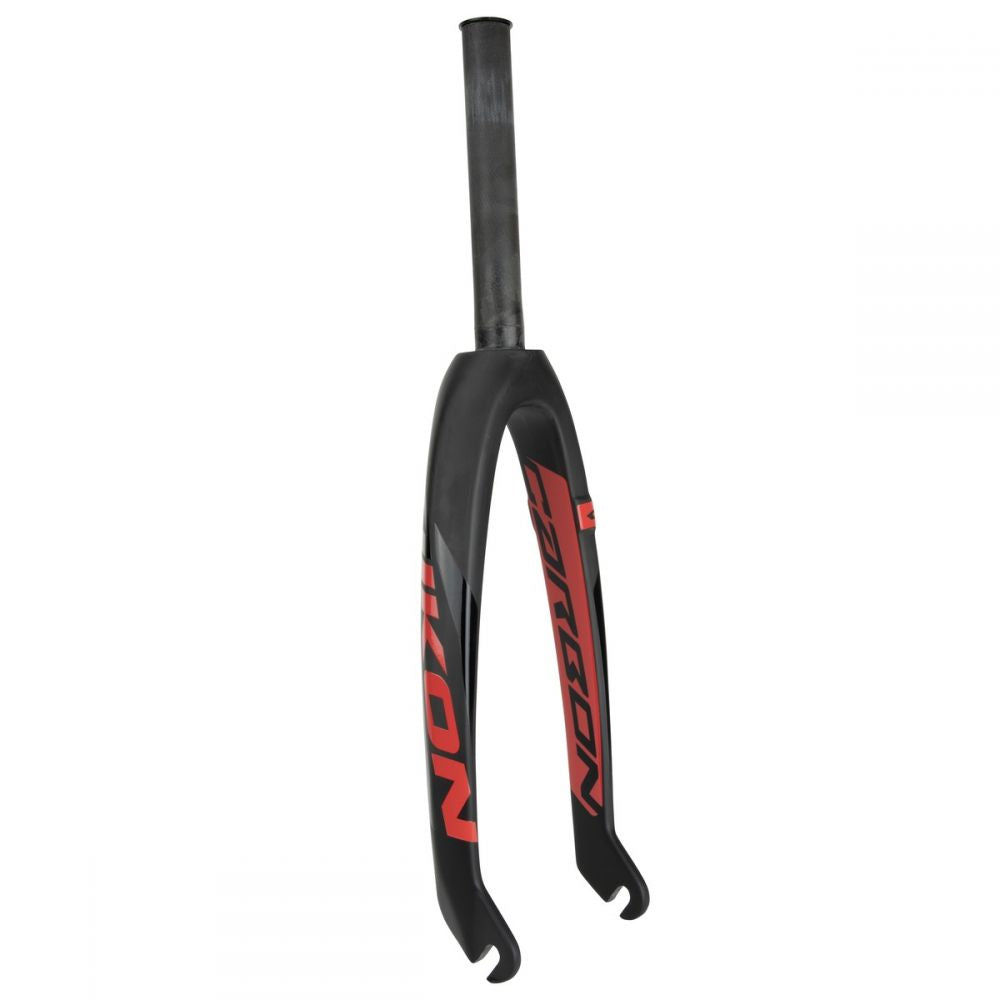

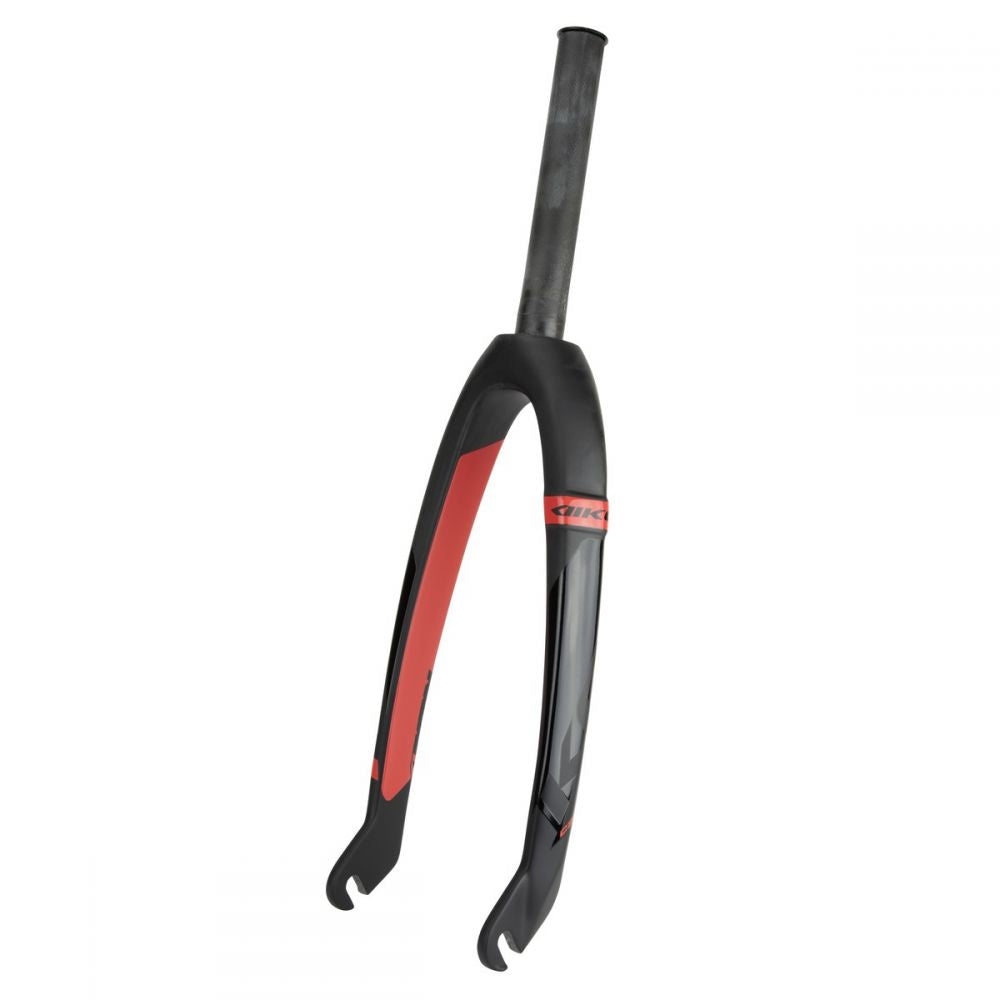

Ikon Junior 20 Inch 10mm Carbon Fork in red and black, featuring a lightweight carbon fiber steerer tube, ideal for BMX racing.

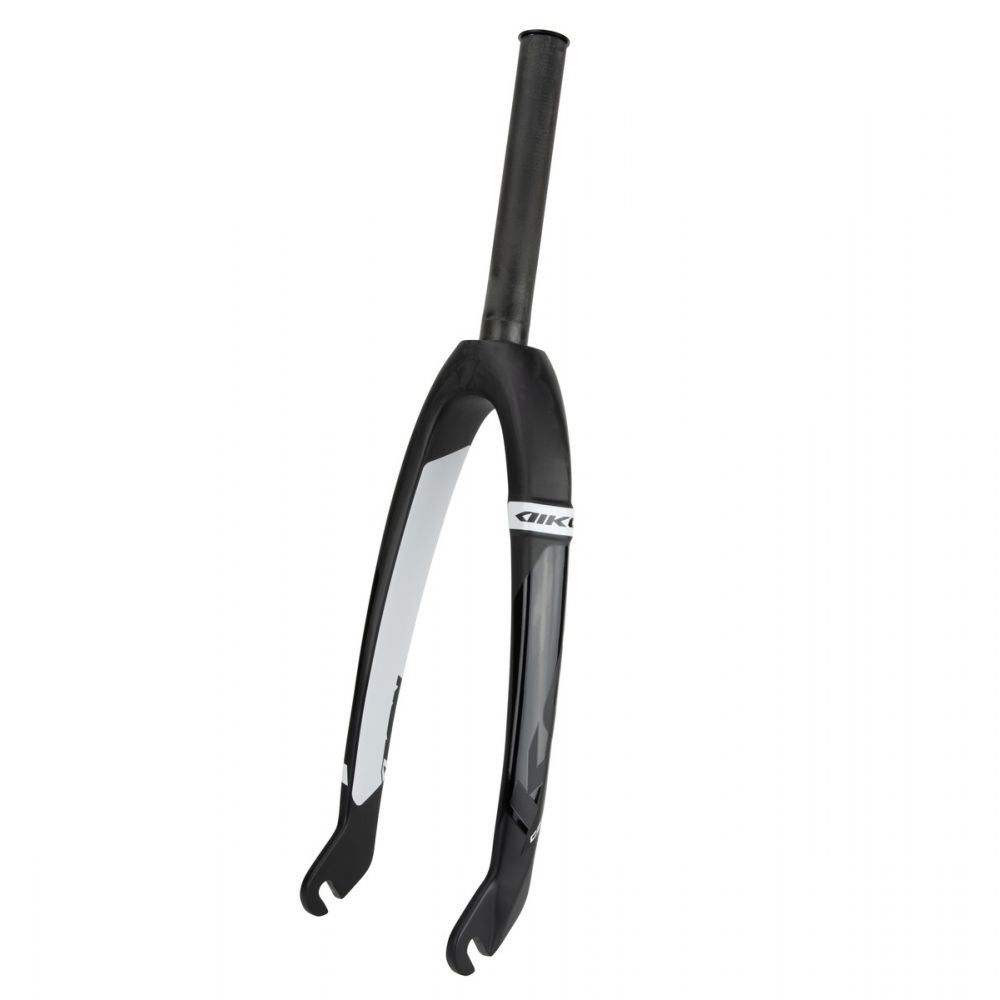

The Ikon Junior 20 Inch 10mm Carbon Fork features a lightweight design in black and white, equipped with a tapered steerer tube and dropout mounts, making it perfect for BMX racing.

Introducing the Ikon Junior 20 Inch 10mm Carbon Fork, a black carbon racing fork designed for BMX competitors. Featuring "ATKON" branding on each side, this fork boasts a straight steerer tube and dropout ends. It's both lightweight and durable, making it the ideal choice for competitive riders.

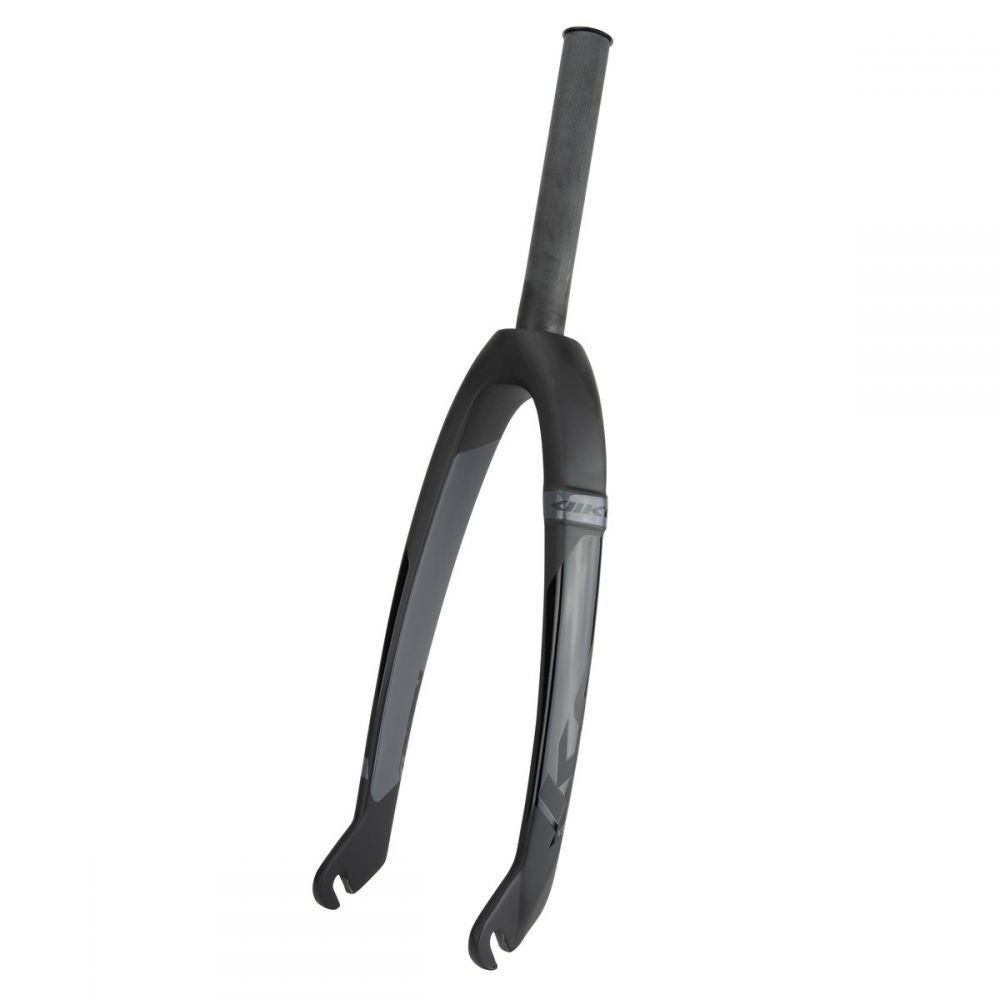

The Ikon Junior 20 Inch 10mm Carbon Fork boasts a lightweight, tapered steerer tube, expertly designed for road or racing bikes in sleek black carbon.

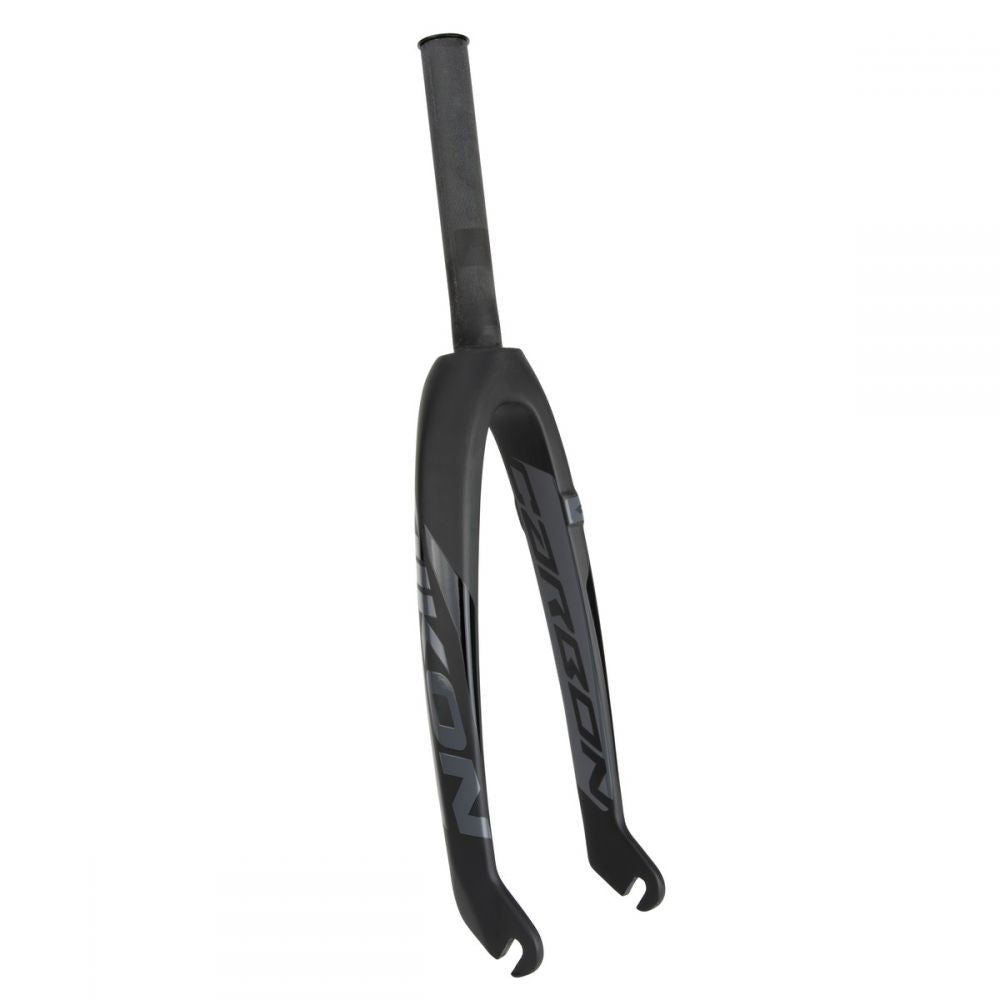

The Ikon Junior 20 Inch 10mm Carbon Fork is a lightweight black bicycle fork featuring graphics and a tapered steerer tube, expertly designed for road cycling.

The Ikon Junior 20 Inch 10mm Carbon Fork is a lightweight bicycle fork with a striking red and black design, featuring a tapered steerer tube and dropouts for wheel attachment, making it perfect for BMX racing.

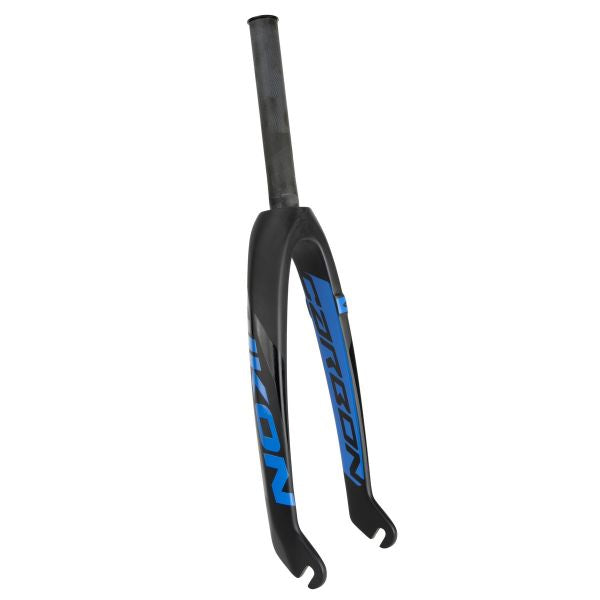

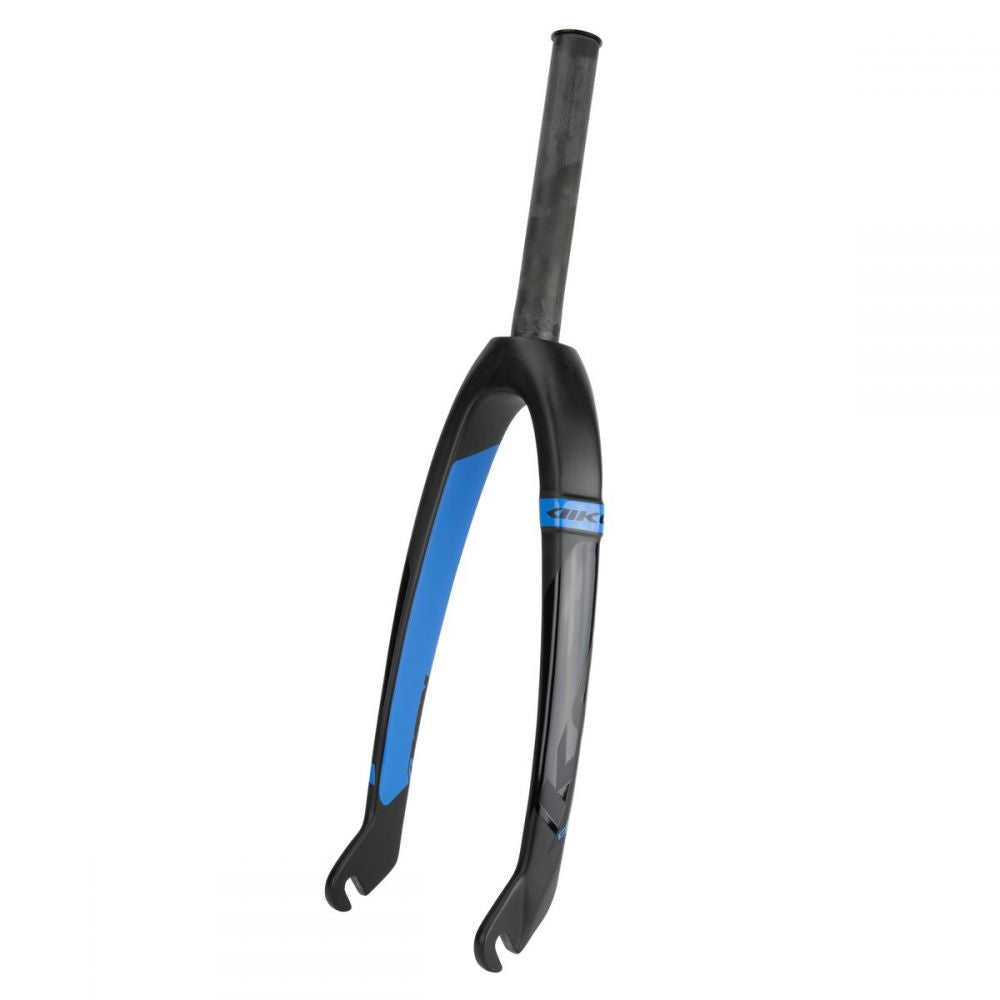

The Ikon Junior 20 Inch 10mm Carbon Fork is a lightweight bicycle front fork with a black and blue color scheme, featuring a carbon steerer tube ideal for BMX racing.

The Ikon Junior 20 Inch 10mm Carbon Fork is a lightweight front suspension fork in black with blue branding and boasts a sleek carbon finish, ideal for BMX racing.

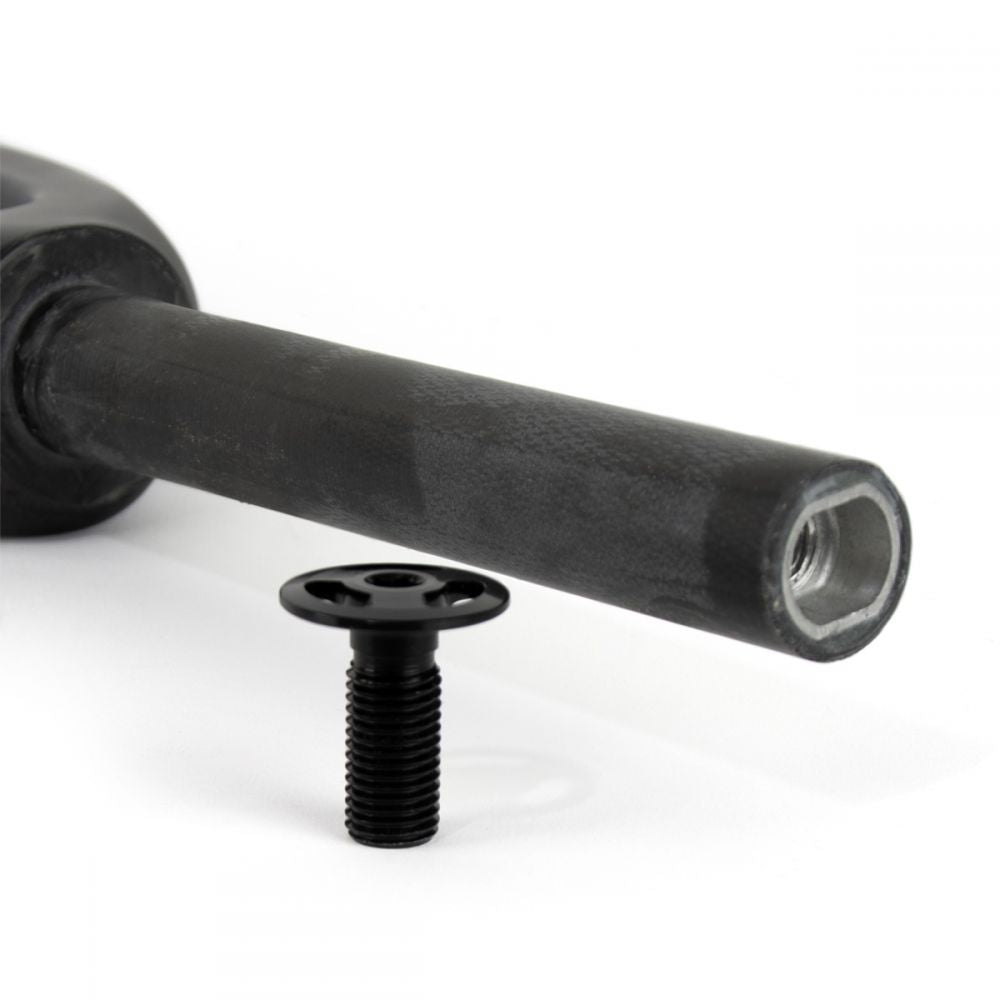

Close-up of an Ikon Junior 20 Inch 10mm Carbon Fork, a lightweight black metal rod with a threaded interior, accompanied by a separate black threaded bolt on a white background. Ideal for BMX racing enthusiasts.

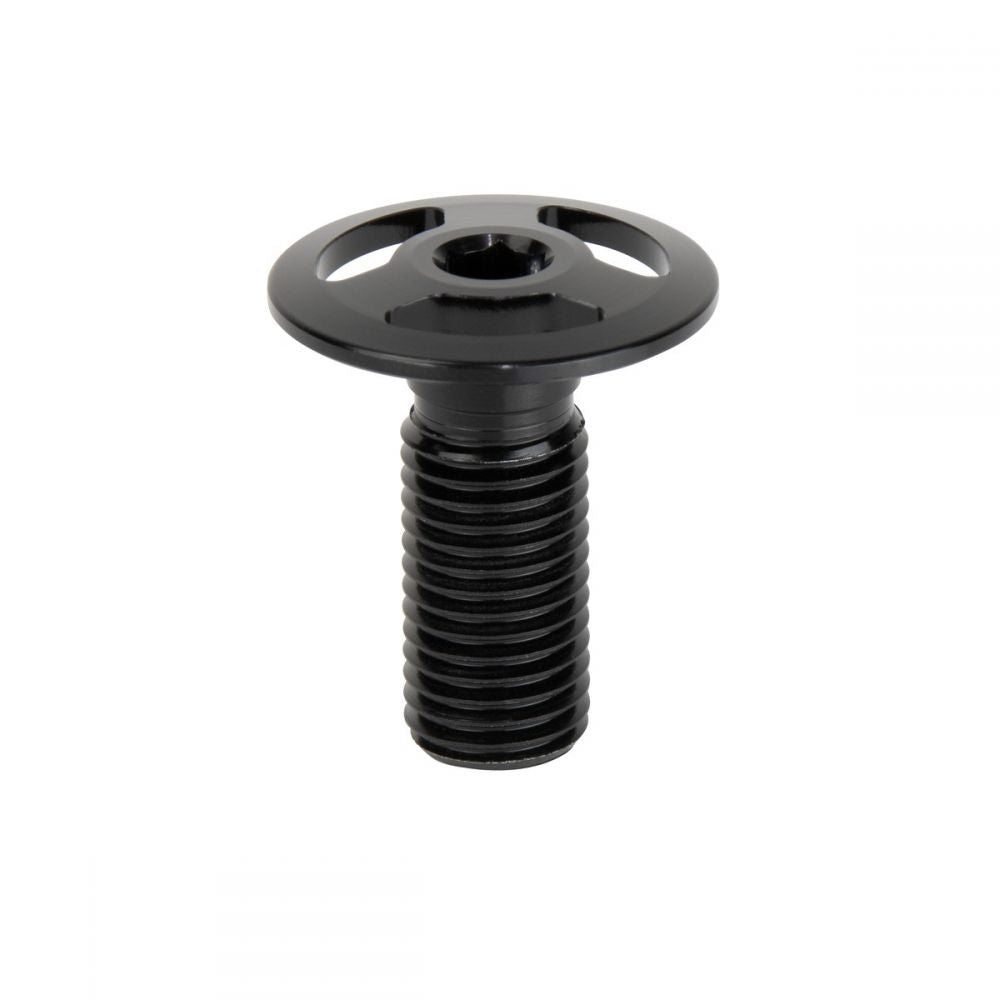

A black, threaded metal bolt featuring a circular, slotted head, crafted to optimize lightweight performance in BMX racing, pairs perfectly with the Ikon Junior 20 Inch 10mm Carbon Fork.

Description

At just 304 grams, the IKON 1 Inch fork features a full Toray UD Carbon Steer tube as well as Full Toray UD carbon construction including the 10mm drop outs. This helps make the IKON 1” fork one of the lightest forks available for BMX racing. The IKON 1” fork comes with an 7075T6 Alloy lock cap and the steer tube has a treaded Alloy insert thats integrated into the steer.

Forks are offered in 4 gloss graphic colour options on the Natural Matte Carbon fork finish - Grey and white, Black with White, Red with White, or Blue with White.

Hang with the big boys with these carbon forks from one of the best brands in the BMX race business.

Specs:

Features

Just 304 grams. Full Toray UD carbon construction, dropouts included, makes this one of the lightest forks available for BMX racing.
Full carbon 1 Inch steer tube. The 165mm Toray UD carbon steerer has a threaded alloy insert integrated into it, so the top cap threads into metal.
Carbon 10mm dropouts. No alloy inserts down at the axle, with a 6 N.m maximum axle tightening torque to keep everything where it should be.
Junior race geometry. 305mm axle to crown with 28mm of dropout offset, built around 451mm wheels running 20x1-1/8 or 20x1-3/8 tyres.
Anodised 7075T6 alloy top cap. Adds only 8 grams, and tightening the stem side bolts to 5Nm keeps the carbon steerer safe from over-clamping.

Specifications

Material: Full Toray UD carbon
Dropouts: 10mm carbon
Steerer: 1 Inch full Toray UD carbon, 165mm, threaded alloy insert
Steerer diameter: 1 Inch
Fork offset: 28mm dropout offset
Fork legs: Tapered, with embossed features
Axle size: 10mm
Wheel size: 451mm, 20x1-1/8 or 20x1-3/8 tyres
Weight: 304g, plus an 8 gram anodized black 7075T6 alloy top cap
Colour: Natural matte carbon with gloss graphics: grey and white, black with white, red with white, or blue with white
Note: 305mm axle to crown. Rider weight limit 45 Kg. Maximum axle tightening torque 6 N.m, and tighten the stem to 5Nm to avoid damaging the carbon steerer. Works with a 1 Inch internal diameter headset and needs a lower bearing race.
