An Inspyre EVO-C Pro L Disc Brake Bike with disc brakes on a white background.

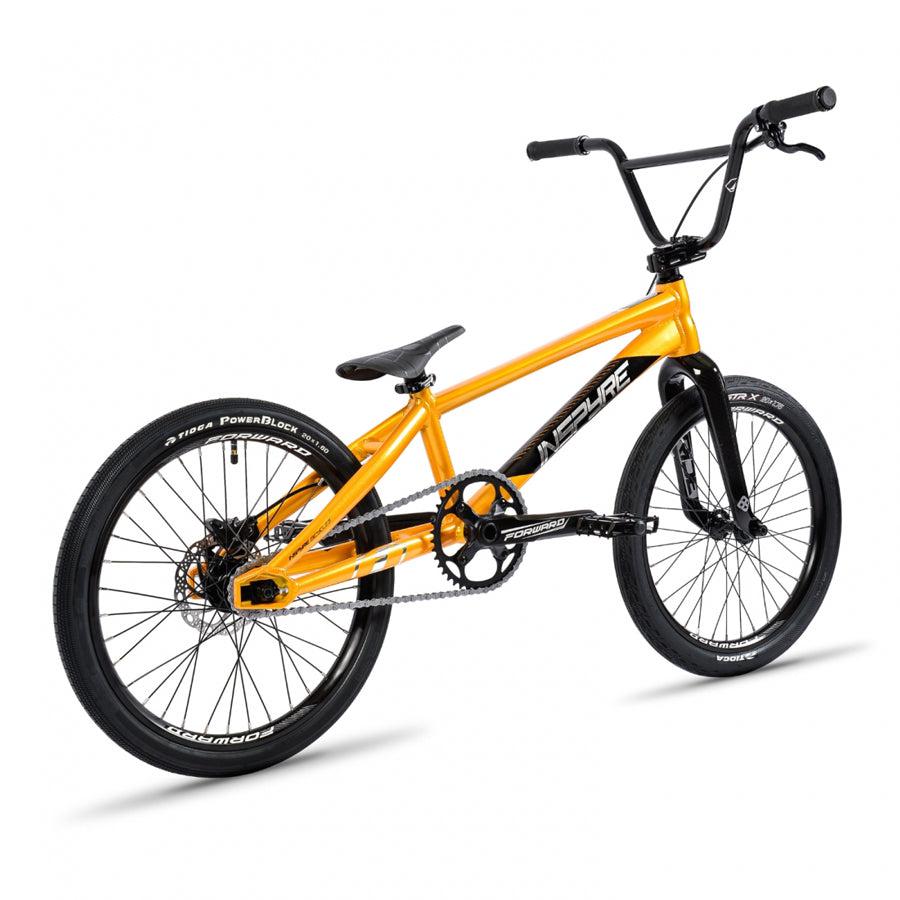

A yellow Inspyre EVO-C Pro L Disc Brake Bike with a carbon fork on a white background.

Description

This range of Inspyre bikes quickly became a favourite of racers looking to step up from an entry level race bike to a more performance orientated machine, without breaking the bank. We found that the type of customer buying a bike from the EVO-C range has been racing for around 12-18 months and searching for a bike with a carbon fork and disc brakes. The Inspyre EVO-C Pro L Disc Brake Bike ticks these boxes and more.

Starting with the frame that is formed from 6061-T6 aluminium hyrdroformed tubes, the EVO-C is littered with parts from the Forward brand, including the stem, cranks and hubs. Upfront on the Pro L it's a Pride Racing tapered carbon fork taking care of the steering duties, while Shimano takes care of braking. Disc brakes make a whole lot of sense for the young riders that don't yet have the hand strength. They can easily wash off speed, and this braking system is virtually maintenance free.

Whilst Inspyre is a younger brand, there's no doubt that the people behind the Evo series know their race craft, with each size being right in the competitive ball park as far as specs for bars, cranks and gearing on each bike. Our in-house race guru rates and recommends this range based on both price point, and value for money, with a custom ground up build easily costing double the price of the EVO-C to achieve the same performance value.

When you take your first lap at the track on your EVO-C you'll know that you made the right choice.

Features

Torayca T700 carbon fork. The tapered Pride Racing Slik 3.0 sharpens up the front end of the Pro L without pushing the bike into custom build money.
Shimano disc braking, rear. A BL-MT401 lever and BR-MT410 calliper on a 140mm Forward disc wash off speed easily and stay virtually maintenance free.
Hydroformed 6061-T6 aluminium frame. Triple butted tubes and swell forged 3D dropouts on a 20.75" top tube, sized for Pro class racing.
175mm cranks, 42T ring. Forward Joyride AM 2-piece cranks on a 104 BCD alloy chainring, paired with a 16T chromoly cog for pro gearing.
Forward Joyride wheels. Double wall 36H rims on fully sealed hubs with 150 engagement points, wrapped in Tioga FASTR X and Powerblock rubber.

Specifications

Size: 20.75"
Frame: Inspyre Evo-C Disk Pro L 20.75", premium 6061-T6 aluminium, hydroformed tubes, triple butted, swell forged 3D dropouts
Top tube: 20.75"
Fork: Pride Racing Slik 3.0, Torayca T700 carbon, tapered 1-1/8" / 1.5" pivot, aluminium crown race, 10mm, 3K gloss
Headset: Pride Racing, tapered integrated, sealed bearings, IS42 / IS52
Stem: Forward topload, 6061-T6 aluminium, 50mm
Bars: Inspyre Evo, aluminium, 22.2mm, 8" x 28.5", back sweep 7°, upsweep 1.5°
Grips: Forward Lock On 130mm, Kraton
Brakes: Shimano BR-MT410 rear calliper, post mount, resin pads, Forward 140mm disc
Brake lever: Shimano BL-MT401, right lever, black
Cranks: Forward Joyride AM 2-piece, 4-bolt (104 BCD), 175mm
Bottom bracket: Forward external BSA, sealed bearings
Chainring: 4-bolt aluminium, 42T
Chain: KMC Z-1, 1/2" x 3/32"
Pedals: Aluminium 9/16
Front hub: Forward Joyride, aluminium, 36H, 10mm, fully sealed bearings, female bolts
Rear hub: Forward Joyride Disc, aluminium cassette, 36H, 10mm, fully sealed bearings, 150 engagement points, 6-pawl system, female bolts
Rear cog: 16T, 1/2" x 3/32", chromoly
Spokes: Stainless 14G
Rims: Forward Joyride, aluminium, 36H, double wall, front and rear
Tyres: Tioga FASTR X / Powerblock, 20 x 1.75" / 1.60", rigid beads, 60 TPI
Seat: Combo saddle nylon seatpost, seat 214 x 113mm
Seat post: 162 x 27.2mm
Note: Chainring bolts are alloy.

Assembly information

Your race bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

Fit the handlebars and line them up with the front wheel
Fit the front wheel, pedals and seat post
Spin the rear wheel and check the rotor runs clear of the calliper
Check the brake and tyre pressure before the first ride

Disc brakes: keep your fingers off the rotor and pads, because oil from your skin contaminates the braking surface and takes the bite away. If the rotor rubs, loosen the two calliper bolts, squeeze the lever, then tighten them again with the lever held on. Bed the brake in with a few firm stops before you race it.

Tools: Allen key set and a 15mm spanner for the pedals. Check your axle hardware, since race bikes vary between bolt-on nuts and a thru-axle.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Inspyre EVO-C Pro L Disc Brake Bike

Name: Inspyre EVO-C Pro L Disc Brake Bike
Brand: Inspyre
SKU: 200_178704
Price: 1734.99 AUD
Availability: InStock

Brand: Inspyre SKU: Click to copy the SKU and show the pick location

From

$1,734.99 AUD

$1,994.99 AUD

Or 4 payments of $433.74 AUD with

Recommended Rider Height:

150-175cm

Colour - Mystic Honey Gold Chrome

Top Tube Length - 20.75

Race frames are sized by class, and the class you ride is set by rider height rather than age.

Size	Rider height	Top tube
Micro (18" wheels)	Under 120cm	16.25"
Mini (20" wheels)	110 to 140cm	17 to 18"
Junior	120 to 150cm	18.25 to 18.75"
Expert	130 to 170cm	19.5 to 19.75"
Expert XL	145 to 170cm	20 to 20.75"
Pro	150 to 175cm	20.25 to 20.75"
Pro XL	165 to 180cm	21 to 21.25"
Pro XXL	170 to 185cm and up	21.5 to 21.85"
Pro XXXL	175cm and up	22"
Pro XXXXL	180cm and up	22.5"
Cruiser (24" wheels)	175cm and up	21.5" and up

Heights overlap between classes on purpose. Where you land in two, a growing rider is usually better on the larger, and a rider who wants the bike to turn faster on the smaller. Some brands label the Pro size Pro L, with the same fit.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Between two sizes and still growing? Take the larger size.
Racing gates and wanting the bike to turn faster? Take the smaller size.
Top tube is the number that actually changes the fit, so compare it against the bike they ride now.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide

Race frames are sized by class, and the class you ride is set by rider height rather than age.

Size	Rider height	Top tube
Micro (18" wheels)	Under 120cm	16.25"
Mini (20" wheels)	110 to 140cm	17 to 18"
Junior	120 to 150cm	18.25 to 18.75"
Expert	130 to 170cm	19.5 to 19.75"
Expert XL	145 to 170cm	20 to 20.75"
Pro	150 to 175cm	20.25 to 20.75"
Pro XL	165 to 180cm	21 to 21.25"
Pro XXL	170 to 185cm and up	21.5 to 21.85"
Pro XXXL	175cm and up	22"
Pro XXXXL	180cm and up	22.5"
Cruiser (24" wheels)	175cm and up	21.5" and up

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Between two sizes and still growing? Take the larger size.
Racing gates and wanting the bike to turn faster? Take the smaller size.
Top tube is the number that actually changes the fit, so compare it against the bike they ride now.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide

Discount 13%

Instead of ~~$1,994.99~~

$1,734.99 AUD

Price match request

Inspyre EVO-C Pro L Disc Brake Bike - Mystic Honey Gold Chrome / 20.75
