The ION BMX C22 Carbon Fiber 22 Inch Brakeless Rim is displayed against a white background, showcasing its sleek design and lightweight build ideal for 22" Freestyle BMX riding.
The ION BMX C22 Carbon Fiber 22 Inch Brakeless Rim stands upright against a white background, displaying spoke holes and a smooth, matte finish—ideal for riders seeking lightweight BMX rims.

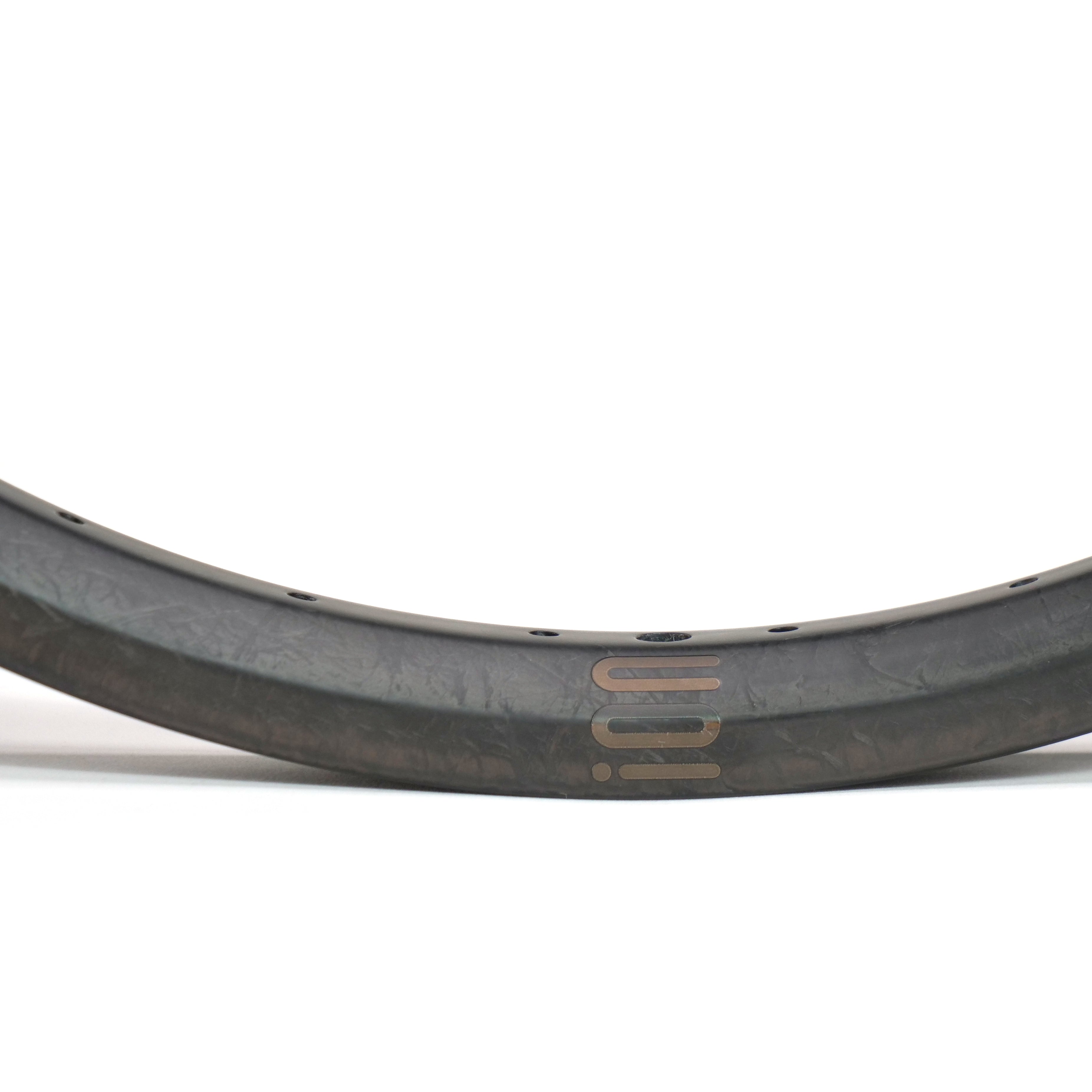

A close-up of the ION BMX C22 Carbon Fiber 22 Inch Brakeless Rim, showcasing its curved matte finish, multiple spoke holes, and minimal branding.

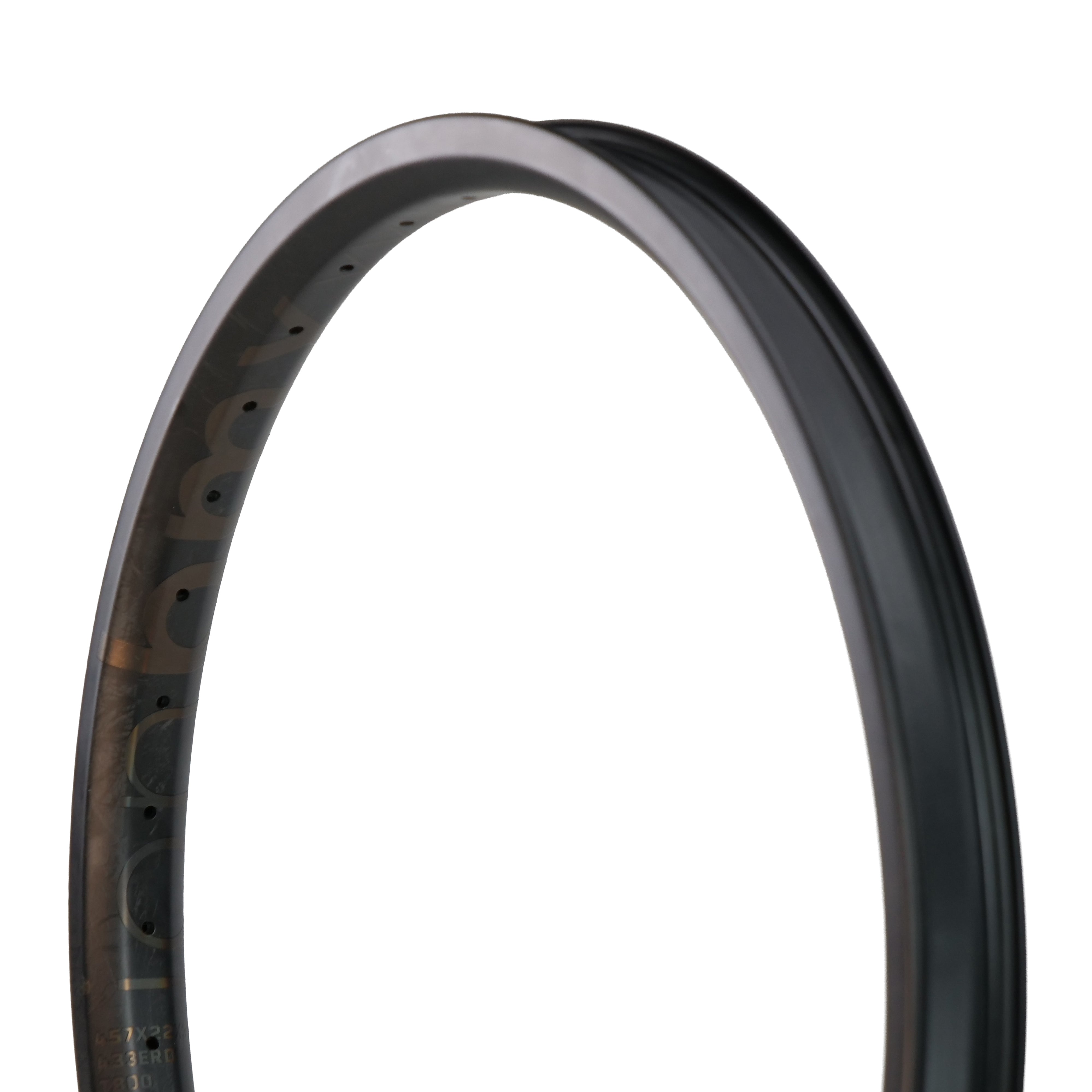

A close-up of the ION BMX C22 Carbon Fiber 22 Inch Brakeless Rim reveals visible spoke holes and a sleek carbon fiber texture, emphasizing its lightweight and modern BMX rim design.

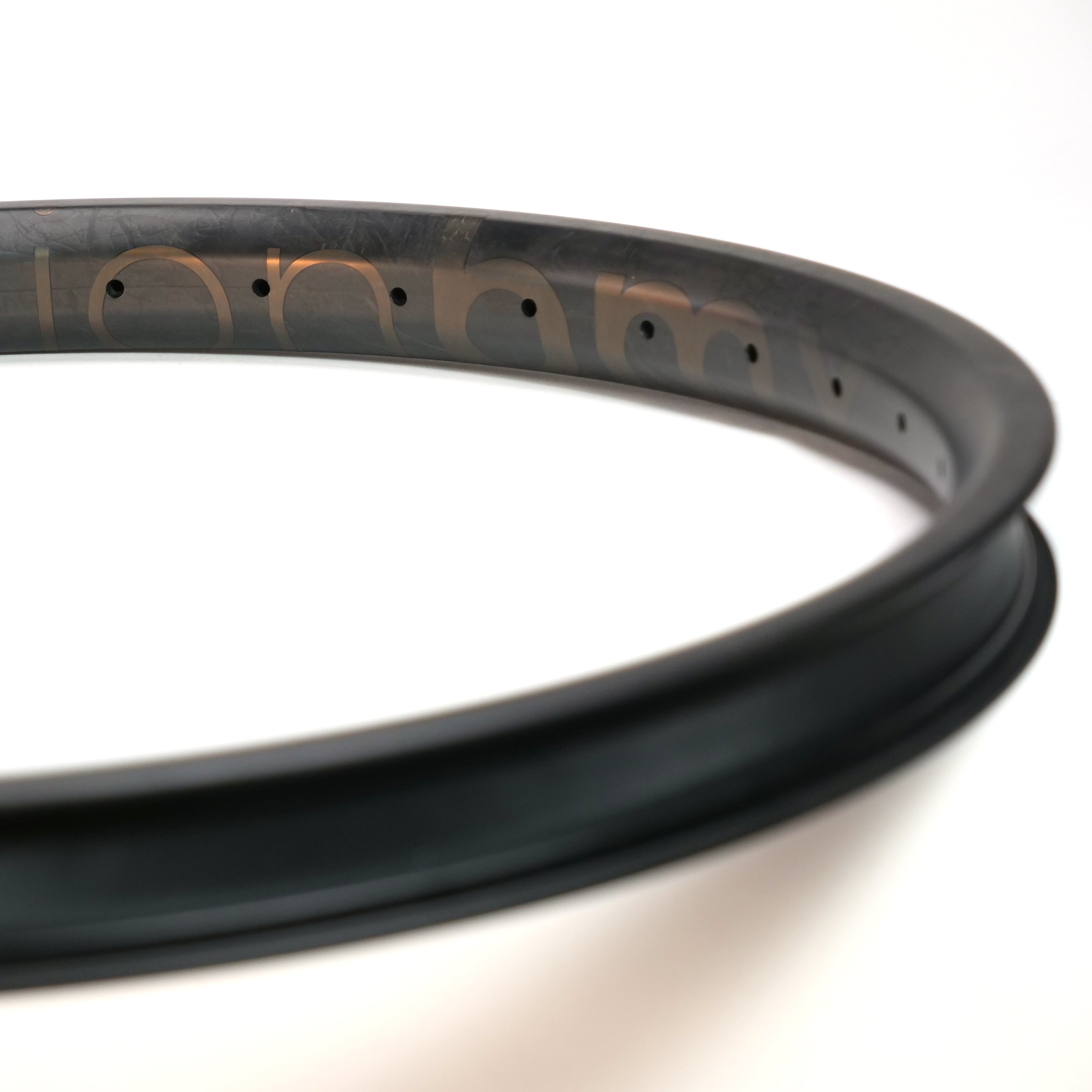

Close-up of the ION BMX C22 Carbon Fiber 22 Inch Brakeless Rim in black with multiple spoke holes against a white background, highlighting its lightweight BMX design.

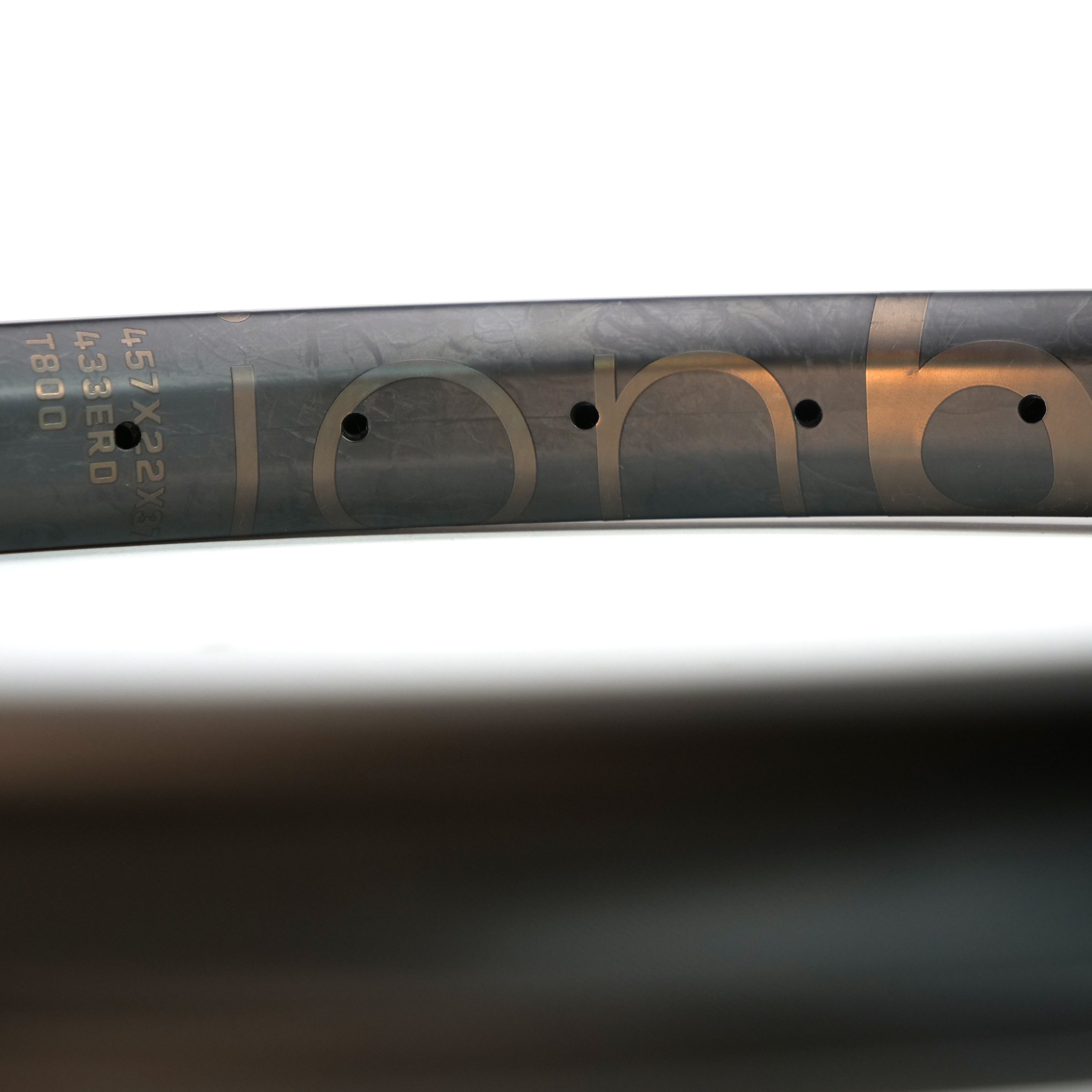

Close-up of the ION BMX C22 Carbon Fiber 22 Inch Brakeless Rim, with "ionb" branding, specs like 457x29, 433 ERD, and T800—demonstrating this rim’s lightweight durability and standout style for BMX riders.
The ION BMX C22 Carbon Fiber 22 Inch Brakeless Rim is shown upright against a plain white backdrop, showcasing the sleek, lightweight design of this single black BMX rim.

Description

The ION BMX Carbon Fiber 22 rims are the first 22" Freestyle BMX carbon fiber rims. Weighing almost 130 grams less than any other 22" rim available, reduces rotational mass to enhance the bike’s agility and responsiveness.
Constructed from Toray T800s intermediate modulus carbon fiber, these rims offer an exceptional combination of high tensile strength and outstanding lightweight durability, resulting in a rim that excels in both strength and performance.

Features
  • First 22 inch carbon rim. ION say this is the first 22" freestyle BMX carbon fibre rim, so 22" riders finally get a carbon option.
  • Almost 130 grams lighter. It weighs almost 130 grams less than any other 22" rim available, which reduces rotational mass and sharpens the bike's agility and response.
  • Toray T800s carbon fibre. Intermediate modulus carbon with high tensile strength and lightweight durability, so it holds up as well as it rolls.
  • Brakeless design, 36h only. Drilled 36 hole with 4D spoke hole drilling and no braking surface, ERD 433mm.
  • Drilled for Schrader valves. The valve hole takes a Schrader (A/V) valve, and the rim carries a 2 year warranty against manufacturer defects.

Specifications
  • Wheel size: 22" (ETRTO 457x30c)
  • Material: Toray T800s intermediate modulus carbon fibre
  • Hole count: 36h only
  • Rim width: 37mm
  • Rim depth: 22mm
  • Brake surface: None, brakeless design
  • Valve: Schrader (A/V)
  • Weight: 380g +/-15g
  • Note: 4D spoke hole drilling. ERD 433mm. 2 year warranty against manufacturer defects.

Spoke calculator
Display

Pick the part it is laced to and we will give you the lengths to buy.

This rim

Looking up its measurements.

Check or change its figures

Laced to which hub?

Or type its figures

Flange diameter spoke hole centre to the opposite hole centre. The drive side is the driver side, left or right hand drive alike, and is usually the bigger flange

Flange position

Spoke lengths to buy

Drive side —mm
Non-drive side —mm

Pick the hub and your lengths will appear here.

Open the full spoke calculator for offset rims, other cross patterns and measuring help.

ION BMX C22 Carbon Fiber 22 Inch Brakeless Rim

Brand: ION BMX SKU:

$499.99 AUD

Or 4 payments of $124.99 AUD with

Colour - Hologram Dark

Spoke Holes - 36 Hole

Braking Surface - Non-Braking

ION BMX C22 Carbon Fiber 22 Inch Brakeless Rim - Hologram Dark / 36 Hole / Non-Braking

$499.99 AUD
