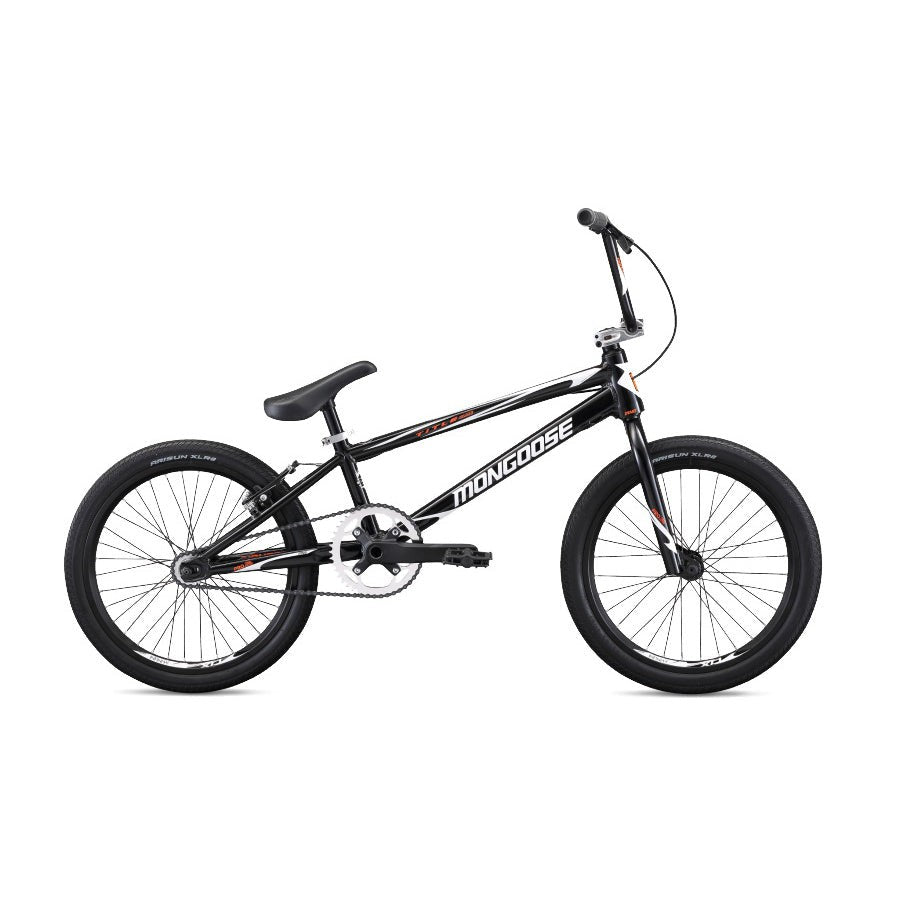

Mongoose Title Elite Pro XXL Bike (FY22) / Black

Highlights

Built for expert and pro racers
Hydroformed Tectonic T1 alloy frame
175mm two piece alloy cranks
Sealed hubs, double wall rims

Description

In response to the success of the popular Title series of BMX race bikes, Mongoose decided to level-up for the more advanced riders out there. The Mongoose Title Elite Pro XXL BMX race bike is designed for intermediate skills all the way to Pro and gives you the high-end performance you need to come out of the gates hot!

Features

Built for expert and pro racers. Mongoose levelled the Title series up for advanced riders, with the high end performance you need to come out of the gates hot.
Hydroformed Tectonic T1 alloy frame. Biaxial hydroformed and butted 6061 aluminium with internal cable routing, a tapered head tube, 3D forged 10mm dropouts and a 1.5 kg frame weight.
175mm two piece alloy cranks. The 24mm hollow spindle runs in a BB86 press fit sealed bottom bracket, turning a 44T alloy chainring.
Sealed hubs, double wall rims. Xposure Infinity-XD rims at 30 mm ID on sealed bearing hubs with a 16T cassette driver, pulled up by a Radius alloy V-brake.
Chromoly bars and fork. 4130 chromoly up front, with 27.5 in wide bars at 8.5 in rise, a 50 mm top load stem and lock-on Mongoose Gate grips.

Specifications

Size: One size, 20" wheels
Frame: Tectonic T1 aluminium, biaxial hydroformed and butted, BMX race geometry, 86mm press fit BB shell, internal cable routing, 3D forged 10 mm dropouts, tapered head tube, 1.5 kg
Top tube: 21.26"
Fork: 4130 chromoly
Headset: Threadless, 1-1/8" sealed integrated, taper compatible
Stem: Mongoose, threadless top load, 50 mm
Bars: Mongoose 4130 chromoly, 27.5 in width, 8.5 in rise
Grips: Mongoose Gate, lock-on, 140 mm
Brakes: Radius linear pull, aluminium
Brake lever: Radius, alloy
Cranks: Samox 2-piece, aluminium, 175 mm, 24 mm hollow spindle, 4-arm
Bottom bracket: BB86 press fit sealed bearing
Chainring: 44T alloy
Chain: KMC S1
Pedals: Mongoose, nylon
Front hub: Aluminium, sealed bearing, 3/8 in bolt, 32H
Rear hub: Aluminium, sealed bearing cassette, 3/8 in axle, 36H
Rear cog: Single-speed, 16T
Spokes: 14G, steel, black
Rims: Xposure Infinity-XD, aluminium double wall, 30 mm ID, 32H front, 36H rear
Tyres: Arisun XLR8, 20 in x 1.95 in front, 1.75 in rear, wire bead
Seat: Mongoose Unifier Pro, 1 piece rails
Seat post: Aluminium, 250 mm, 27.2 mm
Seat clamp: Quick release

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

Fit the handlebars and line them up with the front wheel
Fit the front wheel, pedals and seat post
Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Mongoose Title Elite Pro XXL Bike

Name: Mongoose Title Elite Pro XXL Bike
Brand: Mongoose
SKU: MGM42120U10OS
Price: 849.99 AUD
Availability: OutOfStock

Brand: Mongoose SKU: Click to copy the SKU and show the pick location

$849.99 AUD

Or 4 payments of $212.49 AUD with

Recommended Rider Height:

170-185cm+

Colour - Black

Top Tube Length - 21.75

Race frames are sized by class, and the class you ride is set by rider height rather than age.

Size	Rider height	Top tube
Micro (18" wheels)	Under 120cm	16.25"
Mini (20" wheels)	110 to 140cm	17 to 18"
Junior	120 to 150cm	18.25 to 18.75"
Expert	130 to 170cm	19.5 to 19.75"
Expert XL	145 to 170cm	20 to 20.75"
Pro	150 to 175cm	20.25 to 20.75"
Pro XL	165 to 180cm	21 to 21.25"
Pro XXL	170 to 185cm and up	21.5 to 21.85"
Pro XXXL	175cm and up	22"
Pro XXXXL	180cm and up	22.5"
Cruiser (24" wheels)	175cm and up	21.5" and up

Heights overlap between classes on purpose. Where you land in two, a growing rider is usually better on the larger, and a rider who wants the bike to turn faster on the smaller. Some brands label the Pro size Pro L, with the same fit.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Between two sizes and still growing? Take the larger size.
Racing gates and wanting the bike to turn faster? Take the smaller size.
Top tube is the number that actually changes the fit, so compare it against the bike they ride now.

Not sure? Send us their height and we will tell you what we would put them on.
