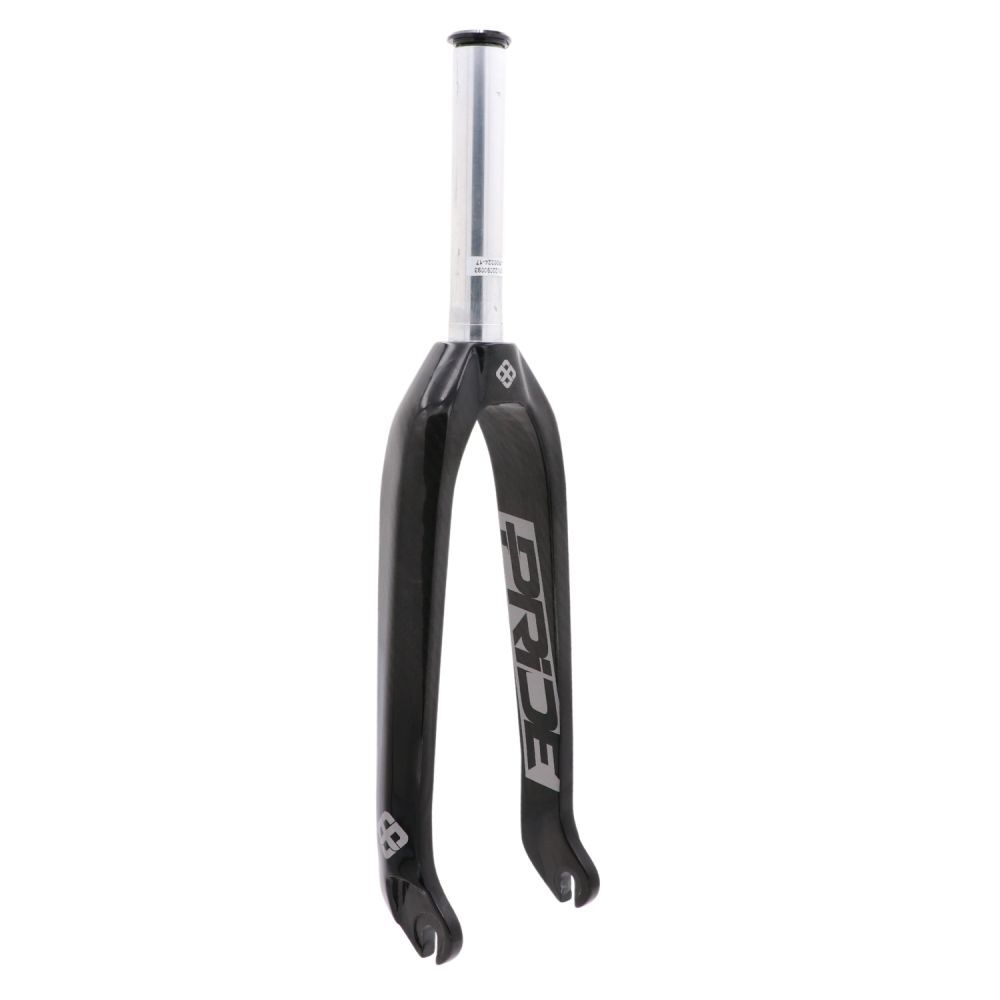

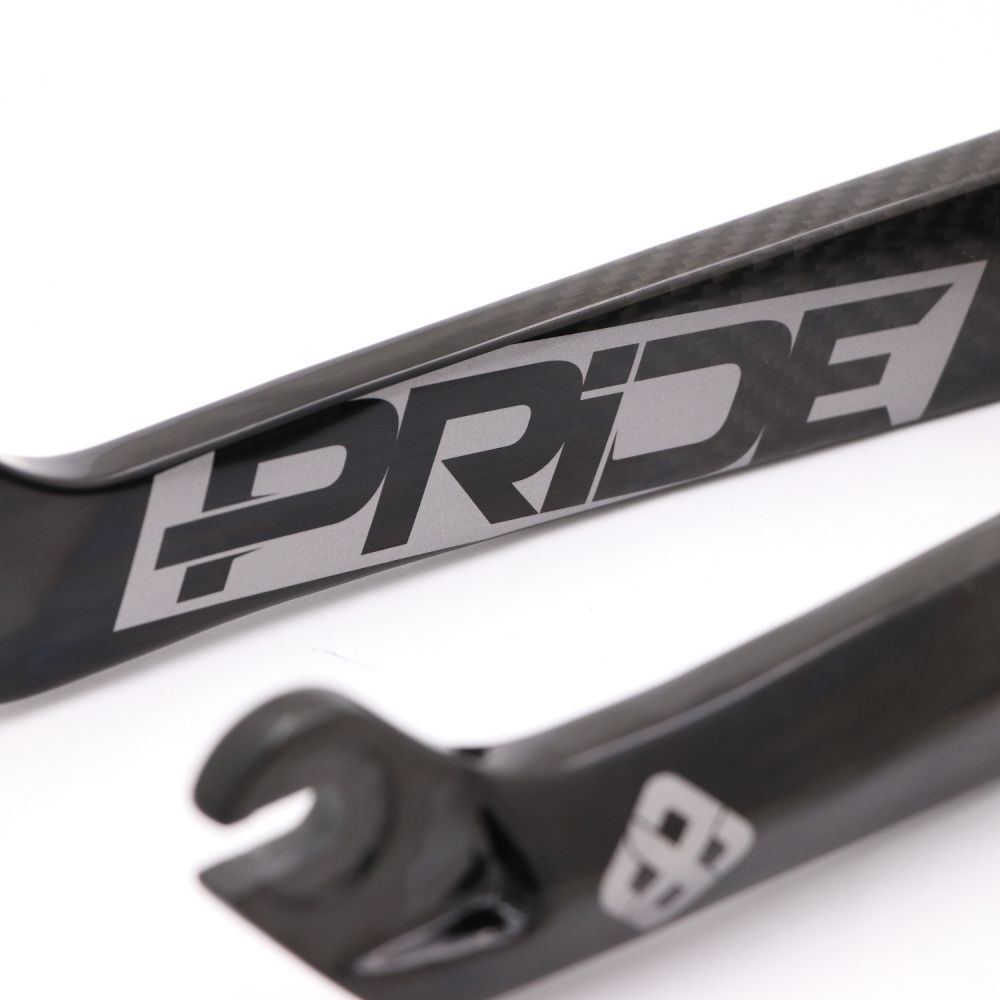

This Pride Apex carbon fork is constructed with an oversized, 3.5mm thick, high quality aluminium steerer tube (7075-T6). A more aggressive design on the APEX fork includes a 100% carbon leg with a 3K Gloss finish where the carbon fibres are visible for a modern race look.
Steerer tube size is a straight 1-1/8th design which means that this fork will be suitable for a wide range youth frames requiring a 1-1/8 inch steerer. The 10mm dropout is a welcomed feature in a sea of 20mm only options, allowing these forks to be the perfect upgrade for a complete race bikes when changing out the standard CrMo fork for a carbon one.
Pride are also detailed orientated, identifying what size diameter wheel you can fit in these forks, along with recommended maximum tyre width. A fresh touch that takes the guess work out of tyre compatibility.
IMPORTANT NOTE: This fork must be mounted with the APEX Stem Lock. No warranty will be accepted if the STEM LOCK is not used. The Stem Lock is a safety device.
IN DETAIL :
- Leg material: Torray® T700S x Torray® T800S Carbon Fiber with internal polymer structure (PMI)
- Tube material: Aluminum 7075-T6
- Integrated fork cone
TECHNICAL SPECIFICATIONS :
- Steerer Tube: 1-1/8th Inch
- Dropout Size: 10mm
- Fork height: 308mm
- Max Tire Size (Diameter): 542mm
- Max tire width at 534mm (451): 50mm
- Max tire width at 515mm (406): 55mm
- Hub width: 100mm
- Offset: 30mm
- SHIS top: 28.6mm
- SHIS bottom: 30mm
- Non-cutting pivot
- Weight: 624g (with Stem Lock) / 525g (without Stem Lock)
TIGHTENING TORQUES:
-
IMPORTANT: Always use a torque wrench
Compression screw tightening: 3 Nm (Max)
Stem bolt tightening: 8 Nm (Max)
Hub axle tightening: 8 Nm (Max)
IMPORTANT NOTES
This fork has been designed and created for BMX RACE only. Complies with EN and CPSC safety requirements.
Complies with the EN 14781 standard.
It is always the responsibility of the purchaser to know their own limitations and how to maintain a high end 100% Carbon fork. We cannot design carbon to absorb a big crash. After a fall or collision please check your fork carefully. If you suspect damage it is YOUR responsibility to have a professional analyze the integrity of your fork.
Always respect the tightening torques. Use a split bearing ring if possible.
