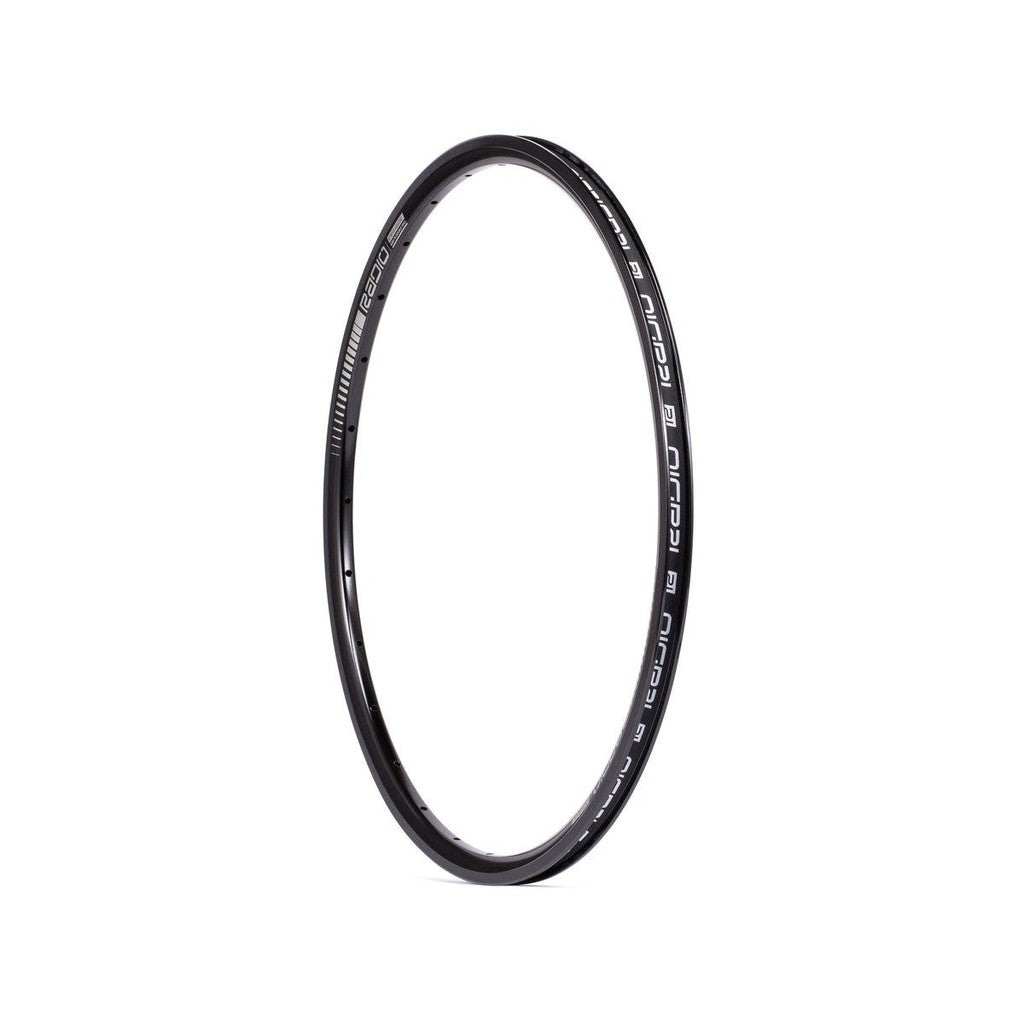

Radio Clipper Junior Rim / Black / 20 X 1-1/8 - 1-3/8 / 28 Hole

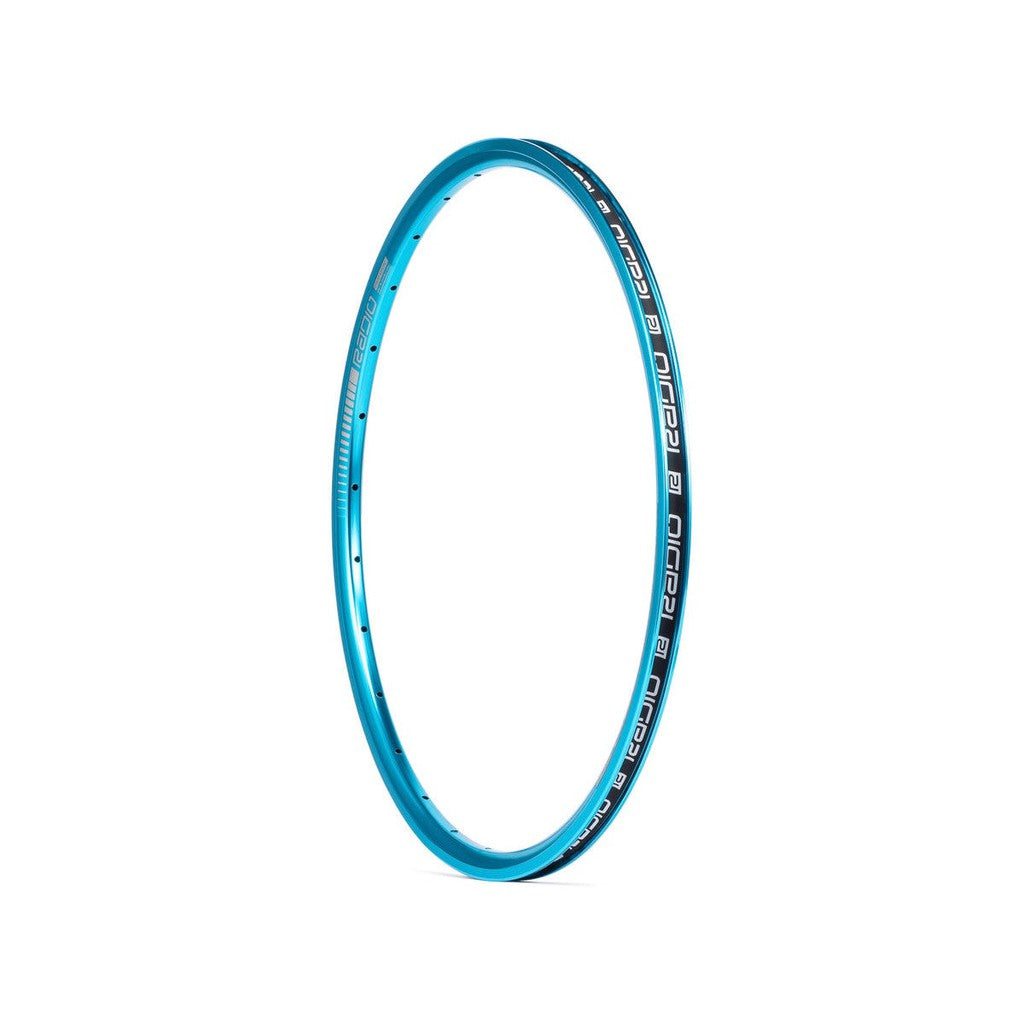

Radio Clipper Junior Rim / Cyan / 20 X 1-1/8 - 1-3/8 / 28 Hole

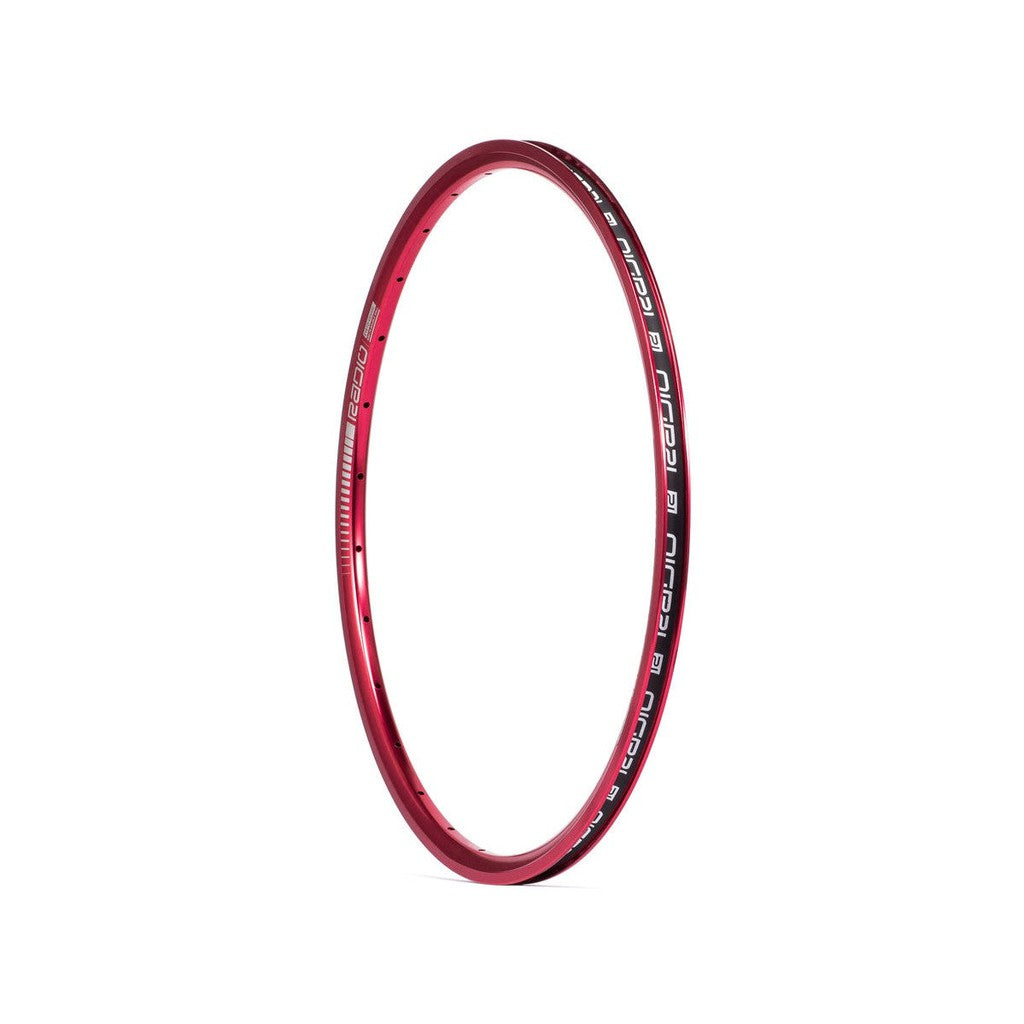

Radio Clipper Junior Rim / Red / 20 X 1-1/8 - 1-3/8 / 28 Hole

Highlights

451 junior race rim
Tubeless ready design
6061-T6 alloy, double walled
28 spoke holes

Description

The Radio Clipper Junior rim builds on the classic aero profile with a carefully designed structure designed to minimise weight and maximise strength. Tubeless ready and available in three colours, all of Radio’s new rims were designed in-house in Cologne, Germany.

This double-walled 28 hole rim is perfect for the mini to expert rider who's looking to upgrade the standard wheelset of their complete race bike based on a alloy rim, with a killer hubset, like the Onyx OHMs. LUXBMX can build you the wheels of your dreams. Start here then add hubs and spokes, and we can build them for you in the #luxlab

Features

451 junior race rim. Sized 20" x 1 1/8" to 1 3/8" (451mm), it suits mini through expert riders upgrading the wheels on a complete race bike.
Tubeless ready design. The Clipper Junior is tubeless ready, so you can set it up with or without tubes.
6061-T6 alloy, double walled. A double wall build in 6061-T6 alloy with a sleeved join keeps the classic aero profile strong for its weight.
28 spoke holes. Drilled 28H to lace up with a race hubset like the Onyx OHMs, and the #luxlab can build the wheel for you.
Designed in house. All of Radio's new rims were designed in house in Cologne, Germany, to minimise weight and maximise strength.

Specifications

Fits: 20 x 1 1/8" to 1 3/8" tyres
Wheel size: 20" x 1 1/8" to 1 3/8" (451mm)
Material: 6061-T6 alloy
Hole count: 28H
Rim width: 19.4mm
Note: Double walled with a sleeved join, tubeless ready, ERD 428mm

Spoke calculator

Display

Pick the part it is laced to and we will give you the lengths to buy.

This rim

Looking up its measurements.

Check or change its figures

ERD effective rim diameter, from the spec sheet mm

Laced to which hub?

Find your hub

Or type its figures

Hub spacing locknut to locknut, 100 front or 110 rear on most BMX mm Same both sides front hubs, or matching flanges

Flange diameter/PCD (pitch circle diameter) spoke hole centre to the opposite hole centre. The drive side is the driver side, left or right hand drive alike, and is usually the bigger flange

Drive side mm Non-drive side mm

Flange position

Flange to locknut Centre to flange

Drive side mm Non-drive side mm
