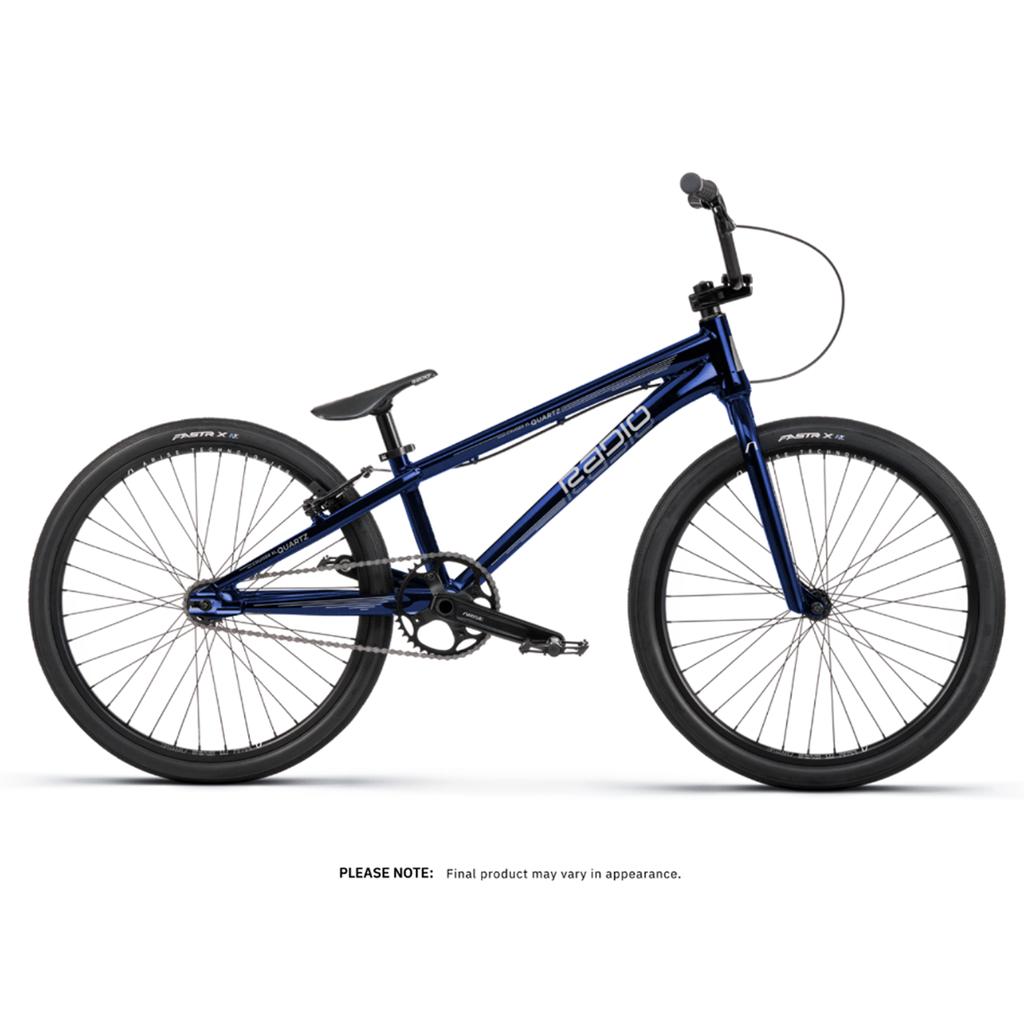

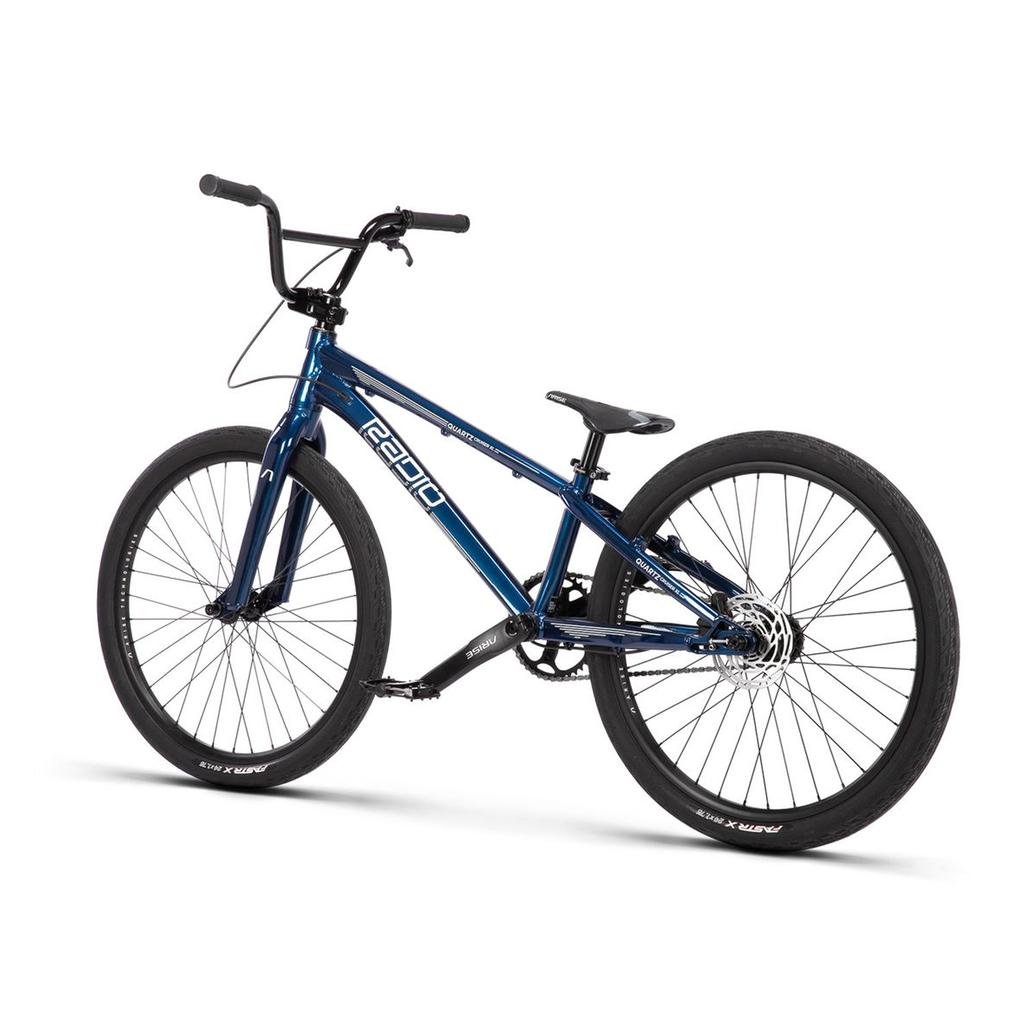

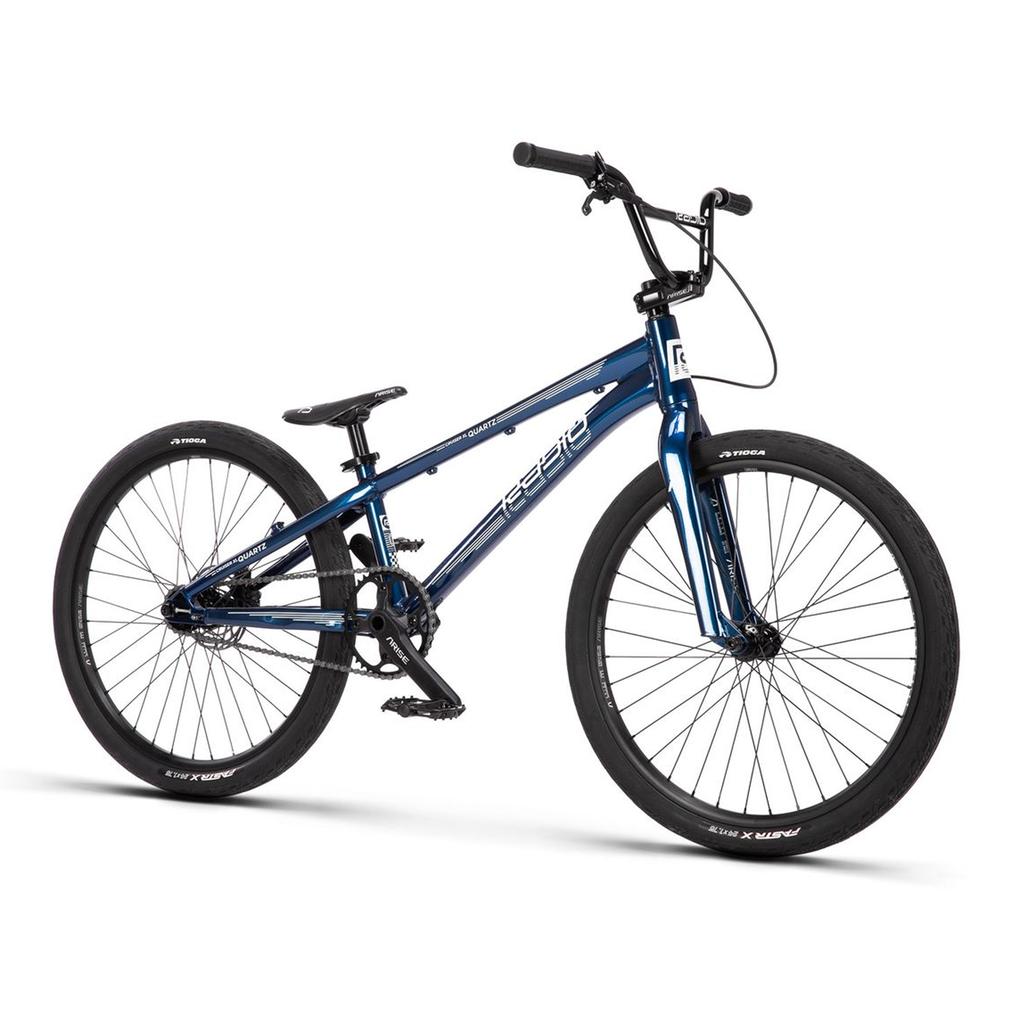

Radio Raceline Quartz Pro Disc 24 Inch Bike

Frame - Radio Raceline Quartz Disc frame, lightweight hydroformed 6061-T6 alloy, tapered headtube, sliding forged dropouts, with int. chaintensioners, flatmount disc brake.

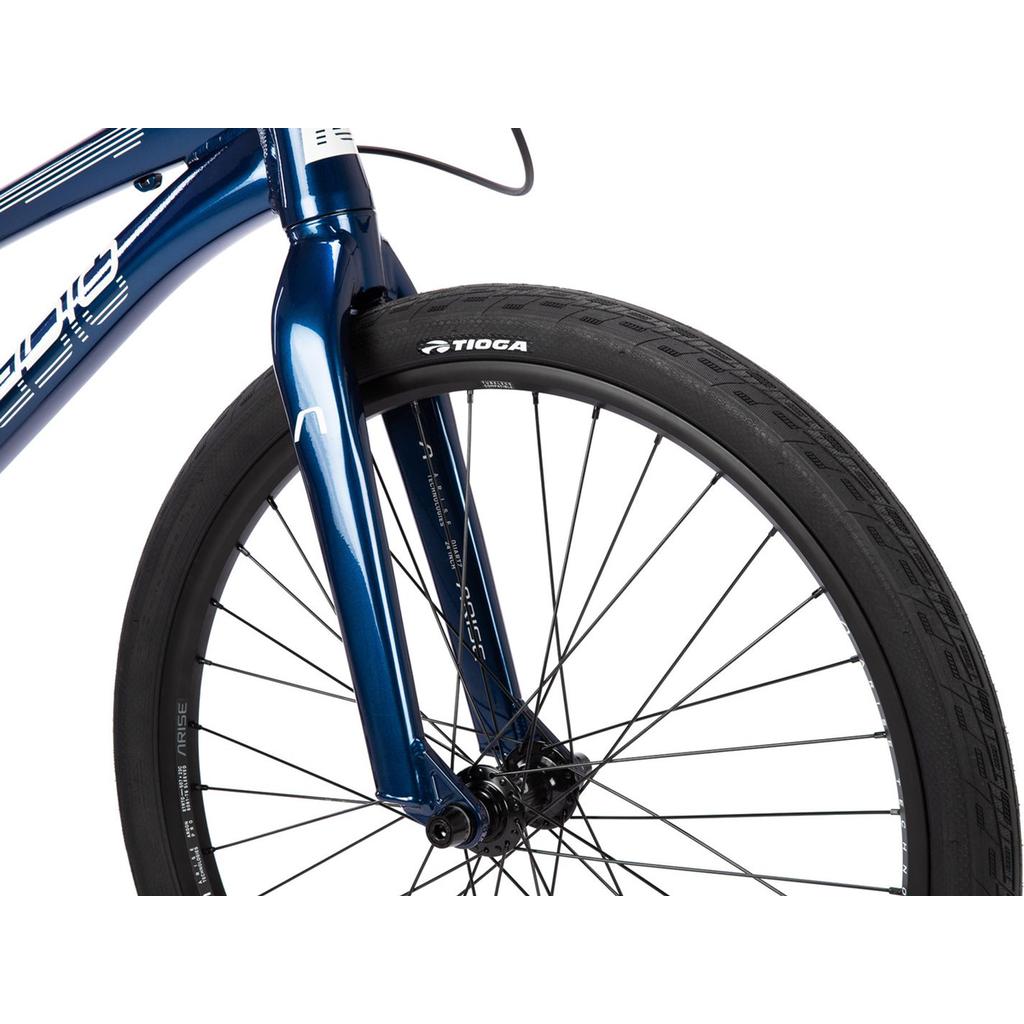

Fork - Arise Quartz Cruiser fork, crmo, 31mm offset
Bars - 6" 4130 crmo bar, seamless

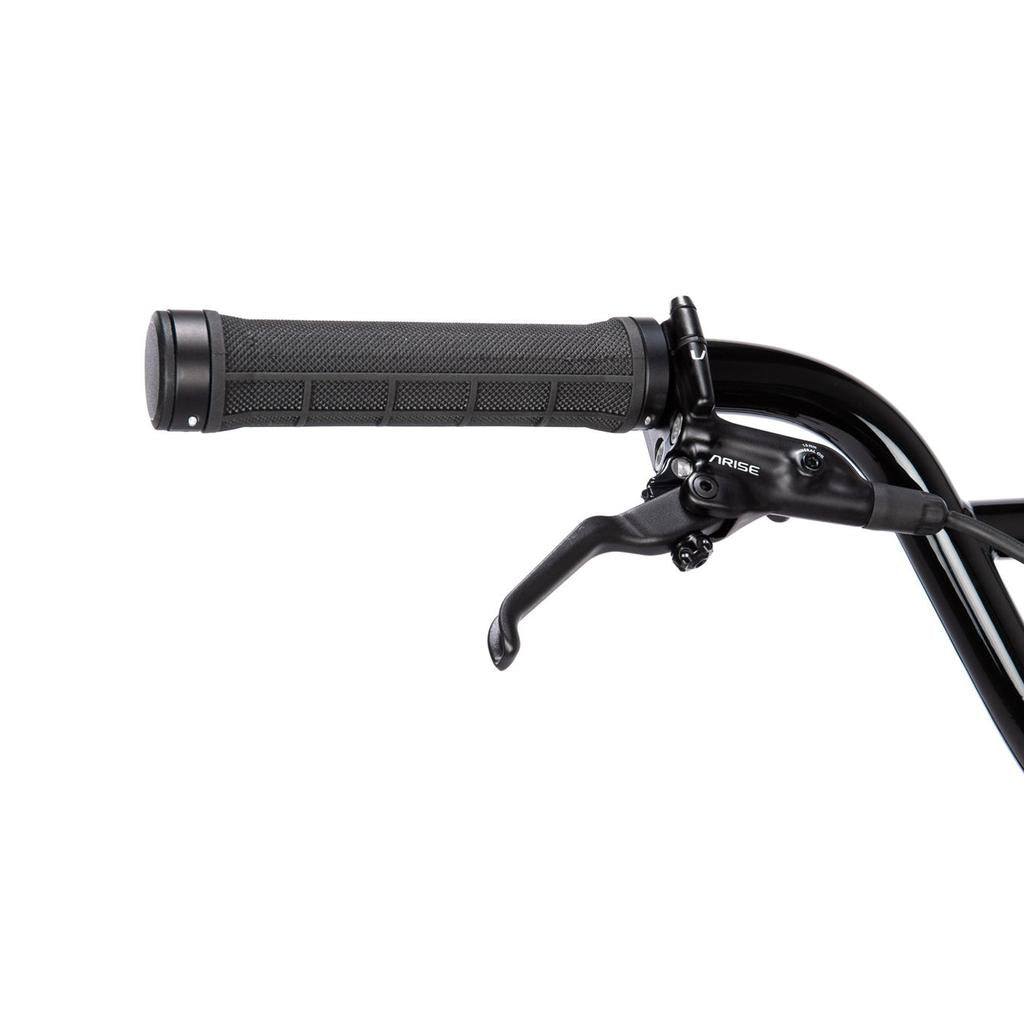

Grips - Radio Raceline Xenon grips, diamond knurling, clamp-on grip, 139mm length
Stem - Arise Neon Pro toploader stem, ext. 54mm, CNC machined, alloy
Headset - Radio Raceline Pro integrated headset, sealed, threadless, 1-1/8" - 1.5"
Lever - Arise Xenon disc brakelever
Brakes - Arise Xenon disc brake, rear
Cranks - Arise, Xenon Pro, 2pc crank, cold forged/CNC, alloy,180mm length, 24mm spindle
BB - Radio Raceline BSA 24 bb set, external bearing cups, CNC machined, sealed
Pedals - Radio Raceline Xenon Slim pedal, alloy
Chain - KMC Z1eHX chain, 1/2" x 3/32"
Sprocket - Arise Xenon Pro sprocket, 44T, alloy
Freewheel/Driver - Radio Raceline driver, 16T, 1/2" x 3/32", sealed cassette

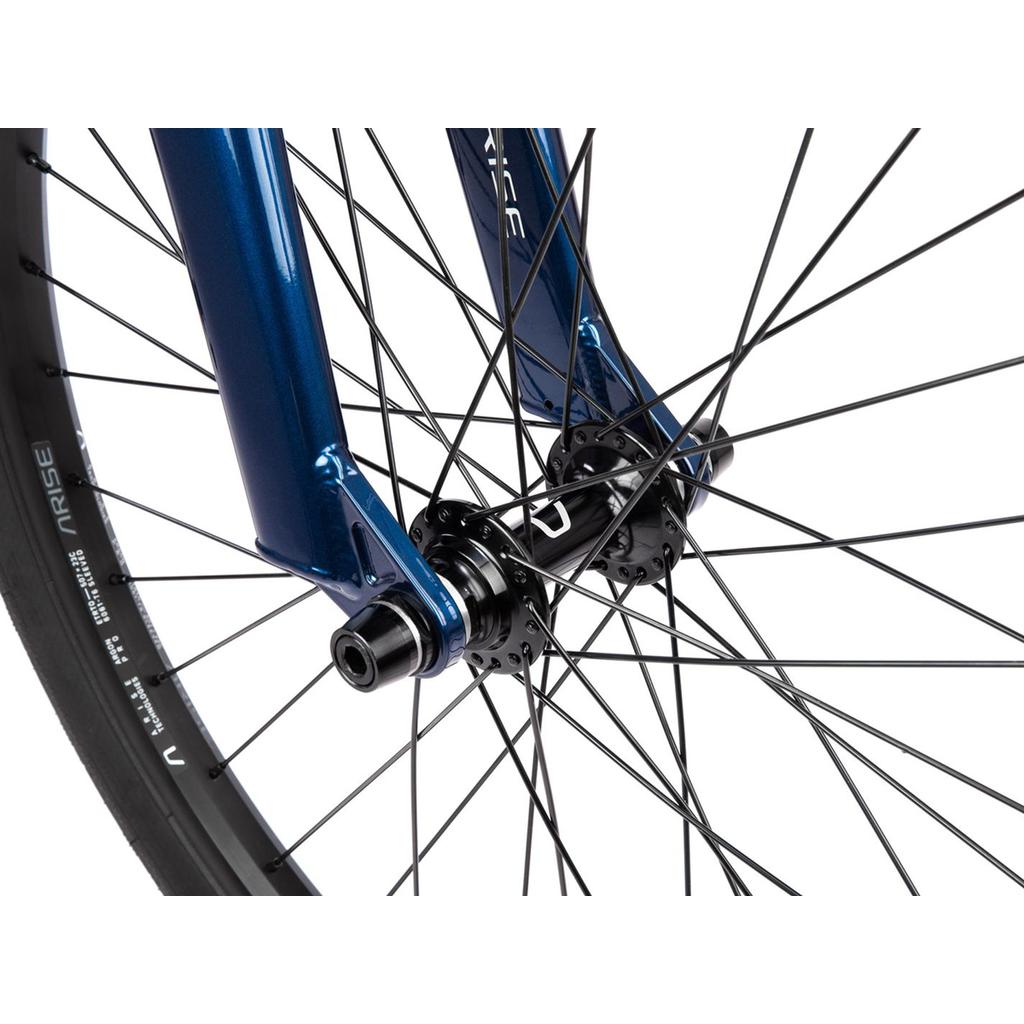

Front Hub - Arise Bravo front hub, alloy CNC, fully sealed, 36h, 3/8" female crmo axle

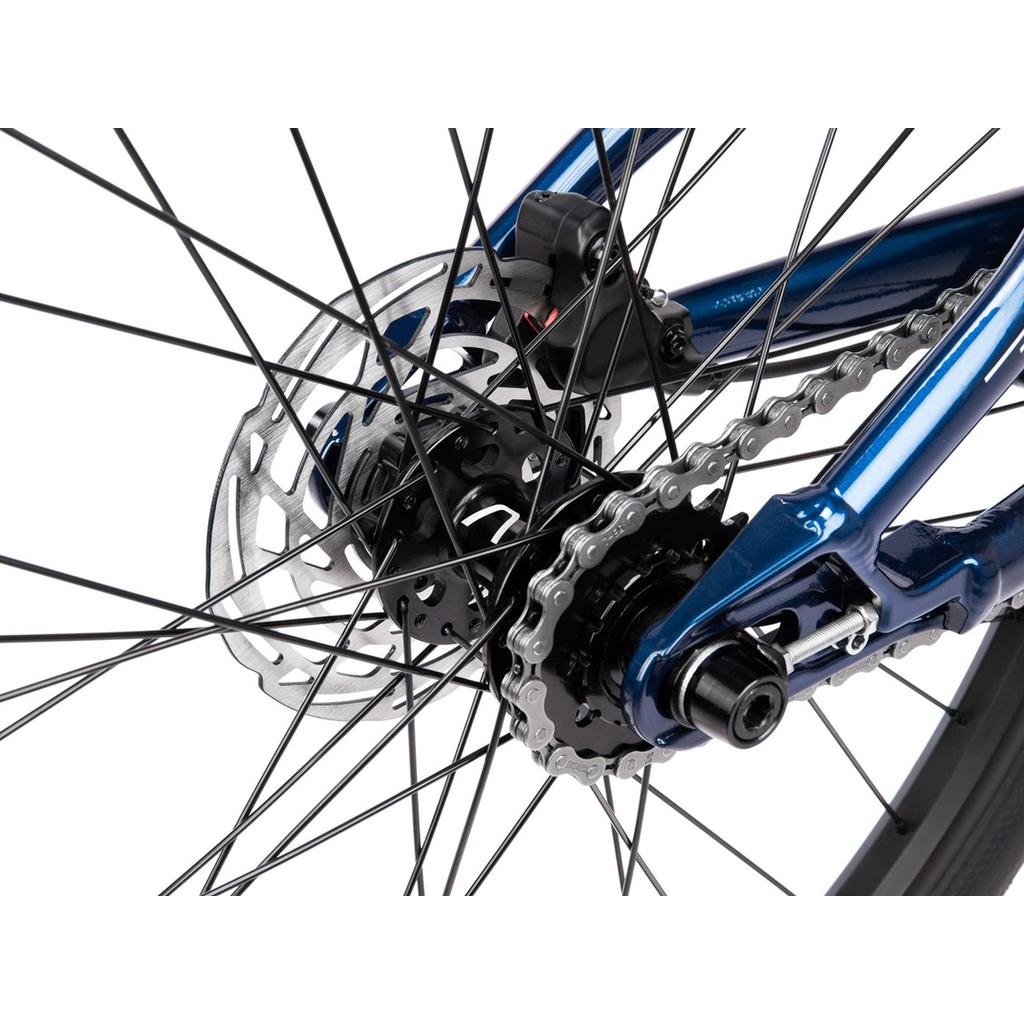

Rear Hub - Arise Bravo rear hub, alloy CNC, fully sealed, 36h, disc brake cassette, 6 pawl, 3/8" female crmo axle
Rims - Arise Argon Pro rim, flash welded, 36h, tubeless ready, alloy
Seat - Radio Raceline Xenon pivotal seat, no padding
Post - Radio Raceline pivotal seat post, 27.2mm, alloy
Seat Clamp - Arise Helium Pro seat clamp, quick-release, alloy
Tires - Tioga Fastr tires, front: 24" x 1.75" and rear: 24" x 1.75"
Weight - TBA

Frame / Bar Geometry
Top Tube Length - LARGE - 21.5". XL - 22"
Chain Stay Length - 15.15"
Head Tube Angle - 74°
Seat Tube Angle - 71°
Bottom Bracket Height - 10.23"

Bar Rise - 6"
Bar Width - 26.8"
Bar Backsweep - 8°
Bar Upsweep - 2°
