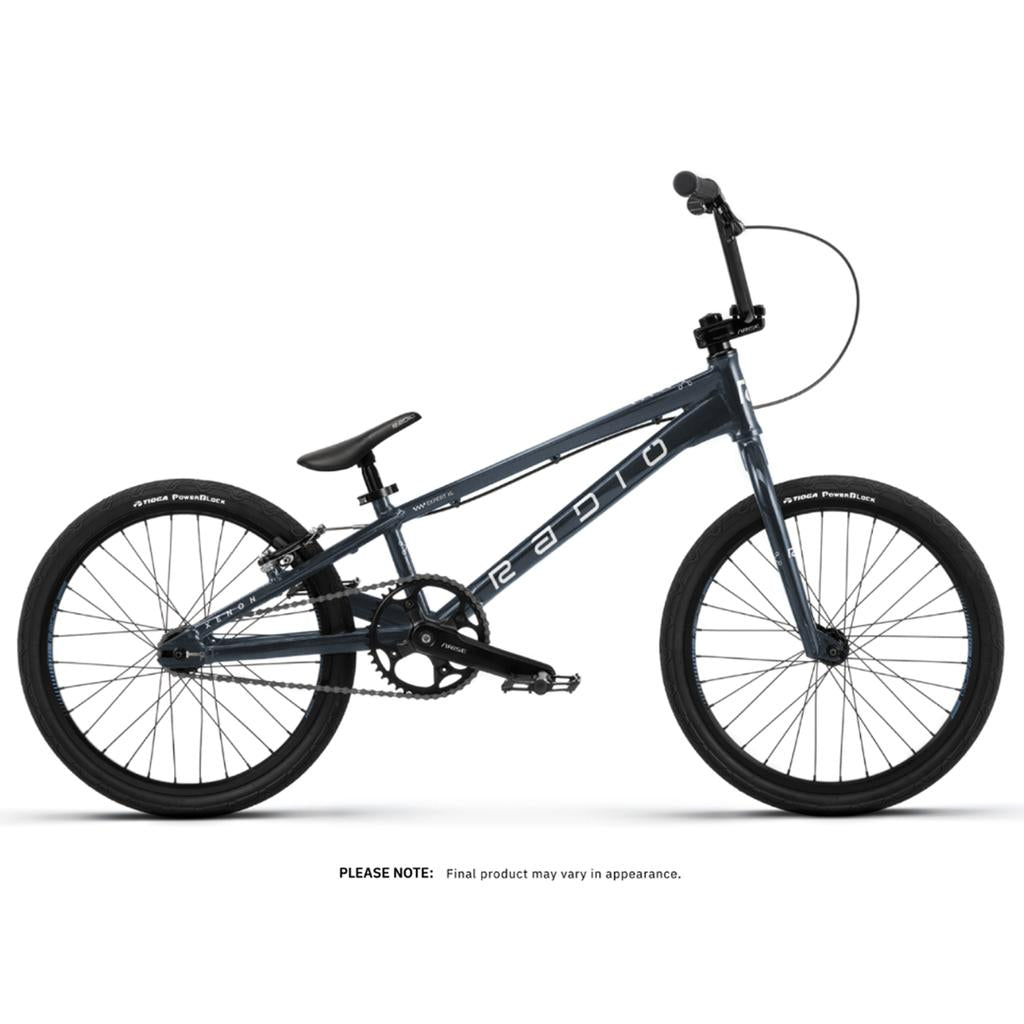

Radio Xenon Expert XL Disc 20 Inch Bike

The Radio Xenon Expert Bike is built for riders stepping up their race game, combining lightweight alloy construction with pro-level components for serious speed. The hydroformed frame and chromoly fork keep things stiff and responsive, while the longer 20.5” top tube delivers added stability through high-speed sections.

A race-tuned drivetrain with a 41T sprocket, sealed cassette hub, and 170mm cranks ensures strong, efficient power delivery, while Tioga Power Block tyres maximise grip and roll. Finished with a rear disc brake and a wider, more aggressive cockpit, the Xenon Expert is dialled for control, confidence, and pushing harder every lap.

Frame - Hydroformed 6061-T6 alloy frame, forged & disc brake mount ready dropouts and integrated chain tensioners
Fork - Crmo fork, 1-1/8" butted steerer, crmo fork legs, 23mm offset
Bars - 6061-T6 alloy bar
Grips - Radio Raceline Xenon grips, diamond knurling, clamp-on grip, 139mm length
Stem - Arise Cobalt toploader stem, ext. 50mm, alloy
Headset - FSA No.28 integrated headset, sealed, 1-1/8"
Lever - Arise Xenon disc brake lever
Brakes - Arise Xenon disc brake rear
Cranks - Radio Raceline Xenon 3pc crank, forged alloy, CNC machined, 170mm length
BB - Radio Raceline bb set, BSA square taper, sealed
Pedals - Radio Raceline Xenon Slim pedal, alloy
Chain - KMC Z6 chain, 1/2" x 3/32"
Sprocket - Radio Raceline sprocket, 41T, alloy
Freewheel/Driver - Radio Raceline driver, 16T, 1/2" x 3/32", sealed cassette
Front Hub - Arise Bravo front hub, alloy CNC, fully sealed, 32h, 3/8" female crmo axle
Rear Hub - Arise Alfa rear hub, alloy CNC, fully sealed, 32h, disc brake cassette, 3/8" crmo axle
Rims - Arise Clipper Expert rim, pinned joint, 32h, alloy
Seat - Radio Raceline Seat & Seatpost Combo
Seat Clamp - Arise Xenon seat clamp, quick-release, alloy
Tires - Tioga Power Block tyres. Front - 20" x 1.6" Rear - 20" x 1.4"
Weight - 9.09kg / 19.86lbs

Frame / Bar Geometry
Top Tube Length - 20.5"
Chain Stay Length - 13.8"
Head Tube Angle - 73.5°
Seat Tube Angle - 71°
Bottom Bracket Height - 10.8"

Bar Rise - 7"
Bar Width - 26.25"
Bar Backsweep - 6°
Bar Upsweep - 3°
