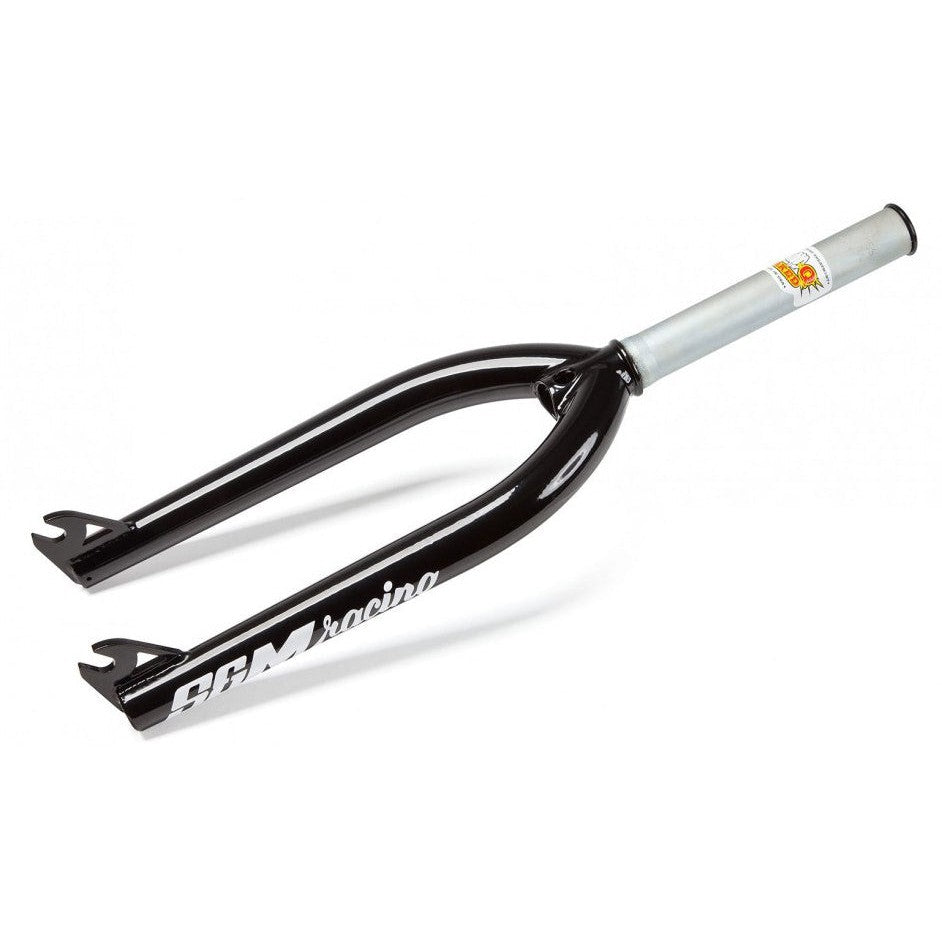

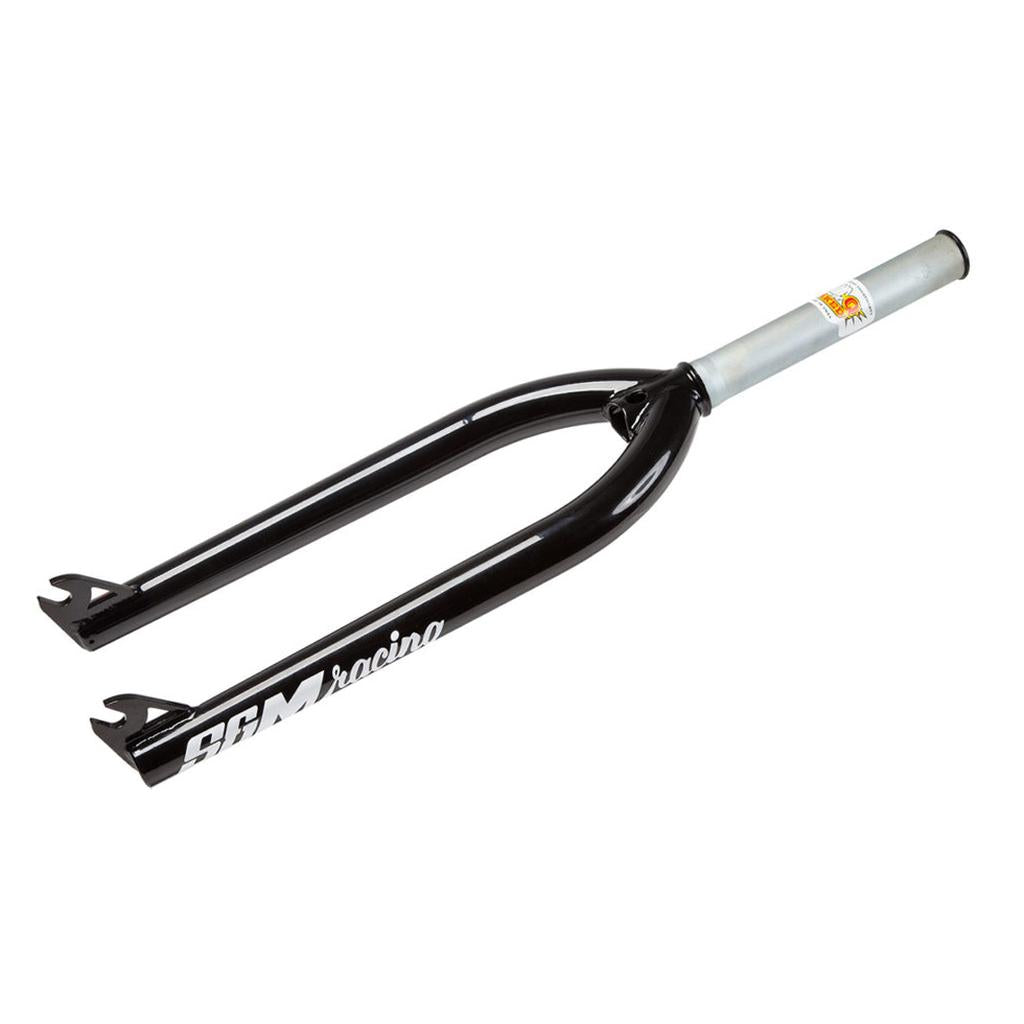

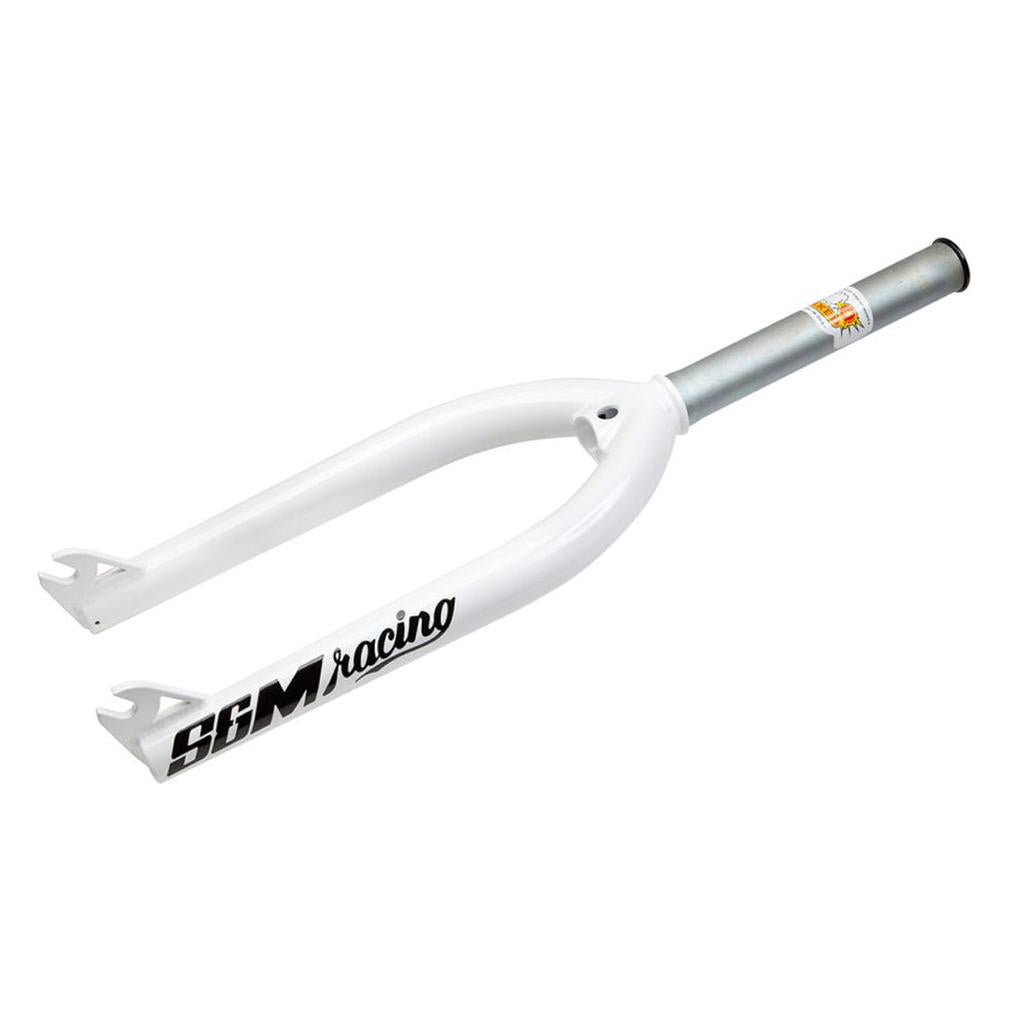

Give your bike the strength she has been yelling for! These sturdy forks are ready for a shreddin!
Specifications
Legs - Double Butted, Tapered, 4130 CrMo
Dropouts - Laser Cut 3/8″ Slot
Steerer Tube - NON-Integrated Race, 1 Piece CNC-Machined 4130 CrMo. Requires standard bearing race included with headset
Steerer Tube Length - 172mm
Compression - M24 X 1.5 Thread – 6mm Allen Slot
Axle to Crown Height
20″ – 315.5mm
24″ – 366mm
26″ – 395mm or 415mm
Offset - 33mm
Weight
0.86 kg - 20″
0.97 kg - 24″
1.17 kg - 26
Heat Treat - 4Q Baked Post-Weld
*please note, these have tapered fork legs, and don’t have a tapered steerer tube. They are, however compatible with a tapered (1-1/8 to 1.5) head tube with the use of a 1-1/8 to 1.5 crown race.
