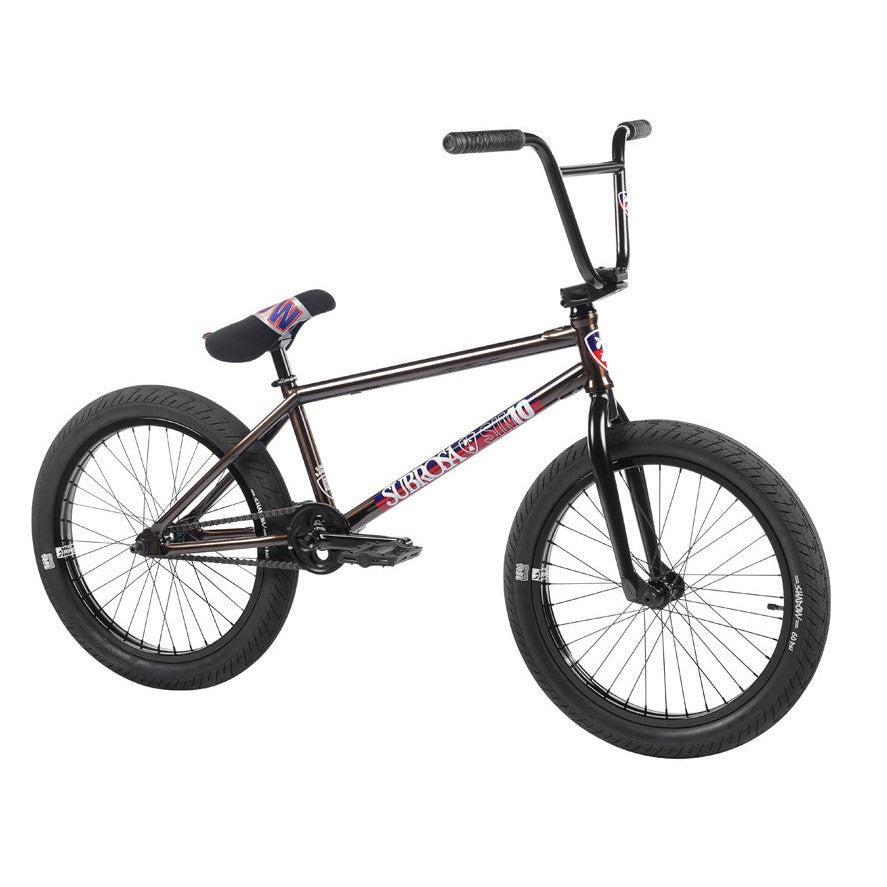

Subrosa Novus Simo 10 / 20 Inch Bike (2022) / Gloss Trans Black / 21TT

Description

To celebrate Simone Barraco’s 10th year riding for Subrosa and The Shadow Conspiracy, Subrosa teamed up with Shadow to release this Subrosa Novus Simo 10 Year Anniversary complete bike and boy isn't it an absolute beauty! Packed to the brim with Shadow, Subrosa and Rant parts to create a truely special rig.



Features
  • Simo's tenth anniversary build. Subrosa teamed up with Shadow to mark Simone Barraco's tenth year on both teams, and this is the bike that came out of it.
  • Butted chromoly frame. 100% chromoly butted top tube and down tube with a 21.0″ top tube and 13.2″ rear end, on a Subrosa Simo fork.
  • Full Shadow parts kit. Shadow Stacked headset, Treymone stem, Gypsy grips, Symbol hubs, Truss rims and an Interlock V2 chain right through the build.
  • Subrosa Big Bitchin' 170mm cranks. Spinning in a sealed mid bottom bracket and driving a 25T Subrosa Barcelona sprocket, so the drivetrain stays smooth and strong.
  • Barraco signature seat and tyres. A Shadow Penumbra Barraco Series 9 mid pivotal seat on an alloy pivotal post, with Strada Nuevo 2.3 tyres underneath. All up 12.17 kg.

Specifications
  • Size: 20" wheels, 21.0″ top tube
  • Frame: 100% chromoly butted top tube and down tube
  • Top tube: 21.0″
  • Chainstay: 13.2″
  • Head tube angle: 75°
  • Seat tube angle: 71°
  • Standover: 9.0″
  • Bottom bracket height: 11.6″
  • Fork: Subrosa Simo
  • Headset: Shadow Stacked
  • Stem: Shadow Treymone
  • Bars: 100% chromoly, 2pc, 9.0"
  • Grips: Shadow Gypsy
  • Bar ends: Shadow nylon
  • Brakes: Rant Spring Brakes V2, removable mounts
  • Brake lever: Rant hinged
  • Cranks: Subrosa Big Bitchin', 170mm
  • Bottom bracket: Sealed mid
  • Sprocket: 25T Subrosa Barcelona
  • Chain: Shadow Interlock V2
  • Pedals: Shadow Surface plastic
  • Front hub: Shadow Symbol front
  • Rear hub: Shadow Symbol cassette, 9T
  • Rims: Shadow Truss
  • Tyres: Shadow Strada Nuevo 2.3
  • Seat: Shadow Penumbra Barraco Series 9 mid pivotal
  • Seat post: Alloy pivotal 200m
  • Seat clamp: Shadow Alfred
  • Weight: 12.17 kg

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

  • Fit the handlebars and line them up with the front wheel
  • Fit the front wheel, pedals and seat post
  • Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Subrosa Novus Simo 10 / 20 Inch Bike (2022)

Brand: Subrosa SKU:

$2,199.99 AUD

Or 4 payments of $549.99 AUD with

Recommended Rider Height:

175cm+

Colour - Gloss Trans Black

Top Tube Length - 21

20 inch BMX sizing

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

  • A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
  • 22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
  • Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide

20 inch BMX sizing

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

  • A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
  • 22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
  • Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide
