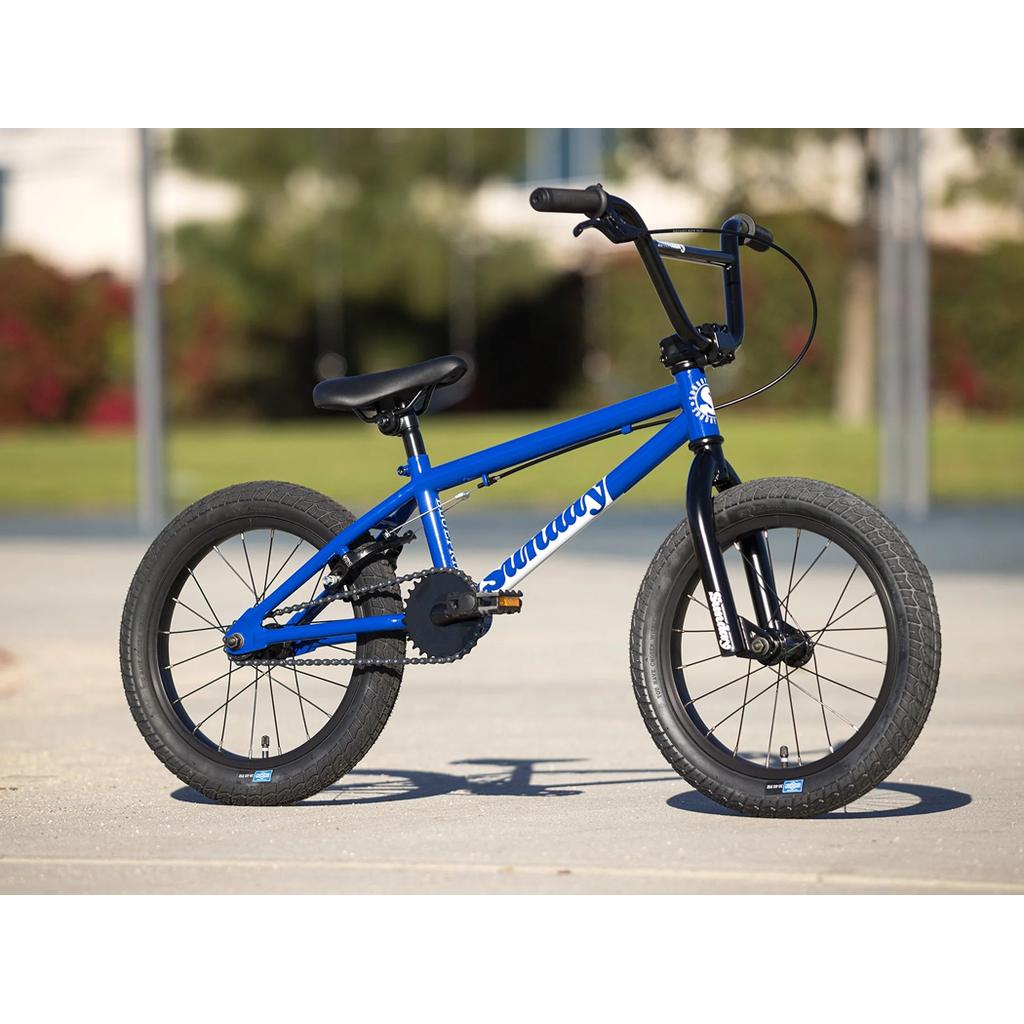

A Sunday Blueprint 16 Inch Bike in blue, with black wheels and handlebars, Odyssey Springfield Brakes, and classic BMX geometry is parked on a paved outdoor surface.
SUBK226

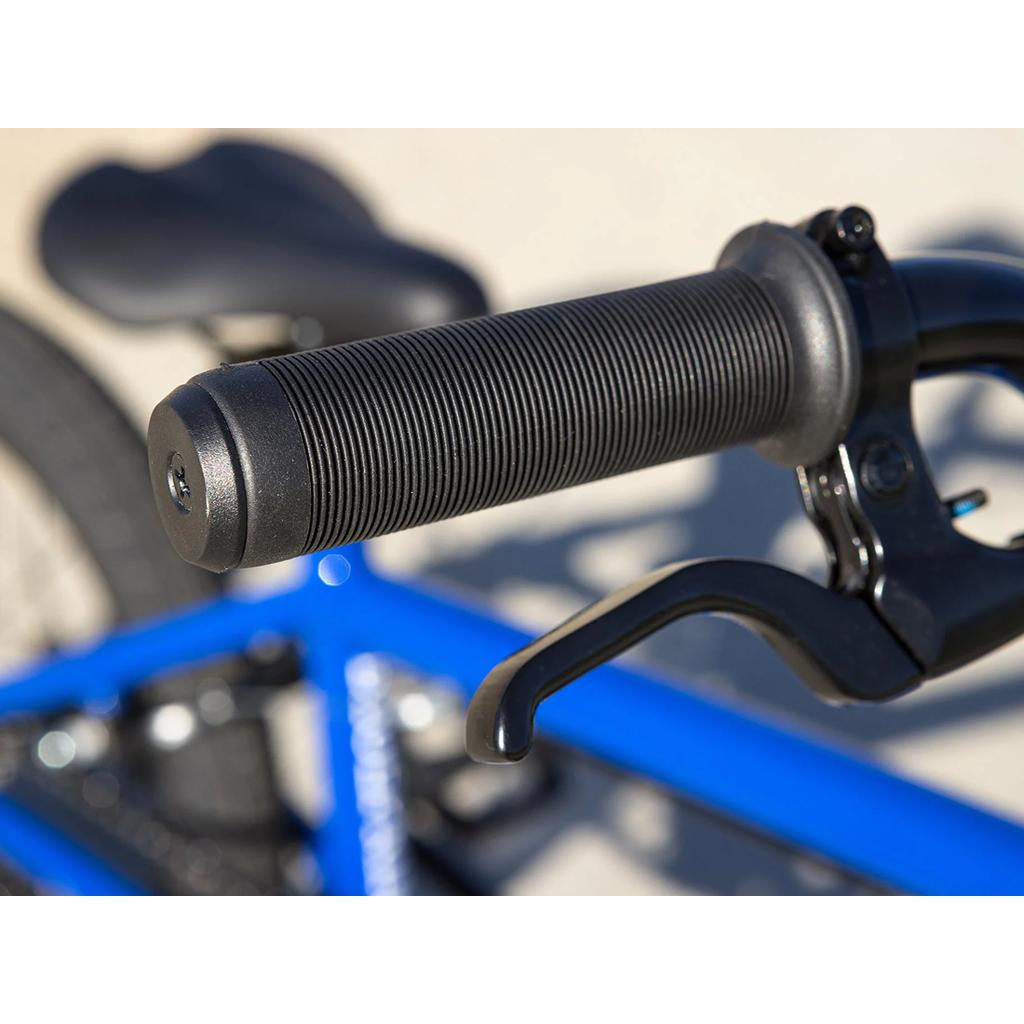

Close-up of a black handlebar grip and brake lever, featuring Odyssey Springfield Brakes on a blue Sunday Blueprint 16 Inch Bike with BMX geometry; the bicycle seat is seen in the background.

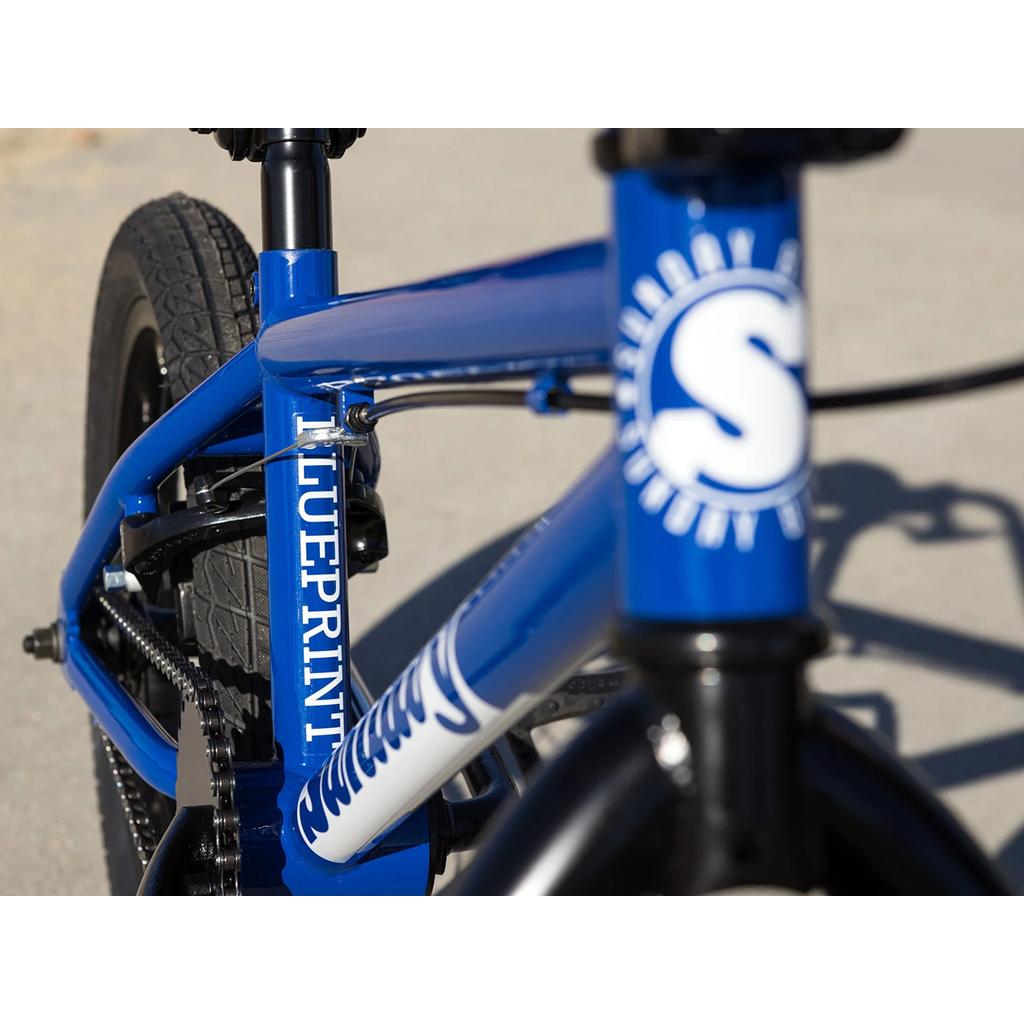

Close-up of the Sunday Blueprint 16 Inch Bike shows its blue frame with "BLUEPRINT" on the tube and a bold white "S" logo on the front, highlighting classic BMX geometry. The bike is pictured outdoors on a paved surface.

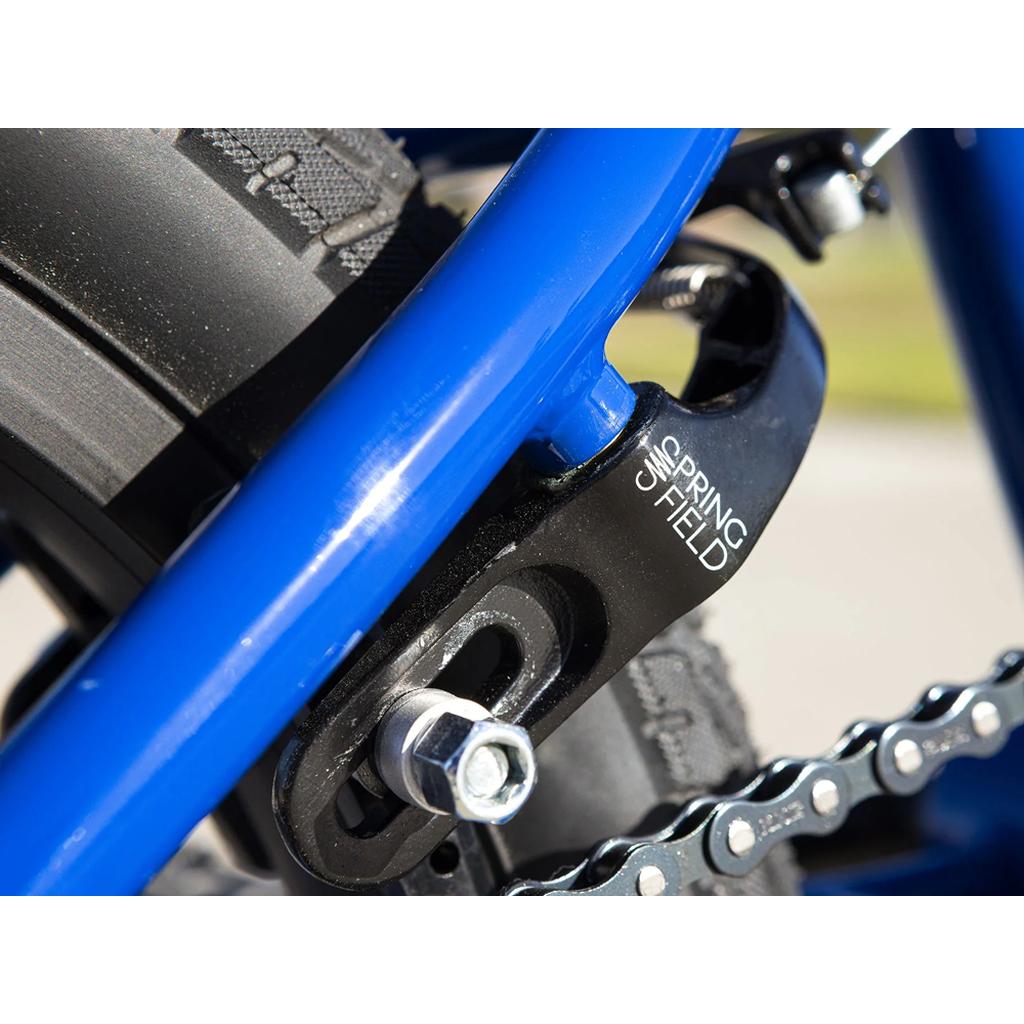

Close-up of the Sunday Blueprint 16 Inch Bike’s rear dropout showing a chain tensioner, part of the chain and tire, and Odyssey Springfield Brakes with "SPRINGFIELD" printed on the black metal component.

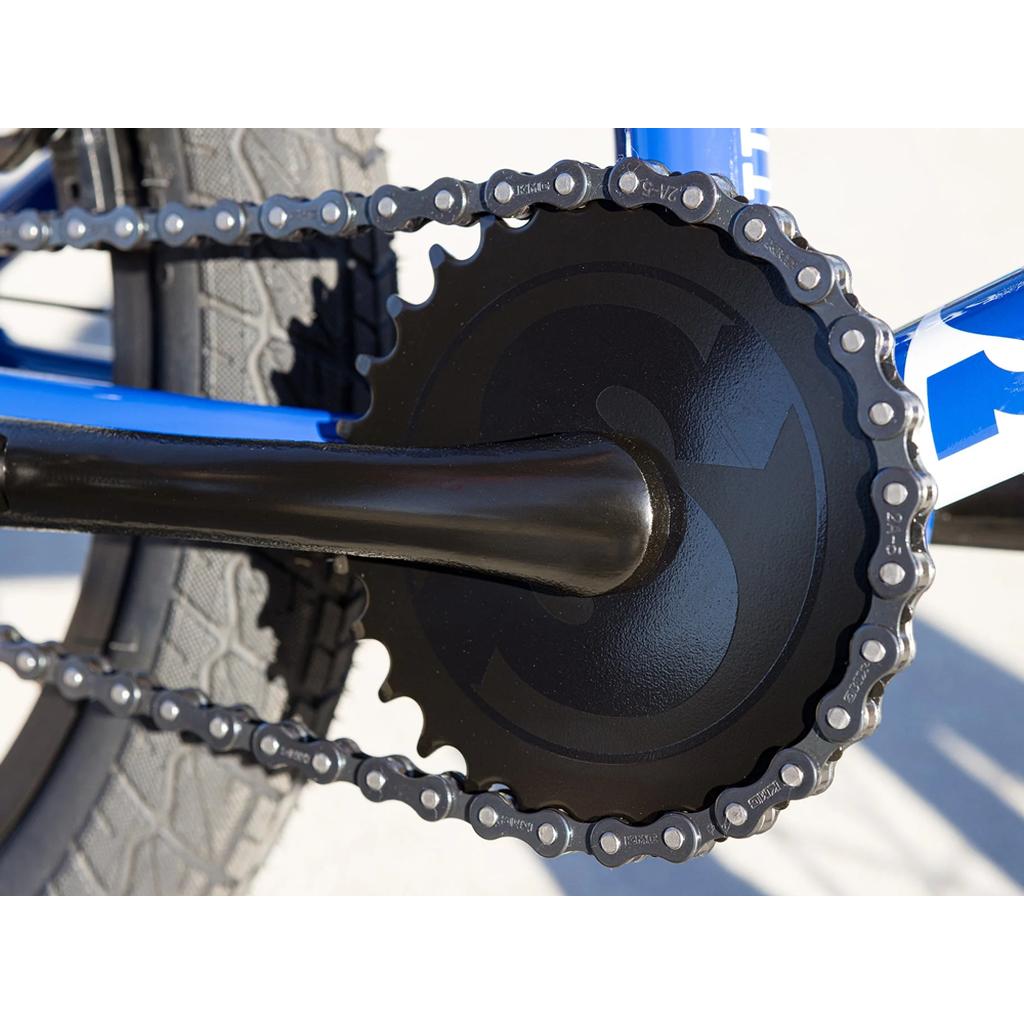

Close-up of the black front chainring and chain on a Sunday Blueprint 16 Inch Bike, with part of the blue frame and rear tire visible in the background.

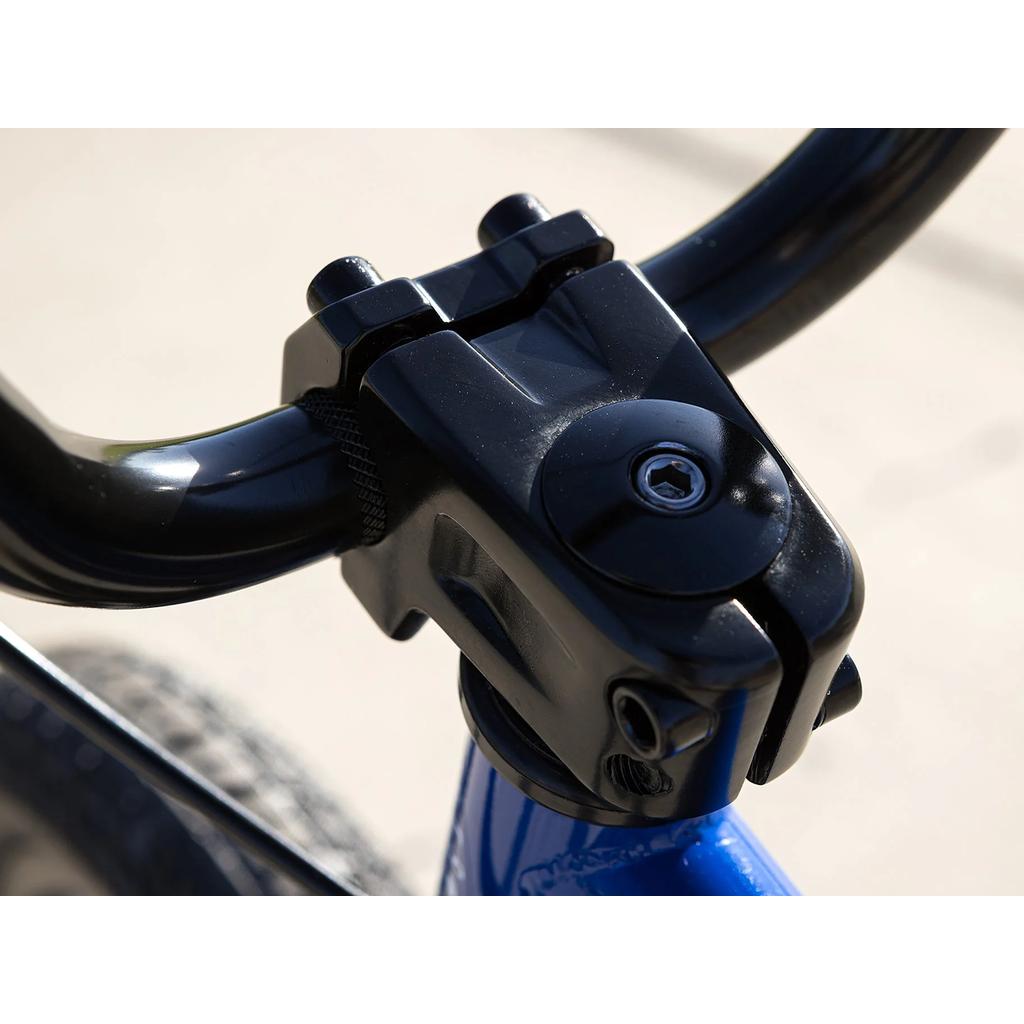

Close-up of a black bicycle stem securing handlebars to the blue frame of the Sunday Blueprint 16 Inch Bike, showcasing bolts, textured grips, and precise BMX geometry.

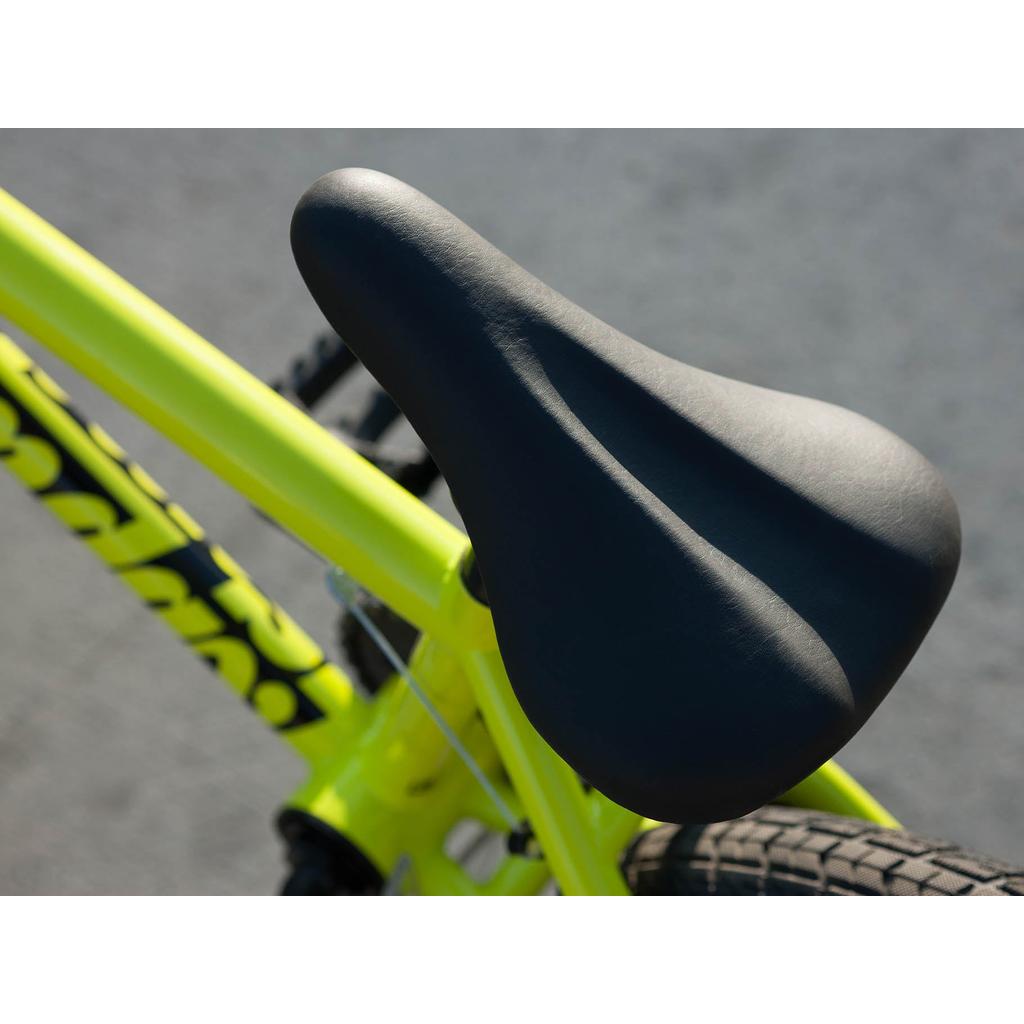

Close-up of the black seat on the Sunday Blueprint 16 Inch Bike's yellow frame, highlighting its scaled-down geometry for comfort. The rear tire and Odyssey Springfield Brakes are also visible.

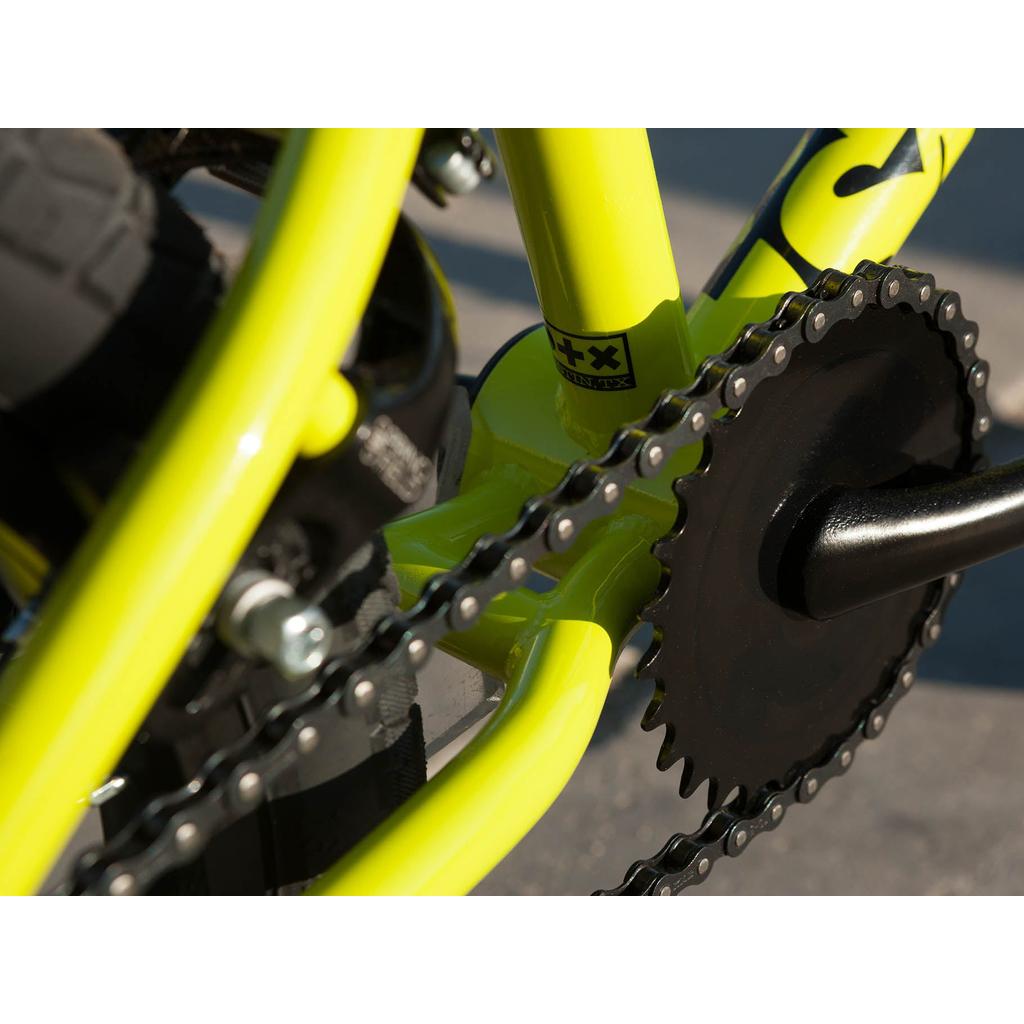

Close-up of the Sunday Blueprint 16 Inch Bike’s yellow frame, highlighting the chain, crankset, and rear tire with scaled-down geometry inspired by the original Sunday Blueprint.

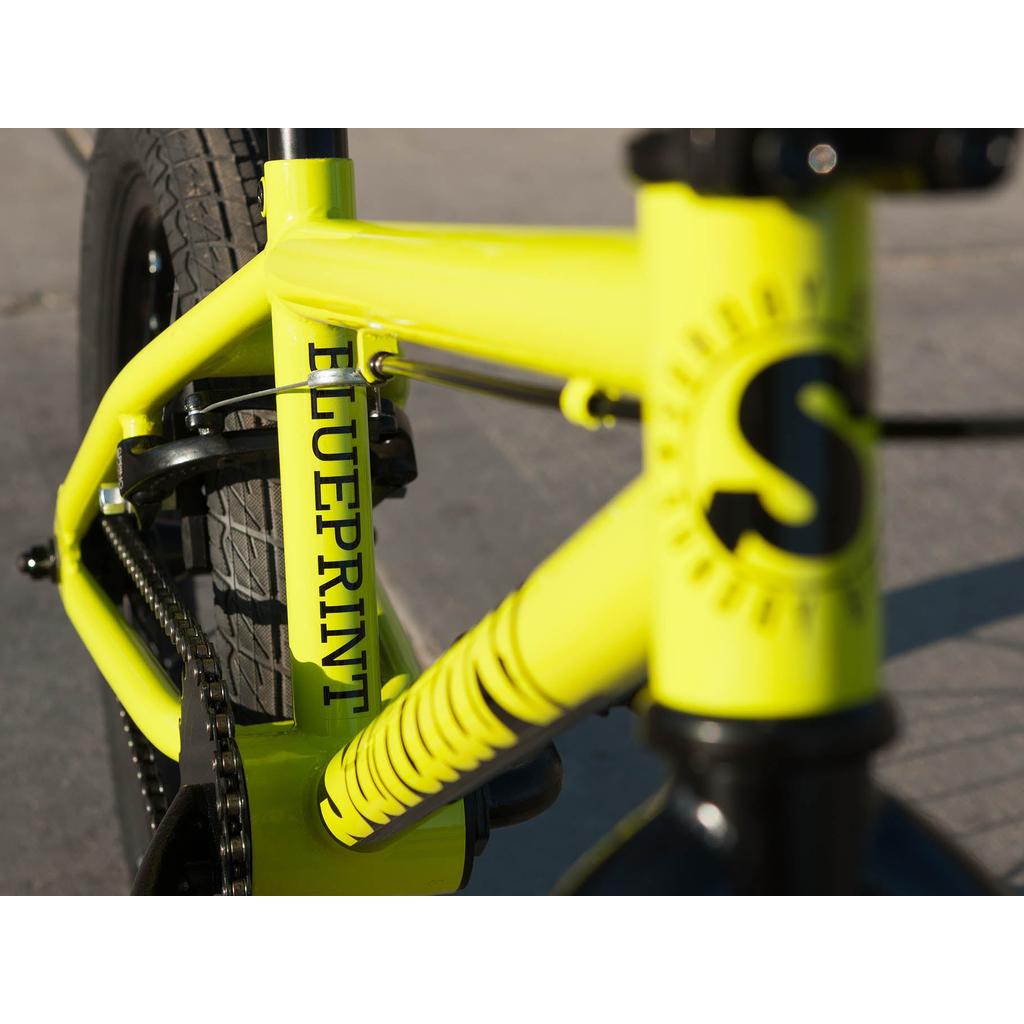

Close-up of a yellow Sunday Blueprint 16 Inch Bike frame with scaled-down geometry, "BLUEPRINT" printed on it, and part of the front wheel and fork visible.

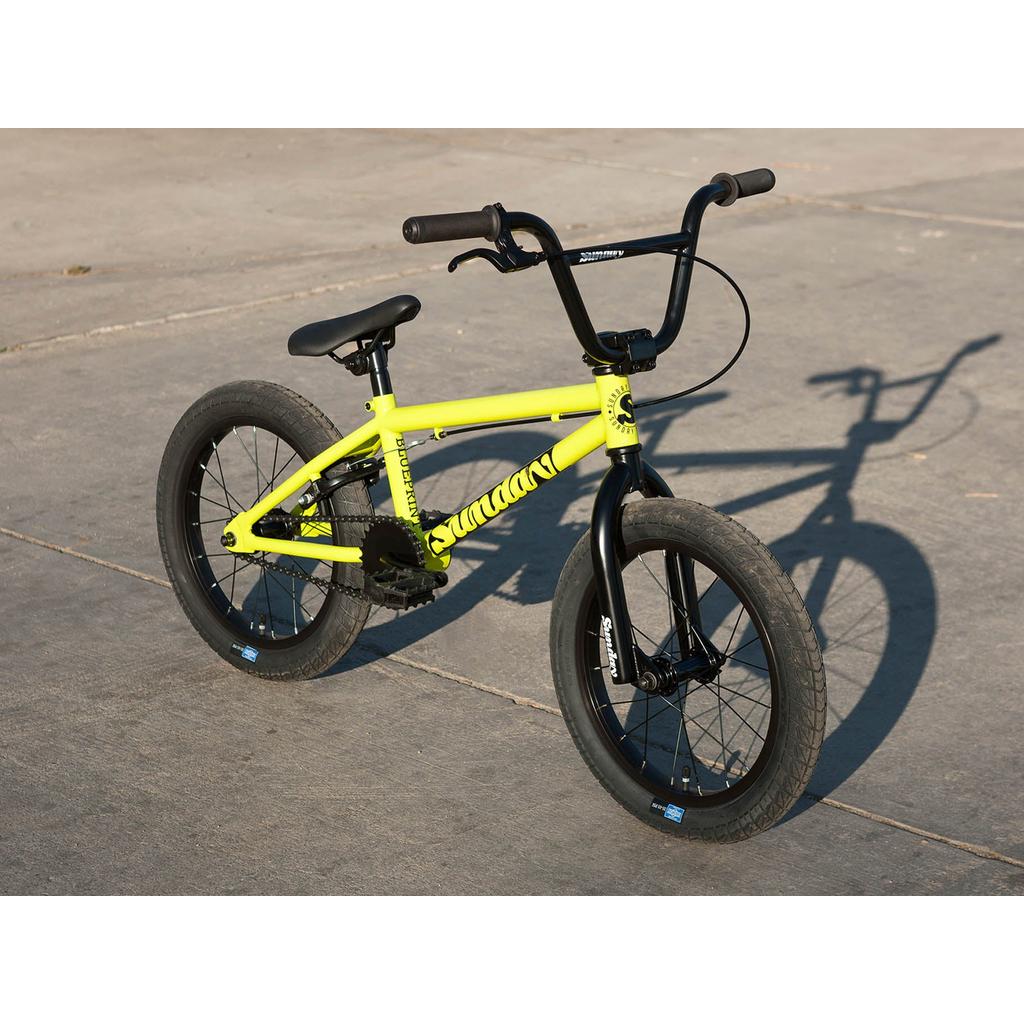

A Sunday Blueprint 16 Inch Bike, featuring a yellow frame, black handlebars and wheels, plus Odyssey Springfield Brakes, is parked on a concrete surface with its shadow visible.

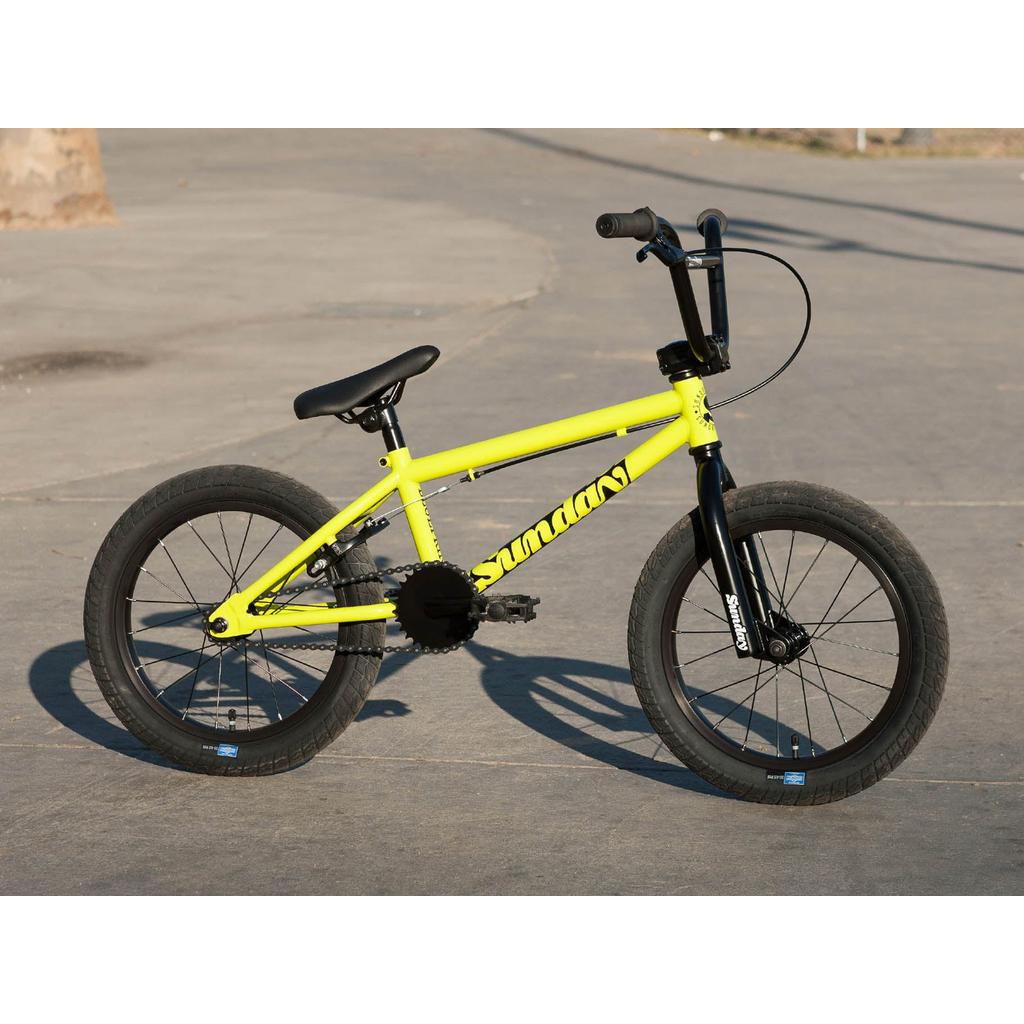

A Sunday Blueprint 16 Inch Bike, featuring scaled-down geometry, yellow frame, black handlebars, and Odyssey Springfield Brakes, is parked outdoors on a concrete surface.

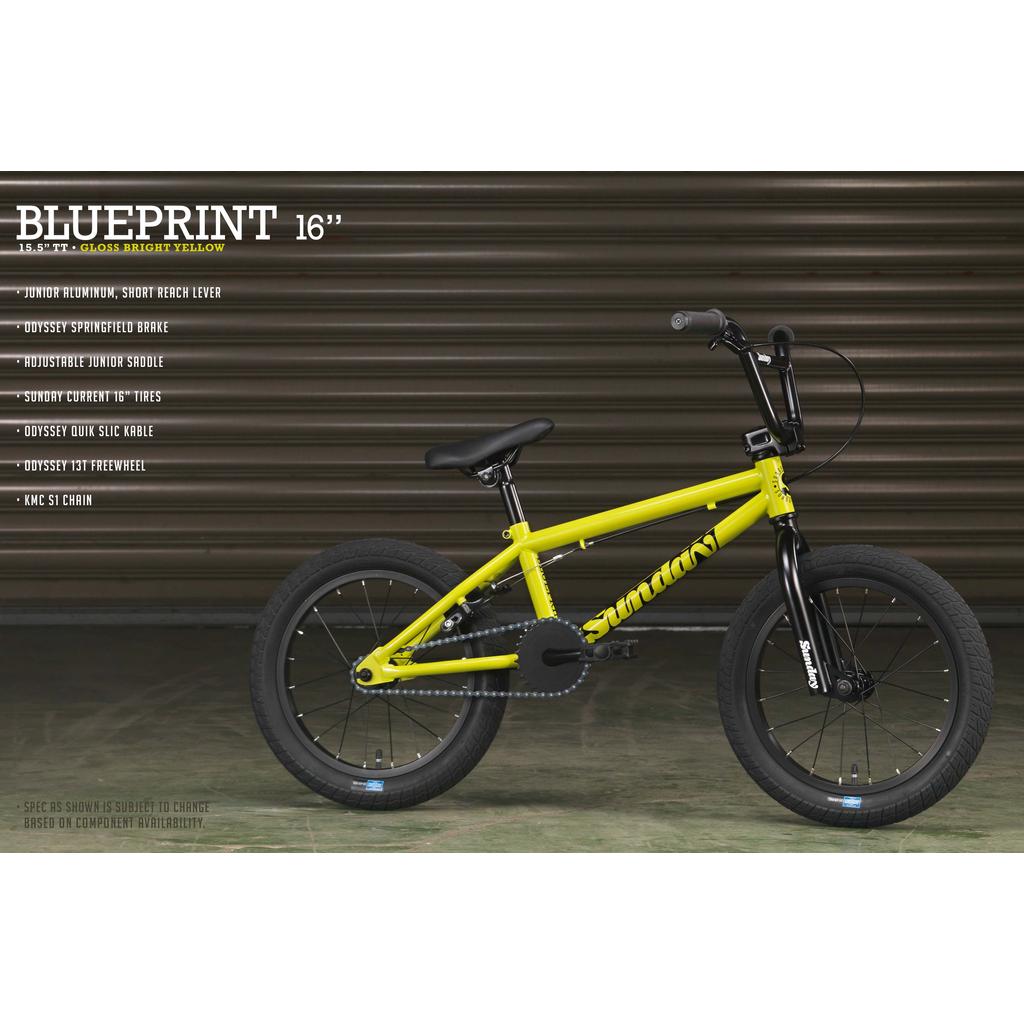

The Sunday Blueprint 16 Inch Bike in gloss yellow with black tires and components is shown indoors before a metal shutter. Text highlights include its scaled-down geometry and Odyssey Springfield Brakes.
SUBK226
SUBK226
SUBK226
SUBK226
SUBK226
SUBK226
SUBK226
SUBK226
SUBK226
SUBK226
SUBK226
SUBK226
SUBK226
SUBK226
SUBK226
SUBK226
SUBK226
SUBK226
SUBK226
SUBK226
SUBK226
SUBK226
SUBK226
SUBK226
SUBK226
SUBK226
SUBK226
SUBK226
SUBK226
SUBK226
SUBK226
SUBK226
SUBK226

Description

Get your kids shredding in style on one of these rad little Sunday Blueprints. Odyssey Springfield Brakes ensure that skids will be ripping and scaled down geometry will make this bike handle well. These bikes aren't designed for jumping or tricks, but if your little one is looking for a sweet ride to get to school or the shops then look no further.

The Blueprint 16" is ready to help kids of all ages learn to ride.

Sunday's entry-level 16” bikes are fun and easy to use so kids can keep learning and keep riding. Simplicity and reliability are the goals with the Blueprint, and details like an adjustable seat and an adjustable reach brake lever mean that you can get the bike set up perfectly for riders of all sizes.

Features
  • Built for learning to ride. Sunday's entry-level 16" is kept simple and reliable so kids keep riding: a bike for school and the shops, not for jumps or tricks.
  • Adjusts to fit growing riders. An adjustable Velo Junior seat and a short reach, adjustable brake lever mean the bike can be set up properly for riders of all sizes.
  • Odyssey Springfield U-brake. A proper rear U-brake with an Odyssey Quik Slic cable and a junior short reach lever, so skids come easy.
  • Scaled down geometry. 15.5" top tube, 11.25" chainstay and 73.5° head angle on 16" wheels, with 23" wide bars and a 40mm front load stem to match.
  • Simple, reliable drivetrain. 115mm one-piece cranks, a 28T Sunday S-Logo steel sprocket, KMC S1 chain and a 13T Odyssey freewheel, with Sunday Current 16 x 2.1" tyres, all up 9.86 kg.

Specifications
  • Size: 16" wheels, 15.5" top tube
  • Frame: Sunday Blueprint
  • Top tube: 15.5"
  • Chainstay: 11.25"
  • Head tube angle: 73.5°
  • Seat tube angle: 71°
  • Standover: 6.9"
  • Bottom bracket height: 9.25"
  • Fork: Sunday Blueprint 16", 2-piece steerer tube
  • Headset: Traditional 1-1/8", aluminium cap with star nut
  • Stem: Front load, aluminium, 40mm
  • Bars: Sunday 2-piece, 6.75" rise, 23" wide, 12° backsweep, 1° upsweep
  • Grips: Velo Junior
  • Brakes: Odyssey Springfield U-brake, Odyssey Quik Slic cable
  • Brake lever: Junior aluminium, short reach, U-brake compatible
  • Cranks: 115mm, 1-piece
  • Bottom bracket: Loose-ball, American, 19mm
  • Sprocket: Sunday S-Logo, 28T, steel
  • Chain: KMC S1
  • Pedals: Wellgo Junior platform, plastic
  • Front hub: Sunday, 20H, low-flange, loose-ball, 3/8" axle
  • Rear hub: 20H, loose-ball, 3/8" axle
  • Rear cog: Odyssey 13T freewheel
  • Spokes: 14g steel, black
  • Rims: P-7X aluminium, 16", 20H
  • Tyres: Sunday Current, 16 x 2.1", front and rear
  • Seat: Velo Junior, adjustable
  • Seat post: 1" steel
  • Seat clamp: Integrated
  • Weight: 9.86kg (with brakes)
  • Note: Not designed for jumping or tricks

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

  • Fit the handlebars and line them up with the front wheel
  • Fit the front wheel, pedals and seat post
  • Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Sunday Blueprint 16 Inch Bike

Brand: Sunday SKU:

$599.99 AUD

Or 4 payments of $149.99 AUD with

Recommended Rider Height:

96-122cm

Colour - Gloss Yellow

Top Tube Length - 15.5

16 inch BMX sizing

A 16 inch bike suits a rider of about 96 to 122cm, usually 4 to 7 years old, on a 16 to 16.5 inch top tube. It is the size most kids learn to ride properly on.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. At this wheel size the top tube barely changes the fit: go by height, and check they can stand over the bike flat footed.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

  • Between two wheel sizes? Go up. Kids grow into a bike far faster than they grow out of the fun.
  • They should be able to stand over the top tube with both feet flat on the ground.

Not sure? Send us their height and we will tell you what we would put them on.
