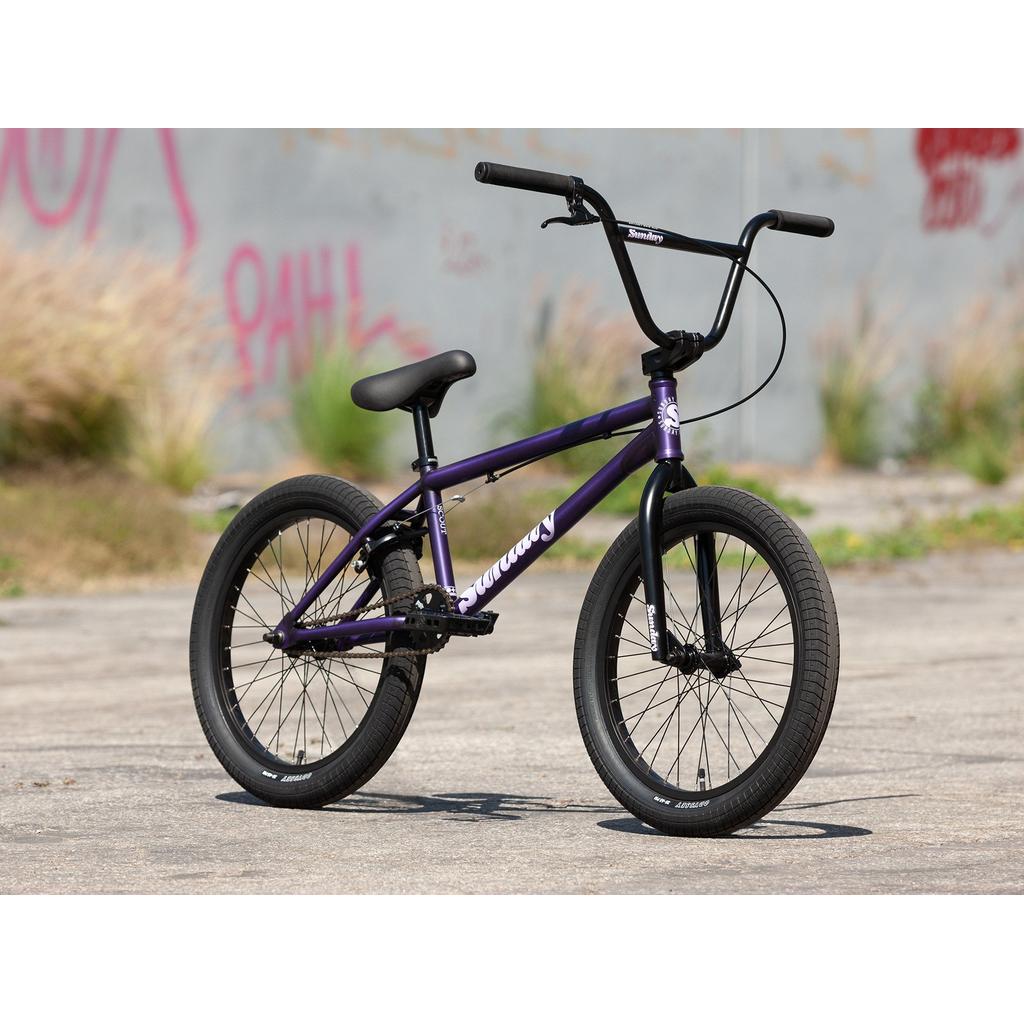

The Sunday Scout is a solid bike for dedicated riders on a budget.
The Scout line is built with more aftermarket parts than ever before, including the Odyssey Twisted Pro pedal and Path Pro tire. Riders will appreciate the fully sealed front and rear hubs, and awesome details like Odyssey signature grips and the Springfield Brake system.
Choose from two different top tube lengths and some truly amazing colour finishes when you’re ready to rip.
Spec as shown is subject to changed based on component availability.
Features
- Sunday Freeze top load stem
- Odyssey Springfield brakes and lever
- Odyssey Path Pro OEM 2.40" tyres
- Odyssey Twisted Pro pedals
- Sunday Badge pivotal seat
- FSA headset
- Sealed front and rear hubs
Specifications
Frame - Sunday Scout, 20.75" & 21” top tube, integrated 1-1/8" head tube, chromoly down tube and dropouts
Fork - Sunday Scout, 20" fork w/ 2-piece chromoly steerer tube and welded pre-load
Handlebar - Sunday, 2-piece, Sunday, 4-piece (Matt Mustard only)

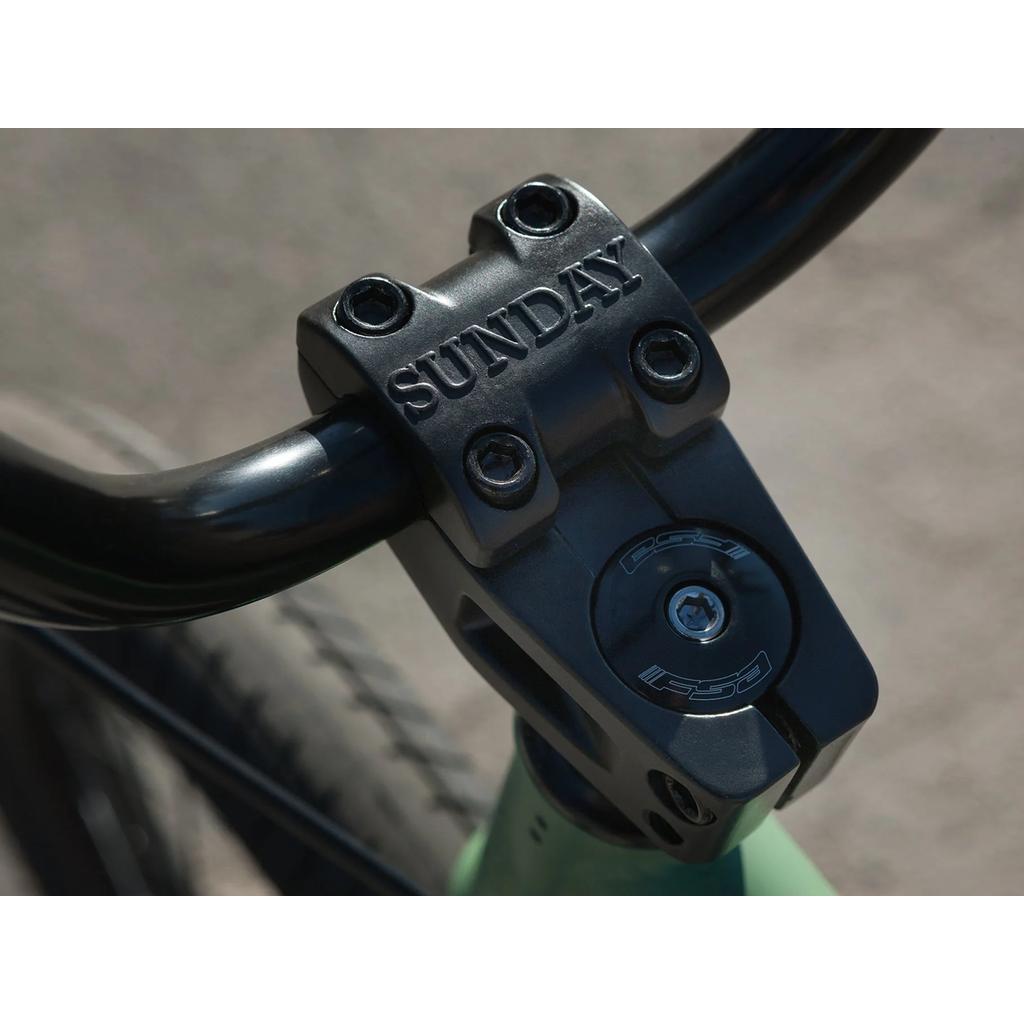

Stem - Sunday Freeze top load, 48mm
Headset - FSA integrated, 1-1/8"
Alloy Cap - FSA aluminium cap

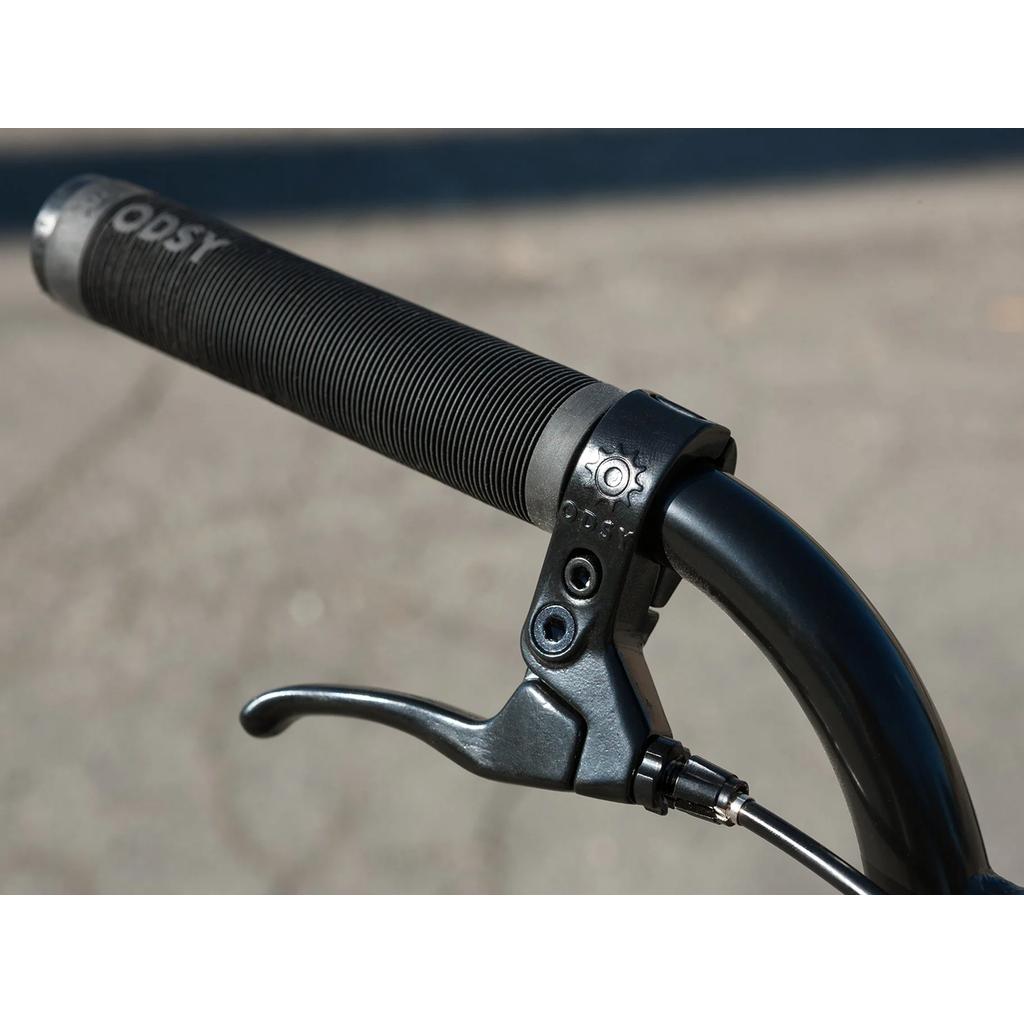

Brake Lever - Odyssey Springfield
Brakes - Odyssey Springfield U-brake
Brake Cable - Odyssey Quik Slic
Grips - Odyssey Broc Raiford, Sunday Jake Seeley (Matt Mustard only)
Seat - Sunday Badge, pivotal
Seat post - Sunday, pivotal
Seat Clamp - Sunday
Sprocket - Sunday Sabertooth v2, 25T, steel
Cranks - 170mm, 3-piece, chromoly
BB Parts - Sealed, mid, 19mm
Pedals - Odyssey Twisted PC Pro
Rims - P-7X aluminum, 20", 20H

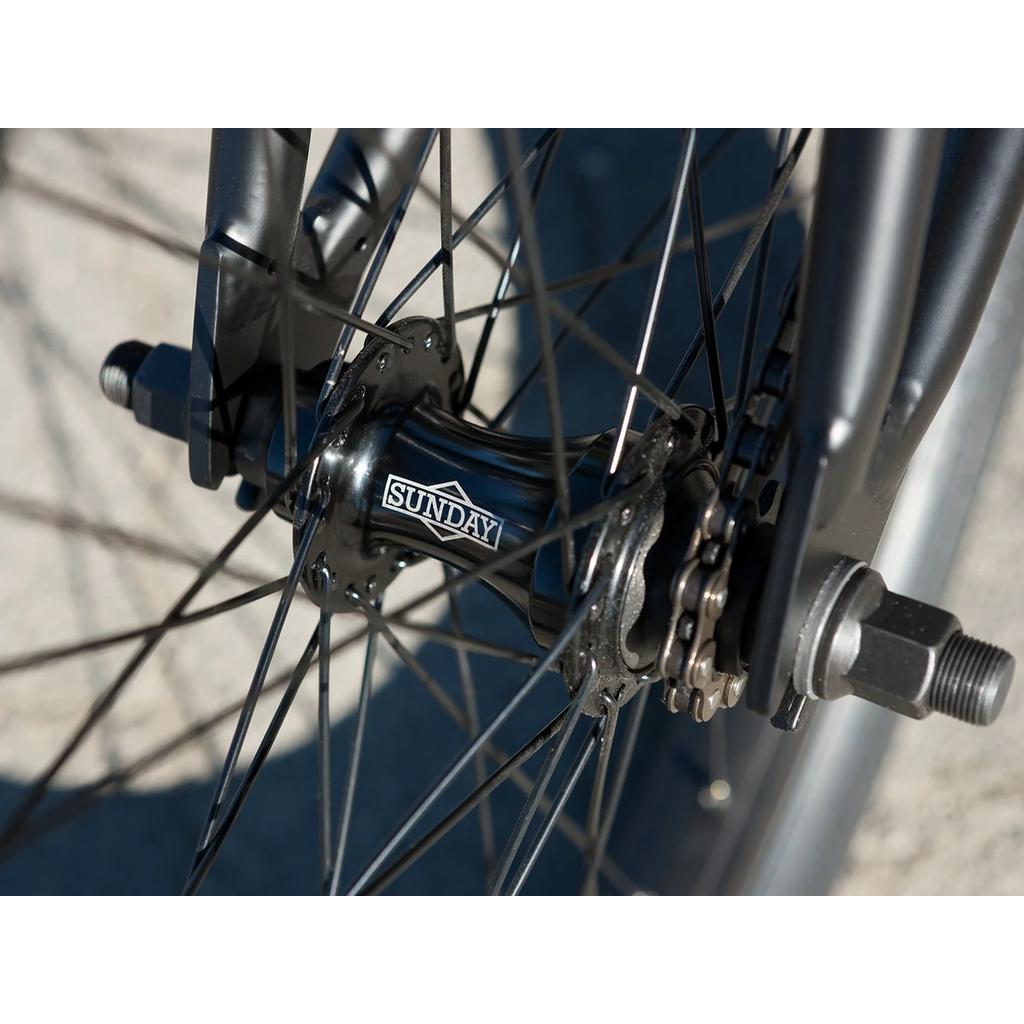

Front Hub - Sunday, 36H, low-flange, sealed, 3/8" axle
Rear Hub - Sunday 36H, sealed, 14mm axle w/ 9T Driver
Spokes - 14g steel, black
Tyres - Odyssey Path Pro OEM, 20 x 2.4" (F & R)
Chain - KMC Z1 wide
Approx. Weight - 12.16kgs (with brakes)
Frame Geometry
Top Tube Length - 20.75" / 21"
Head Tube Angle - 75.5°
Seat Tube Angle - 71°
Chainstay Length - 13.2-13.5”
Bottom Bracket Height - 11.5"
Standover - 9”

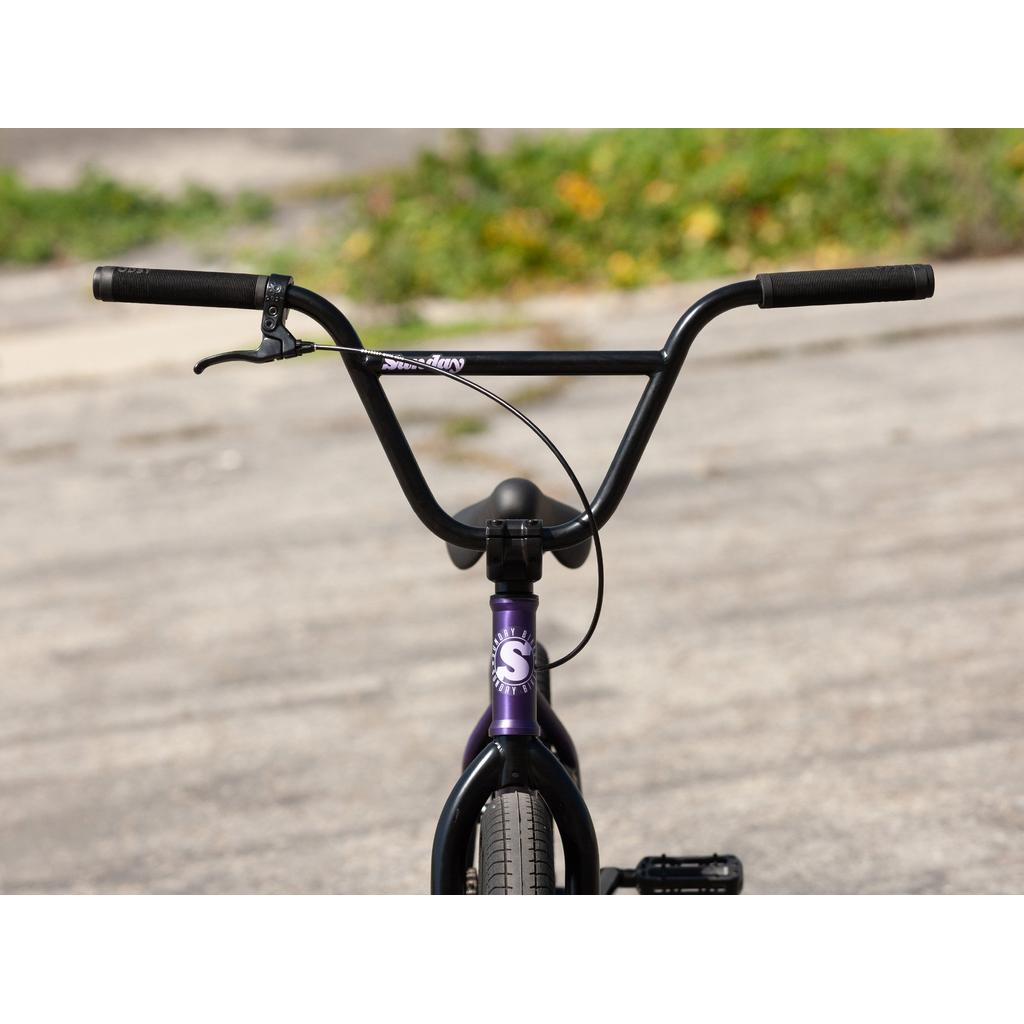

Handlebar Geometry
Rise - 9"
Width - 28.5" / 29”
Backsweep - 12°
Upsweep - 3°/4°
