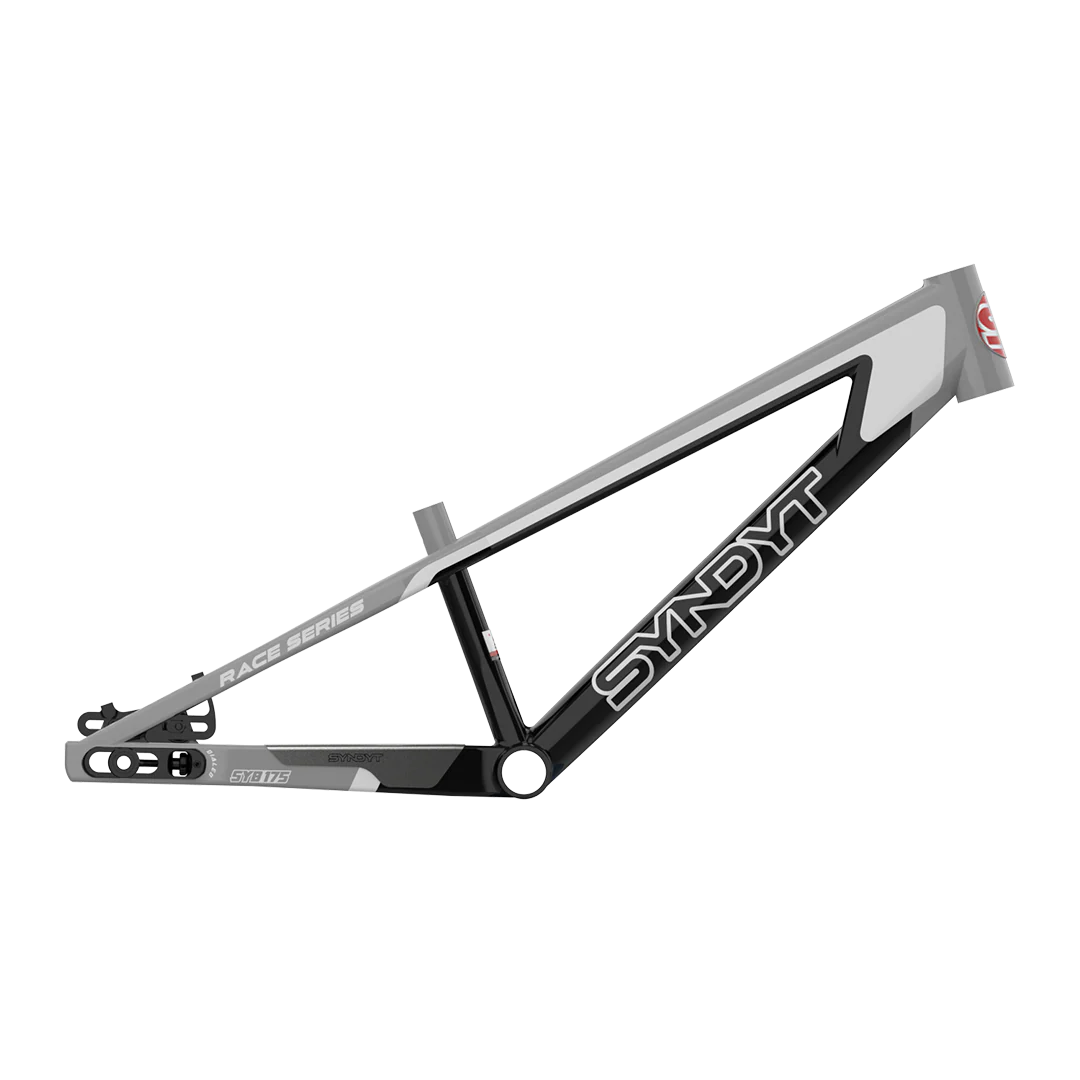

The Syndyt 175 Mini Frame is a black, white, and gray BMX racing frame made from 6061 alloy, featuring "SYNDYT" on the lower tube and crafted with advanced hydroforming technology.

A black, white, and gray Syndyt 175 Mini Frame BMX racing frame made from lightweight alloy, displayed against a plain white background.

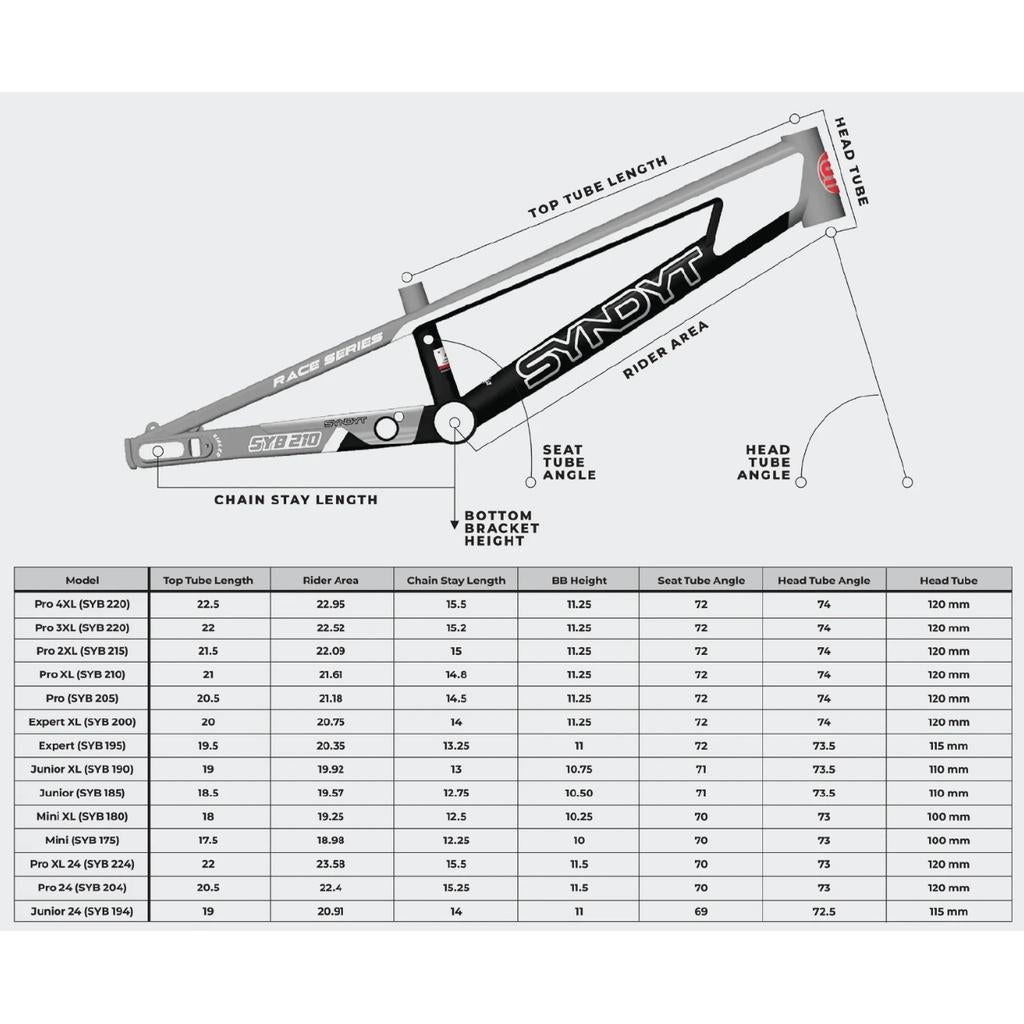

Diagram of the Syndyt 175 Mini Frame, made from lightweight alloy, featuring labeled tube and axis measurements with a chart detailing specs for various frame sizes and BMX racing frames.

Description

Introducing the SYNDYT BMX Racing Frames, a groundbreaking evolution in BMX frame design that sets a new standard for performance and exclusivity within the SYNDYT community.

Crafted from premium 6061 custom handcrafted alloy, these frames embody the perfect balance of durability, lightweight precision, and an unparalleled ride quality. Employing state-of-the-art hydroforming technology and featuring triple-butted tubes, our frames deliver optimal power transfer and responsiveness, enhancing your overall riding experience.

Features

17.5" top tube, Mini sizing. Race sizing for Mini riders, and at 1225g it is the lightest frame in the Syndyt range.
Triple-butted hydroformed 6061-T6. Hydroformed, triple-butted alloy tubes are shaped for power transfer and response without carrying extra weight.
Disc only, post mount rear. Takes a 140mm rotor and nothing larger, so pick your rotor and calliper to match.
Fits 10mm and 15mm hubs. Axle hardware for 10mm bolt-on and 15mm thru axle is included, with 110mm rear spacing or 152mm frame width in thru axle.
Integrated tensioners, headset included. 38mm of chain adjustment built into the dropouts, plus a headset for 1" and tapered 1" to 1 1/8" steerers.

Specifications

Top tube: 17.5" (Mini)
Bottom bracket: 68mm European shell
Material: 6061-T6 aluminium, hydroformed
Butting: Triple-butted tubes
Dropouts: Integrated chain tensioners with 38mm of adjustment
Brake mounts: Disc only, post mount, 140mm rotor
Cable routing: Internal rear brake
Head tube: Tapered 38/42 integrated, 1" to 1 1/8"
Seat tube: 22.2 seat post
Seat clamp: 25.4
Axle: 10mm bolt-on or 15mm thru axle, hardware included
Axle size: 110mm O.L.D. rear hub spacing, 152mm frame width with 15mm thru axle
Wheel size: 451mm
Weight: 1225g
Note: Includes headset for 1" steerer and tapered 1" to 1 1/8"
