Wethepeople Revolver Frame (2022)

Sale price$699.99 AUD

Or 4 payments of $174.99 AUD with

Colour

Top Tube Length

Select Option

View All
Wethepeople Revolver Frame (2022) / Kashima Bronze / 20.75TT

Wethepeople Revolver Frame (2022) / Kashima Bronze / 20.75TT

Sale price$699.99 AUD

Price match

WPFR101-02-BNZ

Sold Out

Description

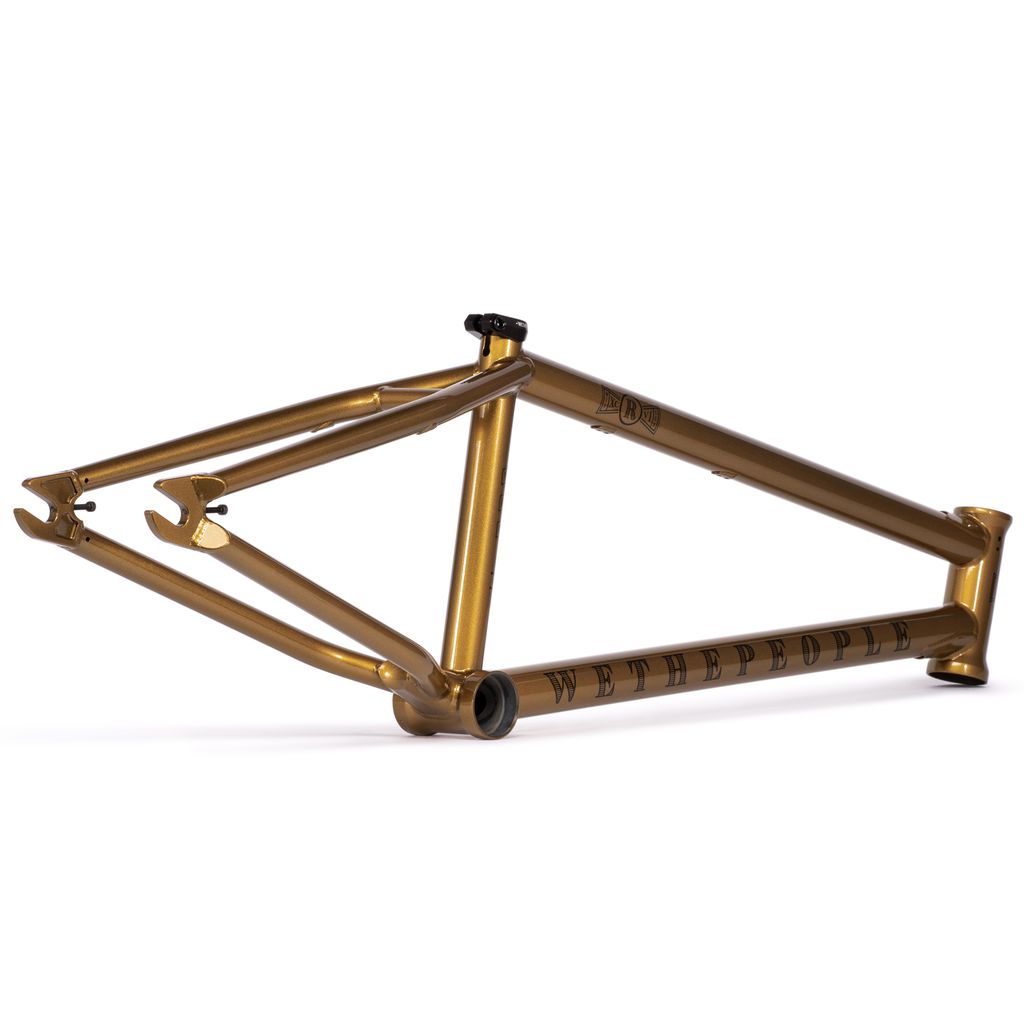

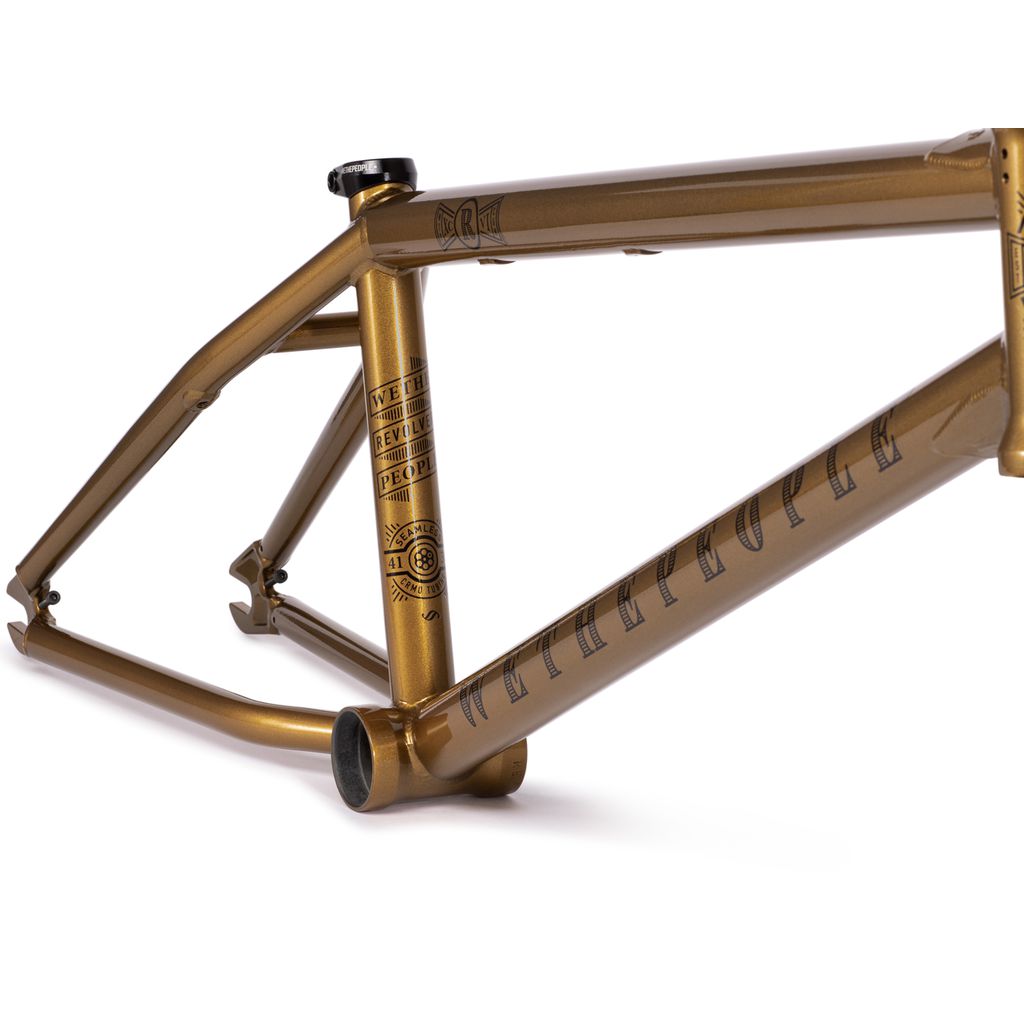

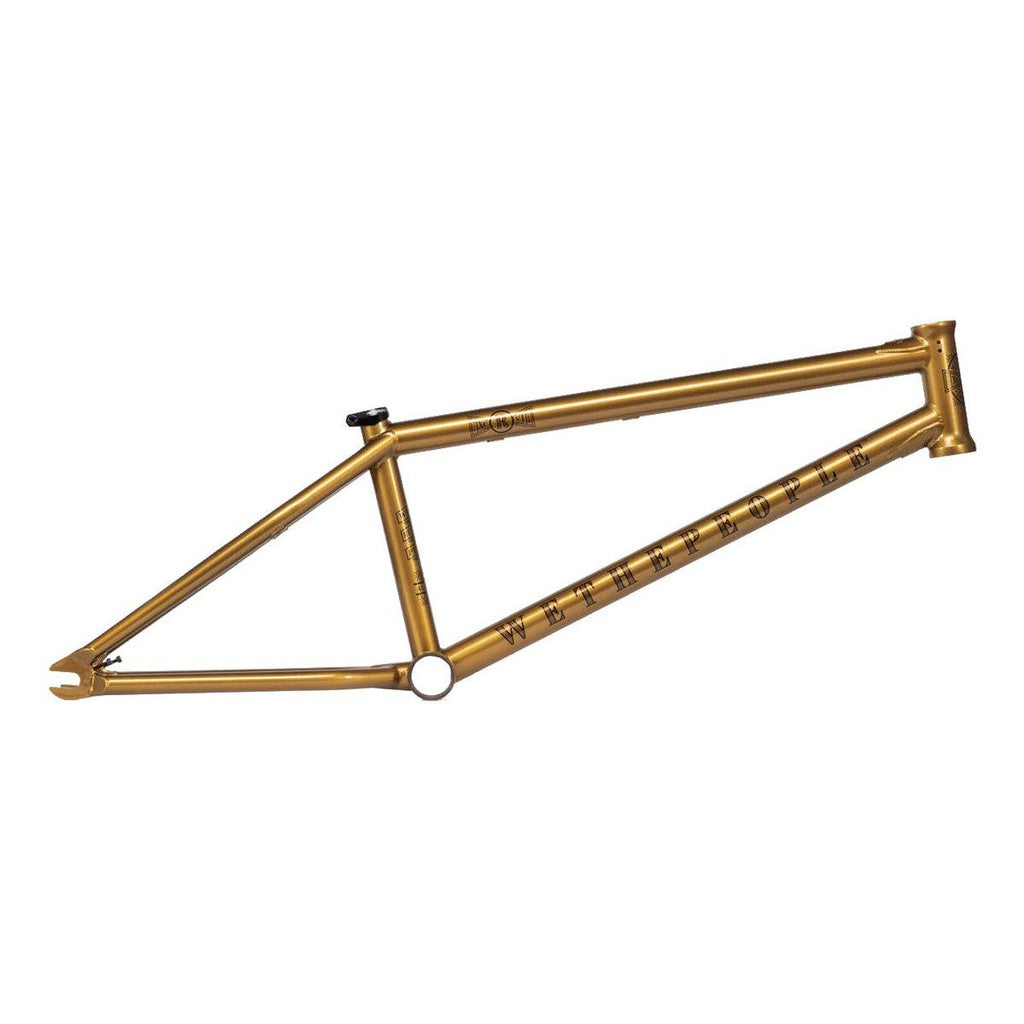

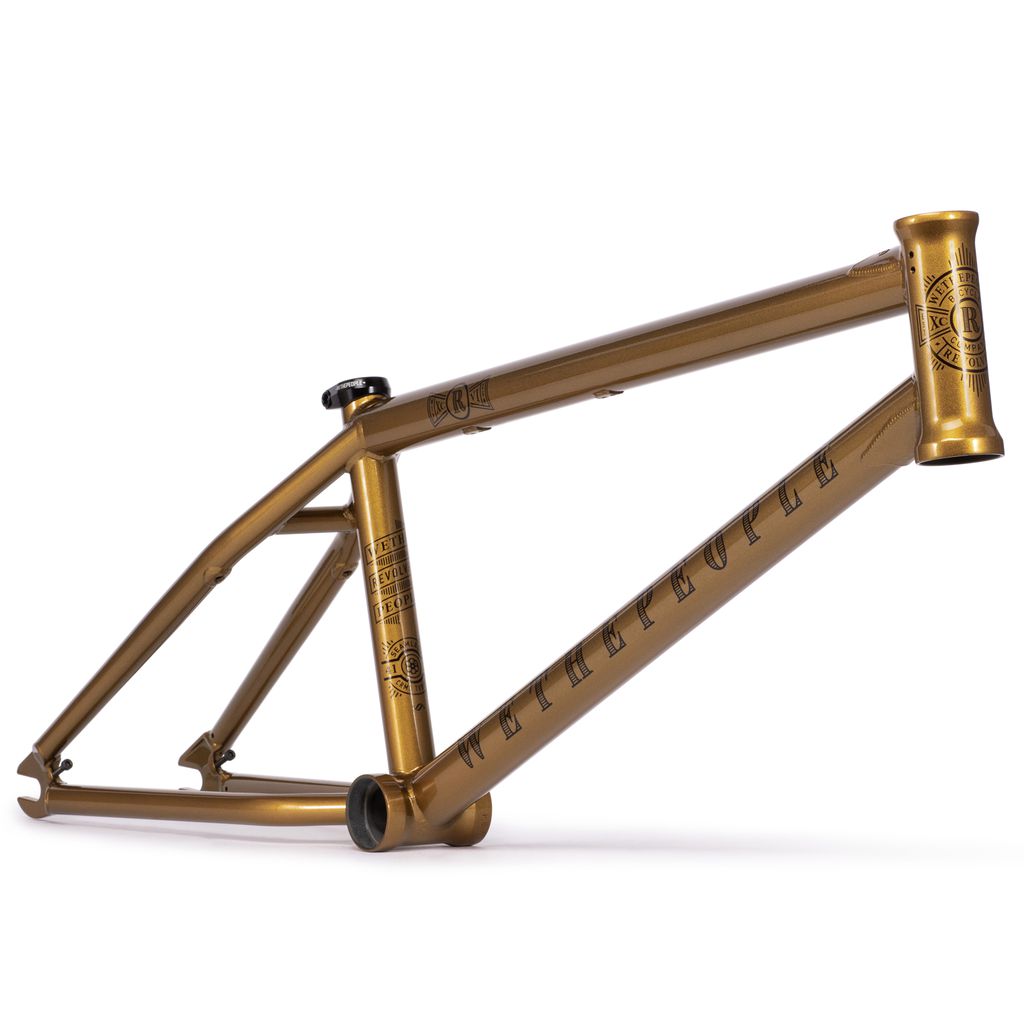

Wethepeople Revolver Frame (2022)

Load up one of these epic frames and fire out some tricks. This all rounder frame is built for shredding the gnar and keeping it steazy! A medium sized 13.25""-13.75 rear end is the perfect balance of stability and agility and the low 11.5 Inch Bottom Bracket provides a stable feel through the bike. This sure is one sweet frame!


• perfect all-round frame with carefully balanced geometry, and bullet-proof tubing
• investment cast wishbone design for an extra stiff backend
• larger radius stay tubing for a stiffer and stronger back end
• wider rear triangle allows clearance for a 2.4"" tire
• wtp top tube and down tube gusset
• includes wtp supreme 6061-t6 alloy aftermarket seat clamp
• includes lifetime guarantee
Weight
: 2.385kgs (5.25lbs) - 21"" tt


Tubing: Butted, japanese seamless 4130 crmo tubing
Bottom bracket : 74mm mid size, cnc machined and heat-treated
Head tube: 127mm cnc machined and heat-treated, integ. H/set, drilled for gyro tabs
Dropouts: 7.5mm investment cast with integrated chain tensioners, heat-treated 4130 crmo
Brakes: Pivot-3 removable brake mounts, frame comes without repl. Brake hardware

Geometry:
top tube length
: 20.75"", 21"" or 21.25""
Chain stay length: 13.25""-13.75'' - optimized for 13.25""/13.5'' w/ 28-9
Head tube angle: 74.85°
Seat tube angle: 71°
BB height: 11.5""
Standover height: 9.1""

About the Brand

Wethepeople BMX began making its mark on history almost 15 years ago. Designing the first rough drawings of their frames and forks around the same time as the world started to see BMX in a different light, a time when rails were first grinded and the possibility that riding the streets was in fact the true way forward. To achieve their aims, Wethepeople knows exactly how to deploy their strengths with an efficiency that is unmatched in the BMX industry.

Features

• perfect all-round frame with carefully balanced geometry, and bullet-proof tubing
• investment cast wishbone design for an extra stiff backend
• larger radius stay tubing for a stiffer and stronger back end
• wider rear triangle allows clearance for a 2.4" tire
• wtp top tube and down tube gusset
• includes wtp supreme 6061-t6 alloy aftermarket seat clamp
• includes lifetime guarantee
Weight: 2.385kgs (5.25lbs) - 21" tt

Specifications

Tubing: Butted, japanese seamless 4130 crmo tubing
Bottom bracket : 74mm mid size, cnc machined and heat-treated
Head tube: 127mm cnc machined and heat-treated, integ. H/set, drilled for gyro tabs
Dropouts: 7.5mm investment cast with integrated chain tensioners, heat-treated 4130 crmo
Brakes: Pivot-3 removable brake mounts, frame comes without repl. Brake hardware

Geometry:
top tube length: 20.75", 21" or 21.25"
Chain stay length: 13.25"-13.75'' - optimized for 13.25"/13.5'' w/ 28-9
Head tube angle: 74.85°
Seat tube angle: 71°
BB height: 11.5"
Standover height: 9.1"
