Highlights

Proven 6061 aluminium race frame
100% chromoly fork and 8" bars
Forged alloy 2-piece 175mm cranks
Sealed bearings throughout

Description

For 2021, the DK Sprinter Series bikes solidify their place as one of Australia's most popular race bikes. This bike is designed for serious BMX racing at prices that will keep your budget on track. All the Sprinter models start with a proven 6061 aluminium frame:

Light, responsive, and sturdy enough to withstand the rigors of BMX. On the front end of each Sprinter, you’ll find chromoly forks that can handle repeated harsh landings and keep you running straight out of the gate. All the Sprinters have sealed bearings throughout, linear braking systems, and alloy cranks in different lengths to accommodate each size in the range.

From the smallest Sprinter, the Micro, sporting an 18 x 1” wheelset, all the way up to the 24” Sprinter Cruiser, each bike in the collection features size specific specifications to accommodate riders for each class of bike. The smaller bikes see narrow tires and aluminum bars, while the Pro size and up Sprinters feature chromoly bars and more tire width to carry the weight of bigger riders, at speed. In terms of performance, quality, and value, you’ll be hard pressed to find better race bikes for the buck than the DK Sprinter series.

Features

Proven 6061 aluminium race frame. A 21" top tube and 14.8" chainstays for bigger riders, with 3D dropouts and internal cable routing: light, responsive and sturdy.
100% chromoly fork and 8" bars. The Pro size and up Sprinters run chromoly bars to carry the weight of bigger riders at speed, and the fork handles repeated harsh landings.
Forged alloy 2-piece 175mm cranks. On a 24mm external European bottom bracket, turning a 44-tooth 4-bolt chainring and 16-tooth cassette: 44/16 gearing, 54.72in.
Sealed bearings throughout. Fully sealed DK alloy hubs on 3/8" chromoly axles, a sealed integrated headset and 36-hole double wall alloy rims, with wider Arisun XLR8 tyres for bigger riders.
Race-ready at 10.2 kg. Alloy Pro linear V-brake, DK Tsuka grips with press-in bar plugs, DK Blender pedals and a DK Pro seat/post combo, in Smoke Chrome.

Specifications

Size: Pro XL, 20" wheels
Frame: 6061 aluminium with 3D dropouts and internal cable routing
Top tube: 21"
Chainstay: 14.8"
Head tube angle: 74°
Seat tube angle: 72°
Fork: 100% chromoly with tapered legs
Headset: Sealed integrated
Stem: Alloy top load, 50mm reach
Bars: 8" rise, 100% chromoly
Grips: DK Tsuka
Bar ends: Press-in bar plugs
Brakes: Alloy Pro linear V-brake
Brake lever: Alloy
Cranks: Forged alloy 2-piece, 175mm
Bottom bracket: 24mm European external (outboard)
Chainring: 44-tooth, alloy, 4-bolt
Chain: KMC Z-610 3/32"
Pedals: DK Blender PC platform
Front hub: DK alloy, fully sealed, 3/8" chromoly axle
Rear hub: DK alloy, fully sealed, 3/8" chromoly axle, 16-tooth cassette
Rims: Alloy, double wall, 36-hole
Tyres: Arisun XLR8, 20x1.95" front, 20x1.75" rear
Seat: DK Pro 1-piece seat/post combo
Seat post: Integrated, 27.2mm, alloy
Seat clamp: Alloy
Gearing: 44/16 (54.72in)
Weight: 10.2 kg
Colour: Smoke Chrome

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

Fit the handlebars and line them up with the front wheel
Fit the front wheel, pedals and seat post
Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

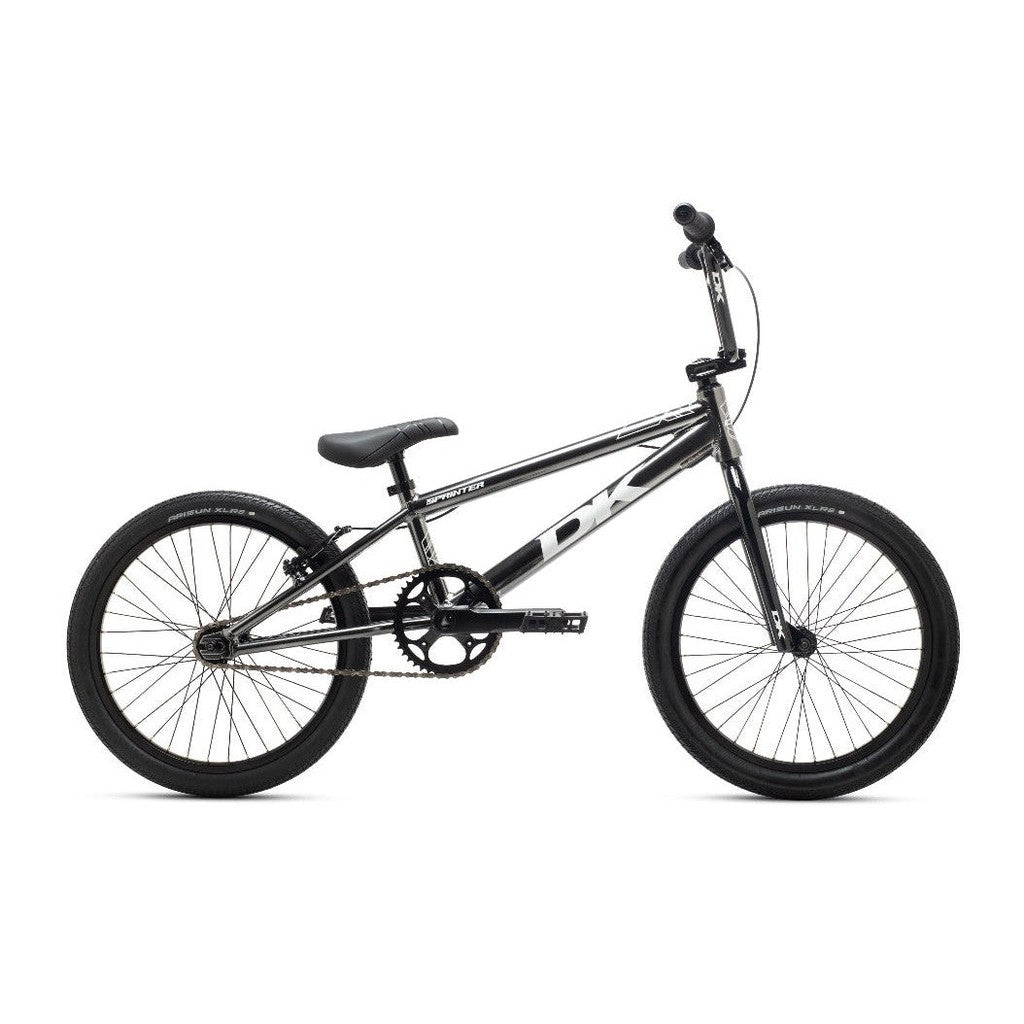

DK Sprinter Pro XL Bike

Name: DK Sprinter Pro XL Bike
Brand: DK Bicycles
SKU: DKXR21CB2435A
Price: 999.99 AUD
Availability: OutOfStock

Brand: DK Bicycles SKU: Click to copy the SKU and show the pick location

$999.99 AUD

Or 4 payments of $249.99 AUD with

Recommended Rider Height:

165-180cm

Colour - Smoke

Top Tube Length - 21

Race frames are sized by class, and the class you ride is set by rider height rather than age.

Size	Rider height	Top tube
Micro (18" wheels)	Under 120cm	16.25"
Mini (20" wheels)	110 to 140cm	17 to 18"
Junior	120 to 150cm	18.25 to 18.75"
Expert	130 to 170cm	19.5 to 19.75"
Expert XL	145 to 170cm	20 to 20.75"
Pro	150 to 175cm	20.25 to 20.75"
Pro XL	165 to 180cm	21 to 21.25"
Pro XXL	170 to 185cm and up	21.5 to 21.85"
Pro XXXL	175cm and up	22"
Pro XXXXL	180cm and up	22.5"
Cruiser (24" wheels)	175cm and up	21.5" and up

Heights overlap between classes on purpose. Where you land in two, a growing rider is usually better on the larger, and a rider who wants the bike to turn faster on the smaller. Some brands label the Pro size Pro L, with the same fit.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Between two sizes and still growing? Take the larger size.
Racing gates and wanting the bike to turn faster? Take the smaller size.
Top tube is the number that actually changes the fit, so compare it against the bike they ride now.

Not sure? Send us their height and we will tell you what we would put them on.
