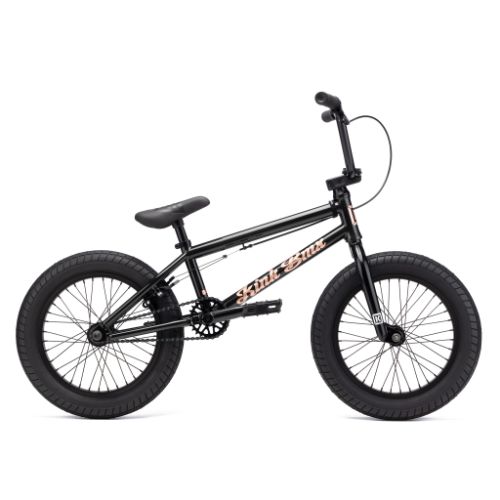

A Kink Carve 16 Inch Bike with thick tires, a straight horizontal bar, Mission parts, and orange lettering on the frame.

The Kink Carve 16 Inch Bike features a stylish black frame and robust tires, capturing the true spirit of BMX against its dark backdrop. Meticulously designed, this bike includes key Mission components for exhilarating rides.

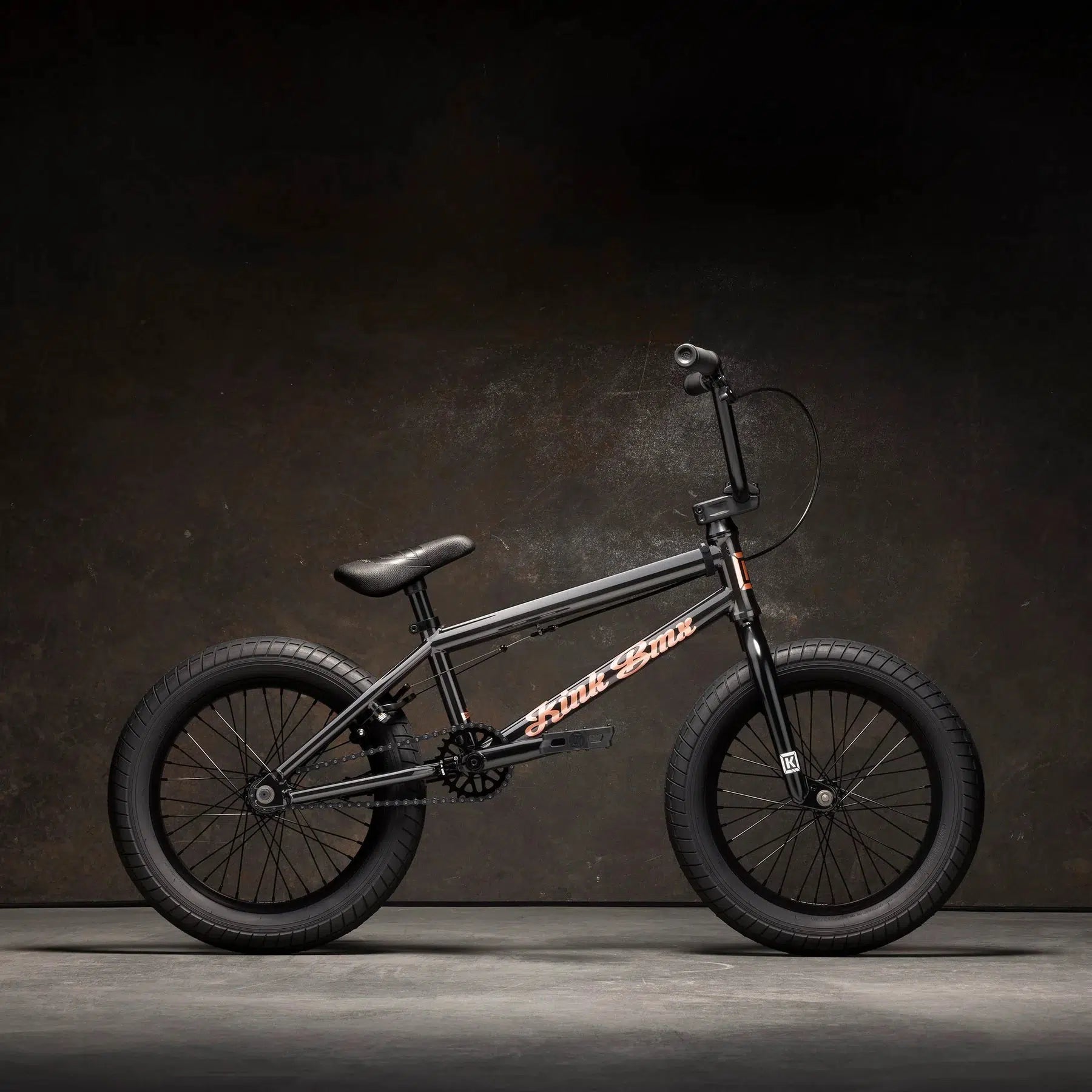

The Kink Carve 16 Inch Bike, with its black BMX style, highlights its simple frame and small seat with thick tires and Mission parts against a dark background.

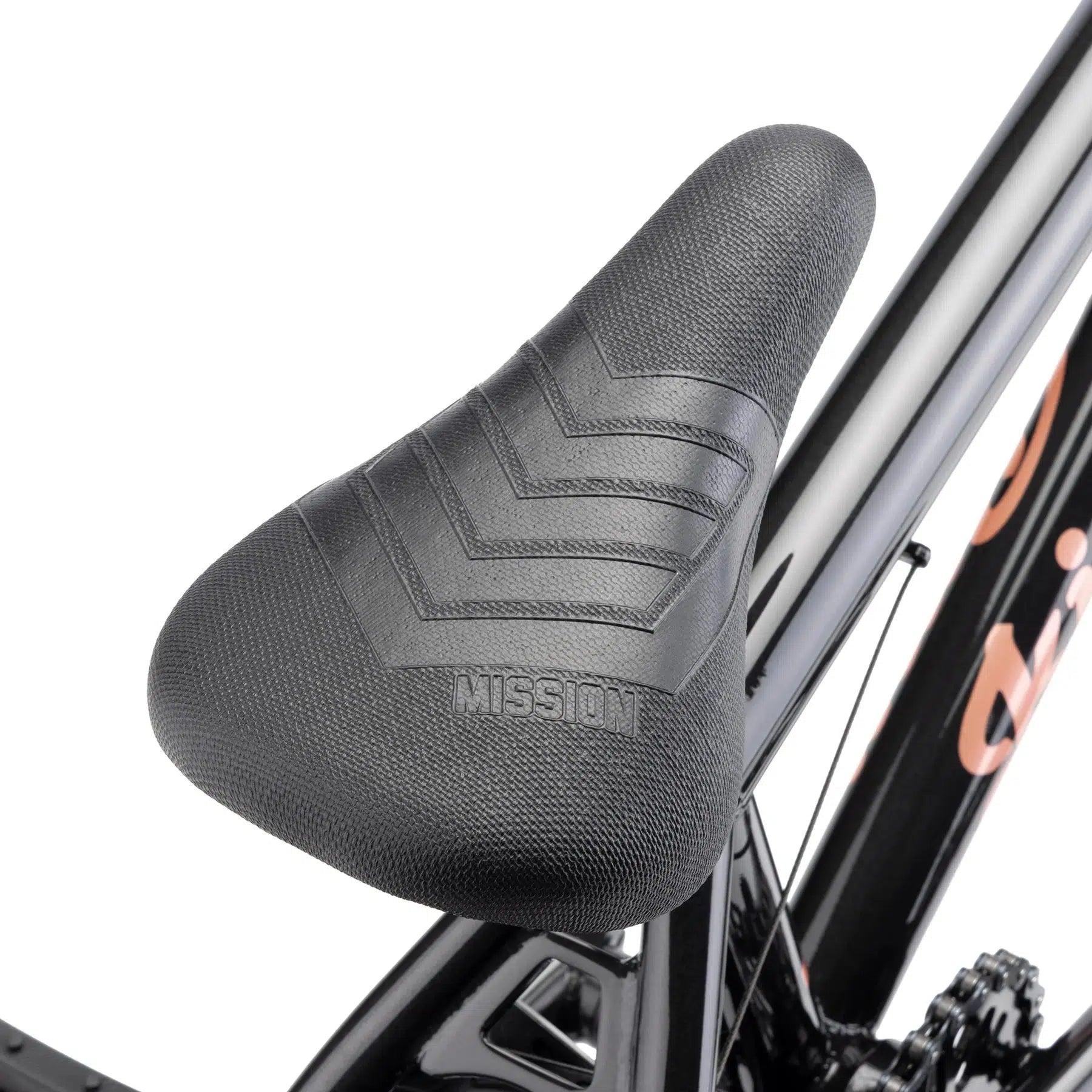

Close-up of a black bike saddle featuring the word "MISSION," mounted on a sleek black BMX bike frame from Kink Carve 16 Inch Bike by Mission parts.

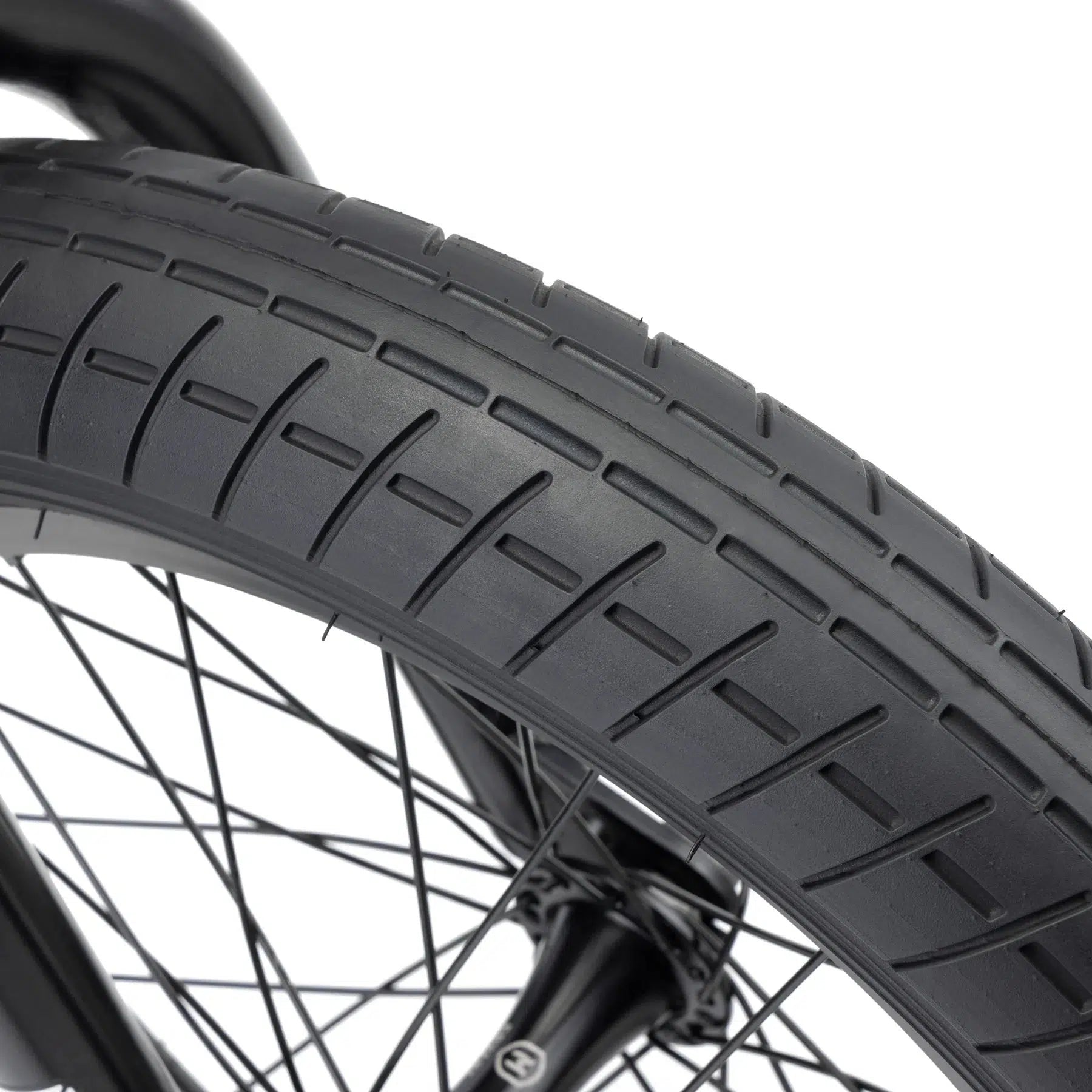

Close-up of a BMX bike tire from the Kink Carve 16 Inch Bike, showcasing a tread pattern along with visible spokes and part of the wheel, echoing the durable design typical of Mission parts.

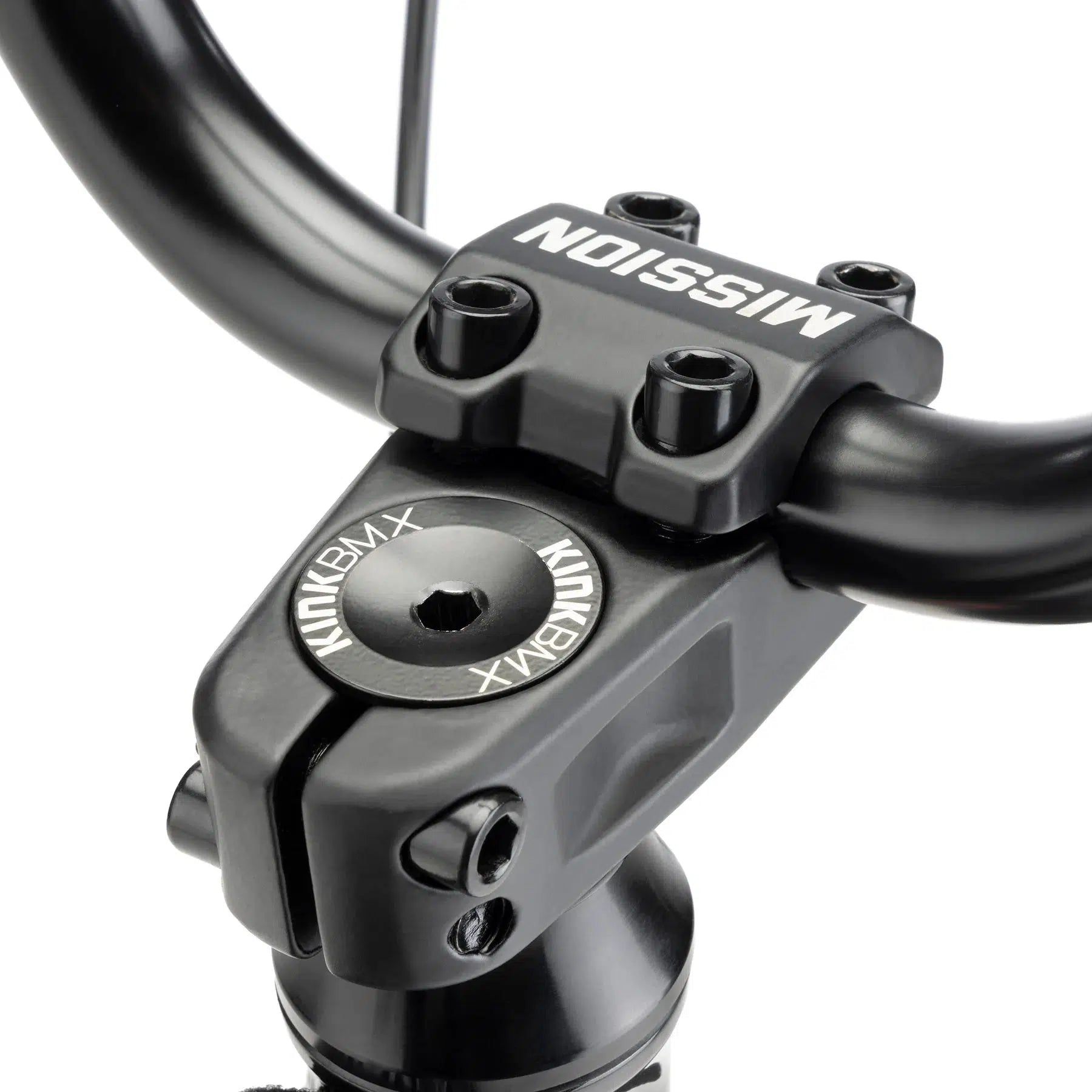

Close-up of a black bike stem and handlebars, featuring secure bolts and Mission branding details, ideal for the Kink Carve 16 Inch Bike.

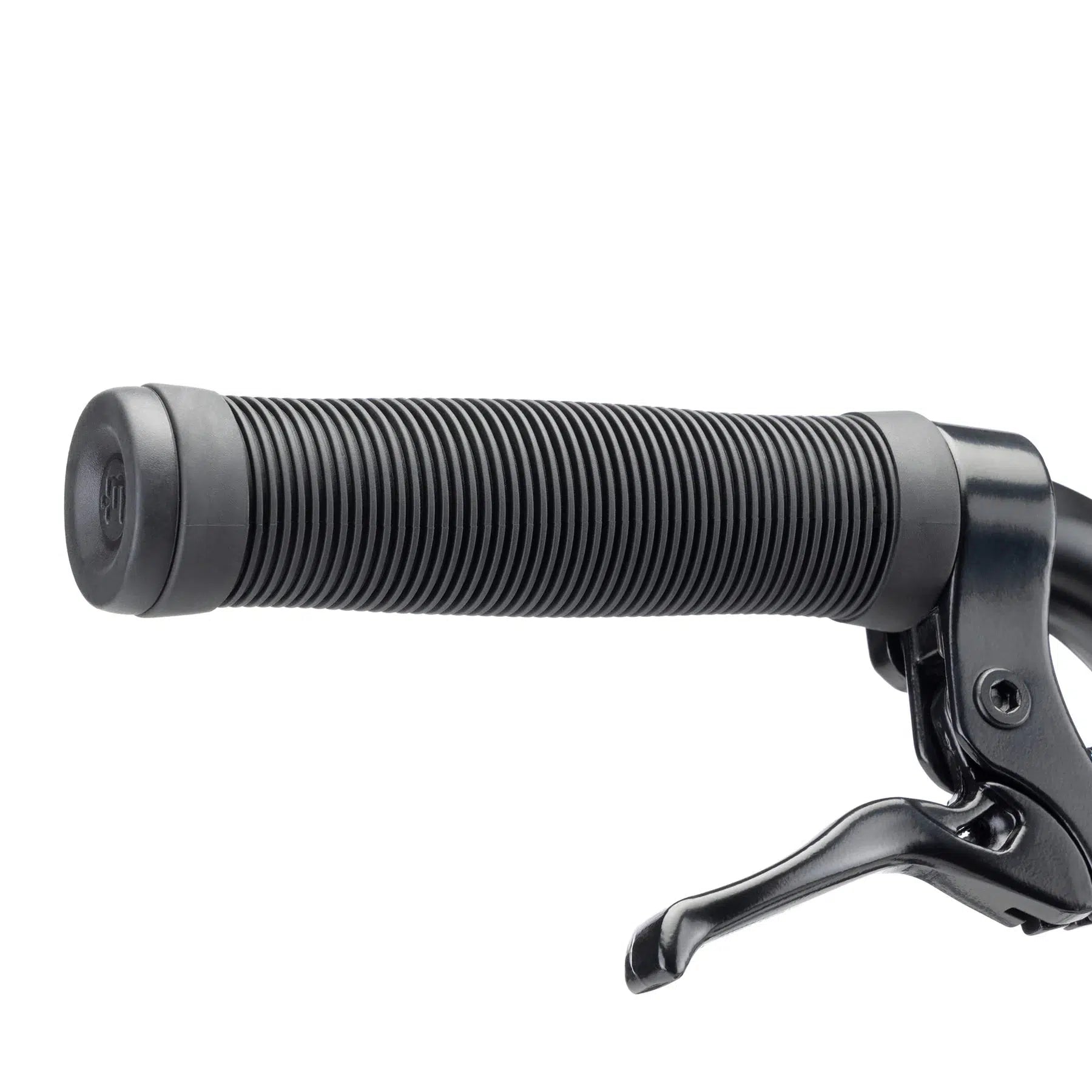

A close-up of the black handlebar grip on a BMX bike features a ridged texture and an integrated brake lever, showcasing the high-quality design associated with Mission parts used in the Kink Carve 16 Inch Bike.

Description

Back again for 2023, the Kink Carve is a staple in the 16 inch bike category. Great parts, top notch build quality and with a name like Kink behind it you know it's the goods. The first thing you will notice about this beast is it's clean and stylish Gloss Digital White colourway which is sure to stand out at any skatepark. The next thing you will likely notice will be the plethora of Mission parts stacking this bike creating one super solid steed. Parts include Mission X7 Rims, Mission Triumph 3pc Tubular Chromoly Cranks, Mission Rank 25T Sprocket, Mission Cypress Mini Combo Seat and loads more. These sure are a young shredders dream bike.

The Kink Carve 16” bike is the younger sibling of our Kicker 18”, and it ensures every age and every height rider can find a perfect fitting Kink bike. Kids are getting into BMX younger and younger, and we love it. The 2023 Carve comes in a great Gloss Digital White color, which is complimented by black components throughout.

Properly proportioned geometry and components create a modern, yet comfortable ride, suited for the rider who isn’t ready for the bump up to a larger 18” bike yet. Still stacked with great parts, the 2023 Carve comes with 7” Kink T700 bars, a short reach 40mm Mission topload stem, rock solid 3-piece tubular chromoly cranks with sealed Mid bottom bracket, a sealed integrated headset, and modern tread design 2.4” tires.

Features

Proper geometry for smaller riders. Properly proportioned geometry and components give a modern yet comfortable ride for the rider who isn't ready to bump up to an 18" bike.

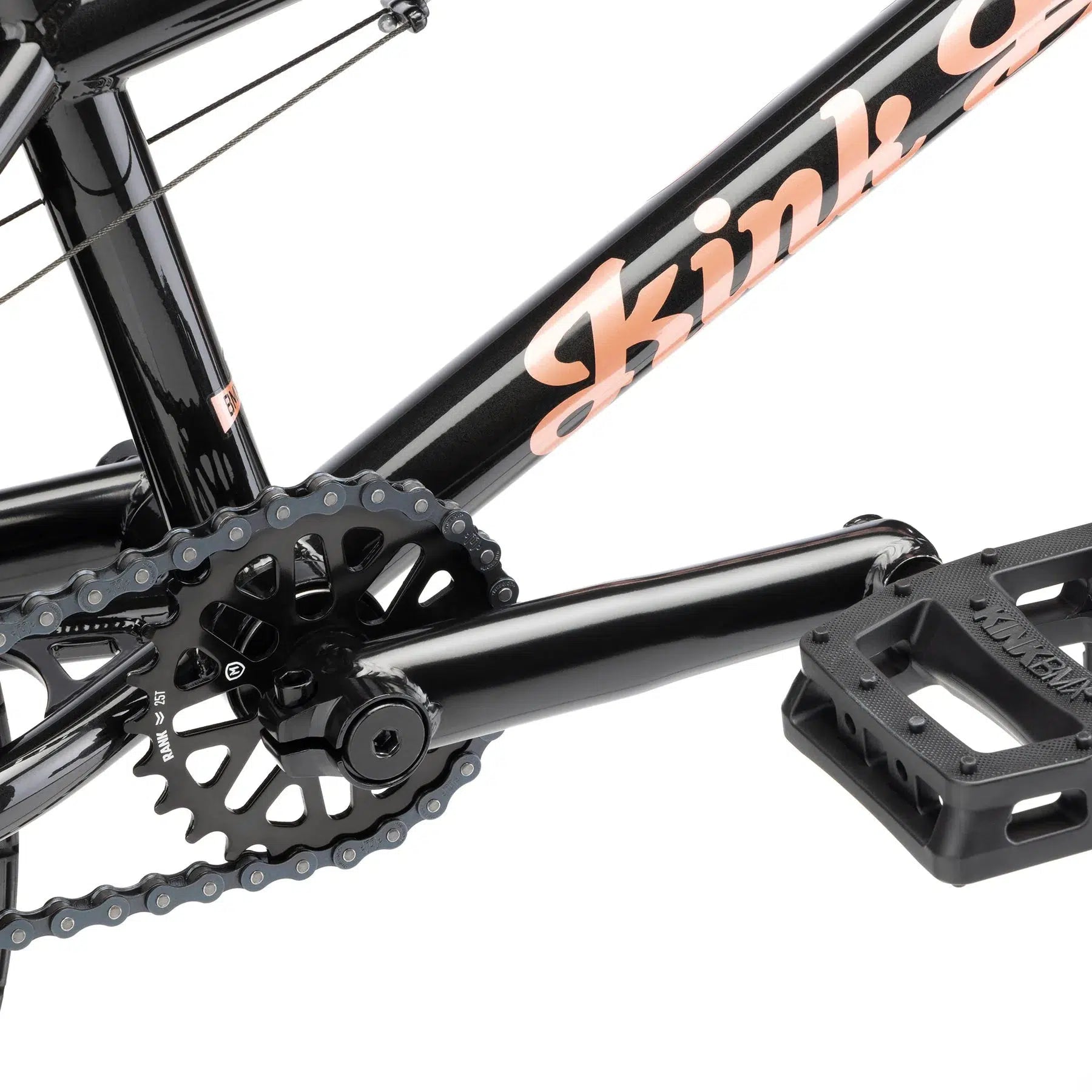

3-piece tubular chromoly cranks. Rock solid Mission Triumph 140mm 8-spline cranks, spinning on a sealed 19mm Mid bottom bracket.
Comfortable, short-reach cockpit. 7" Kink T700 bars on a short reach 40mm Mission topload stem, with Mission Helix Mini grips and a Mission Mini lever pulling Mission Cease V2 brakes.
Modern tread 2.4" tyres. Mission Tracker 16 x 2.4" tyres on Mission X7 rims, with a Mission Function semi-sealed 9T cassette hub and Mission Rank 25T sprocket driving them.
Gloss Digital White with black parts. A clean colourway that stands out at the skatepark, on a Hi-Ten frame with a chromoly-steerer Kink Stryker fork and sealed integrated headset, 10.4 kg all up.

Specifications

Size: 16" wheels, 16.5" top tube
Frame: Kink Carve, 100% Hi-Ten steel
Chainstay: 11.25"
Head tube angle: 74.5°
Seat tube angle: 71°
Standover: 6.75"
Bottom bracket height: 9.75"
Fork: Kink Stryker, 4130 chromoly steerer, tapered 32mm legs
Headset: Mission sealed integrated (41.8 x 45)
Stem: Mission Topload, 40mm
Bars: Kink T700, 7" rise, 100% Hi-Ten steel
Grips: Mission Helix Mini
Brakes: Mission Cease V2 with Mission L1 Linear cable
Brake lever: Mission Mini
Cranks: Mission Triumph 3-piece tubular chromoly, 140mm, 8-spline
Bottom bracket: Sealed Mid, 19mm
Sprocket: Mission Rank, 25T
Chain: Mission 410
Pedals: Kink Hemlock
Front hub: Mission Covert, unsealed, 3/8" axle
Rear hub: Mission Function semi-sealed cassette, 14mm axle, 9T
Rims: Mission X7
Tyres: Mission Tracker 16x2.4"
Seat: Mission Cypress Mini combo
Seat post: Mission combo steel post
Seat clamp: Mission Slim
Gearing: 25/9
Weight: 10.4 kg
Colour: Gloss Digital White with black components

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

Fit the handlebars and line them up with the front wheel
Fit the front wheel, pedals and seat post
Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Kink Carve 16 Inch Bike

Name: Kink Carve 16 Inch Bike
Brand: Kink
SKU: KIBI23K408WHT
Price: 639.99 AUD
Availability: OutOfStock

Brand: Kink SKU: Click to copy the SKU and show the pick location

$639.99 AUD

Or 4 payments of $159.99 AUD with

Recommended Rider Height:

96-122cm

Colour - Gloss Digital White

Top Tube Length - 16.5

A 16 inch bike suits a rider of about 96 to 122cm, usually 4 to 7 years old, on a 16 to 16.5 inch top tube. It is the size most kids learn to ride properly on.

Rider height	Wheel size	Top tube
60 to 91cm	12"	12 to 12.5"
81 to 106cm	14"	14 to 14.5"
96 to 122cm	16"	16 to 16.5"
122 to 147cm	18"	18 to 18.5"
147 to 157cm	20"	19.75 to 20.25"
157 to 168cm	20"	20 to 20.5"
168 to 175cm	20"	20.25 to 20.75"
175 to 183cm	20"	20.5 to 21"
183 to 190cm and up	20"	20.75 to 21.5"
160cm and up	22"	21 to 22.25"
160cm and up	24"	21.75 to 22"
160cm and up	26"	22 to 23"

Sizes overlap on purpose, so personal preference comes into it. At this wheel size the top tube barely changes the fit: go by height, and check they can stand over the bike flat footed.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Between two wheel sizes? Go up. Kids grow into a bike far faster than they grow out of the fun.
They should be able to stand over the top tube with both feet flat on the ground.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide
