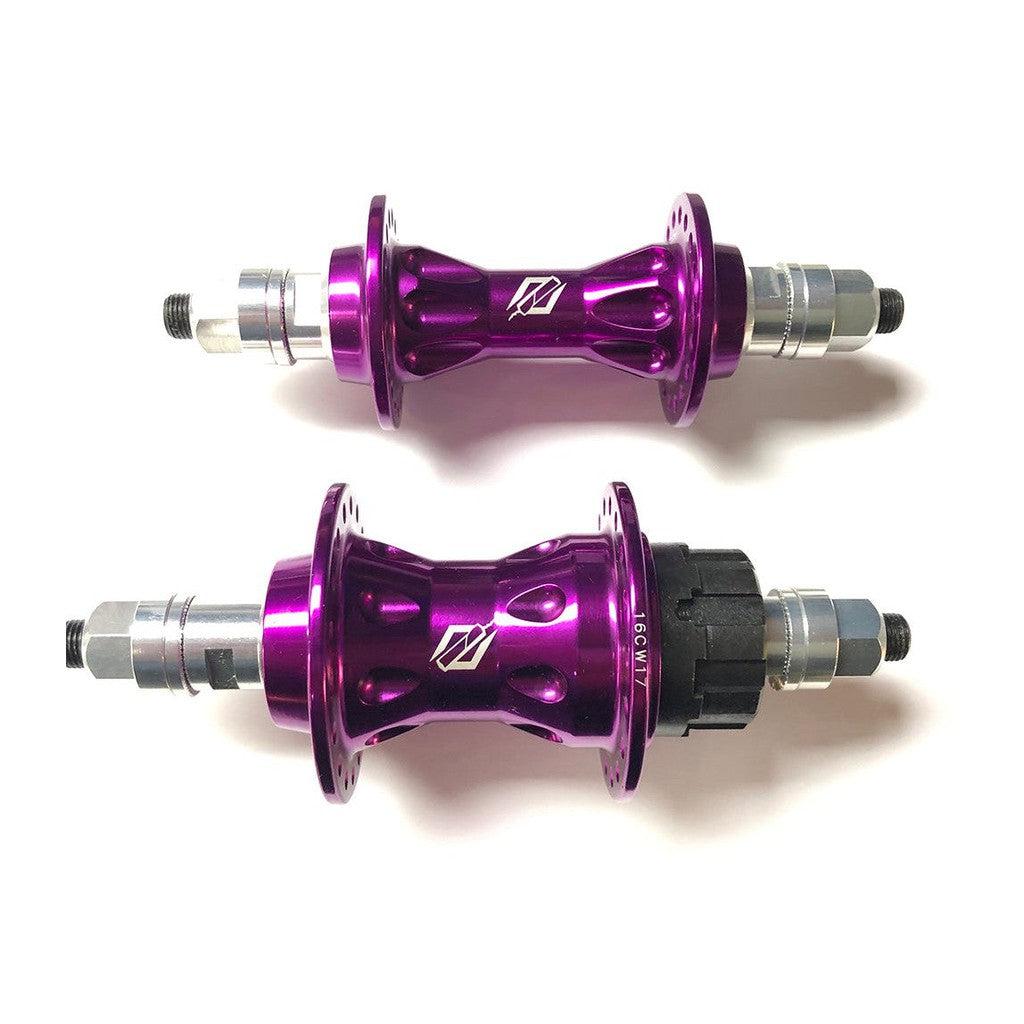

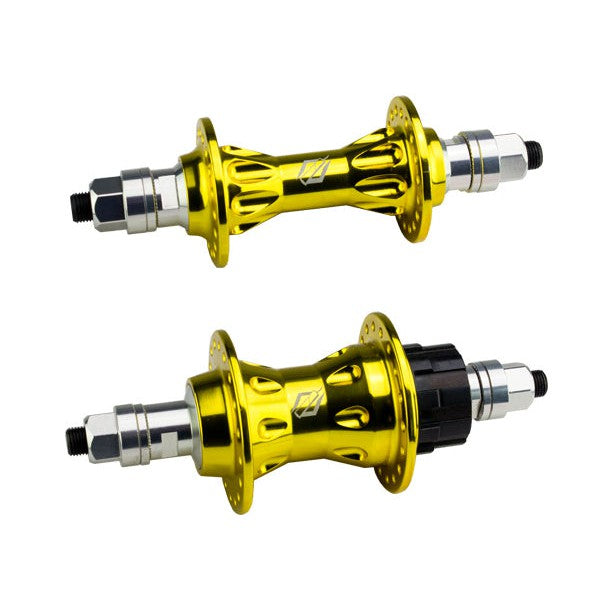

The TNT Pro Cassette hub set is designed after the original Derringer & Revolver models. Their unique body style is manufactured from CNC machined 6061-T6 aluminum with 3/8″(10mm) solid chromoly axles, aluminum hardware and precision sealed bearings. The Shimano compatible chromoly driver has a multi-splined 3 pawl engagement system for practically instant engagement.
Your TNT hub set comes stock with a 16T chromoly cog, spacers, and aluminum lock ring for an affordable Pro hubset that will help you lay down black strips out of the gate every day of the week #PBs
Weight: 617g (without cog)
Front Hub Details:
1. Flange Size = 38mm, (measured from center to center
of spoke hole)
2. Flange Distance = 63mm, (measured from center of
flange to center of flange)
3. Center of Hub to Center of Flange = 31.50mm
4. Axle Length = 150mm (Chromoly Axle) (3/8″ x 26tpi)
5. Hub Spacing = 100mm (to fit between dropouts)
6. Bearings = 2 Sealed
Rear Hub Details:
1. Flange Size = 52mm, (measured from center to center
of spoke hole)
2. Flange Distance = 52mm, (measured from center of
flange to center of flange)
3. Center of Hub to Center of Flange = 26.00mm
4. Axle Length = 160mm (Chromoly Axle) (3/8″ x 26tpi)
5. Hub Spacing = 110mm (to fit between dropouts)
6. Bearings = 4 Sealed
7. 120 points, 3 pawls
